PC Cooler Slim Low Profile CPU Fan for Mini PC Intel LGA755/1150//1155/1156 and AMD AM2/AM2+/AM3/AM4/FM1 (height 27mm)
The Slim CPU cooler provides an efficient CPU cooling solution for building a HTPC on a budget. With an ultra low 36mm profile, it is designed to fit in slim type cases. The Slim doesn't cut corners in regards to cooling. Its 2 heatpipes, bonded with aluminum fins and base, provides excellent thermal conductivity of damaging heat away from the CPU. The fan spins between 1000 and 2700 RPM depending on the actual CPU load at a quiet noise level.
The Slim installs quickly and easily – and without tools – using push pins to provide good contact with the CPU's heat spreader. This highly rated cooler will help protect your investment on Intel socket LGA 1150/1155/1156 with support for CPUs up to 75W TDP.
ULTRA LOW HEIGHT DESIGN WITH SUPERIOR COOLING PERFORMANCE

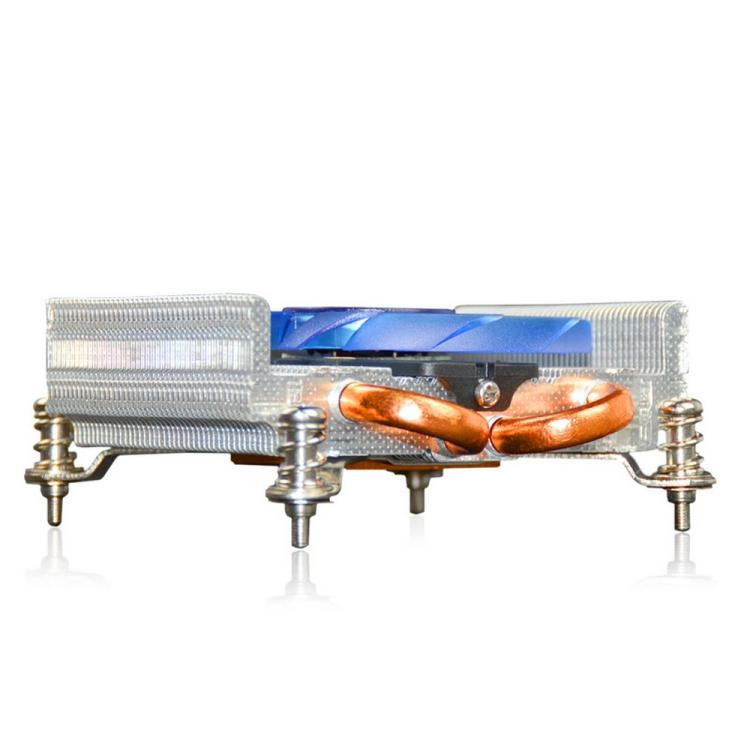

The Slim features a low 36mm profile to fit in slim type case. Its dual heatpipes design with high-density aluminum fins provides ideal heat dissipation, plus a 92mm, low noise fan to deliver optimal cooling performance.
PWM FUNCTION
The PWM function automatically adjusts fan speeds according to the CPU temperature for efficient cooling and minimized fan noise.
Type: Fan & Heatsinks
Fan Size: 80mm
CPU Socket Compatibility: Intel LGA 1156 / 1155 / 1150
RPM: 1000 - 2700 RPM
Air Flow: 12- 35CFM
Noise Level: 16 - 25 dBA
Power Connector: 4 Pin
Heatsink Material: Aluminum Fins & Base
Fan Mounting Types to Heatsink: Vertical
Dimensions & Weight
Max CPU Cooler Height: 27 mm
Fan Dimensions: 80 x 80 x 15 mm
Heatsink Dimensions: 93 x 86.5 x 27 mm
Weight: 190 g
