Highbanker, Gold Sluices and Power Sluice Kits - Gold Mining Equipment (10'' Mini Power Sluice & Set Up Kit).pre-ordered. production leadtime is 1-2 weeks

Please be noted this item is pre-ordered. The production leadtime is 1-2 weeks.

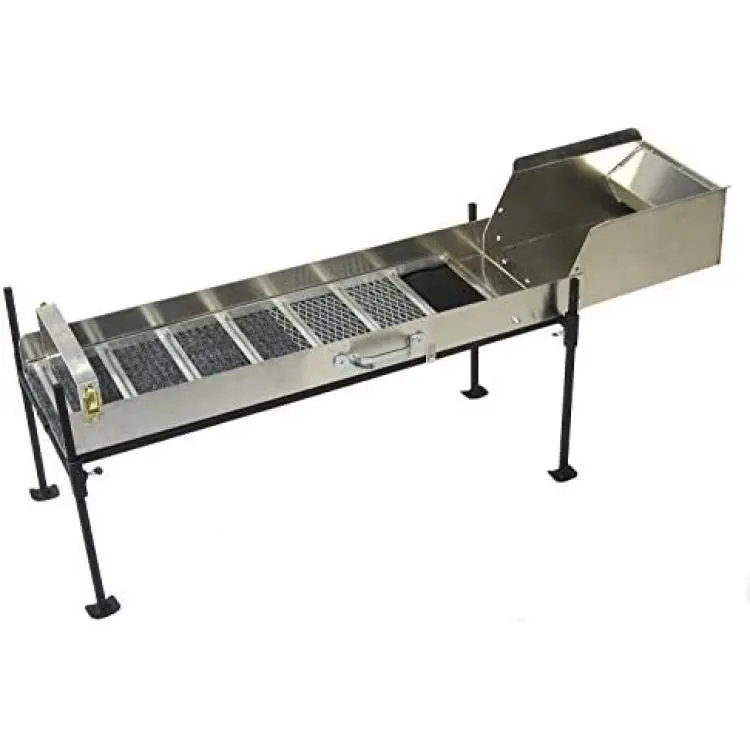

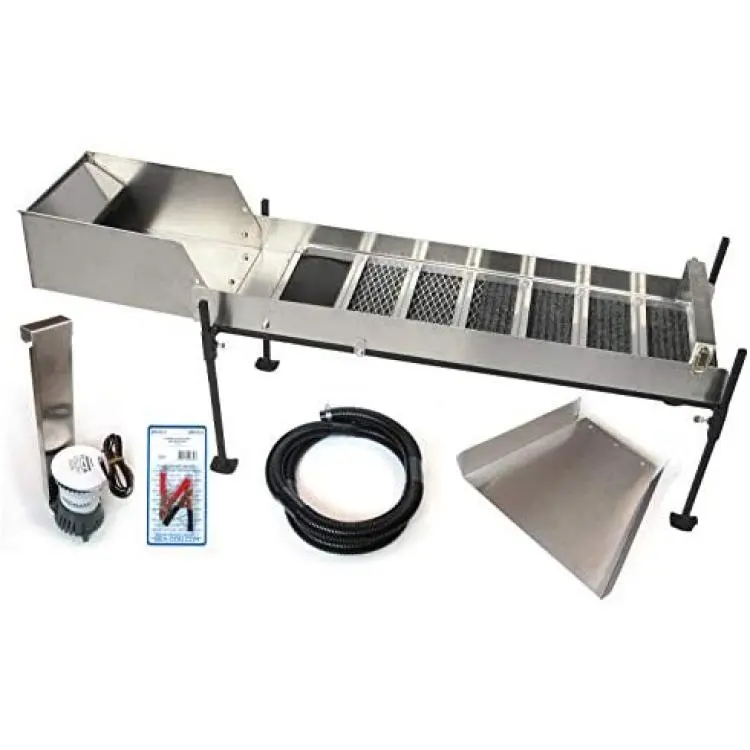

This 10 inch Power Sluice Setup Kit includes:

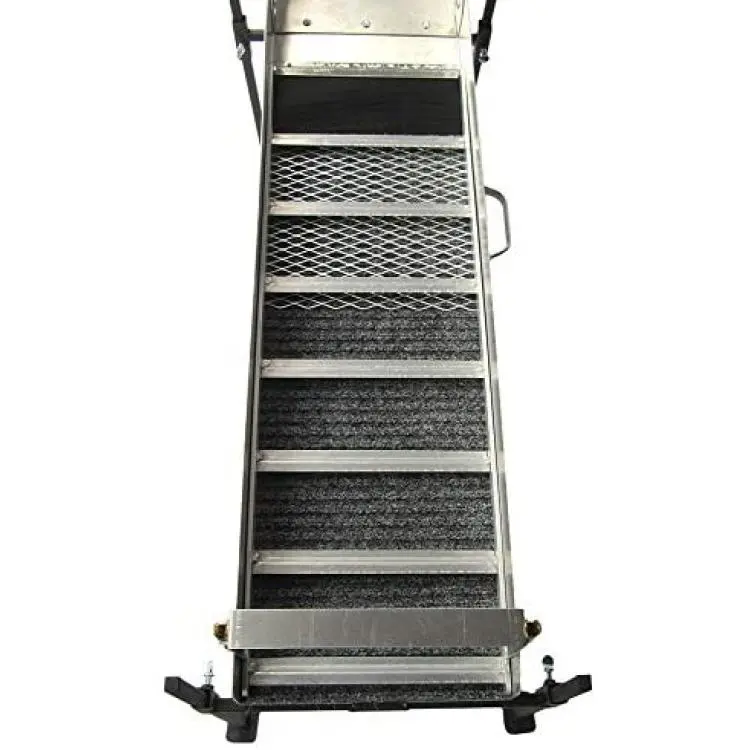

48"L x 10"W sluice

12" x 10" x 6" header box

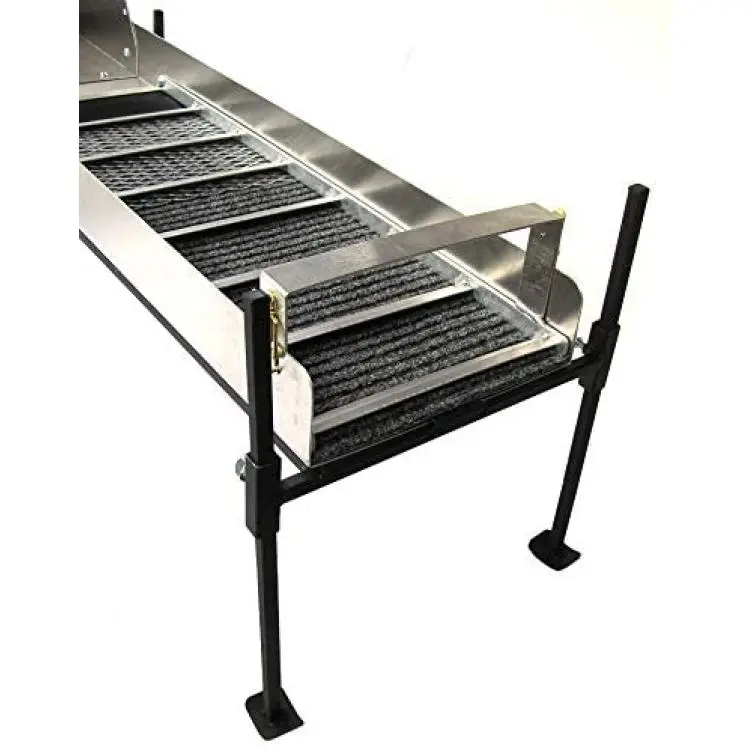

12.5" x 36" sluice stand with 16 inch tall legs

flare that goes from 10" to 16"

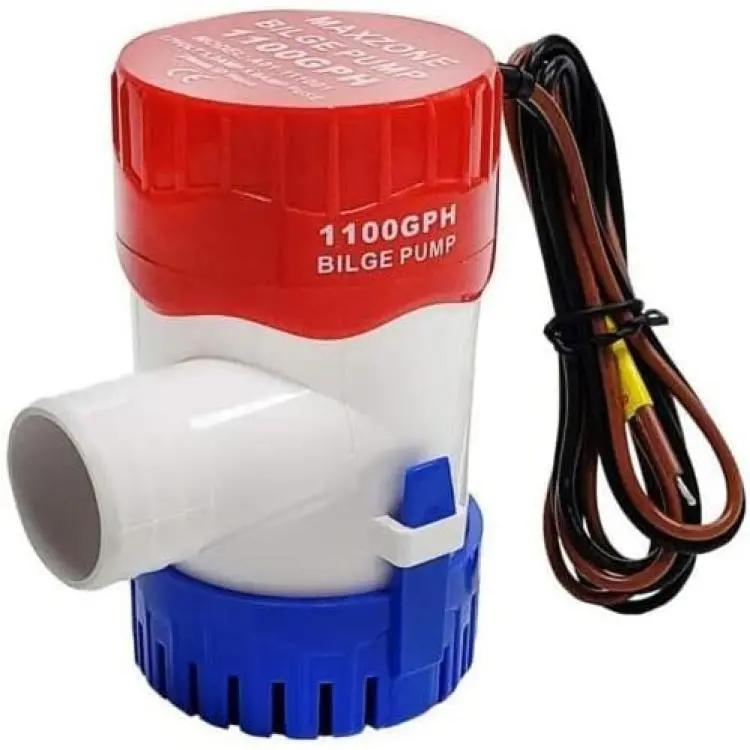

12 volt 1200-gph pump

6 feet of 1 1/8" hose

This power sluice header box setup and the 800-gph 12-volt pump all add up to a good high volume power sluice!

See separate Amazon listing for 6" Mini Power Sluice & Set Up Kit ASIN: B009Y8T31Q if you also need something smaller.

Manufacturer's Easy Power Sluice Setup Instructions:

1. Put the legs on the stand so that the front legs are shorter than the back legs. There should be about 4 inches more above the leg bracket than then front. This should provide a 15 degree slope or, one inch per foot of drop. Check the water flow over the riffles and adjust the stand as needed.

2. Unbolt the flare and set it aside.

3. Bolt on the header box in the same place where you took off the flare.

4. Place the sluice with the header box on the stand with the end without the header box under the slot on the stand. There are also side supports on the sluice stand.

5. Place the pump in a bucket and in the stream or in a tub filled with water if using indoors.

6. If using a tub, place it under the discharge end of the sluice so you can recirculate the water. Place bucket with holes around the top in the tub to catch the waste material so it does not get sucked up by the pump.

Now you are ready to run your material! This unit ships via UPS. Street address required for UPS delivery. Good luck getting the gold!
