JX Servo PDI-5508MG 6kg Coreless Metal Gear Digital Servo Motor for RC Car Robot Arm Helicopter Airplane Parts
About this product
*Application Fields: remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys and Arduino experiments
*Operating Speed (4.8V): 0.09 sec/60°
*Operating Speed (6V): 0.07 sec/60°
*Stall Torque (4.8V): 6.8 kg.cm
*Stall Torque (6V): 8.2 kg.cm
Description
55.6g Coreless Metal Gear Digital Servo Motor JX Servo PDI-5508MG for RC Car Robot Arm Helicopter Airplane Parts
Application Fields: remote control helicopters, micro robot, robot arm and boats. ALL kind of R/C Toys and Arduino experiments
Product Specification
Brand:JX Servo
Mode Number?PDI-5508MG
Features:
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc.
Great for truck, Boat, Racing Car, Helicopter and Airplane.
Power Supply: Through External Adapter.
SPECIFICATIONS:
Dead band: 2?s 1520?s / 330hz
Operating Speed (4.8V): 0.09 sec/60°
Operating Speed (6V): 0.07 sec/60°
Stall Torque (4.8V): 6.8 kg.cm
Stall Torque (6V): 8.2 kg.cm

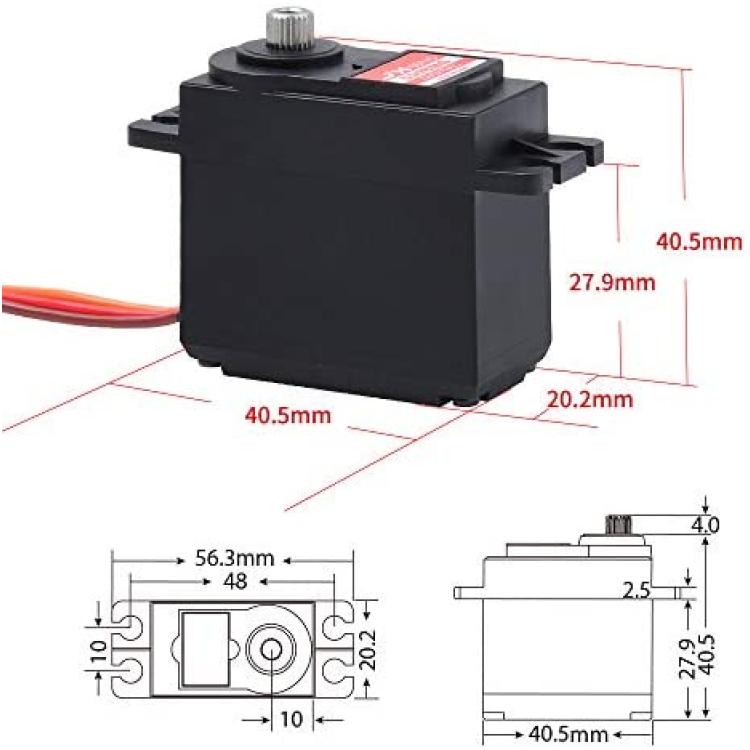

Dimensions: 40.5X20.2X38mm
Gear Teeth:25T
Control Angle:120 Degree
Weight: 55.6 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Package include:

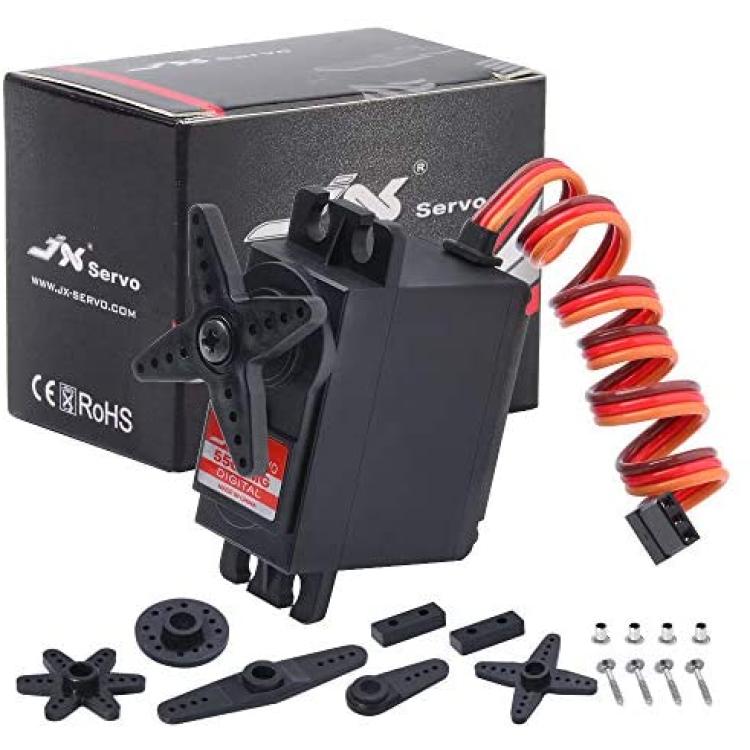

1x JX Servo PDI-5508MG (with accessories)
