DSSERVO DS3225 25KG Metal Gear High Torque Waterproof Digital Servo
Share Facebook Twitter Pinterest Email

DSSERVO DS3225 25KG Metal Gear High Torque Waterproof Digital Servo

Brand: DSSERVO
Product Code: MPM17207
Availability: In Stock
US$9.49
- +

About this product

*▶New Model: DS3225MG advanced linearity and accuracy with precision potentiometers,stable,low noise,water-proof

*▶Gifts:Power cord is longer up to 11.82inches(30cm), And with an extension cable 11.82 inches (30 cm), a total of 60 inches,and also send with a 25T adjustable metal servo arm

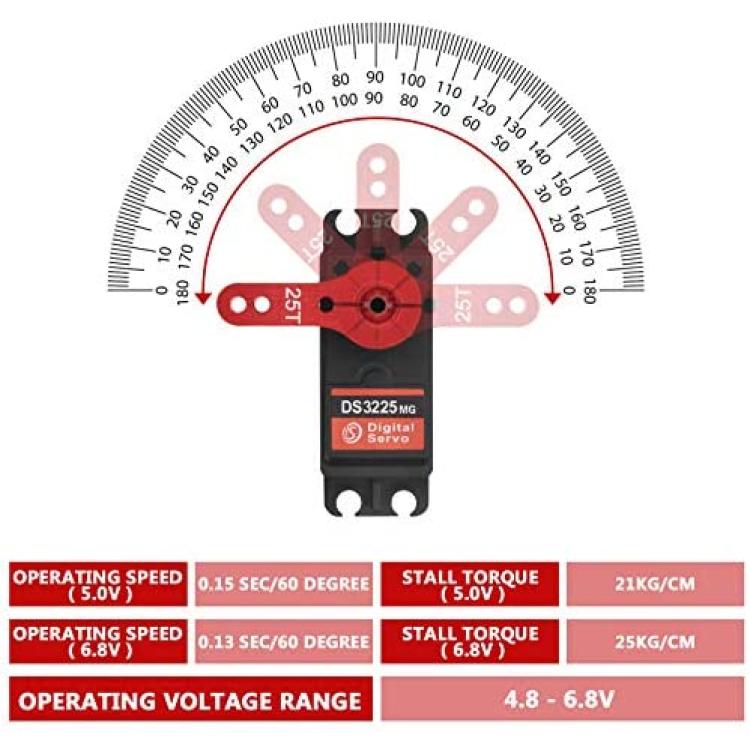

*▶High Rotation - well-controlled, 270 degree rotation. 360 degree rotation when power-off, perfect for robot joint activities

*▶Best for your DIY Project:compatible with 1/8 and 1/10 scale crawler,truck,buggy,robotic arm,and any application where standard servos are used

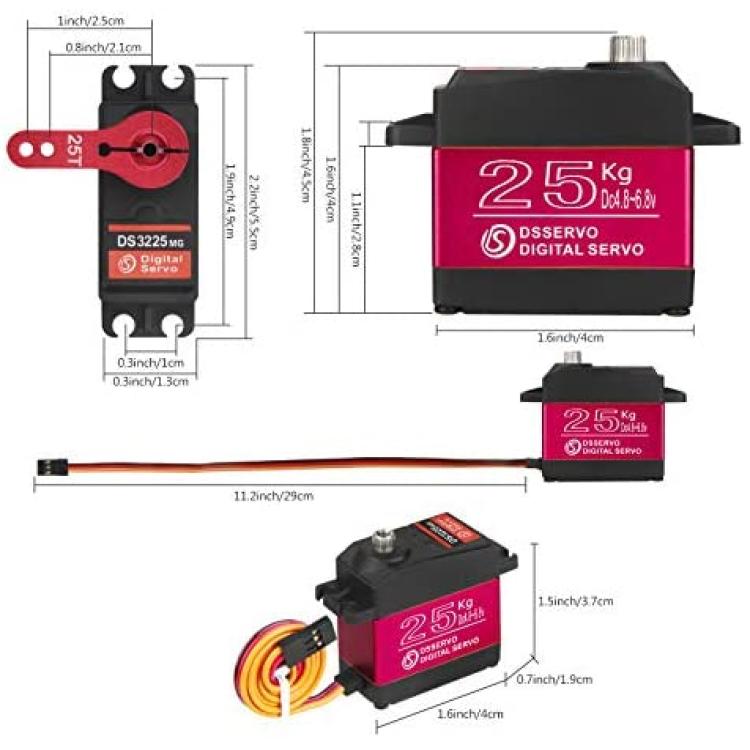

*▶Dimensions:1.57 x 0.78 x 1.59in (40 x 20 x 40.5 mm); Weight:2.4oz (68g)

Description

?Specifications:
Brand: DSSERVO
Item: DSSERVO DS3225 Digital Servo
Operating voltage: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Dead band: 3?s
Working frequency: 50-333Hz
Connector wire: About 300mm
Gear type: Metal
Motor Type: DC motor
Size: 40 * 20 * 40.5mm
Weight: 68g

?Features:
Large torque - maximum torque can up to 25kg.cm (6.8V)

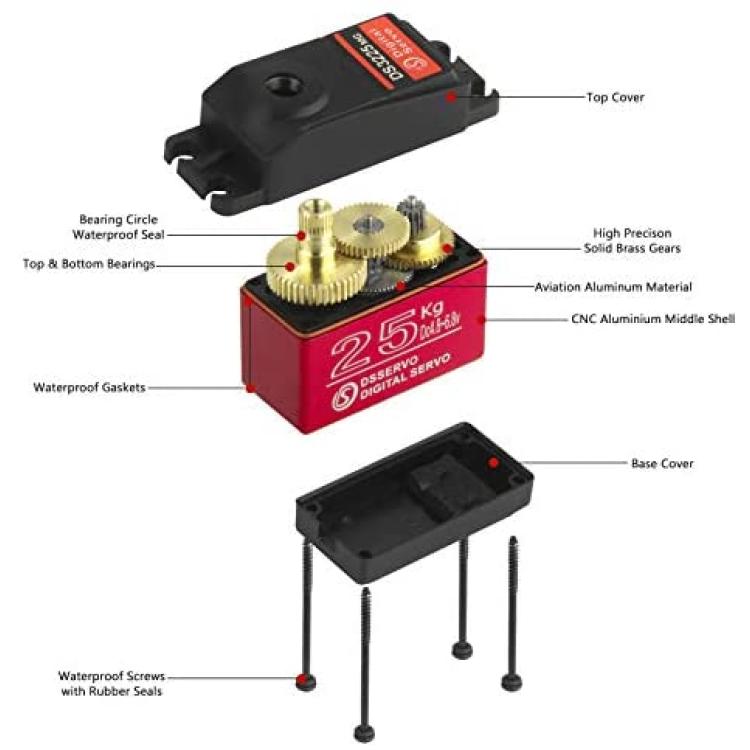

High-precision metal gear with hard anodizing for better accuracy and longer service life
CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well
Water proof rubber seals screws, made of first-grade material ensure the longevity of the products
Good performance digital standard servo, which can be a common use for robots,
mechanical arms, climbing cars and remote control toys
Great choice for university professors and students who are interested in developing
software for robot part
Tailored for RC hobbyist to provide different experience and delight

?Package information:
Package size: 10 * 7.5 * 2cm / 4 * 3 * 0.78in
Package weight: 73g
Poly Bag package

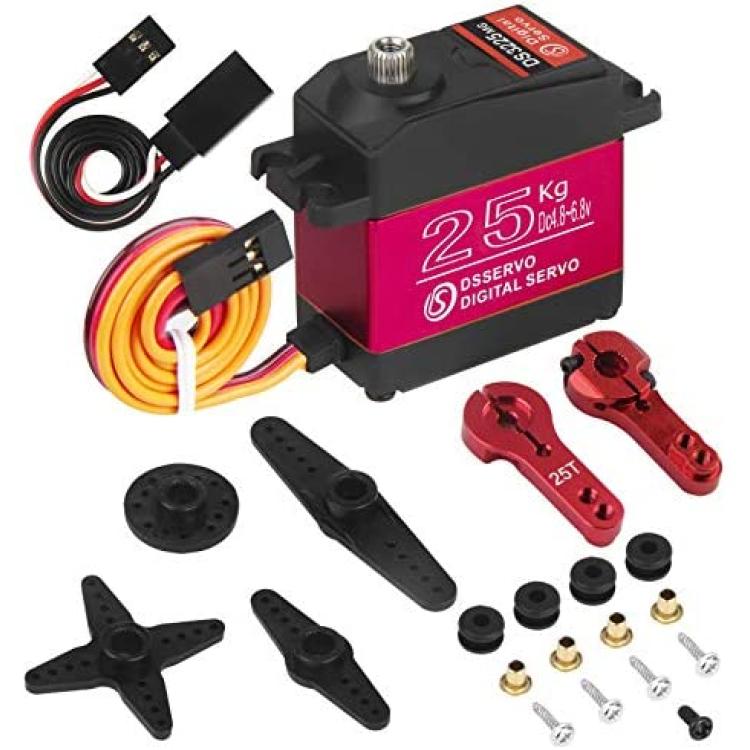

?Package list:
1 * DS3225 25kg Digital Servo
1 * 25T Adjustable Metal Servo Arm
1 x Servo extension cable 30cm?11.81in?

?Other options:
?35KG Coreless servo 180°,please search ASIN: B08THQ3D9X
?25KG Coreless servo 180°,please search ASIN: B07SSNJ6Y5
?20kg Coreless servo 180°,please search ASIN: B08THSF3W7
?30KG Coreless servo 180°,please search ASIN: B08THKXG25
