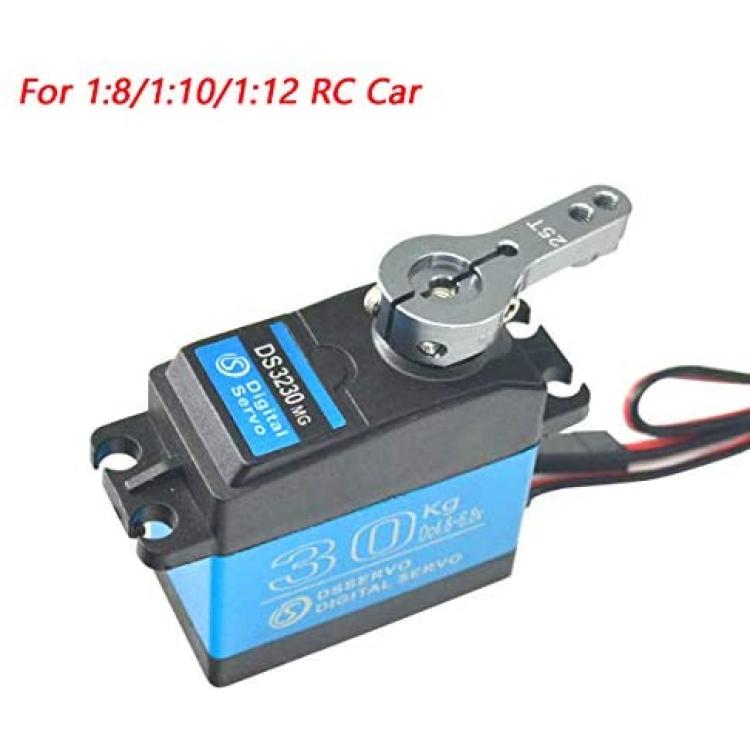

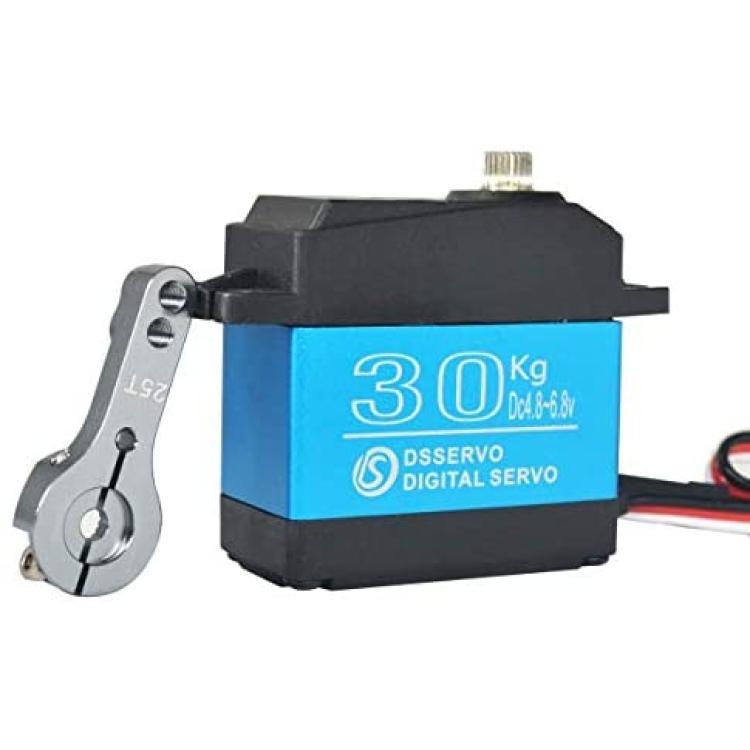

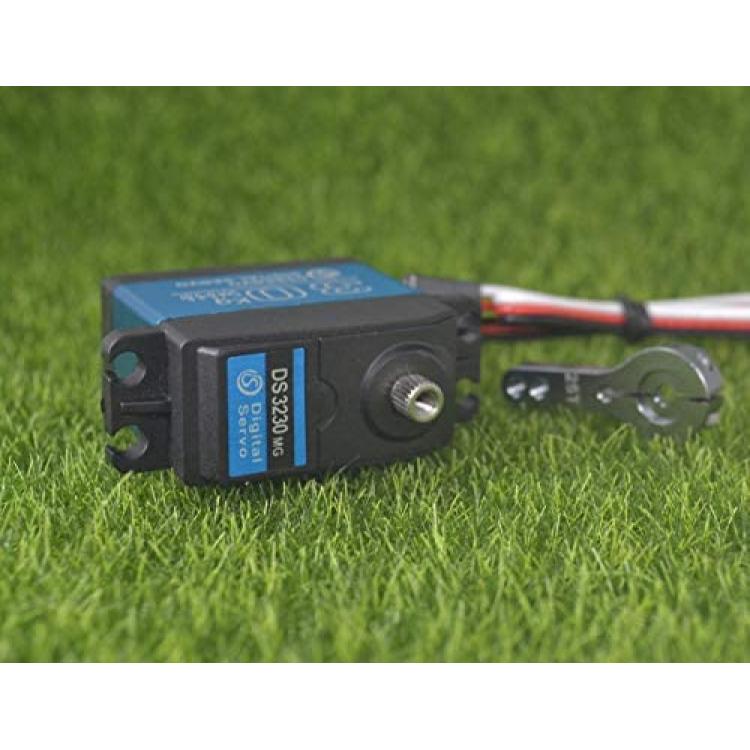

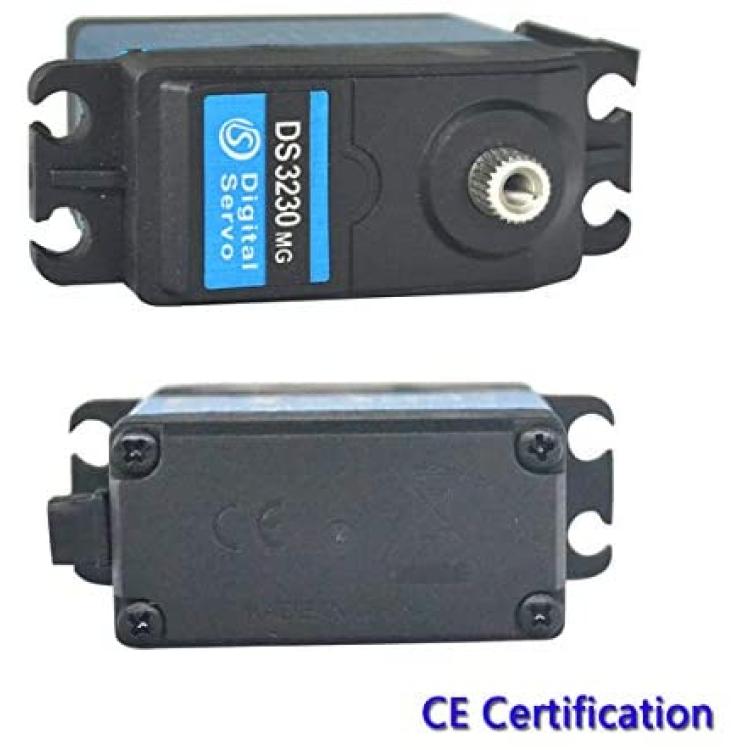

DS3230 30KG 270 Degree Digital RC Servo - Waterproof High Torque Full Metal Gear Servo Motor with 25T Servo Horn for RC Robotic Arm Model DIY Baja Car 1/10 Scale Crawler Truck
About this product
*[Suitable for: ] 1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.
*[Waterproof: ] It is a drip-proof servo that does not affect the operation when it gets a little water. It can’t be submerged. Waterproof performance: IP66
*[Feature:] High-precision metal gears with hard anodizing, CNC aluminum middle Shell. High torque steering servo for robot arm, boats, vehicles and remote control toys.
*[Stable Performance: ] This steering standard servo is stable and quick response time, strong, advanced linearity, accuracy with precision potentiometers, stable, low noise and waterproof.
*[Packing List: ] 1 X DS3230 30KG 270 Degree Digital Servo, 1 X 24T Servo Horn, 1 X Screw, 1X Accessories Set. 3 Years Warranty Time and Life Limited Friendly Customer Service. Any Question, please click “Miuezuth” to contact us. Thank you.
Description
Note: If you think the cable is short, you can extend it by yourself. 6PCS Pack 40CM Servo Cable in our store, please search ASIN: B07VKPC7BF
DS3230 30KG 270 Degree Digital RC Servo - Waterproof High Torque Full Metal Gear Servo Motor with 25T Servo Horn for RC Robotic Arm Model DIY Baja Car 1/10 Scale Crawler Truck
Apply Environmental Condition:
Storage Temperature Range: -20??60?
Operating Temperature Range: -10??50?
vOperating Voltage Range: 5V?6.5V
Electrical Specification (Function of the Performance):
Operating speed (at no load): 0.2sec/60° (5V); 0.18sec/60° (6.5V)
Running current (at no load): 80mA (5V); 100 mA (6.5V)
Stall torque (at locked): 26 kg-cm (5V); 30kg-cm (6.5V)
Stall current (at locked): 3.5A (5V); 3.8A (6.5V)
Idle current (at stopped): 4 mA (5V); 5mA (6.5V)
Mechanical Specification:
Materials of the gear: Metal Gear
Limit angle: 60± 1 g
Connector wire gauge: ?28 PVC
Connector wire length: 320 ± 5 mm
Horn gear spline: 25T/?5.80
Reduction ratio: 310:1
Control Specification:
Control system: Change pulse width
Operating frequency: 50-330Hz
Neutral position: 1500 ?sec
Dead band width: 3 ?sec
Pulse width range: 500?2500 ?sec
Mechanical Angle: 360°
40CM Servo Extension Cable: B07VKPC7BF
