ANNIMOS 25KG Digital Servo Full Metal Gear High Torque Waterproof for RC Car Crawler Robot Control Angle 270°
About this product
*▶New Model: DS3225MG More torque higher speed
*▶Power cord is longer up to 15.75inches(40cm),and also send with a 25T adjustable metal servo arm
*▶Best for your DIY Project:compatible with 1/8 and 1/10 scale crawler,truck,buggy,robotic arm,and any application where standard servos are used
*▶Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability,low noise, fast heat dissipation

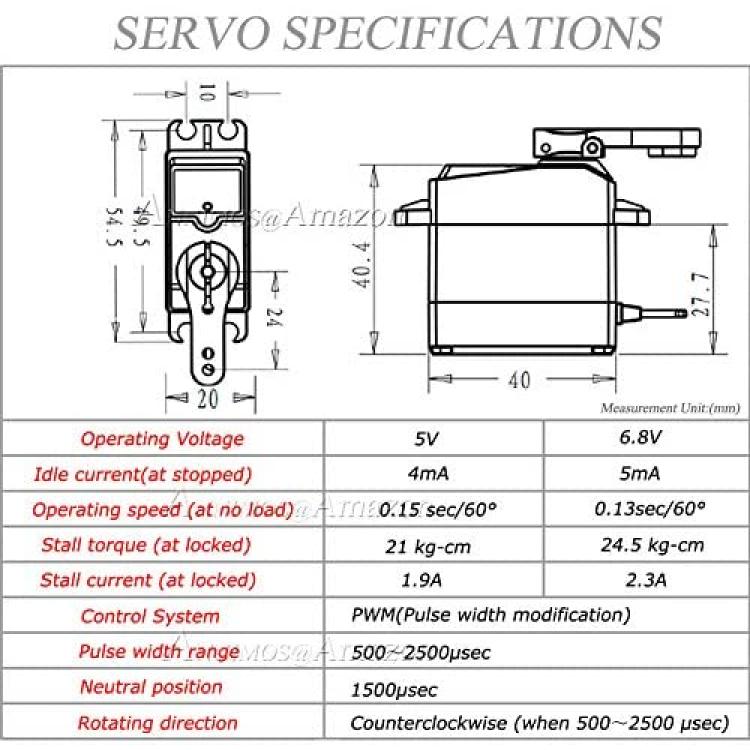

*▶Dimensions:1.57 x 0.78 x 1.59in (40 x 20 x 40.5 mm); Weight:2.64oz (75g)
Description
Specification:
DS3225MG RC hobby servos are designed for remotely operating model vehicles,such as cars,airplanes,and robots.It provides the functionality of a light weight standard-sized servo, high-speed big torque, water-resistant,sensitive,responsive;
It features an all-metal gear train,digital control electronics,and two ball bearings on the output shaft for reduced friction, and it offers easy access to the rest-point adjustment potentiometer,making them great actuators for robotic projects.This new item is a very good choice for students and hobbyists. It will not let you down!
Electrical Specification?
Operating voltage range: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Control Specification:

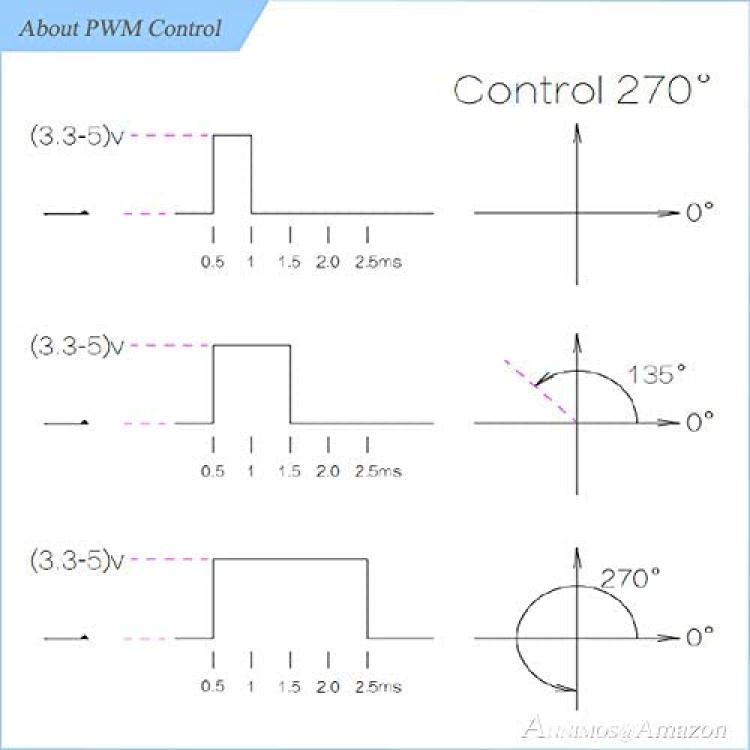

Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 ?sec
Neutral position: 1500?sec
Running degree: 270° (when 500~2500 ?sec)
Dead band width: 3 ?sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 ?sec)
Mechanical Specification:
Gear ratio: 275
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)

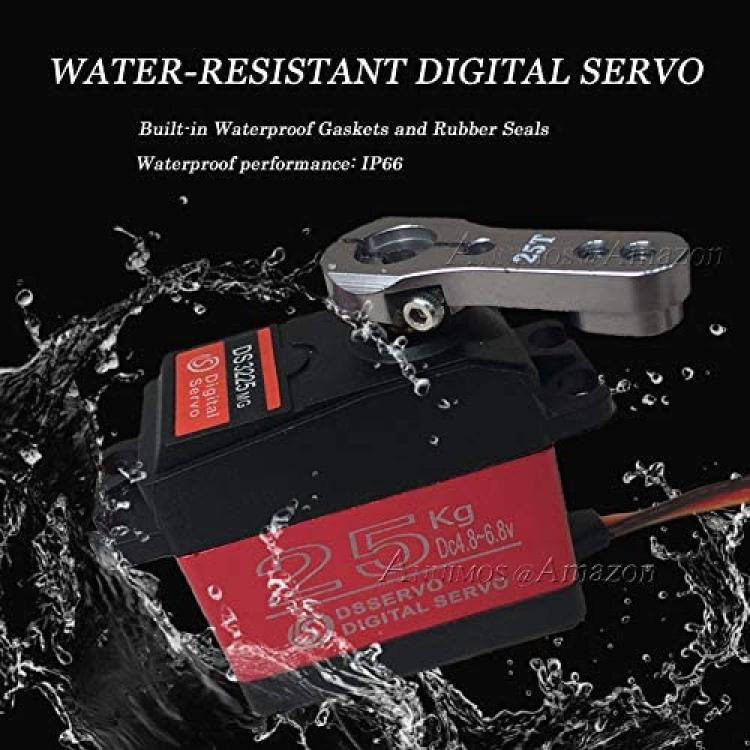

Waterproof performance: IP66
Package:
1 x DS3225MG Digital Servo

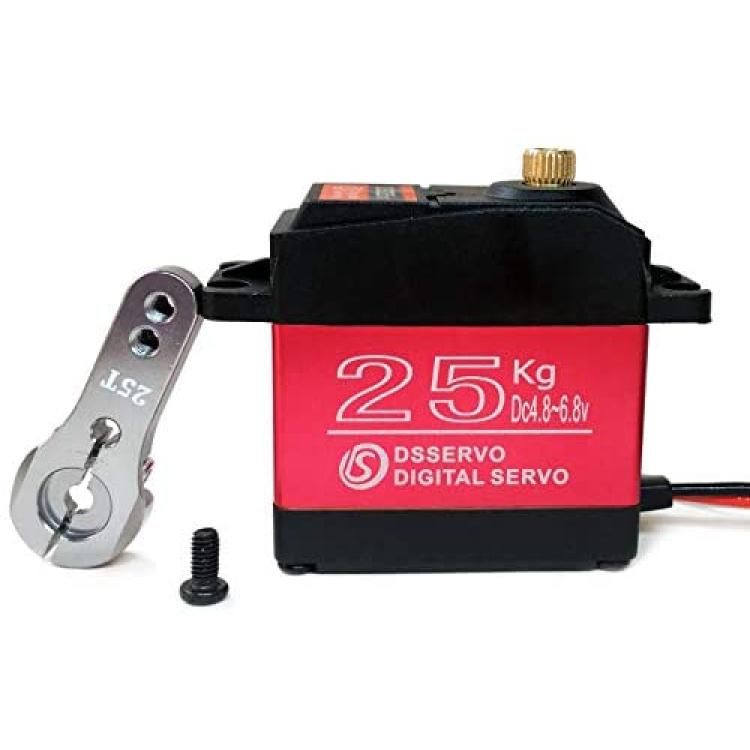

1 x 25T Adjustable metal servo arm
Other options:
?Pack of 2 25KG servos, please search ASIN:B07ZNMSP2C
?Pack of 2 20KG servos, please search ASIN:B07TKTQ2NZ
?35KG Coreless servo 180°,please search ASIN: B07SWW9NDR
?25KG Coreless servo 180°,please search ASIN: B07SRNS5N8
?20KG Control Angle 180°(PRO Version), ASIN: B07KTSLGJ7
?20kg Control Angle 270°(PRO Version), ASIN: B07KTSVSSJ
?60kg Control Angle 180°,Please search ASIN: B07KTS4L94
