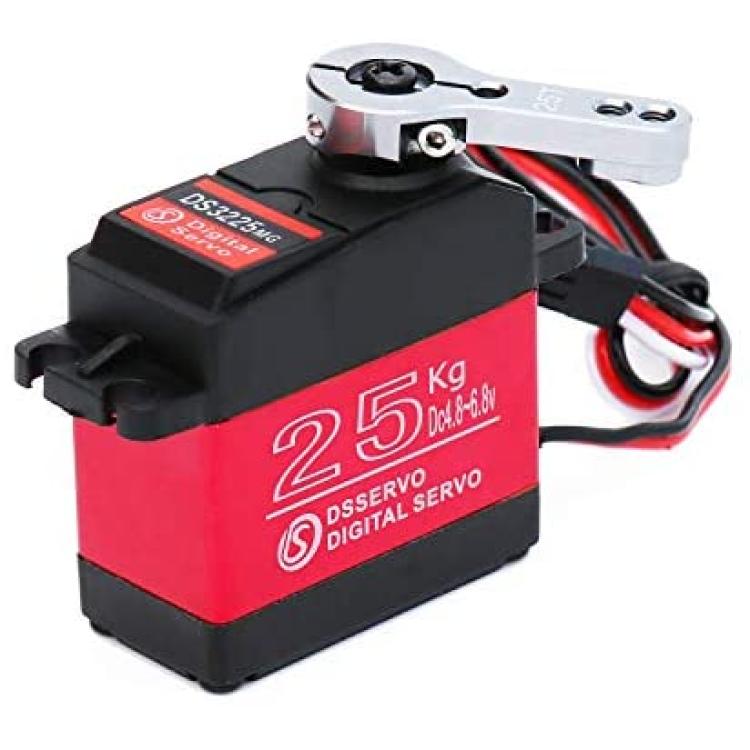

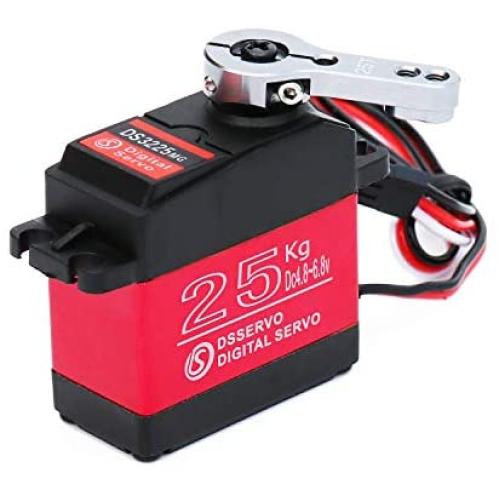

25KG Digital Servo Full Metal Gear High Torque Waterproof for RC Car Crawler Robot Control Angle 270°
About this product
*♥ 【Super Large Torque 25kg Servo】Super Large Torque， Maximum torque is up to 25 kg/cm (280.5 oz/in)@6.8V. Very strong, excellent range of motion, and includes a 25T metal horn.

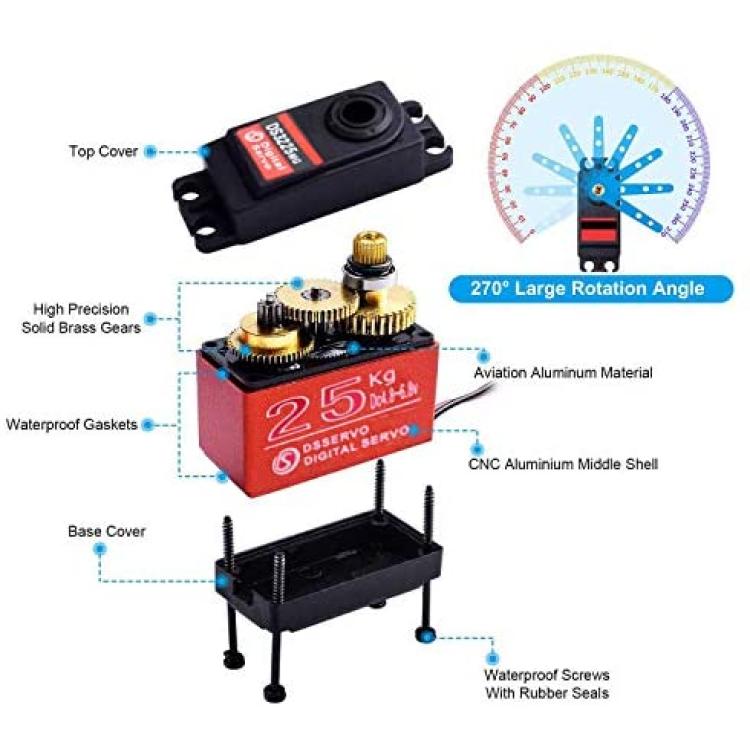

*♥ 【Excellent Quality Steering Servo】Equipped with strong copper & aluminum gears,CNC aluminium middle Shell, Less Noise, light weight, Stable and water-proof.
*♥ 【Widely Use Digital Servo】The servo (Control Angle 270°) Compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.
*♥ 【High Torque Waterproof Servo】Waterproof performance: IP66.

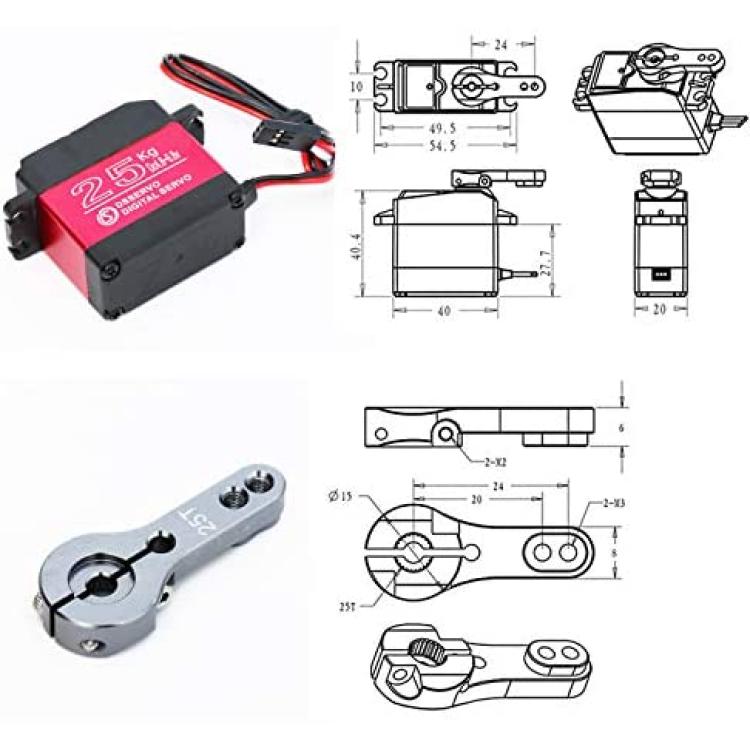

*♥ 【Metal Servo Size】1.57 x 0.78 x 1.59 inch(40 x 20 x 40.5 mm); Weight:2.64oz (75g)
Description
Specification:
DS3225 servos are ideal for cars, airplanes ,and robots.
High-speed big torque digital servos.
Less Noise, light weight. Stable and water-proof
Power cord is longer up to 15.75inches(40cm), and also send with a 25T adjustable metal servo arm
Operating voltage range: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 ?sec
Neutral position: 1500?sec
Running degree: 270° (when 500~2500 ?sec)
Dead band width: 3 ?sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 ?sec)
Gear ratio: 275
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66
Package:
1 x DS3225MG Digital Servo

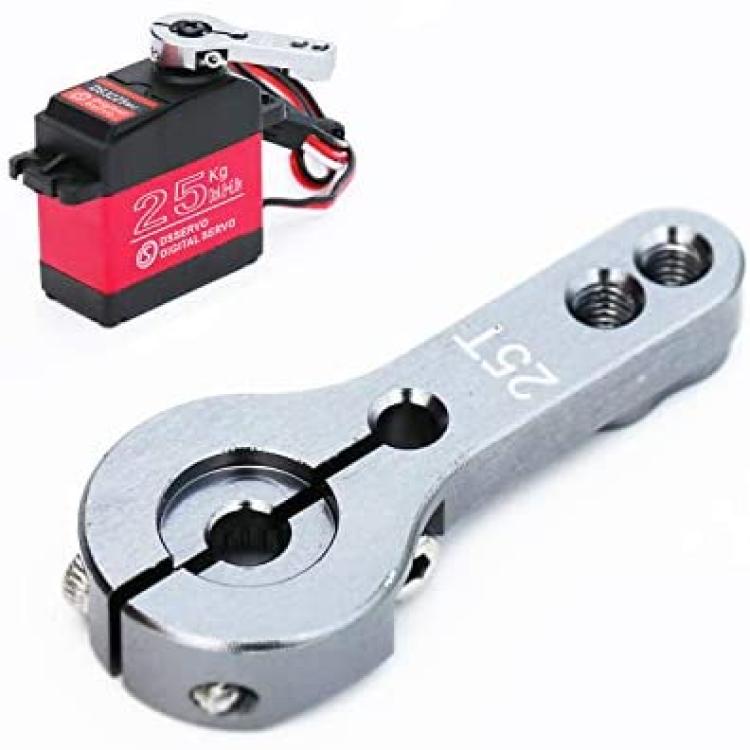

1 x 25T Adjustable metal servo arm
