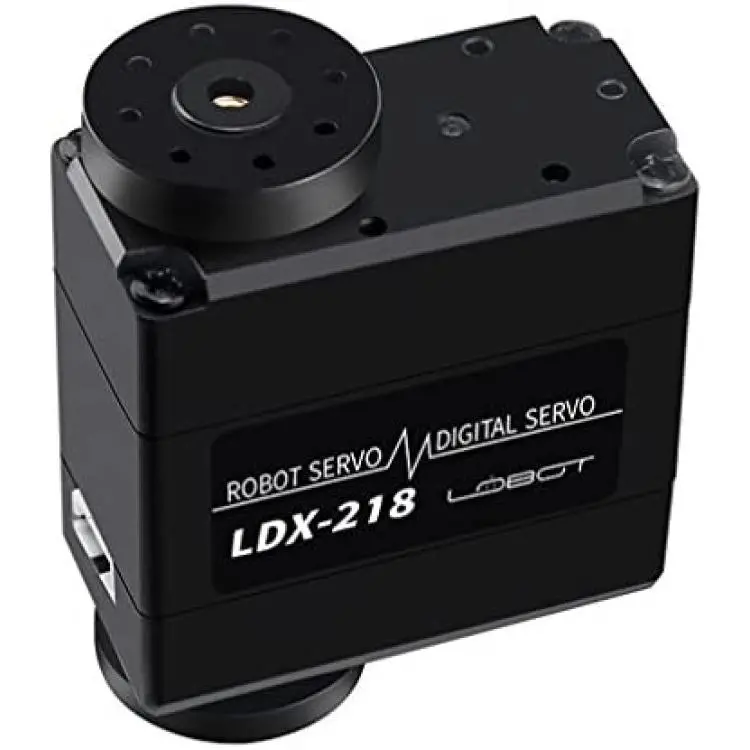

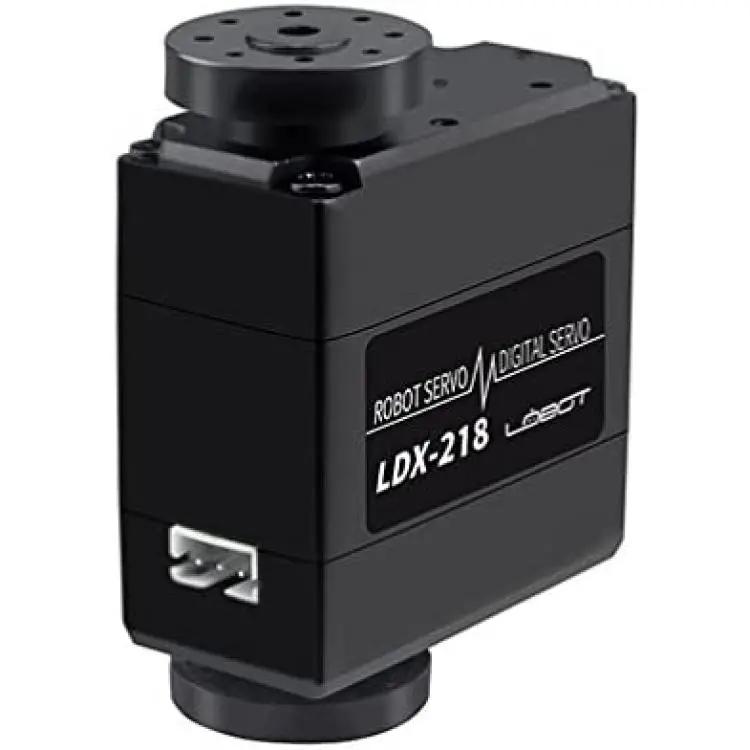

LewanSoul LDX-218 Full Metal Gear Standard Digital Servo with 17kg High Torque Dual Ball Bearing for Robot(Control Angle 180)
About this product
*17kg large torque. 15 kg·cm (208 oz·in) @6.6V; 17 kg·cm (236 oz·in) @7.4V
*Full metal gear. its better for accuracy, service life has been greatly increased
*Dual ball bearing: one is the driving ball bearing, one is the assistant ball bearing(support role)
*Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots
*Convenient plug-in wire. Eliminate the situation of desoldering. In the production of making robots, it is very convenient for you to replace the servo and wiring become much more easier
Description
Specifications:
Weight: 60g(2.1OZ)

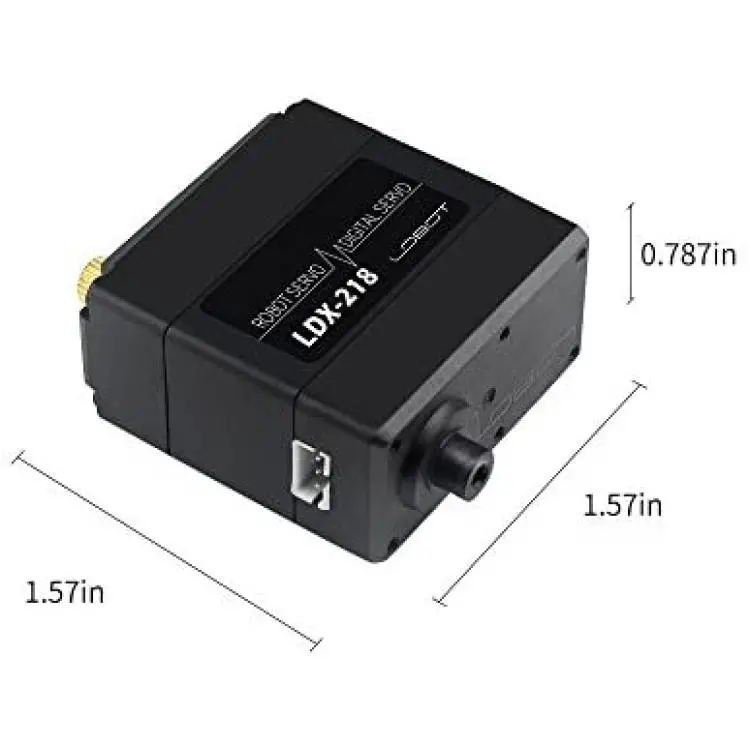

Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)
Speed: 0.16sec/60°(7.4V)
Accuracy: 0.3°
Torque: 15 kg·cm (208 oz·in) @6.6V;17 kg·cm (236 oz·in) @7.4V
Working Voltage: 6-7.4V
MIn Working Current: 1A
No-Load Current: 100mA
# Spline: 25T(6mm diameter)

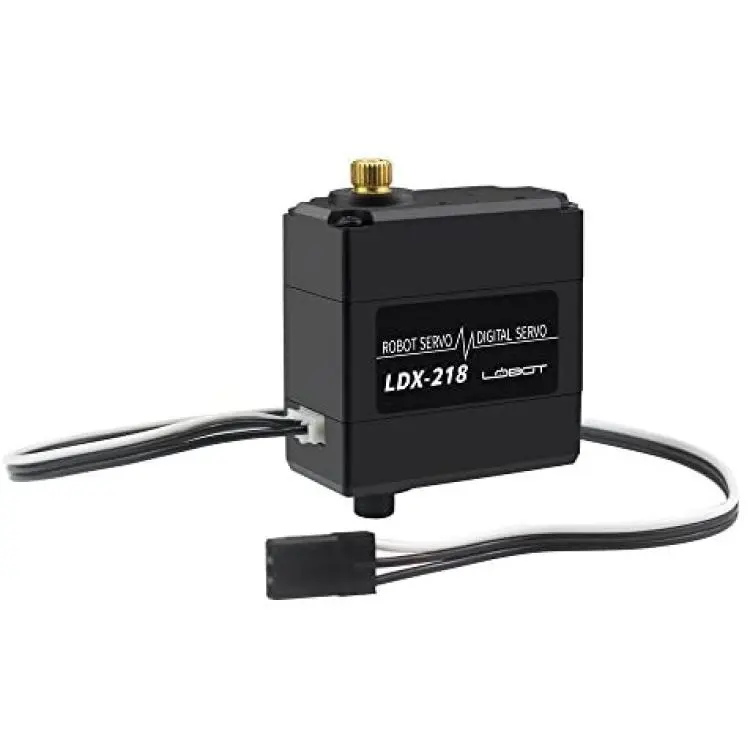

The default wire: 35cm(13.78inch) in length
180 degree rotation. Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control. Can be rotated within 360 degrees when power off
Control Specifications:
Control Method: PWM
Pulse Width: 500~2500
Duty Ratio: 0.5ms~2.5ms
Pulse Period: 20ms
Please make sure that the duty cycle of the controller you are using conform to our specifications, otherwise the servo can't turn up to claimed degree

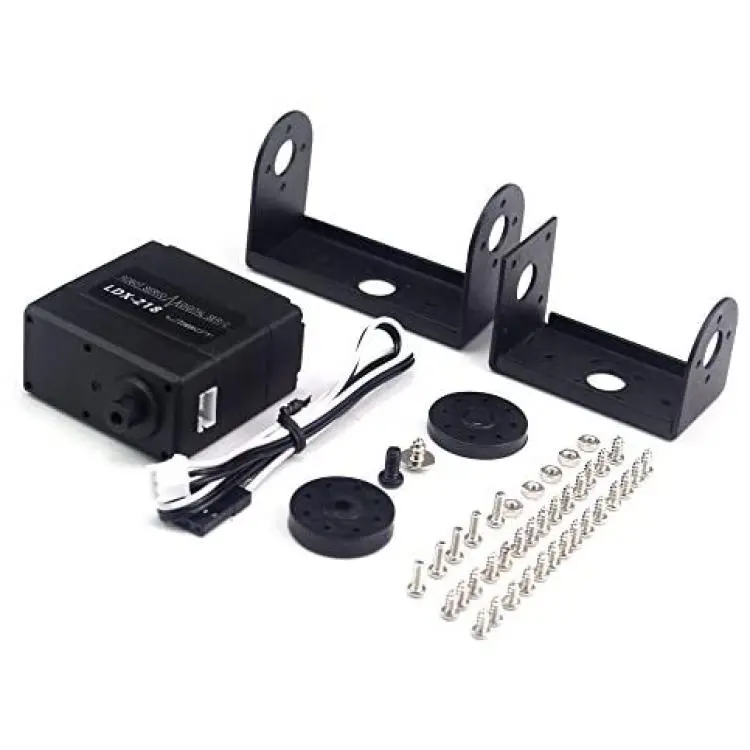

Package Contents:
1 x Digital servo

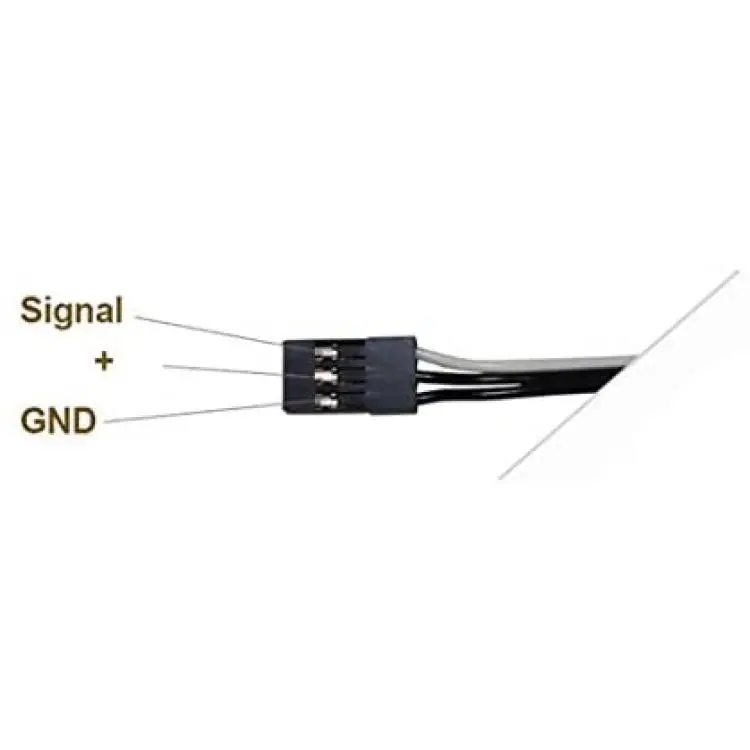

1 x 30cm servo wire
1 x Primary servo horn(4mm/0.157in thick)
1 x Assistant servo horn(2mm/0.078in thick)
15 x M2*5 Self-tapping screws

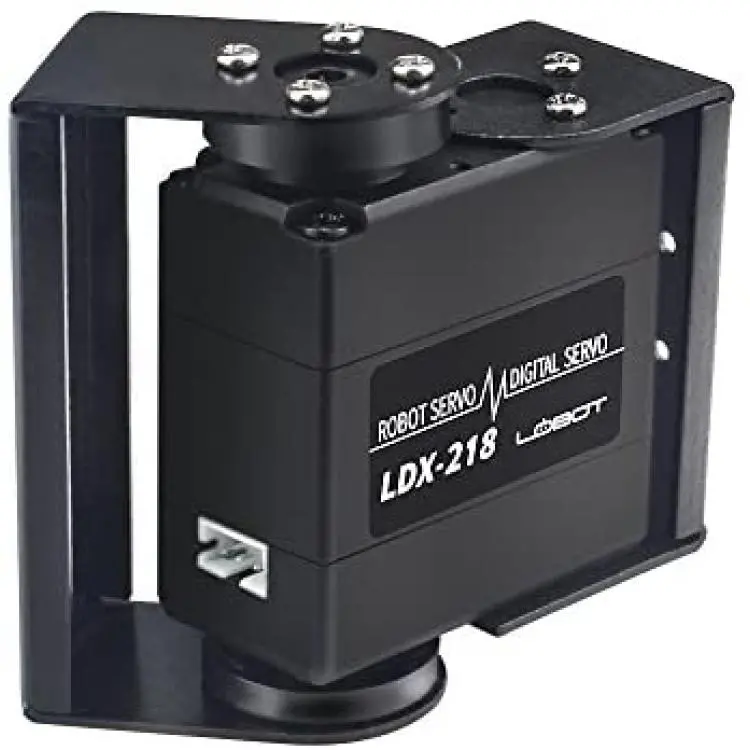

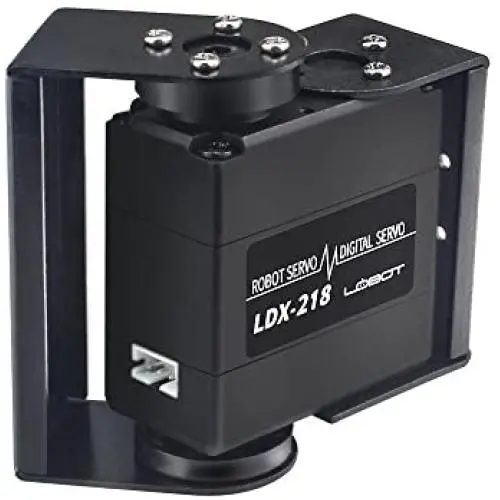

2 x Bracket
Tips:
1. Please use Li-Po battery to power the servo, Do Not use dry battery, otherwise the servo will move slowly or not at all(our servo has higher torque, so it also need more powerful power to drive itself).
2. Please use short and thick power cord, Do Not use Dupont cord
3. Our servo can be controlled by Arduino, please refer to the Arduino library.
