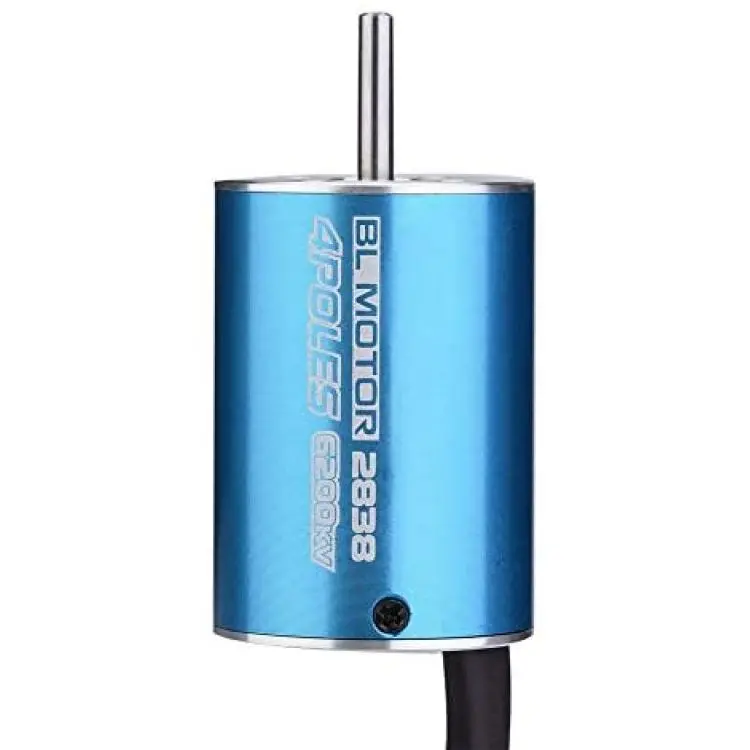

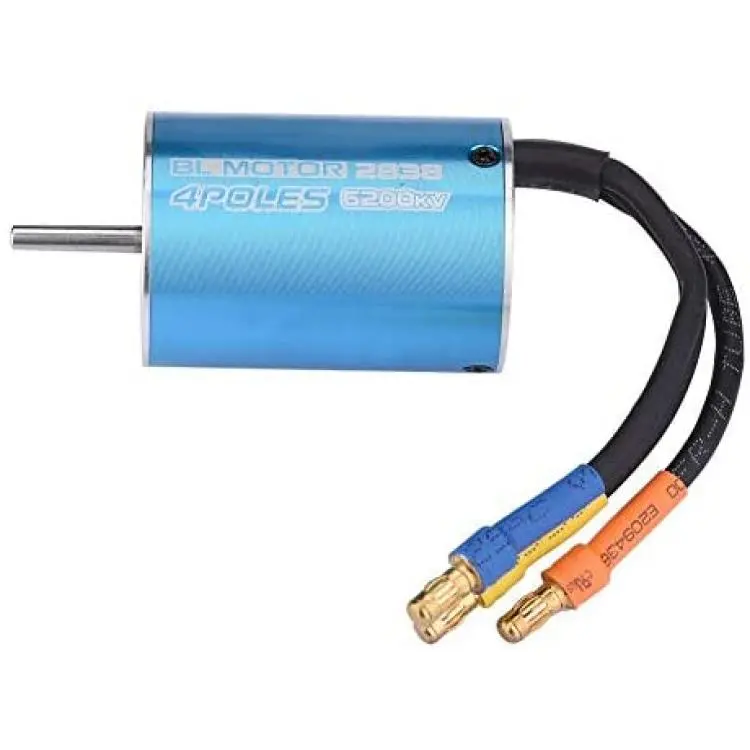

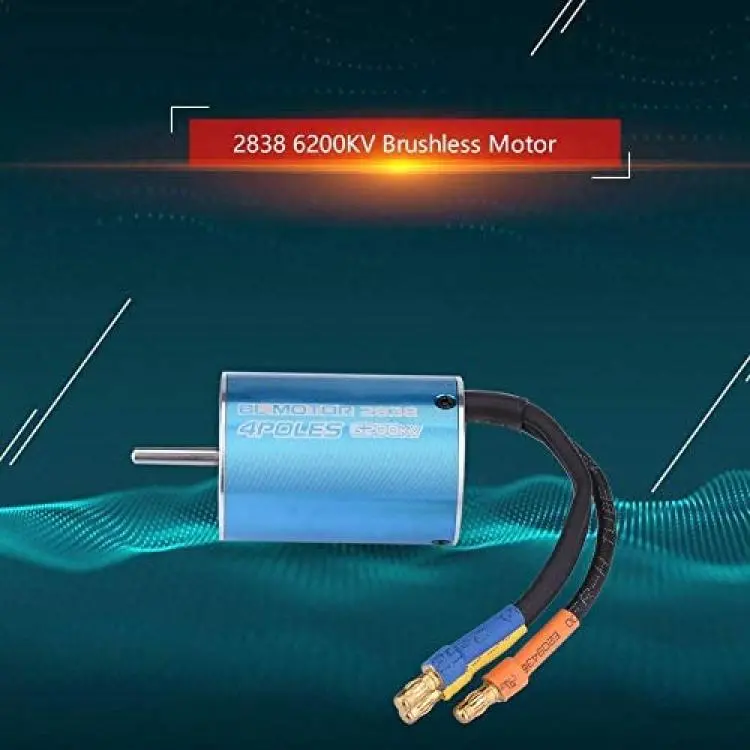

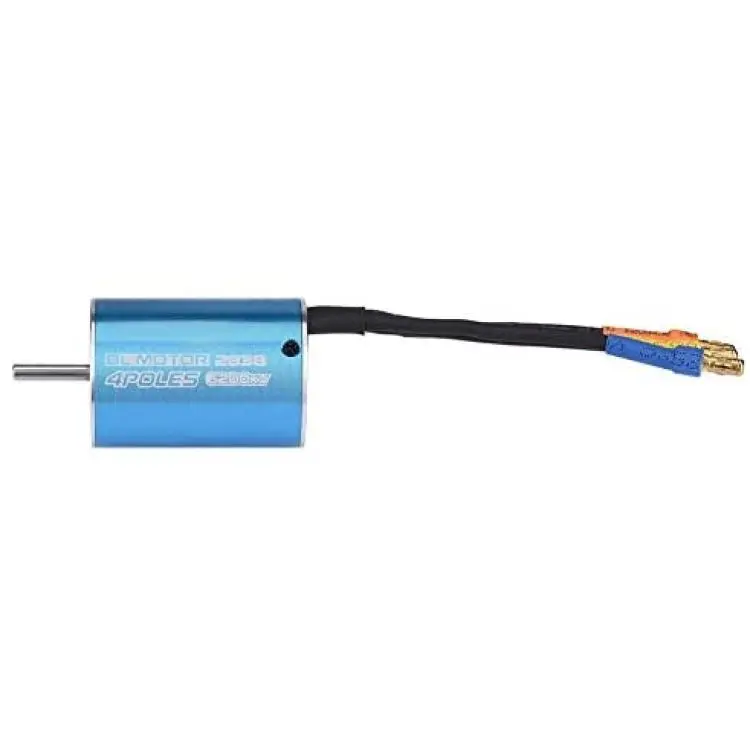

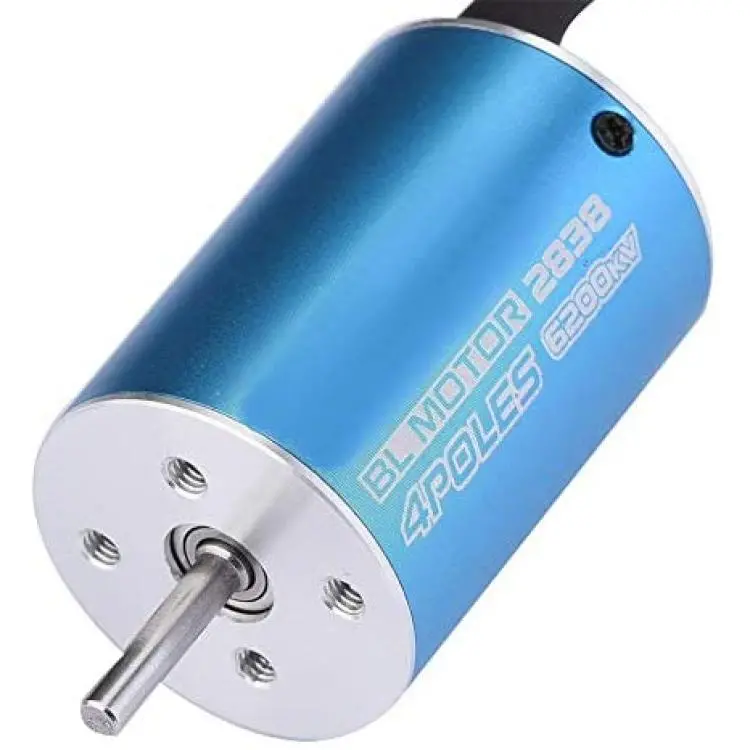

Zouminy 4 Poles 2838 Brushless Motor for 1/12 1/14 RC Car Part Accessory(6200KV)
About this product
*▷HIGH-TORQUING AND WATERPROOF DESIGN : 4 poles, 12 slots, high-torquing design. Waterproof design ensures maximum power conversion.
*▷APPLICATION: Balanced rotor is removable and replaceable, with great reliability and maximum RPM. The motor is suitable for 1/12, 1/14 model car
*▷GREAT HEAT DISSIPATION PERFORMANCE: CNC machined 6061 T6 aluminium shell enhances heat dissipation performance
*▷HIGH TEMPERATURE RESISTANCE: High purity copper windings maximizes efficiency, with high temperature resistance
*▷EXQUISITE WORKMANSHIP: ABEC5 bearing is precision and stably. With good insulation and heat resistance, ultrathin silicon lamination is of maximum permeability.
Description
Features:Â
The motor is suitable for 1/12, 1/14 model car. 4 poles, 12 slots, high-torquing design. CNC machined 6061 T6 aluminium shell enhances heat dissipation performance. High purity copper windings maximizes efficiency, with high temperature resistance. ABEC5 bearing is precision and stably. Balanced rotor is removable and replaceable, with great reliability and maximum RPM. With good insulation and heat resistance, ultrathin silicon lamination is of maximum permeability. Waterproof design ensures maximum power conversion.
Specification:Â
Material: Metal
Color: Blue
Options: 4700KV, 6200KV
Weight: 115g
Type: RC Parts & Accs

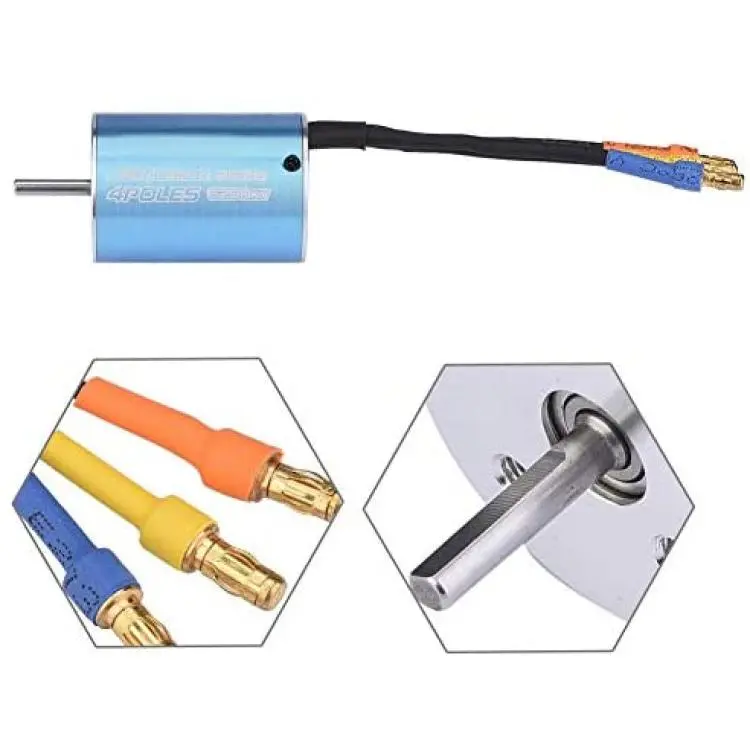

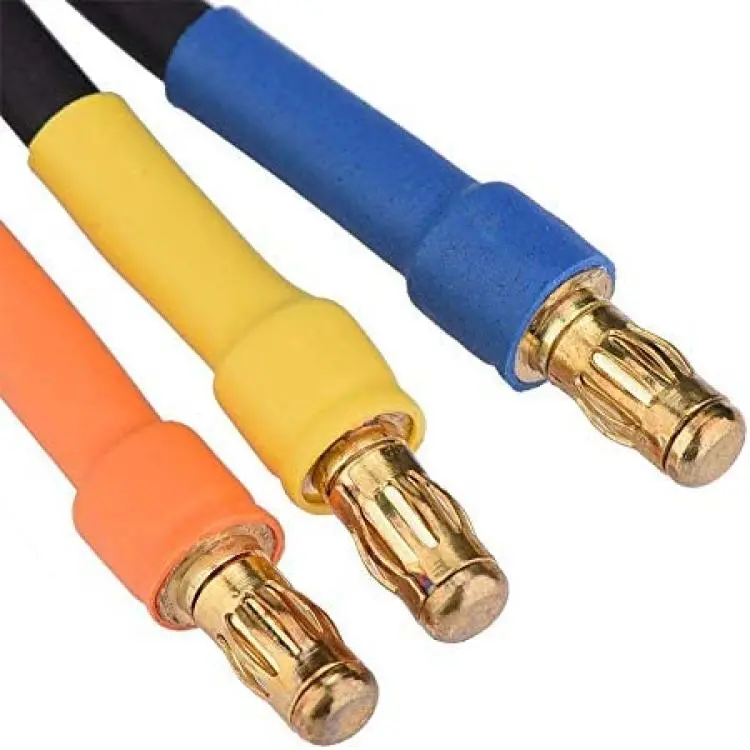

Connector: 3.5mm Plated Connector
Maximum Current: 50A
Maximum Power: 800W
Suitable Battery: <12V
Diameter: Approx. 28mm / 1.1inch
Length: Approx. 38mm / 1.5inch
Diameter of Shaft: Approx. 3.175mm / 0.13inch
Package List:
1 x Motor
1 x Manual
