Brushless Motor,BIEHOL 9T 4370KV Brushless Motor + 60A ESC +Program Card Combo for 1/10 RC Car Truck US

??9T 4370KV Brushless Motor + 60A ESC +Program Card Combo for 1/10 RC Car Truck US

??4-pole 12-slot hi-torque motor design.

??CNC machined 6061 T6 billet aluminum heatsink.

??High purity co-pper winding maximizes efficiency.

??High RPM ABEC5 oversized bearings.

??Universal fit, fit all 1/10 brushless cars-multi-mounting system for M3 screws.

??Precision balanced rotor, smoothness for best reliability and maximum RPM.

??Precision engineered for maximum energy conversion.

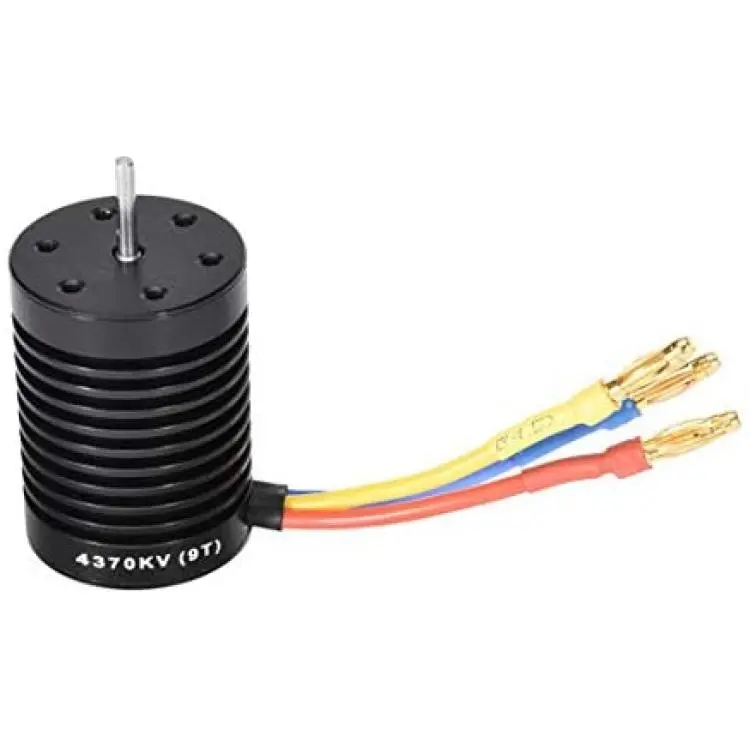

??Specifications:

??Model: 9T

??KV: 4370RPM/V

??Max Voltage: <12V

??Watts: 800W

??Max Amps: 66A

??Rotor Poles: 4

??IO: 3.2A

??Resistance: 0.0185

??Max RPM: 50000

??Shaft(mm): ?3.175

??Diameter: 35.8mm

??Length of Extend Shaft: 15mm

??Length: 50mm

??Connector: 3.5mm Gold Plug

??Dimensions(L x W x H): 50 x 36 x 36)mm

??Weight : 155g

??Fit RC Car 60A ESC

??Fit 1/10 RC Car

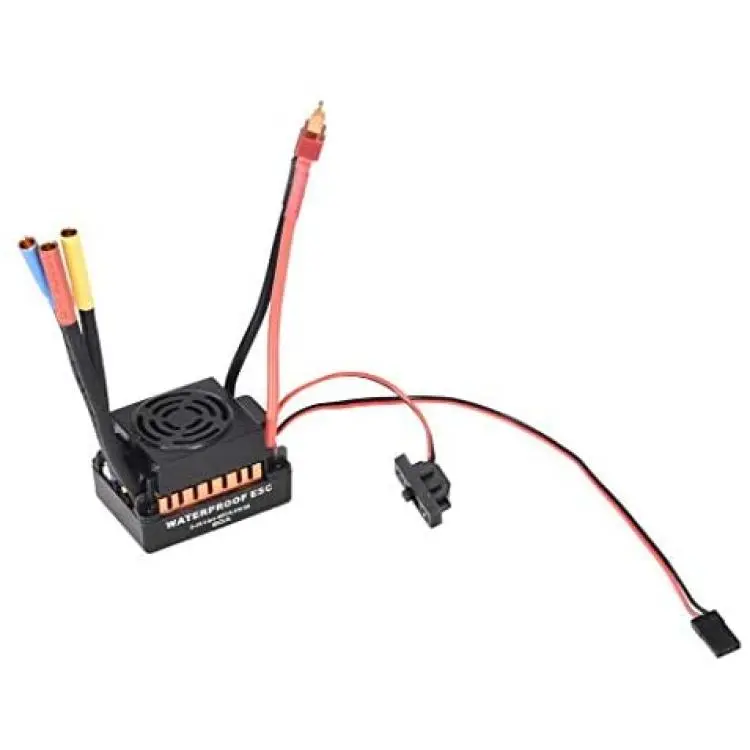

??ESC Specification

??Item name: waterproof ESC

??Continue current: 60A

??Burst current: 320A

??Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni.Cd

??BEC output: 5.8V / 3A

??Power supply plugs: T plug male

??Motor plugs: 4mm banana plug female

??Dimension: 50 X 35 X 34mm / 2.0 X1.4 X1.3in (without cables)

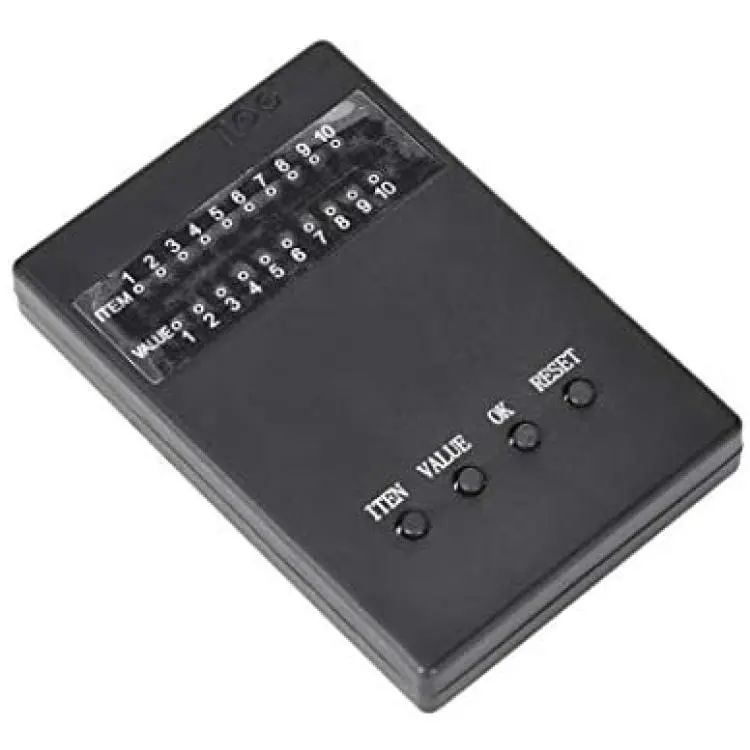

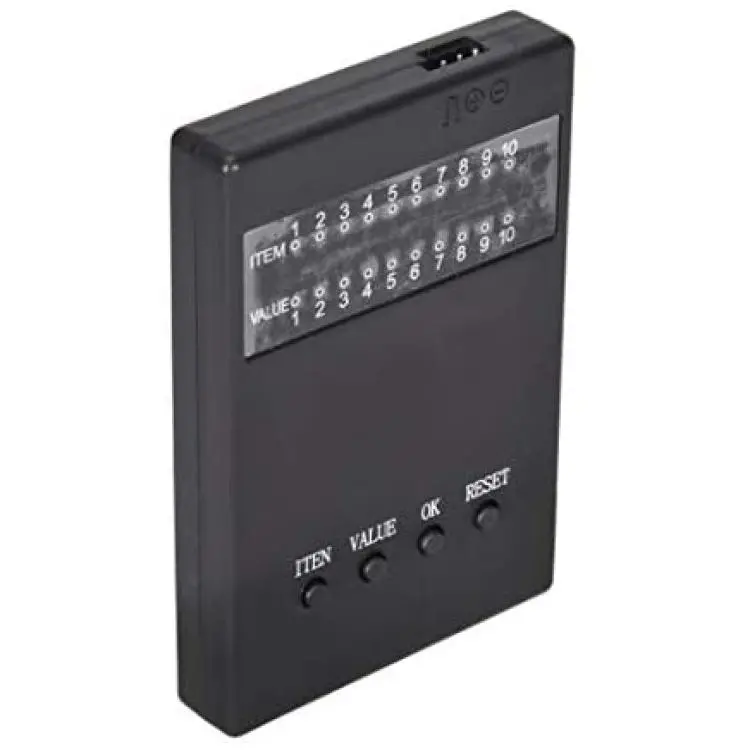

??Program Card Specifications:

??Low voltadge cut off voltadge: 3.1V/Cell 2.9V/Cell 2.7V/Cell

??Start mode : Medium soft strong

??Max brake force: 25%,50%,75%,100%.

??Max reverse force: 25%,50%,75%,100%.

??Neutral range: 6%,9%,12%,work state.

??Size: 61x48x7mm

??Weight : 18g

??Fit RC Car 35A 60A 80A 120A ESC

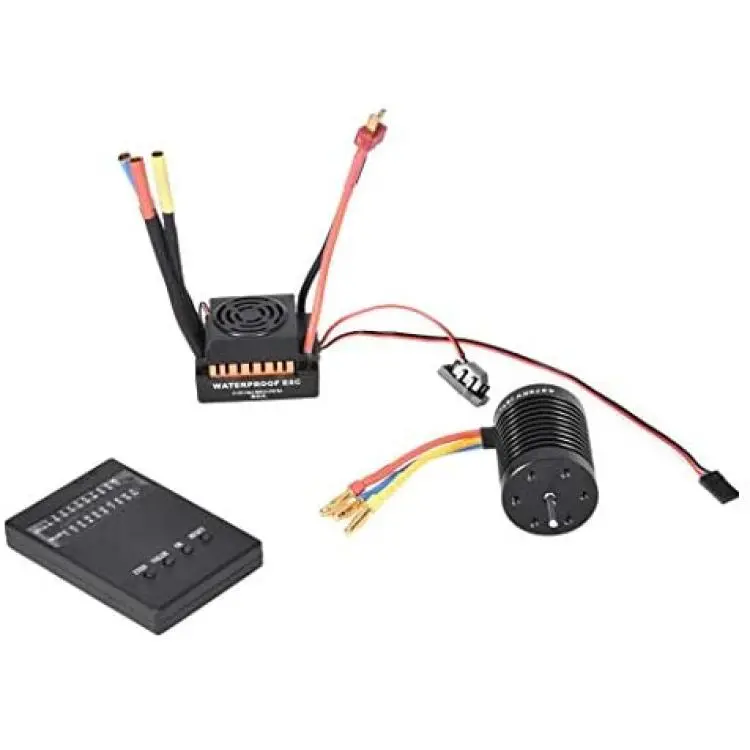

??Package List:

??1 X 9T 4370KV Motor

??1 X Waterproof 60A Brushless ESC

??1 X Program Card
