WINSOON 4FT-16FT Metal Sliding Bypass Barn Wood Door Hardware Kit System Bending Design Wall Mount Bracket Fit Double Wooden Doors (10FT)
Share Facebook Twitter Pinterest Email

WINSOON 4FT-16FT Metal Sliding Bypass Barn Wood Door Hardware Kit System Bending Design Wall Mount Bracket Fit Double Wooden Doors (10FT)

Brand: WINSOON
Product Code: MPM2622
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

*[HARDWARE MATERIAL] - WINSOON barn door hardware is made using premium carbon steel. High quality steel with frosted black surface makes it heavier than other sliding barn door hardwares amd fire proof, water proof and rust proof. It also allows you to install your barn doors interior and exterior.

*[EASY TO INSTALL] - This hardware requires at max 2 people. Super detailed installation manual included that the measurements are all in inches. All tracks can be connected with other tracks with a junction plate. Professional customer service team help you solve all installation problems in time, accept custom-made barn door hardware. THE CLEARANCE from the top of your door to the ceiling should be at least 8 inch to install the bypass barn door hardware.

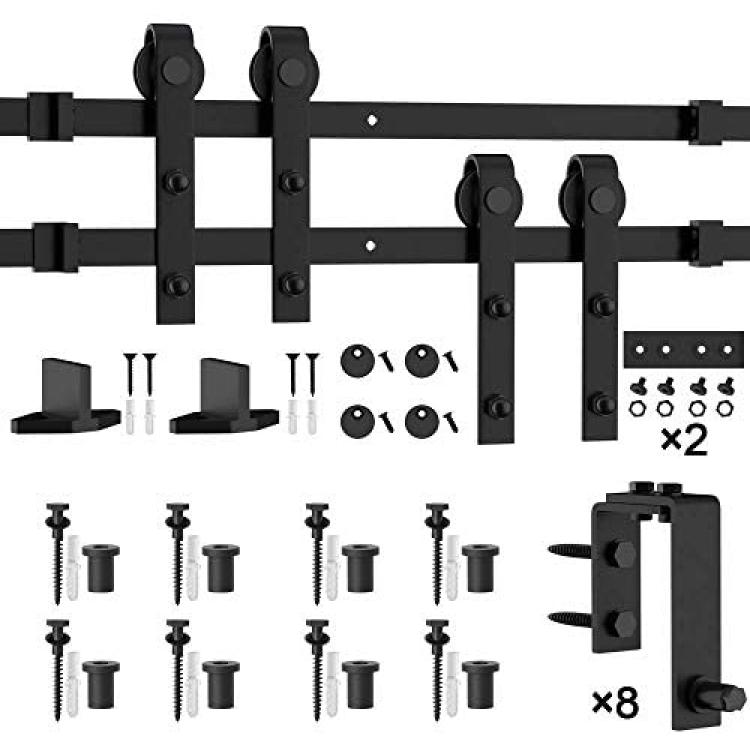

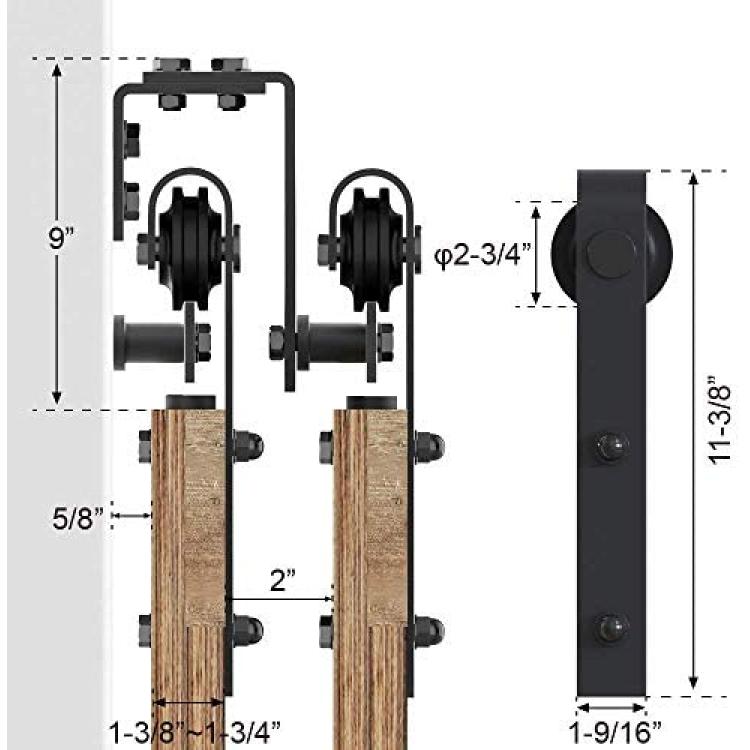

*[PACKAGE INCLUDED] - A Barn Door Hardware Kit (4x 5FT Rails,2x Junction Plate,4x Hangers,16x Rail Supports,8x U Brackets,4x Door Stops,4x Anti-jump Pas, 4x End Caps,2x Floor Guides,1x Hex Key. The rail is pre-drilled holes for 16 inches wall studs. Rail and hanger arms are 1-9/16" wide and 1/5"thick. All other necessary hardware are included as you see in the pictures. * DOOR NOT INCLUDED

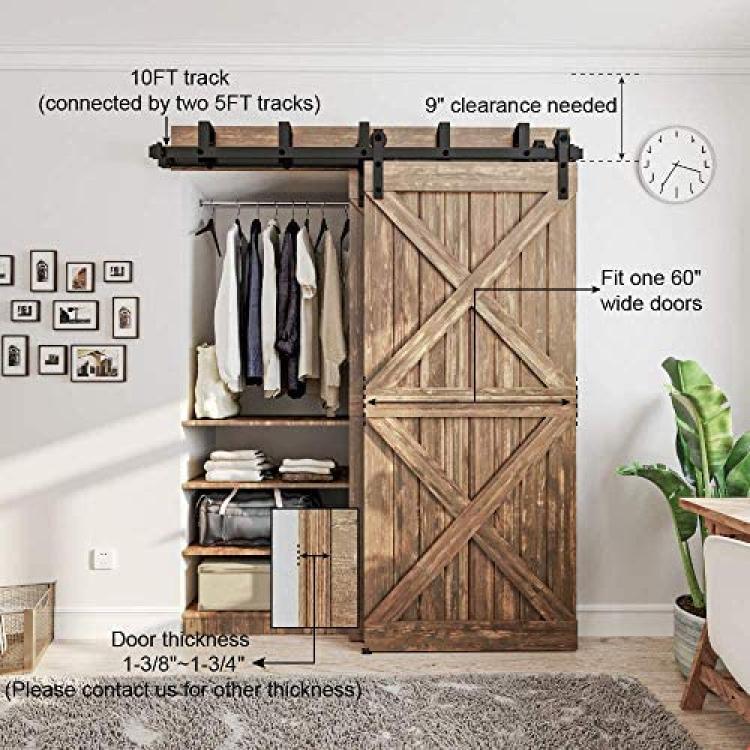

*[DOOR WEIGHT CAPACITY] - Max 230 lbs per door. This 10FT bypass barn door hardware can be used for two 56"-60" wide doors. Fit 1-3/8" to 1-3/4" door panel thickness. If you have other thickness doors, please let us know, we will provide the proper screws to you.

*[GUARANTEED SERVICE] - WINSOON BARN DOOR HARDWARE will come with a 5 year warranty. Our sliding door hardware has passed 120,000 times opening and closing tests. Our products ship from USA using UPS. The lead time will be 1-2 business days and the product shipping time will be 2 - 5 business days.Any problem in using it, our professional Customer Service Team will answer questions for you.

Description


Winsoon is the leading manufacturer of sliding barn door hardware. Craftsmanship, excellence and innovation are our primary pursuits. We enjoy the working with raw materials to make them into something extraordinary.

Trustful quality and workmanship is what you can expect when you choose Winsoon. We lead the way in sliding barn door hardware and we invite you to create something unique.


Specification:

The hardware kit is for double door
Door weight capacity: 150-230lb
Doors Thickness fit for: 1 3/8 - 1 3/4inch (35mm - 45mm)
The distance from the top of the door to ceiling is about at least 20cm/7.8inch


Package Includes:

14 x Track & Wall Connector: Mount track to wall
4 x Door Stoppers: Keep rollers on track
4 X 5FT Track: With pre-drilled holes for wall attachments
4 x Steel Hangers: For use with door
2 x Floor Guide: Keep door in its position
4 x Anti-Jump Pad: Prevent door from falling down
1 x Installation Manual: Help you install your barn door easily
And other Screw parts for you to assemble.


Shipping:

Ship by Fedex will arrive in 5-7 working days.
