Maiman Desktop 50w Fiber Laser Engraver for Metal Parts Deep Engraving
Availability: Pre-Order, Inquiry Price
About this product

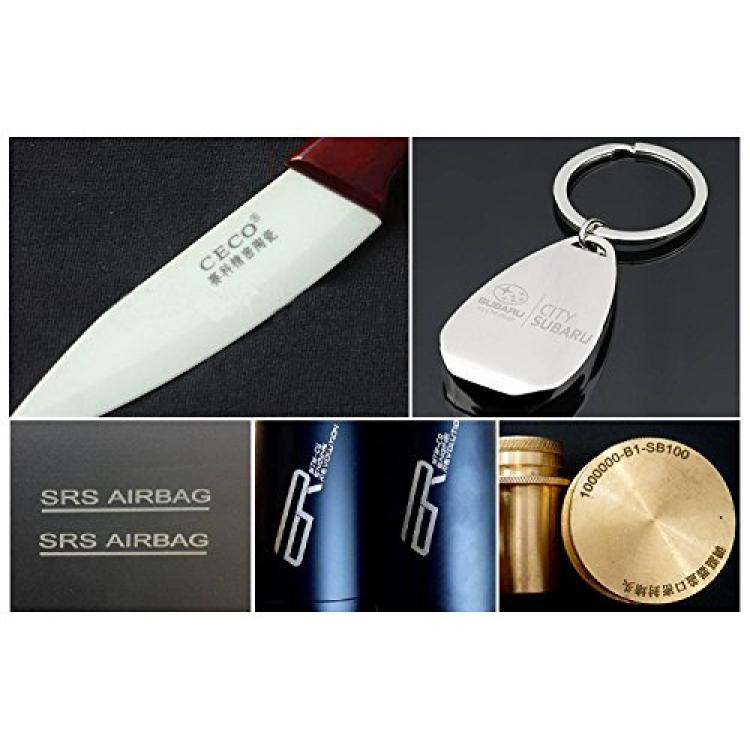

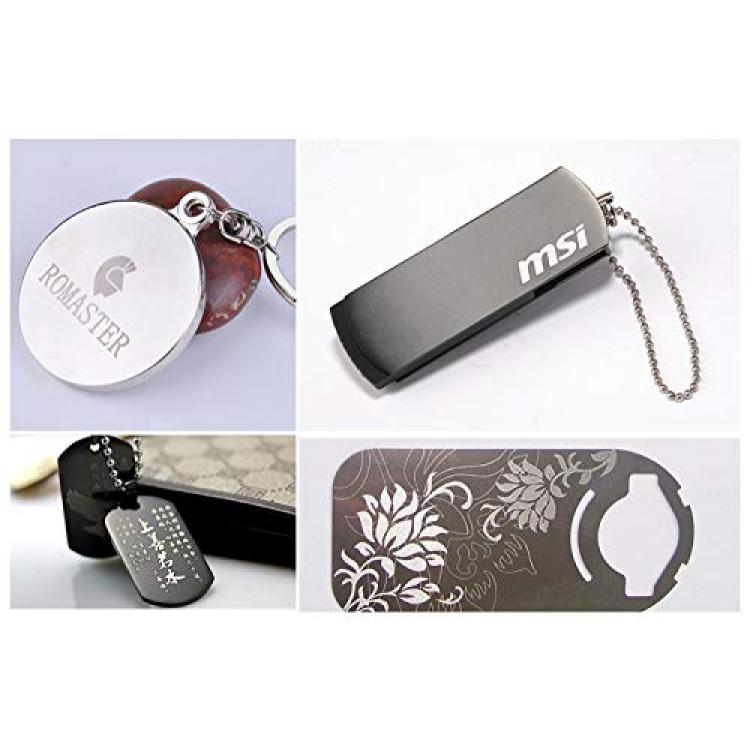

*The fiber laser engraver works with metals of all type, good for high contrast marking, etching and deep engraving on flat metal surface, if marking on the curve of round substrate is needed, please buy an optional rotary axis.
*The 50w laser engraver offers ultra-fine marking, engraving effect, the focused spot size is as small as 10 micron and this allows high data density 2D code, complicated vector image and contents to be printed on a small area.
*The Raycus fiber laser source offers a strong power intensity on focal point, this makes this laser is good for metal deep engraving, painted coat removal and high speed surface marking, for high contrast aluminum, anodized aluminum marking, please drop us message to customize.
*The fiber laser software runs on any Windows operation system, the vector image created by AutoCad and Coreldraw could be easily imported in DXF or PLT format, the software generates barcode, 2D code, serial number, date and time data, all windows fonts are supported.
*The fiber laser engraver does support color changing marking effect for some plastics, e.g., ABS, PES , PVC, etc, the marking effect varies, depends on plastic type, color and density, please drop message for a sample marking before decision making. The fiber laser does not work with ceramics, glasses and organic materials.
Description
Please leave your question on the page or drop us message if you have anything uncertain about this 50w fiber laser engraver, we will answer it in 12 hours and hopefully we will be help for a proper purchase decision.
Highlights:

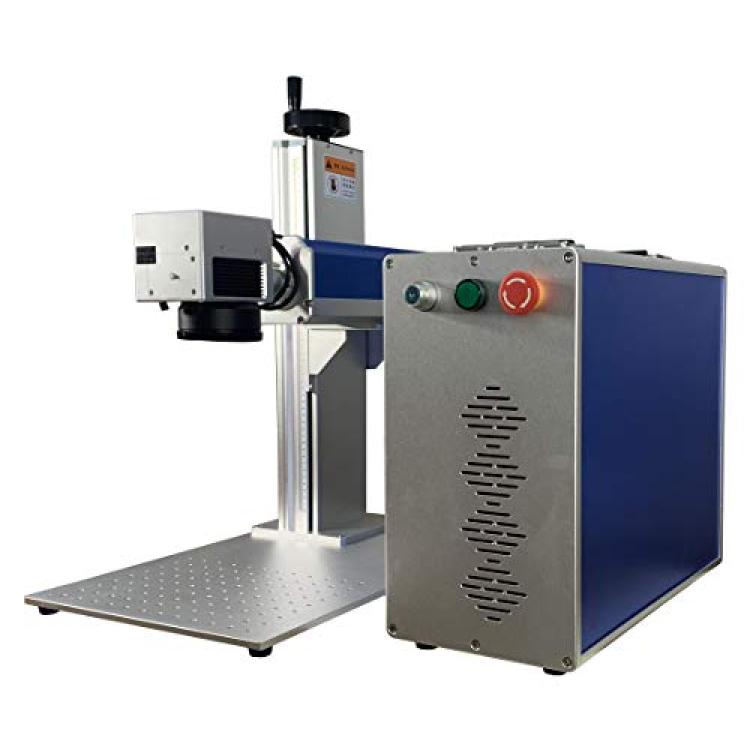

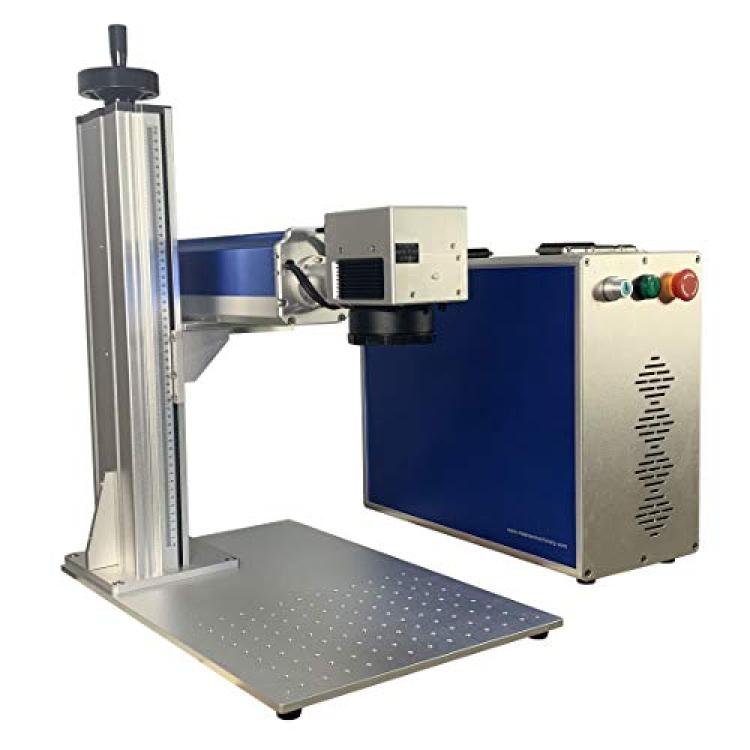

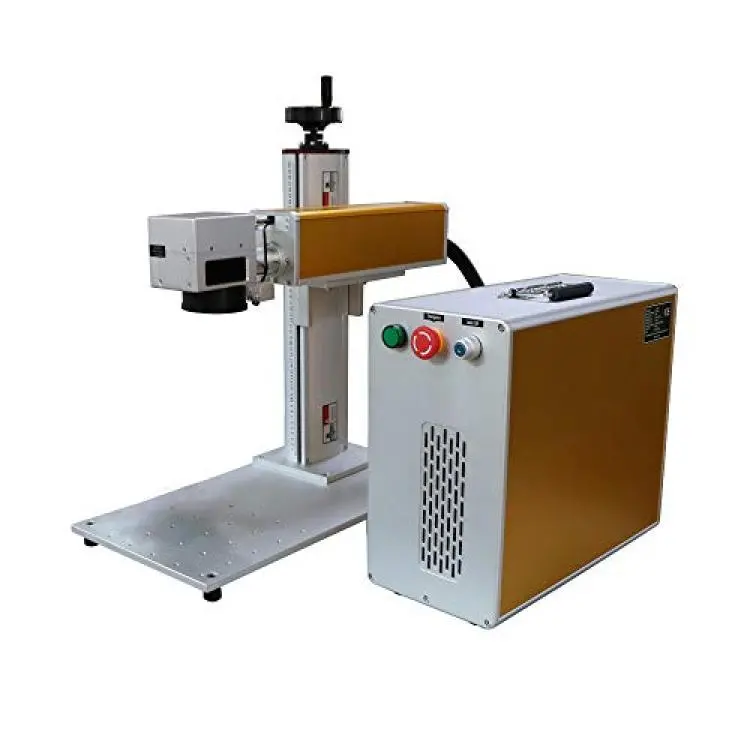

1.the fiber laser engraver machine has a robust housing, net weight 103LBS, the Z axis is 20” high, the focal height around 7”, nearly 13” space secured for substrates.
2.focus assistant feature, the focal height is there when 2 red dots merge.
3. the marking gun could be easily mounted elsewhere when protect enclosure needed or in any other scenario.
Warranty: 2 years against order, faulty part replacement with remote support.
Return policy: follow Amazon default return policy.
Configuration: Raycus RFL-50Q 50W fiber laser source (not cheap QS series), licensed EZcad2 software v2.14, 8,000mm/s galvo scanner, 4.3*4.3” f-theta lens.
Delivery: 1-2 working days handling time, 5 days transit time.
Hardware and Software Installation: very simple installation, please read the “readme.txt” in the pen drive comes along with the machine before anything.
Training: video training, please read the “readme.txt” file in the pen drive for the training.
Specification:
Laser Source: Raycus RFL-50Q 50W (not cheap QS series)
Scan Area: 4.3*4.3”
Fiber cable length: 2m
Nominal focused spot size: 10um
Engraving Speed: 8,000mm/s
Wavelength: 1064nm
Frequency: 20-80kHz
Pulse Width: 110-130ns
Communication with Computer: USB2.0 (preferred, every computer support by default) or USB3.0 (not work if USB3.0 driver is not installed)
Civil Power: 110V/60Hz
Cooling: air cooling
"
