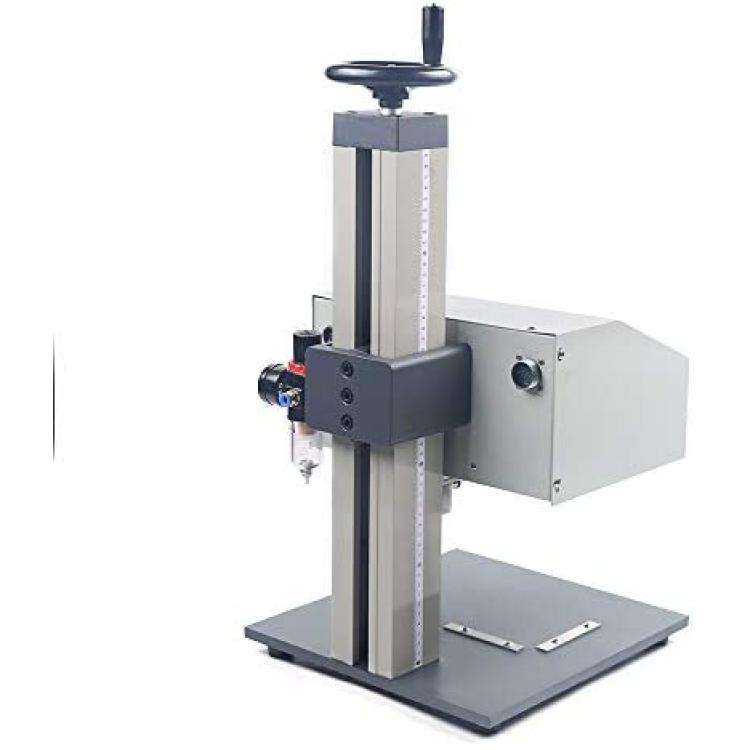

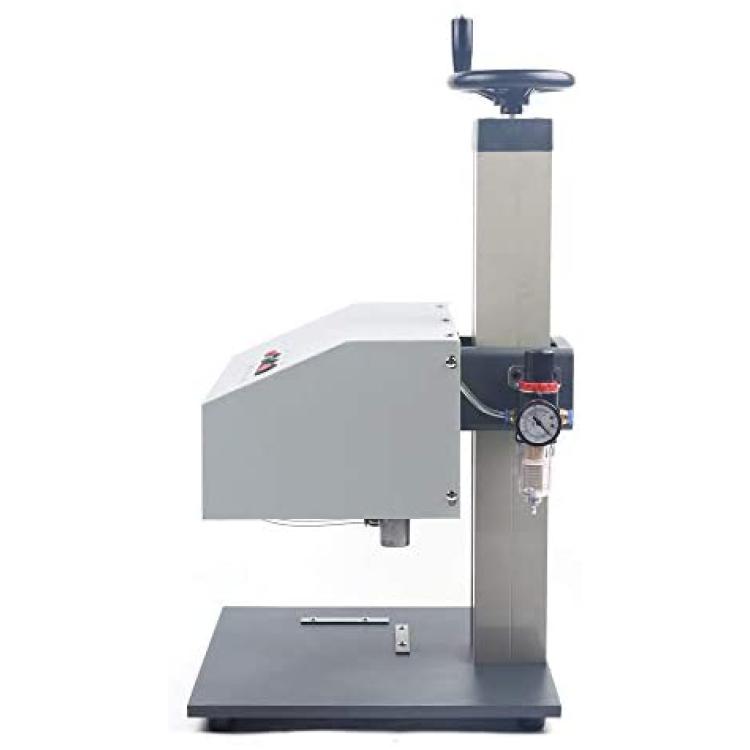

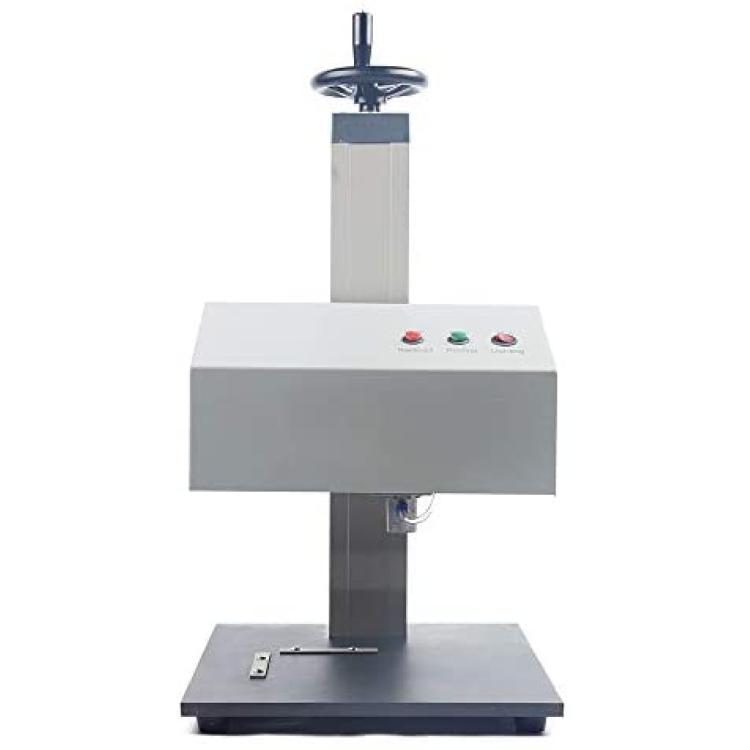

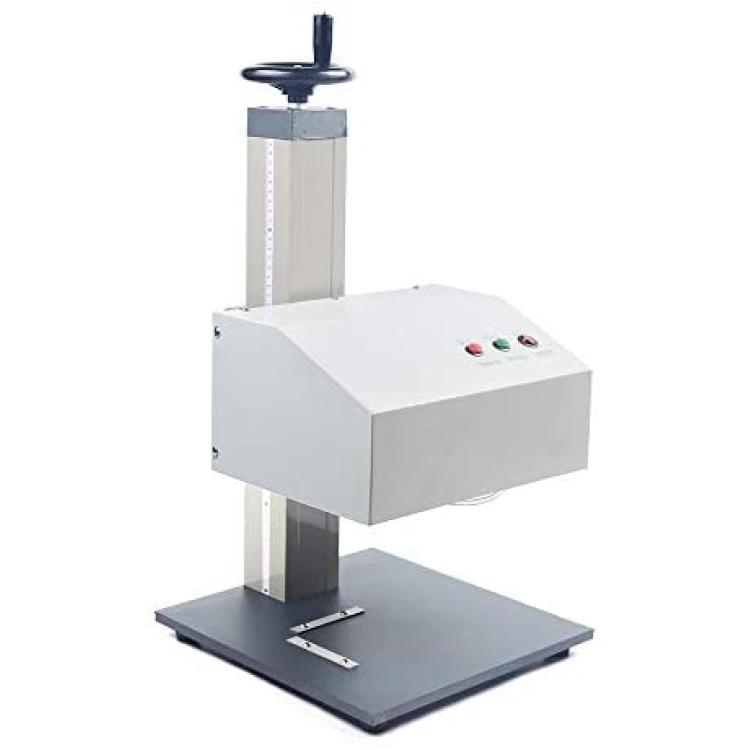

Benchtop Pneumatic Dot Peen Marking Machine Metal Surfaces Pin Marking Automatic Pneumatic Marking Engraver Machine for Metal Parts Signs Metal Stainless Steel USB Engraver 110V 190120mm (Style 1)
About this product
*❤【POWERFUL GRAPHICS PROCESSING CAPABILITIES】：Powerful graphics processing capabilities, CAD, COREL, and other graphics formats can be directly called
*❤【MULTIPLE SETS OF CHINESE AND ENGLISH FONTS AVAILABLE】：There are multiple sets of Chinese and English fonts available, which can be used directly by calling the WIN system fonts and can be added freely
*❤【AGJUSTABLE】：The size and spacing of the marked characters can be adjusted arbitrarily within the format
*❤【MAIN APPLICATION】: Used for automatic printing on the plane of signs and metal products, hard plastics, cast iron, aluminum and epoxy resin.
*❤【OTHER APPLICATIONS】: hard plastic materials, PVC materials, epoxy resin materials, stone black materials can also be marked
Description
Product parameters:
1. Printing format: 190*120mm
2. Lifting height: 200mm
3. Marking depth: 0.1-0.5mm, depending on the hardness of the material, generally the material with the lower HRC hardness will be carved deeper
4. Marking speed: ?5 characters/S (2mm high in English or numbers as reference)
5. Marking content: Chinese and English, numbers, punctuation marks, trademark graphics, serial number, date or factory number
6. Main application: Used for automatic printing on the plane of signs and metal products, hard plastics, cast iron, aluminum and epoxy resin.
7. Software interface: Window XP/2000/win7 32-bit or 64-bit
8. Other applications: hard plastic materials, PVC materials, epoxy resin materials, stone black materials can also be marked
9. Dimensions: Marking host: L340×W320×H550mm
10. Weight parameters: Marking host: ?30KG, electric control box: L280×W300×H120mm
11. Voltage: 110V±60HZ,
Software function:
1. The software comes with barcode, VIN code, time and serial number format variable text, which can be changed automatically after editing once
2. There are two ways to mark the stroke effect: single stroke and double stroke, which can be selected at will
3. The speed of marking can be adjusted by software
4. The software can make dot matrix marking effect, or it can achieve anti-counterfeiting marking function by adding special fonts.
5. The marked text is automatically added to the database, which is convenient for query, call,
6. Rotary marking function: directly input the diameter of the workpiece, automatically calculate the rotation distance and pay for multi-line and multi-column marking.
7. The same marking text only needs to be edited and saved once, and the marking can be called directly after the next startup

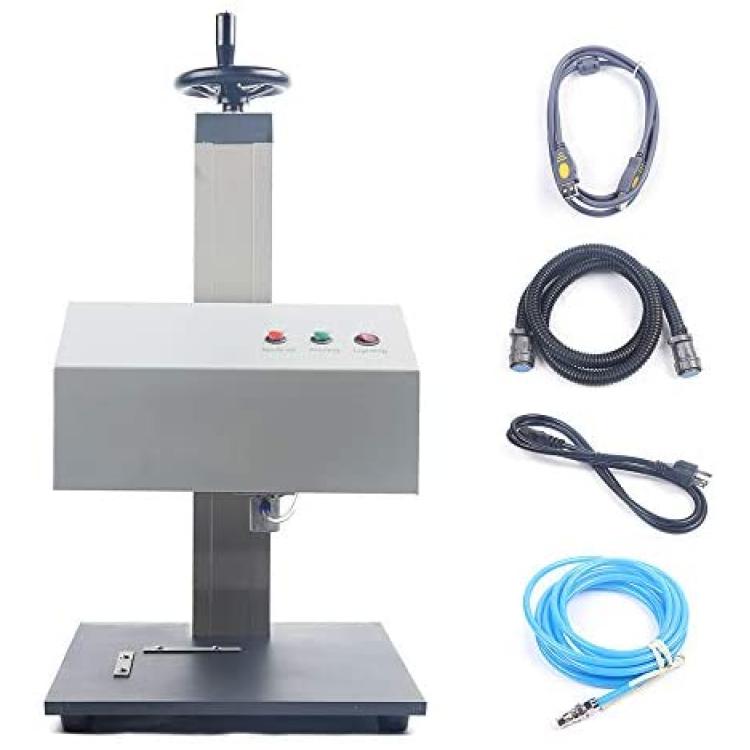

Packing list:
Marking host + electric control box + random spare parts: 2 springs, 2 sealing rings, 2 limit switches, 2 needle
