MOYEEL 2 Pairs Replacement Metal Lock Latches for Nintendo Switch Joy-Con Controller,Lock Buckles Repair Tool Kit for Switch Joy-Cons - Include Tri-Wing & Cross Screwdriver Tool + 4 Pcs Y Screws
About this product

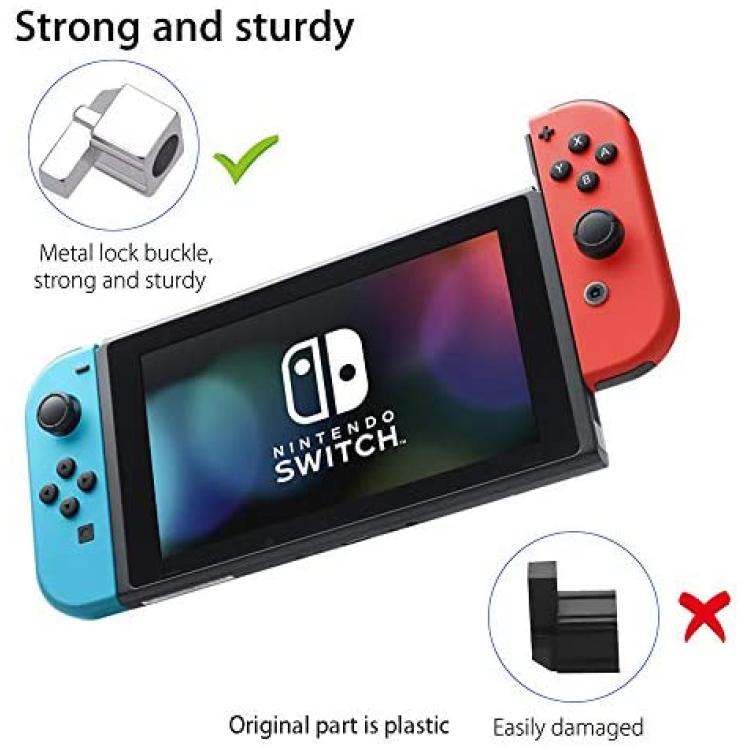

*DURABLE - Original part is plastic and easily damaged,metal alloy joycon latches recommended for anyone having trouble with joycon latching and DIY to repair loose nintendo switch joycon grip to spare yourself the replacement fee
*NOTE - Suitable for someone who has a skilled hands-on ability, we are not responsible for any damage to the switch during repair work, please be careful and slowly when you replace it in case to destroy the buckles or controller
*TIP 1 - Be careful about the orange flat wire between the top and bottom of Joy Con case.So you need to open the Joy Con case carefully.Be careful about the spring when you remove the original buckle.
*TIP 2 - The left and right lock buckle are different.Be careful not to reverse them.When you remove the original buckle,there is a little iron.You can use the tweezers to pry it.

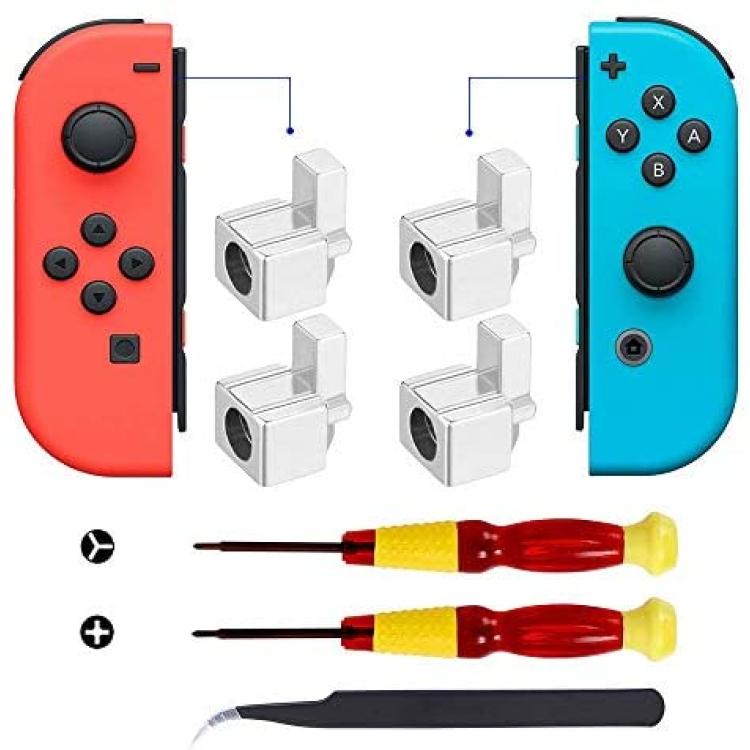

*INCLUDES - 4*Metal locks,1*"Y" Tri-wing Screwdriver and "+" Cross Screwdriver repair tools, Tweezers,Pry tools and 4*Buckle Lock Screws
Description

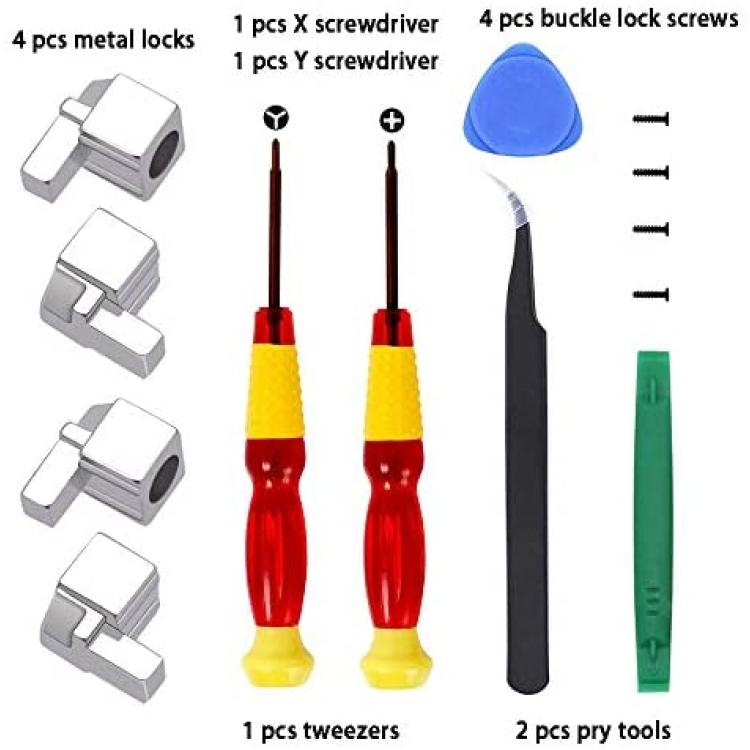

Package inlcude:
1 x tweezers
1 x Y Screwdriver
1 x X Screwdriver

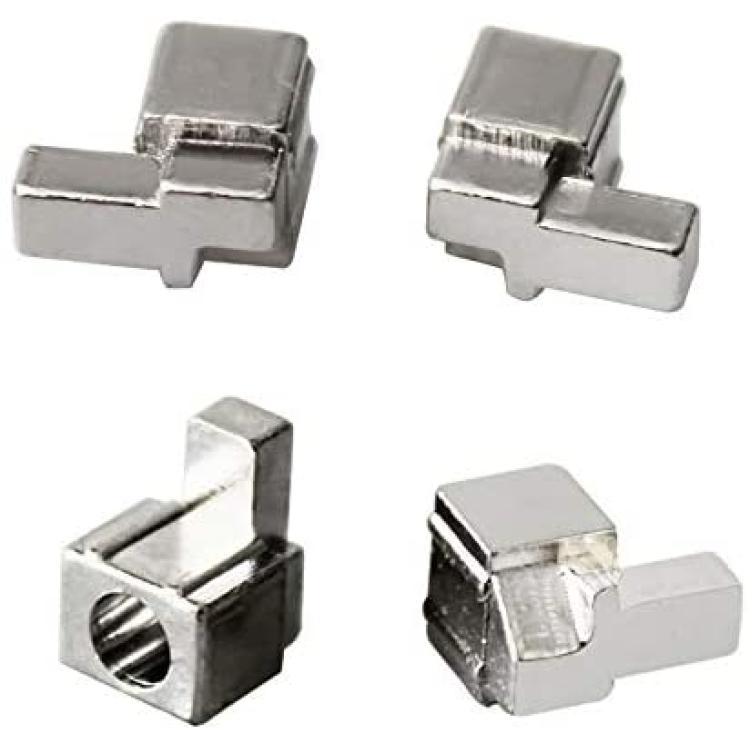

4 x Joy Con metal lock buckle
4 x Buckle Lock Screws
2 x pry tools
How to install the Metal Lock Buckles?
1.Use the Y screwdriver to open 4 screws on the joy con.
2.Use the X screwdriver to open the screw inside the joy con.
3.Take down the small iron with the tweezers.
4.Then take the original lock buckle out carefully.
5.Then put the spring into the metal lock buckle.
6.Put the metal lock buckle into the joy con by tweezers and press the spring into the slot.
7.Finally,put back the small iron and the screw.Close the joy con case back.
Note:

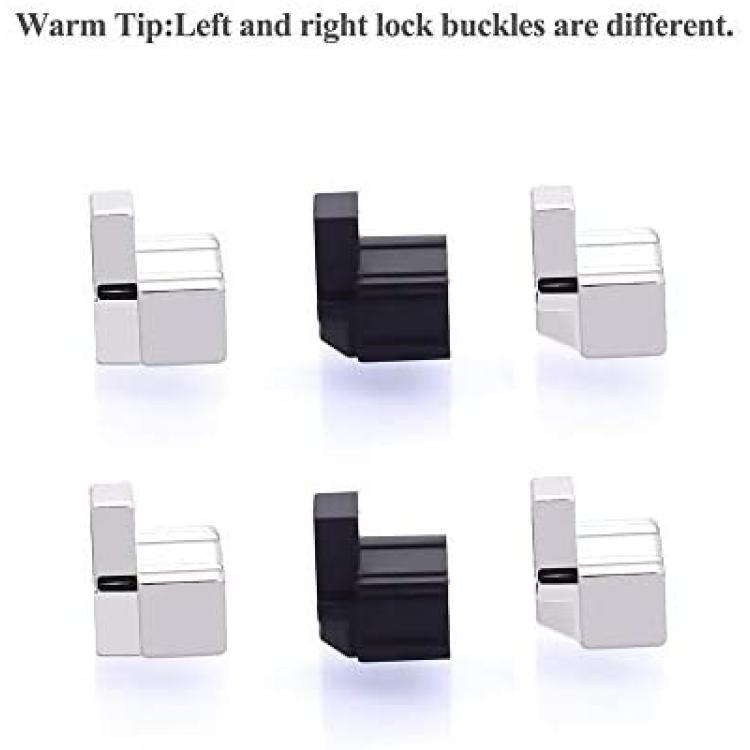

1.The left and right lock buckle are different.Be careful not to reverse them.Compare the original buckle with ours to confirm which one to put in.
2.?Be careful about the orange flat wire between the top and bottom of JoyCon case, you need to remove the JoyCon case carefully
3.Be careful about the spring when you remove the original buckle.
4.Only for Nintendo Switch original Joy-Con Shell.
