GDSTIME 80mm x 80mm x 25mm 12V Brushless DC Cooling Fan
About this product
*Dimension of outer the frame is 80mm(L) x 80mm(W) x 25mm(H) / The size of fan in inch is 3.15in(L) x 3.15in(W) x 1in(H); The center to center distance beween the mountiong holes is 71.5mm/2.81in.
*Operating Voltage Range：5.5V to 13.8V. (overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.)
*Rated Voltage: DC 12V; Rated Current: 0.2 Amp; Rated Speed: 2800 RPM; Air flow: 43.6CFM; Noise:31dBA; Power: 2.1Watt
*Connector: XH2.54-2Pin; Lead wire: UL Type (+): Red wire ; (-): Black wire. This is a two wire cooling fan; Bearing Type: Sleeve Bearing ; Life: working up to 35000h at 25 degrees.
*Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
Description

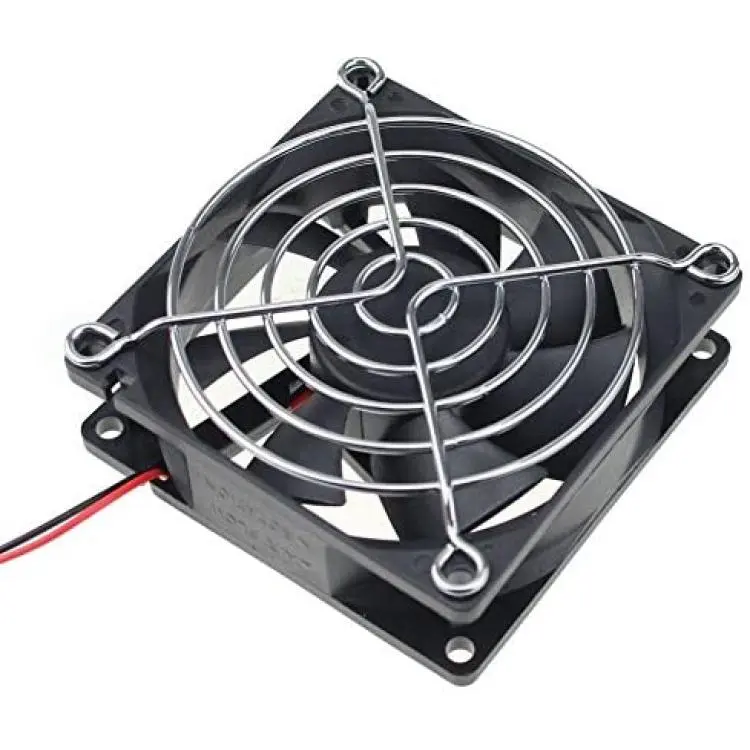

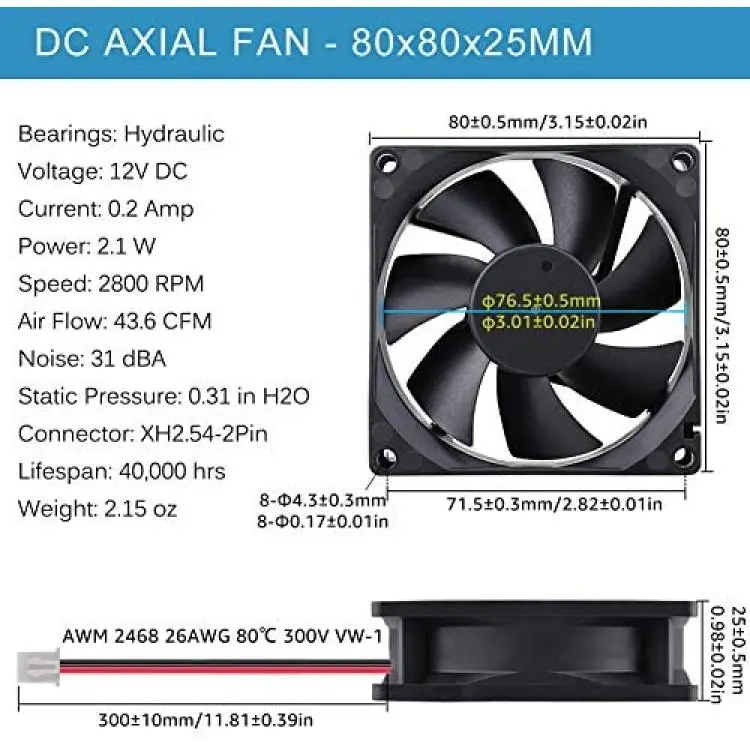

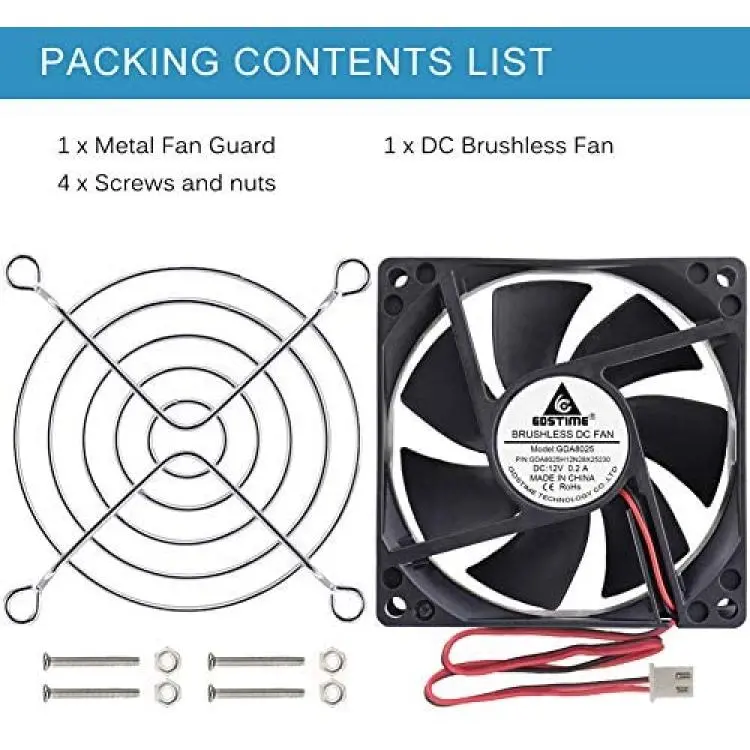

Dimension: 80x80x25 mm (3.15x3.15x0.98 in.)Mounting Hole Distance: 71.5 mm (2.82 in.)Screws Hole Diameter: 4.3 mm (0.17 in.)Start up Voltage is 3.9VOperating Voltage Range: 5.5V to 13.8VOperating Temp Range: -40?(-40?) to 70?(158?)Bearings: Hydraulic BearingRated Voltage: 12V DCRated Current: 0.2 AmpPower: 2.1 WattsRated Speed: 2800 RPMAir flow: 43.6 CFMStatic Pressure: 0.31 In H2ONoise Level: 31 dBA 1x DC Brushless Fan 1x 80mm Fan Guard 4x Screws and nuts
