GDSTIME 25mm X 25mm X 10mm 2.5cm Small 12v Brushless Dc Mini Cooling Fan
About this product
*Package include: 1 Piece fan include mounting screws & nuts
*Dimensions: 25mm(L) x 25mm(W) x 10mm(H) / 0.98 x0.98x0.39(L*W*H)

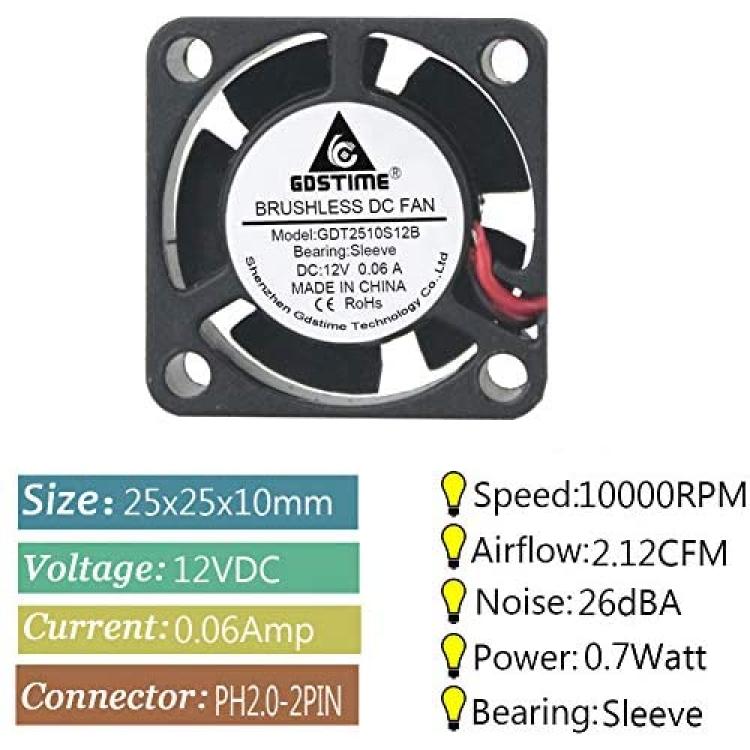

*Rated Voltage: DC 12V; Rated Current: 0.06Amp; Rated Speed: 8500 RPM; Air flow: 1.82CFM; Noise: 26 dBA
*Bearing Type: Sleeve Bearing ; Life: working up to 35000h at 25 degrees.

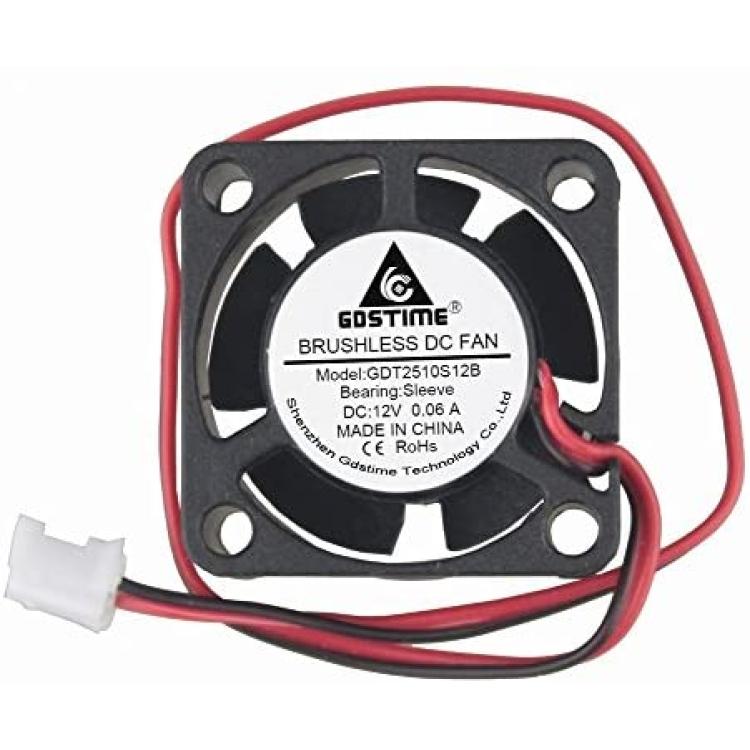

*Connector: Ph2.0-2Pin; Lead wire:UL Type (+): Red ; (-): Black. This is a two wire cooling fan.
Description
(overtake to 13.8V, it can also work. but not safe, and seriously affects lifespan of fan.)

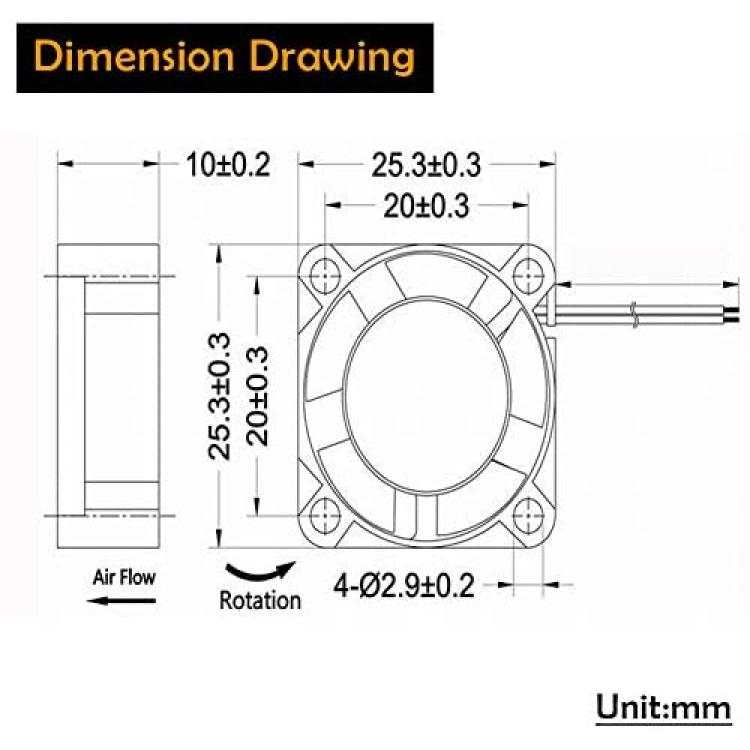

Start up voltage is 2.8V.Operating Voltage Range?5.5V to 13.8V.Operating Temperature: -10? - 75? Storage Temperature: -40? - 80?The center to center distance beween the mountiong holes is 20mm/0.79in.Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
