Intel E41759-002 Socket 1156 Copper Core/Aluminum Heat Sink & 3.5'' Fan w/4-pin Connector up to Core i5 2.66GHz
About this product

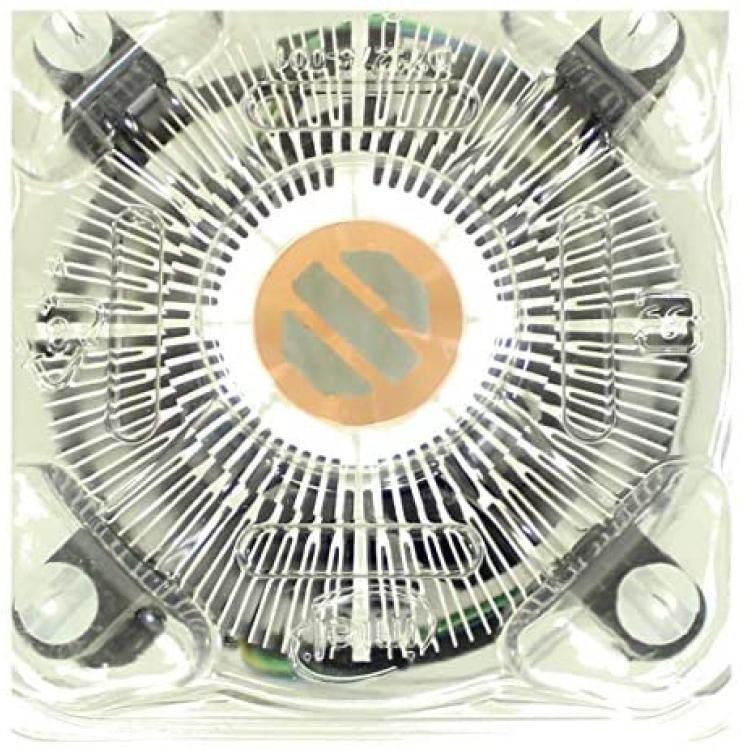

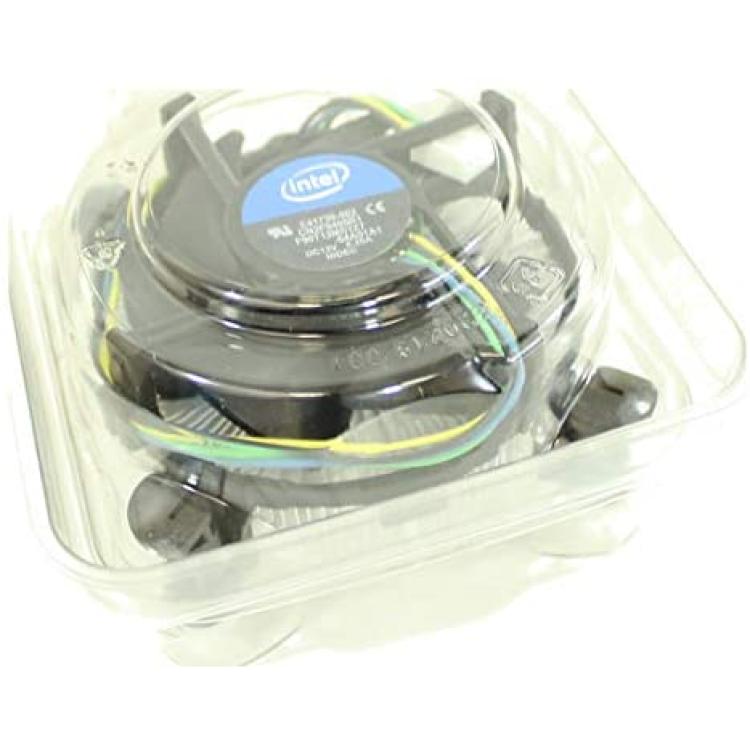

*Intel E41759-002 Socket 1156 Copper Core/Aluminum Heat Sink and Fan General Features: Copper Core
*Aluminum and Copper Core Heat Sink 3.5-inch fan DC 12V 0.17A
*4-pin fan connector (12-inch length, approximate) Supports up to Core i5-750 2.66 GHz
*Compatible with Socket 1156 Intel Quad-Core CPUs up to 73W
*Compatible with Intel Core i3 500, Core i5 600 series, Pentium G6950 processors
Description
Intel LGA1155/1156 Socket 12V DC 0.20A Cooling Heatsink Fan Assembly E41759-002 F90T12MS1Z7 F90T12MS1Z7-64A01A1.
Intel Part Number: E41759-002
Compatible Part Numbers: F90T12MS1Z7 F90T12MS1Z7-64A01A1
Compatible Models: Intel Core i3 500 Core i5 600 Pentium G6950 processors Series
Specifications:
- Socket Type:
  - LGA1156 Intel Quad-Core CPUs up to 73W TDP
  - LGA1155 Intel Core i-series CPUs up to 73W TDP
- Material: Aluminum + Copper insert
- Voltage: 12V DC
- Rated Current: 0.20A
- Bearing Type: Hydro
- Fan Connector: 4-Pin PWM
- Fan Speed: 1200rpm -2500rpm
- Fan Dimensions: 92x92x32mm
- Heat Sink Dimensions: 87x87x19mm
