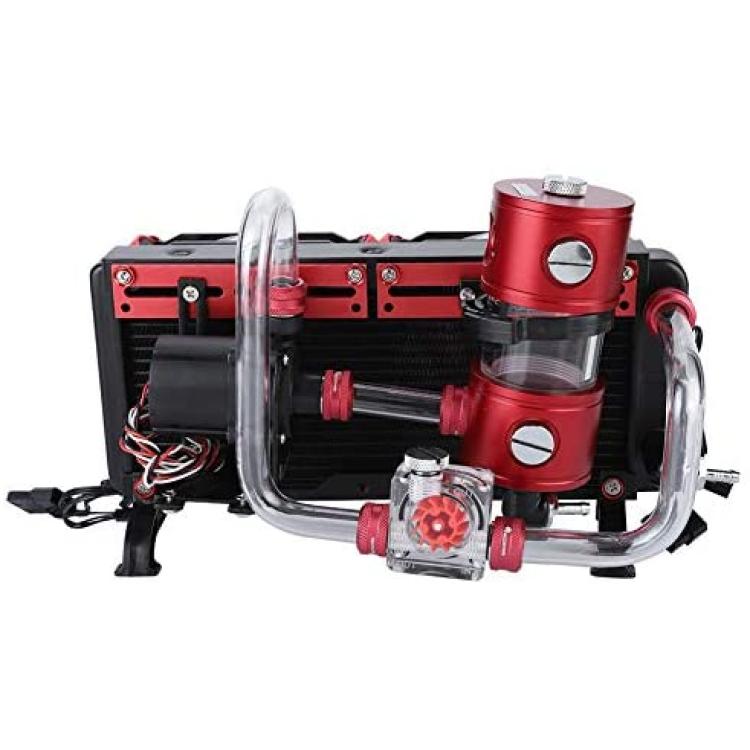

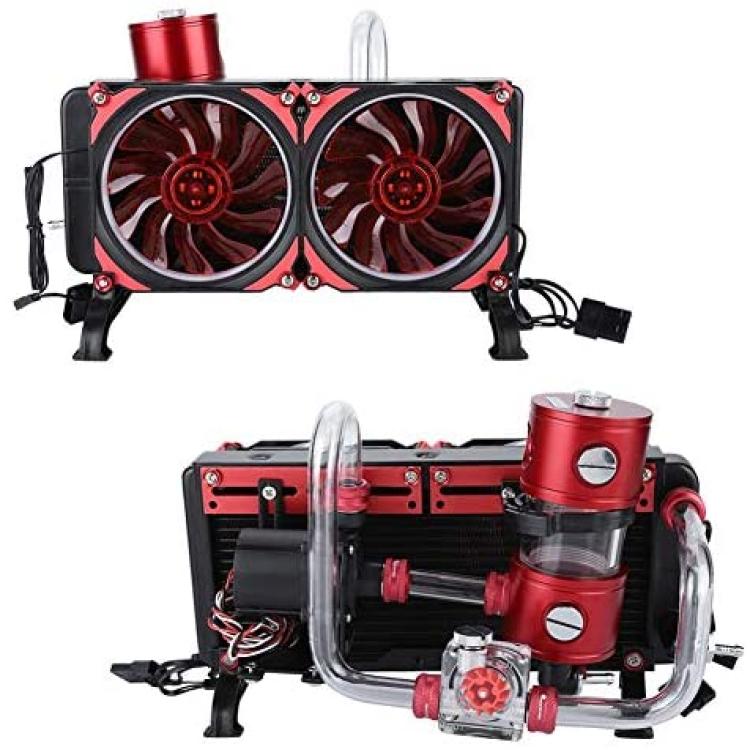

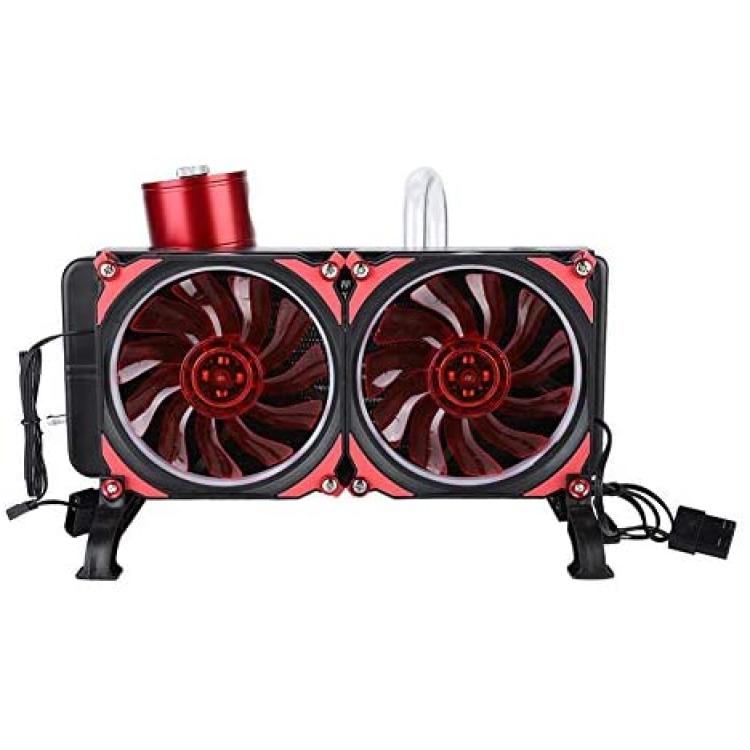

Laptop Cooling Fan,Notebook Computer Water-Cooled Set PC Liquid Cooling Kit,Water Row Water Pump Fan Water Tank Mounting Accessories,Contains All The Bits Need Easy to Installation
About this product

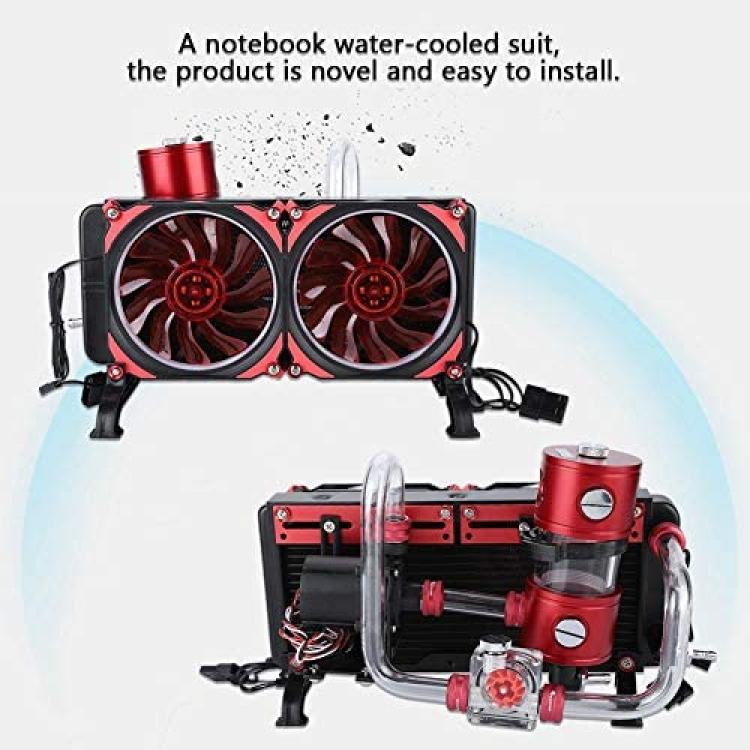

*This is a notebook water-cooled suit, the product is novel and easy to install.

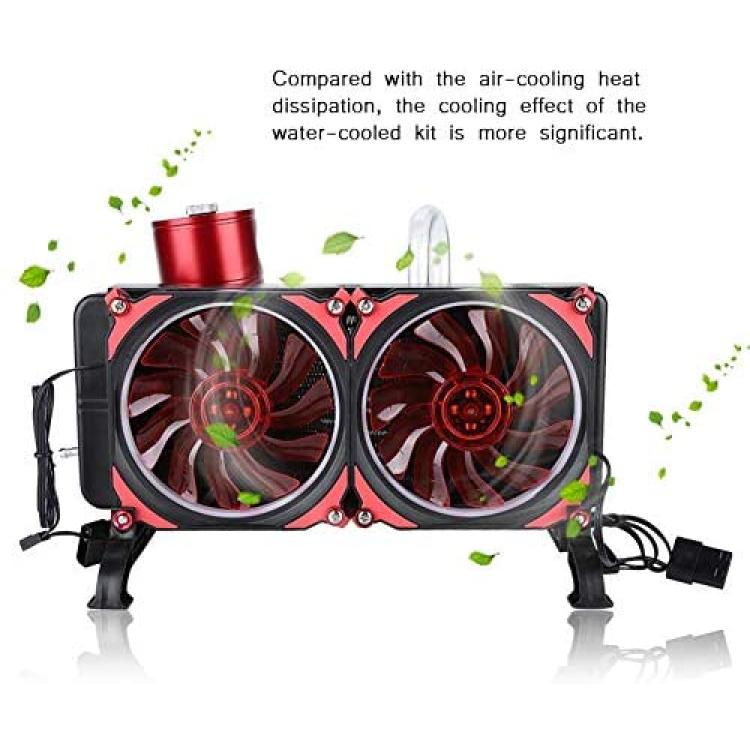

*Compared with the air-cooling heat dissipation, the cooling effect of the water-cooled package is more significant.

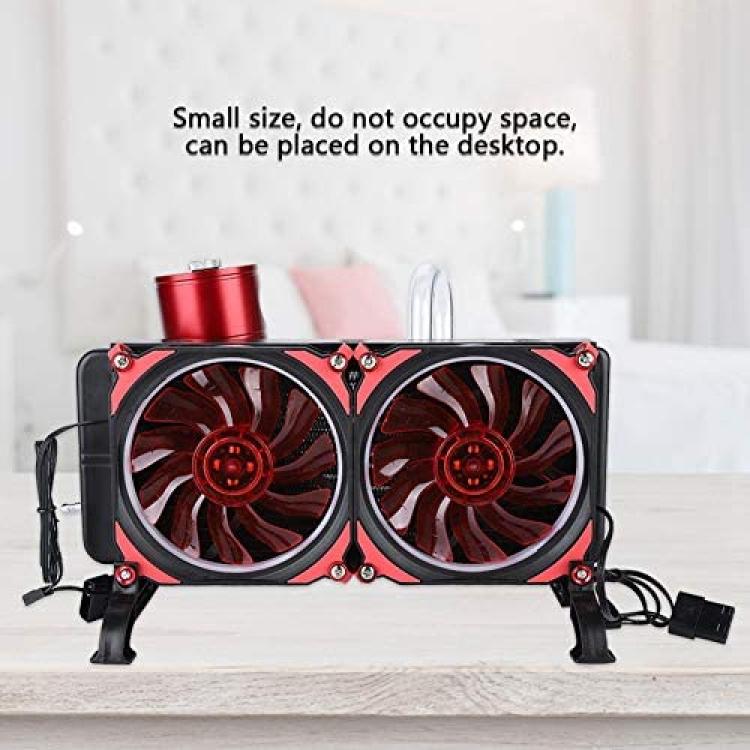

*Small size, no space, can be placed on the desktop.
*Customliquid cooling can give you much better cooling performance compared to all inone cooling systems and traditional air coolers as you can make specific tweaks to your system to have it perform better.
*The kit contains all the bits you need to customise your water cooling set up and have it match the rest of your system.
Description
Specifications:
Water Tank
Size: Approx. 12 * 5.8 * 5.8 cm/ 4.7 * 2.3 * 2.3 in
Material: PMMA + anode aluminum
Intermediate transparent acrylic outer diameter: 50mm
Hole position: G1/4 thread *6
Color: Red
Equipped with adjustable plastic clips*1

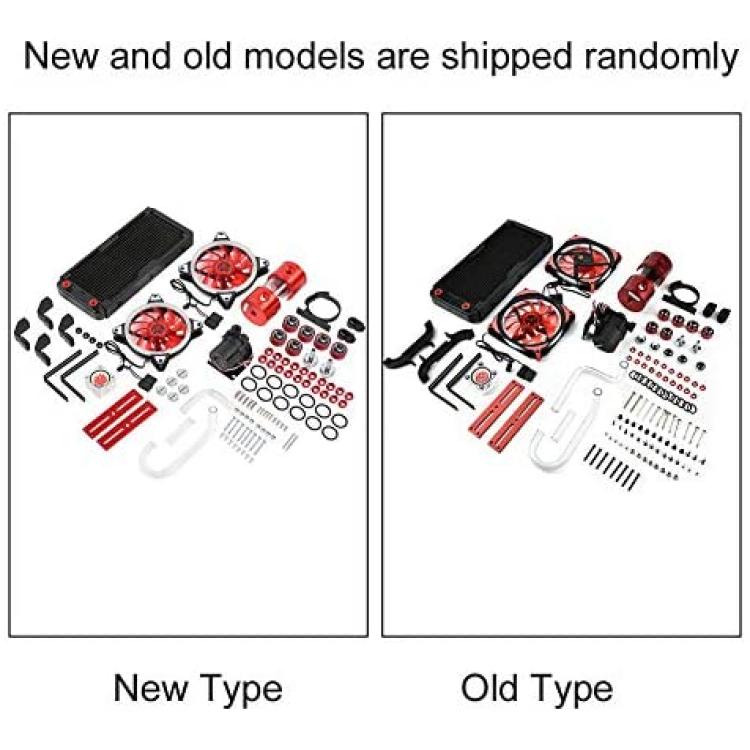

Package Iist:
1 * Water Row
1 * Water Pump
2 * Fan
1 * Water Tank (Equipped with adjustable plastic buckle * 1)
6 * Fast Twist
7 * Screw Kit
1 * Water Flow Meter
3 * Hard Tube
2 * Water Row Stent
5 * Choke Plug
2 * I-Type Holder
2 * 90 ° Elbow
2 * 90 ° Stents
2 * Connector

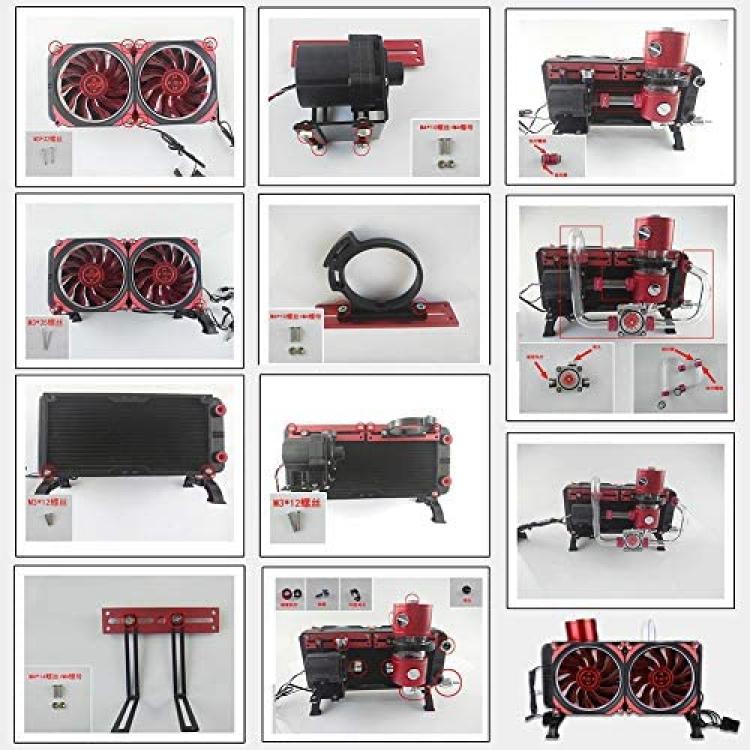

Installation Steps
1. Lock the two fans with the M3*32 screws on the water line.
2. Use the M3*35 screw to lock the water row bracket on the water line.
3. The other side of the second step uses the M3*12 screw to fix the water row bracket and the water drain.
4. Lock the 90° bracket with an M4*14 screw + M4 nut on an I-bracket.
5. Lock the type I bracket of step 4 with the M4*10 screw + M4 nut under the water pump.
6. Lock the adjustable plastic buckle of the water tank with another M4*10 screw + M4 nut on the other type I bracket.
7. Lock the pump of step 5 and the adjustable plastic clip of step 6 with M3*12 screws on the water line.
8. Install the quick screw, pagoda, 90° elbow and plug on the water drain, water pump and water tank respectively.
9. Install the quick-turn nut and seal ring on the short straight hard pipe and connect the water pump and the water tank together.
10. Install one plug and two quick turns on the water flow meter. Quickly screw the nut and seal ring on the other two hard tubes and connect them with the water pump, water flow meter and water drain to complete the installation.
