Computer Cooling Kit,DIY 240mm Cooler CPU/GPU Block Pump Reservoir LED Fan Heat Sink Compputer Water Cooling Kit Improve Heat Dissipation Experience Protect CPU

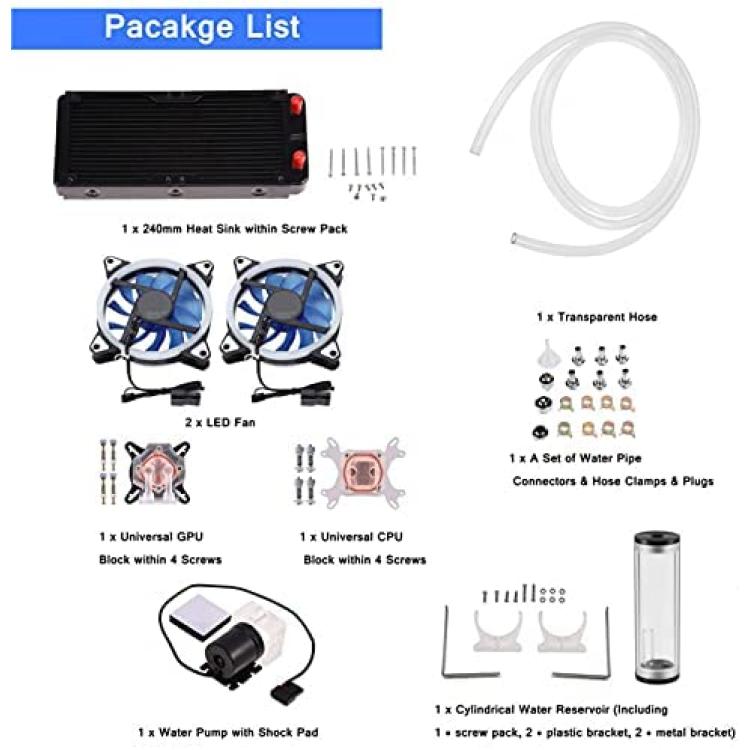

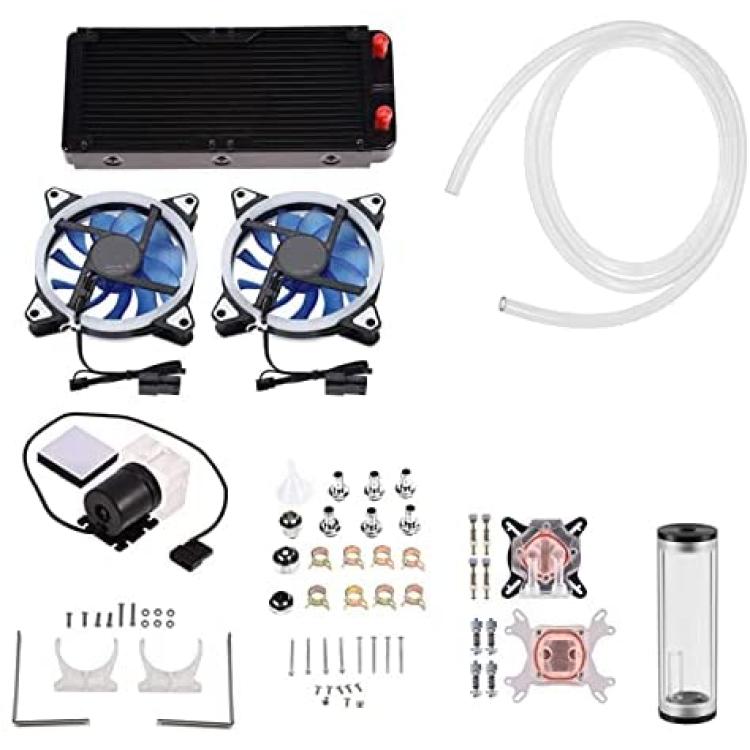

Specifications:

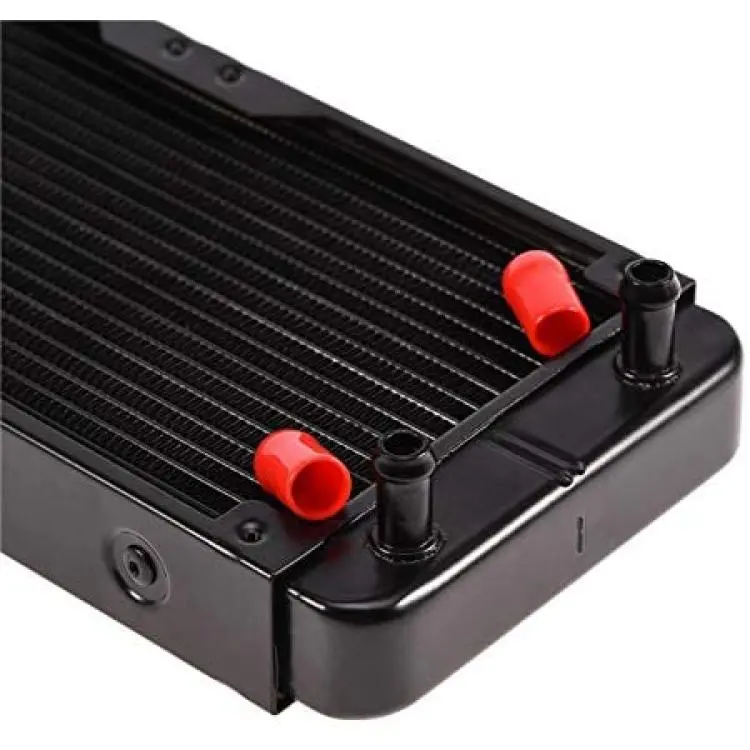

1. 240mm black heat sink (with screw pack):
Appearance size: 27.5 * 11.8 * 3.2cm
Straight mouth height: 2cm
Diameter of straight tube: about 9.5 mm
Number of waterways: 18

2. LED fan:
Appearance size: 12 * 12cm
Power supply interface: large 4Pin + small 3Pin

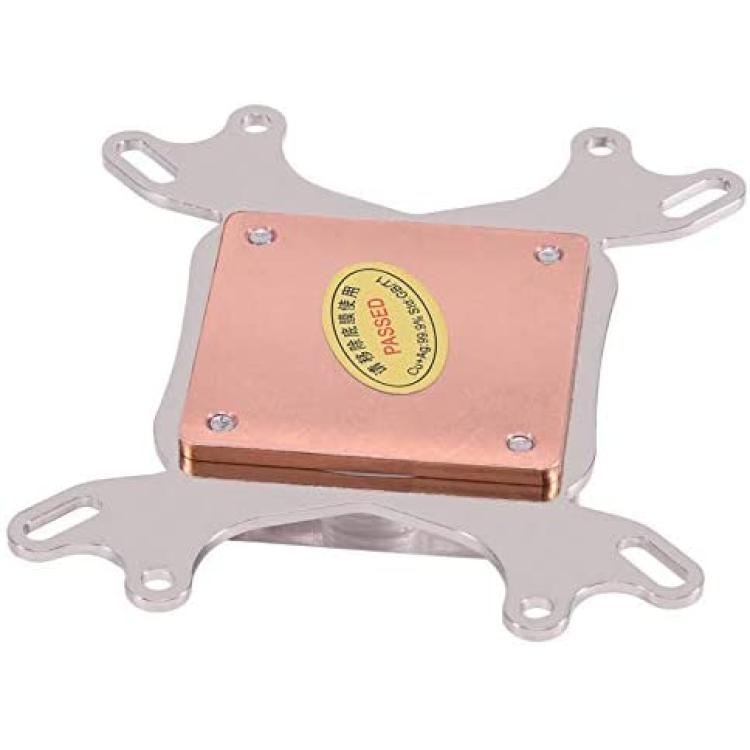

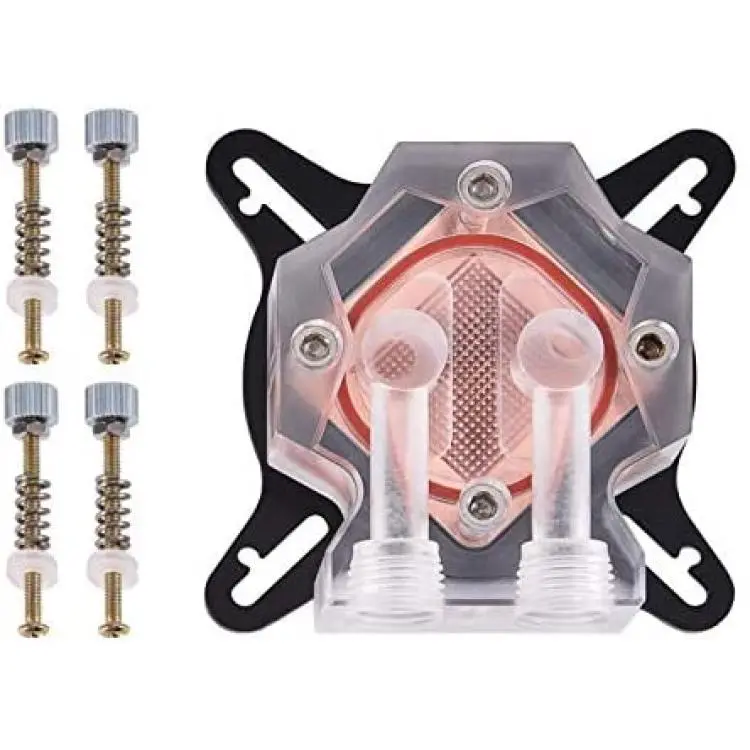

3. Universal CPU block (with 4 pcs screws):
Description: Universal for INTEL / AMD Dual Platform
Screw size: G1 / 4
Outside diameter: 12.9MM
Bottom contact size: 5 * 5cm, thickness 3mm

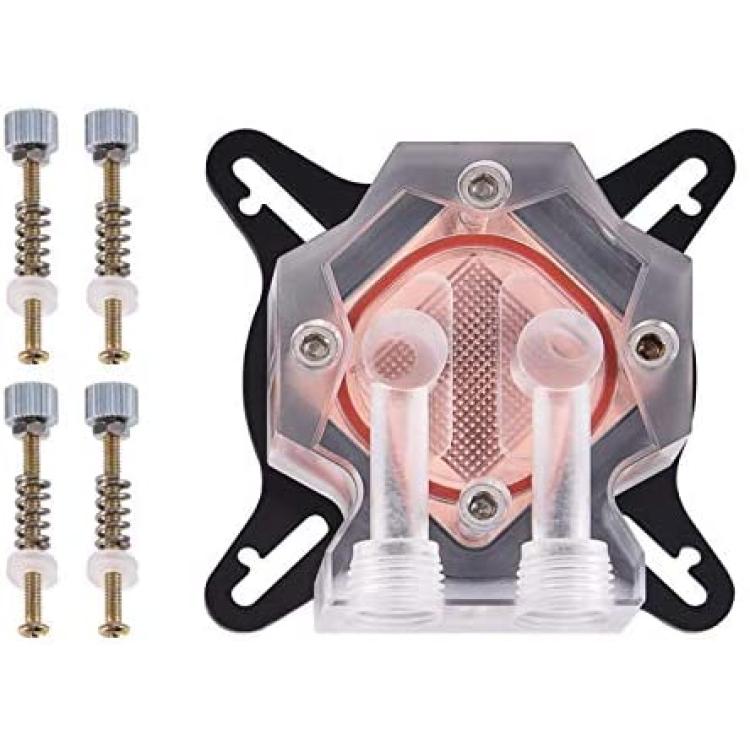

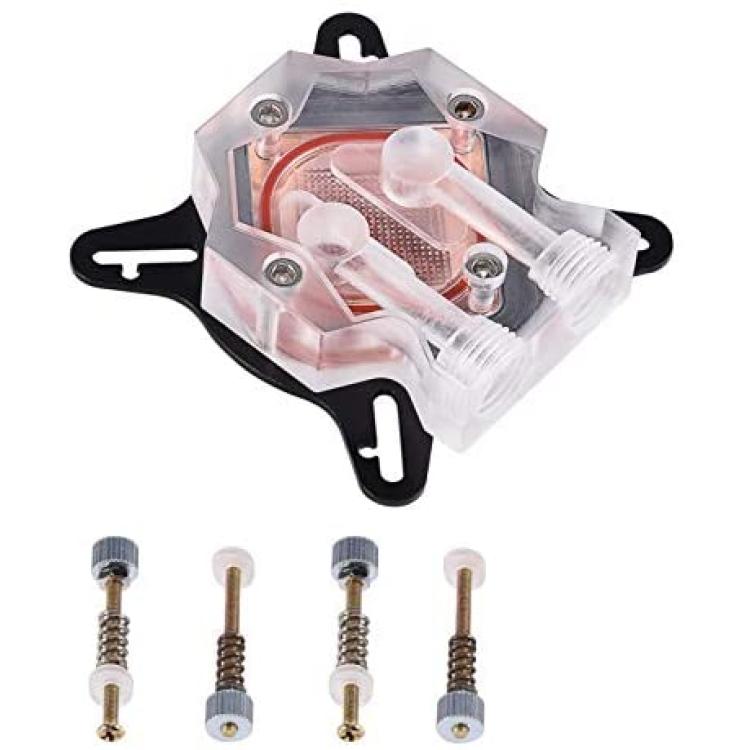

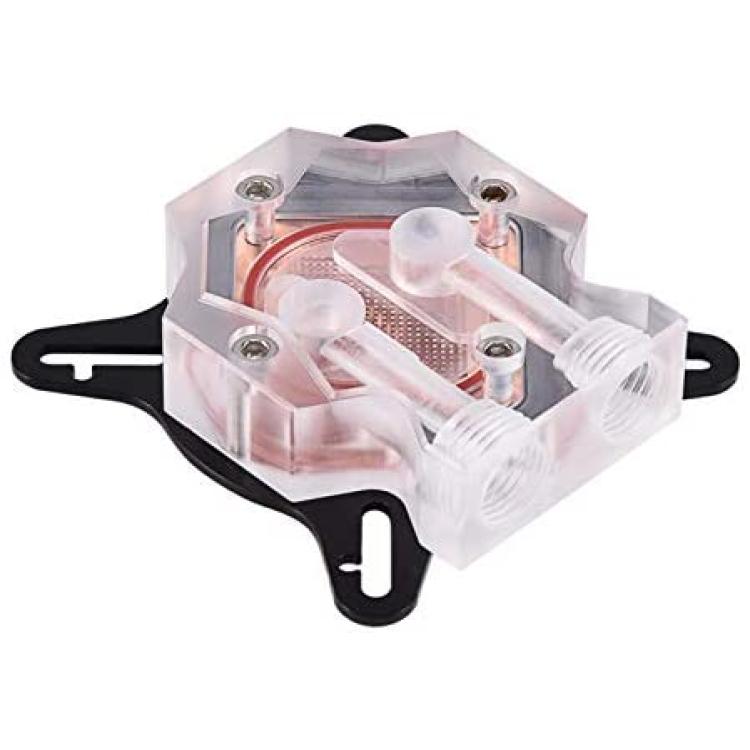

4. Universal GPU block
Interface: G1 / 4 universal thread, diameter of 12.9mm
Waterway: 0.8MM parallel waterway
Compatibility: Matches a fan with a distance of 53 mm to 61 mm
Supported tube: 9.5mm ID / 12.7mm OD PU tube, or 10mmID / 16mmOD solid tube, or 8mmID / 12mmOD silicon tube (ID is the inner diameter, OD is the outer diameter)

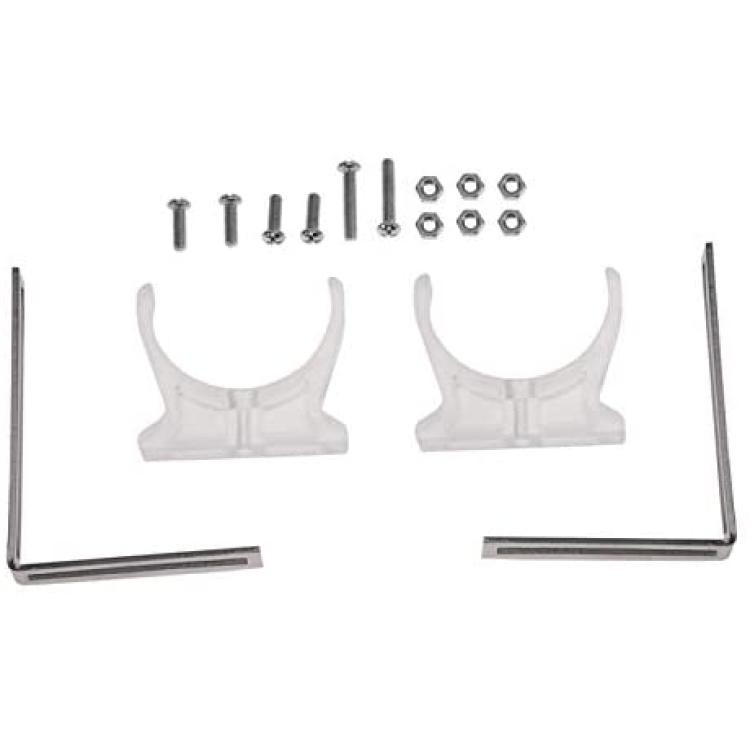

5. Cylindrical Water Reservoir (including plastic bracket * 2, metal bracket * 2, screw pack * 1):
Water reservoir height: about 160mm
Water reservoir diameter: 5cm
Water reservoir interface: G1 / 4 universal thread
Interface diameter: 12.9mm

6. Transparent hose:
Inner diameter: 8mm
Outer diameter: 12mm

7. Pump (including shock pad):
Features: Waterproof, high stability, quiet, long lasting.
Thread size: G1 / 4
Interface diameter: 12.9mm
Pump Size: Overall Length 7.7CM, Height 5.2CM, Cover Thickness 2.8CM, Cover Width 5.2CM
Material: Acrylic
Pump head: 5 meters
Power supply interface: large 4Pin

8. Water pipe joints & hose clamp & plug
