DIY 240mm Cooler CPU/GPU Block Pump Reservoir LED Fan Heat Sink Compputer Water Cooling Kit
Availability: Pre-Order, Inquiry Price
About this product
*CPU / GPU Block: The CPU/GPU block is constructed with a copper base to provide exceptional heat transfer and cooling performance.
*Cylindrical Water Reservoir: The cylindrical water reservoir is manufactured from high quality transparent acrylic so that the circulation system is visible.
*Water Pump: Waterproof, stable, high quiet, long life. 240mm Heat Sink: Provide the excellent heat dissipation, as you need for highly overclocked desktop processors.
*Transparent Hose: Upgraded flexible anti-explosion, hoses enable a space-saving installation and exceptional durability.LED Fan: The extreme performance dual fans offer a high air static pressure with lower noise.
*Well made: Any question,please feel free to contact us, we will reply to you soon.
Description
Specifications:

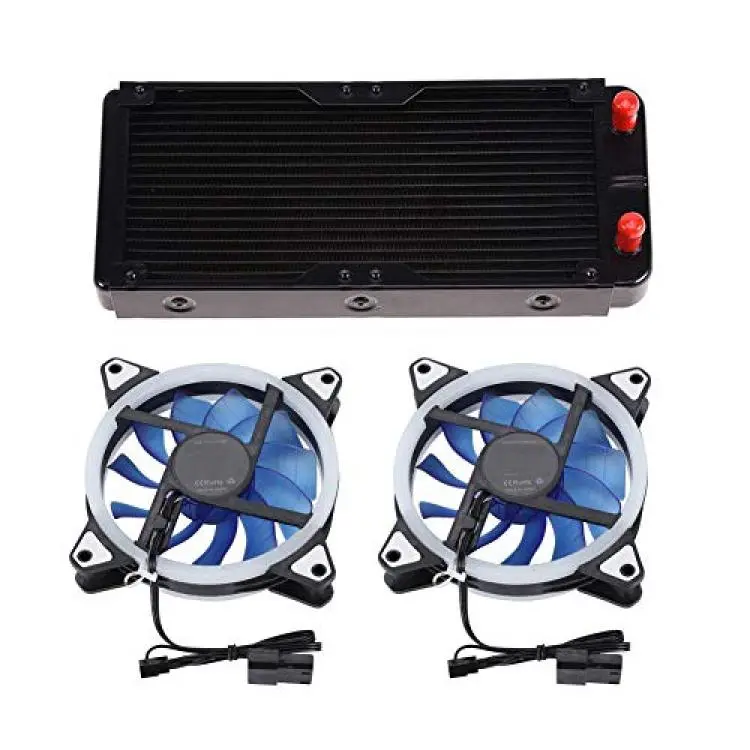

1. 240mm black heat sink
Appearance size: 27.5 * 11.8 * 3.2cm
Straight mouth height: 2cm
Diameter of straight tube: about 9.5 mm
Number of waterways: 18

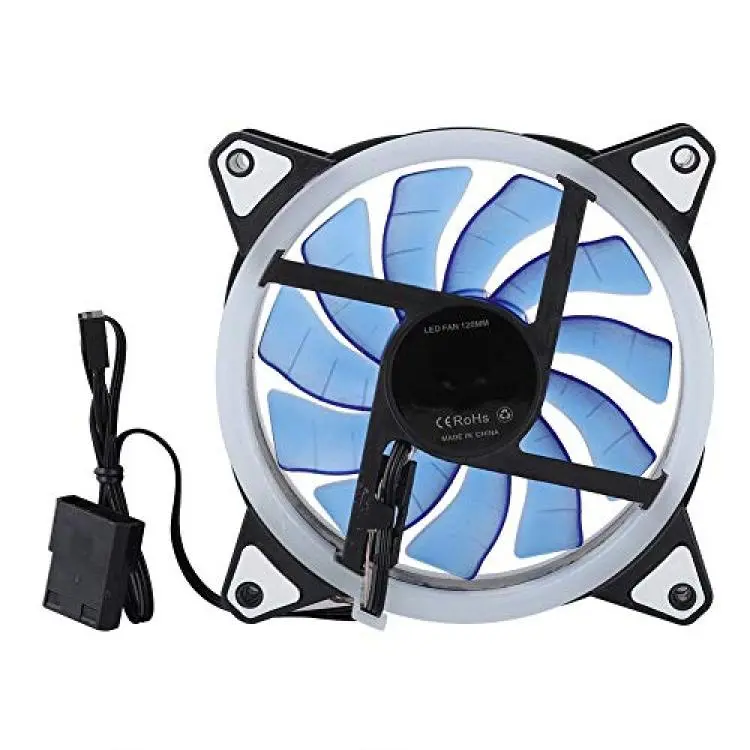

2. LED fan:
Appearance size: 12 * 12cm
Power supply interface: large 4Pin + small 3Pin

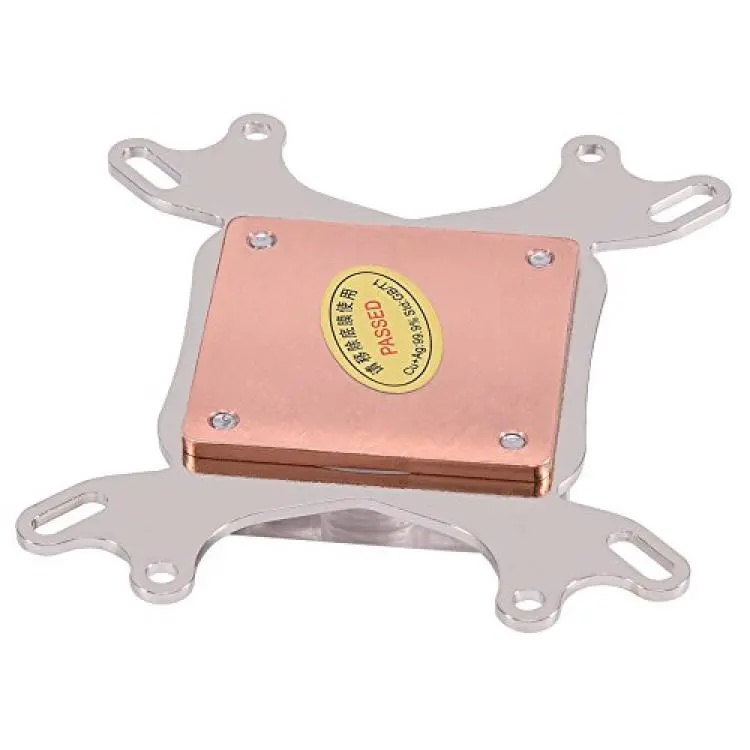

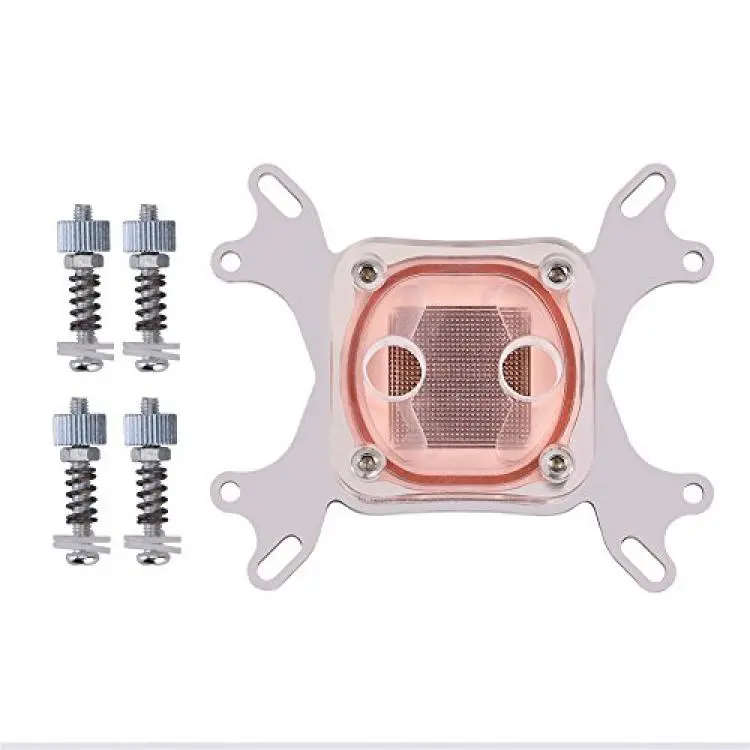

3. Universal CPU block
Description: Universal for INTEL / AMD Dual Platform (For INTEL 775,1150,1155,1156,1366,) (For AMD: AM2, AM3, AM3 +)
Screw size: G1 / 4
Outside diameter: 12.9MM
Bottom contact size: 5 * 5cm, thickness 3mm
4. Universal GPU block
Interface: G1 / 4 universal thread, diameter of 12.9mm
Material: Bottom: copper; Cover: POM high temperature materials
Waterway: 0.8MM parallel waterway
Compatibility: Matches a fan with a distance of 53 mm to 61 mm
Supported tube: 9.5mm ID / 12.7mm OD PU tube, or 10mmID / 16mmOD solid tube, or 8mmID / 12mmOD silicon tube (ID is the inner diameter, OD is the outer diameter)
5. Cylindrical Water Reservoir
Water reservoir height: about 160mm
Water reservoir diameter: 5cm
Water reservoir interface: G1 / 4 universal thread
Interface diameter: 12.9mm
6. Transparent hose:
Inner diameter: 8mm
Outer diameter: 12mm

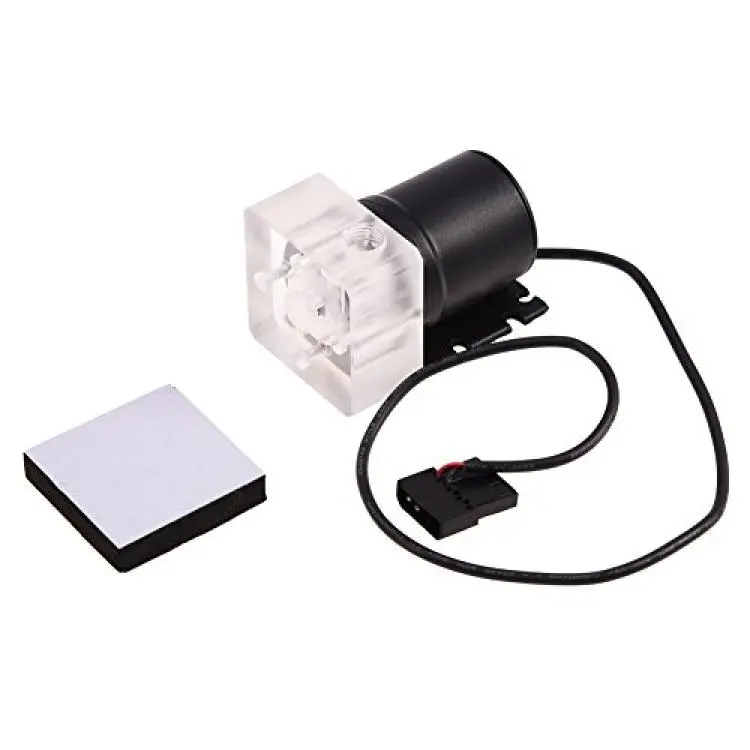

7. Pump
Thread size: G1 / 4
Interface diameter: 12.9mm
Pump Size: Overall Length 7.7CM, Height 5.2CM, Cover Thickness 2.8CM, Cover Width 5.2CM
Material: Acrylic
Pump head: 5 meters
Power supply interface: large 4Pin
Power: 9W
Current: 0.8A
Voltage: 12V
Flow: 600L / H
8. Water pipe joints & hose clamp & plug
Package weight: 2100g

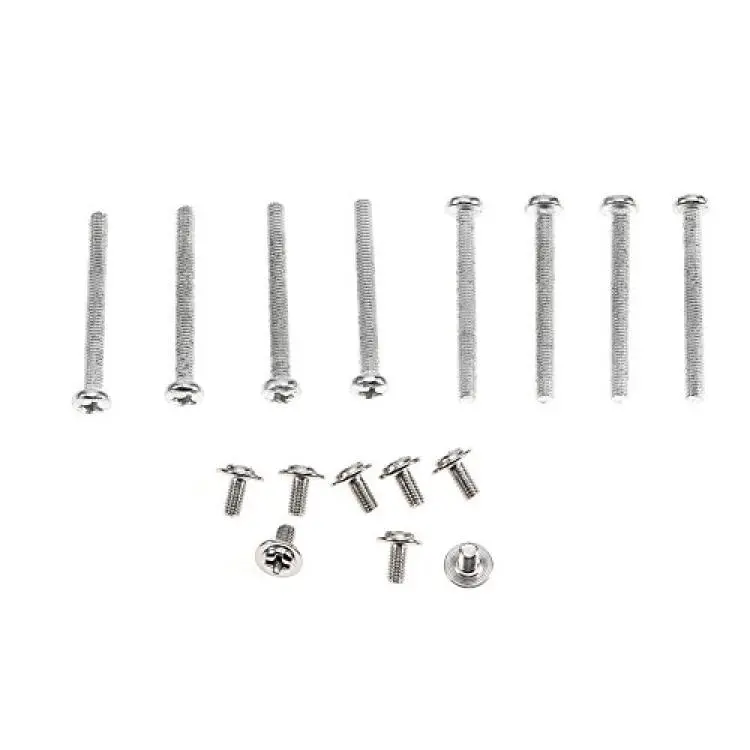

1 x 240mm Heat Sink within Screw Pack
2 x LED Fan
1 x Universal CPU Block within 4 Screws
1 x Universal GPU Block within 4 Screws
1 x Cylindrical Water Reservoir
1 x Transparent Hose
1 x Water Pump with Shock Pad
1 x A Set of Water Pipe Connectors & Hose Clamps & Plugs
