Hyperikon Plasma Cutter Pilot Arc, Dual Voltage 120V 240V, AG 60 Cutting Torch, 5/8 Inch Clean Cut
About this product
*✔ IGBT INVERTER - Built by the latest IGBT inverter technology, the 120/240V dual voltage plasma cutter is designed to produce 10-45A adjustable output power with a 60% duty cycle.
*✔ BUILT IN PROTECTION - With a built-in over-heat protection and insulation class F it ensures safe operation with higher heat tolerance and voltage capacity. The included air regulator controls the air pressure at 75psi. Air compressor is not included.
*✔ AG-60 PILOT ARC TORCH - This portable plasma cutter comes with a AG-60 cutting torch with pilot arc and 13 feet cable. You also get earth clamp, power cable, air hose, and torch consumables.
*✔ 5/8” CLEAN CUT - The 50A plasma cutter will cut any aluminum or mild steel work piece of up to 16mm thickness. For smooth cutting and minimal dross build-up adjust the amperage and cutting speed according to the work piece.
*✔ 3 YEAR WARRANTY - Hyperikons 3-year warranty means weve got you covered! Contact us for an easy and fast replacement.
Description

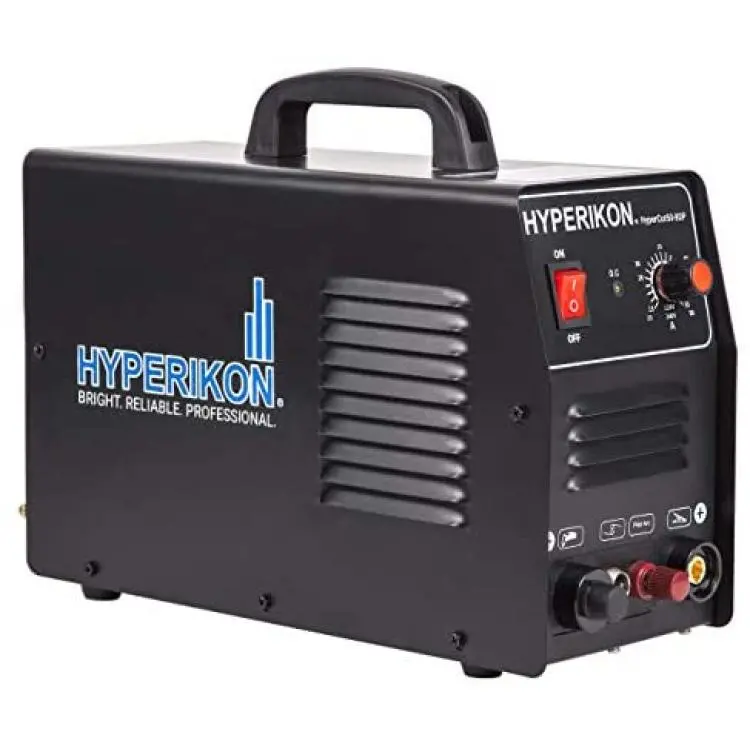

Hyperikon introduces the new HyperCut50-BDP Plasma Cutter
This sturdy, portable Plasma Cutter will find its way into your workshop, whether you need it for little DIY projects or for more professional activities. It is built with durable material that are rated at insulation class F ensuring resistance and stability at higher temperatures. The unit operates on single electrical power phase at 120V/240V dual voltage. The inside of the unit is constructed by the latest IGBT (Insulated Gate Bipolar Transistor) inverter technology which is the next step from the MOSFET welding technology. IGBT inverter design has many advantages delivering higher voltage capacity and heat tolerance as well as greater effectiveness for applications that require frequent amplification switching. For increased safety during cutting the unit features a built in over-surge and over-heat protection. Additionally, for smoother and safer operation ware protective equipment and adhere to the instructions provided in the user manual.
PERFORMANCE

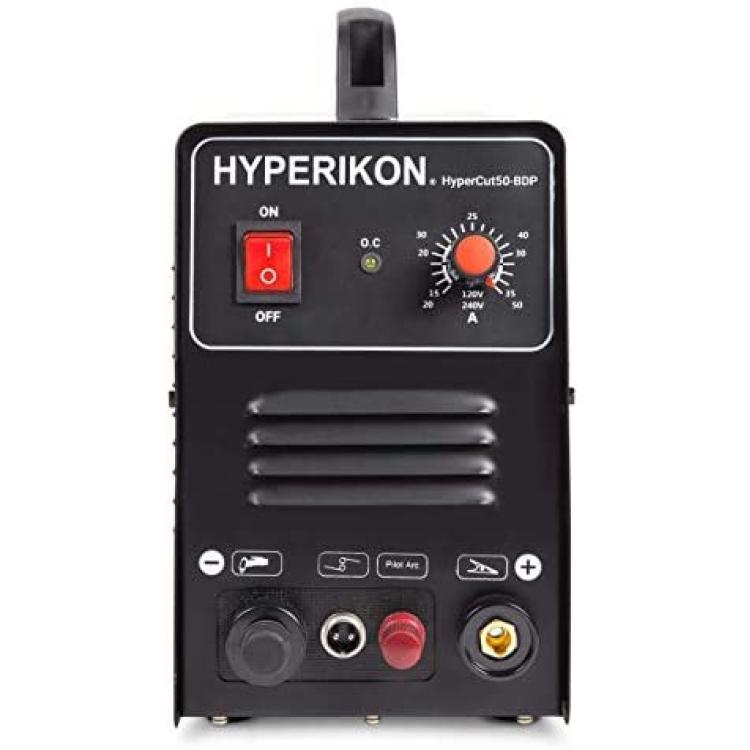

Hyperikon’s Plasma Cutter is suitable for cutting stainless steel, copper, iron, aluminum metal and other mild metals. The maximum recommended cutting thickness is 14mm (0.511-in) but the outcome will largely depend on the work piece’s material and the way the plasma cutter and torch are being handled by the user. To minimize the dross residue on your work piece regulate the plasma output by turning the current adjustment knob on the front panel and adjust the movement of the hand that holds the torch. The unit has a current range of 10-45A. Use the digital display for a visual control over the amp output.
Duty Cycle >> 60%, Air Pressure >> 75psi, Operating Temperature 12°-110° F
INCLUDED COMPONENTS

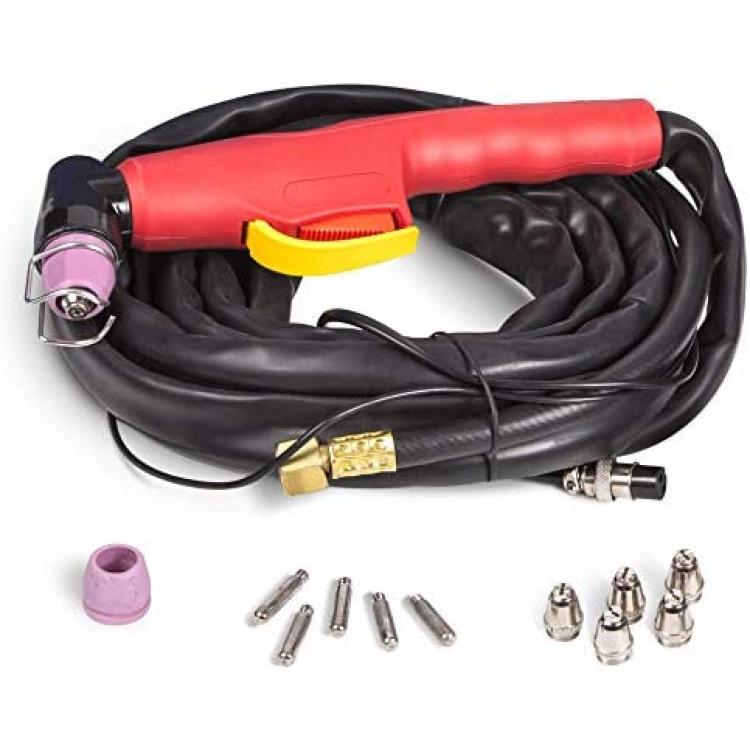

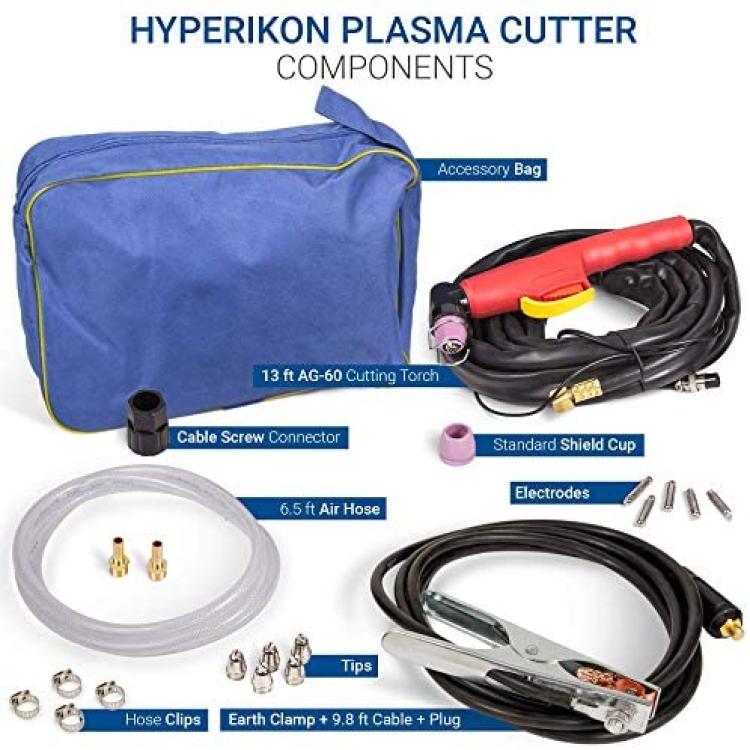

The unite comes with a AG-60 pilot arc cutting torch that has a 13 feet lead cable. The set also includes earth clamp, 10 feet power cable, 6.5 feet air hose, air regulator and spare torch parts.
