VEVOR Hydraulic Power Unit Double Acting Hydraulic Pump 6 Quart Hydraulic Pump Dump Trailer 12V DC with Metal Reservoir 3200 PSI Max
About this product
*【HIGH QUALITY MATERIAL FOR LONGEVITY】- This hydraulic power unit full high quality construction with high strength and hardness. Good wear resistance, durable in use.
*【FAST START】- The high-quality hydraulic pump ensures a fast start every time and a long using period, reduce labor intensity, improve hydraulic trailer pump work efficiency.
*【SAFETY ASSURANCE】- The electric hydraulic pump is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.
*【EASY TO OPERATE】- This dump trailer hydraulic pump equipped with other hydraulic tools can carry out lifting, pressure type, elbow, bending row, straightening, cutting, assembly, demolition and many other work.
*【WIDE APPLICATION】- Hydraulic power used in applications where extending a hydraulic cylinder is needed, truck tailgate lift, scissor lift, dump trailer, lift truck, snow plow, aerial platform, road signs, material handling. Note: The hydraulic pump kit equipped with an M18*1.5 connector and comes with two additional SAE6 (9/16") connectors for replacement according to your actual needs.
Description
The second relief valve system realize the control of the downward pressure, pressure compensated flow valve automatically to falling speed adjustment.
key Features
Sturdy and Durable
hydraulic pump for dump trailer to avoid over pressure damage or extremely pressured.
Rapid Start
The tank has been specifically designed to not crack & leak under harsh situations.
Quick Oil Output
Perfect replacement pump for 12VDC controlled hydraulic systems, hydraulic pump double acting designed for horizontal mounting, capable of quick oil output.
Fully Equipment

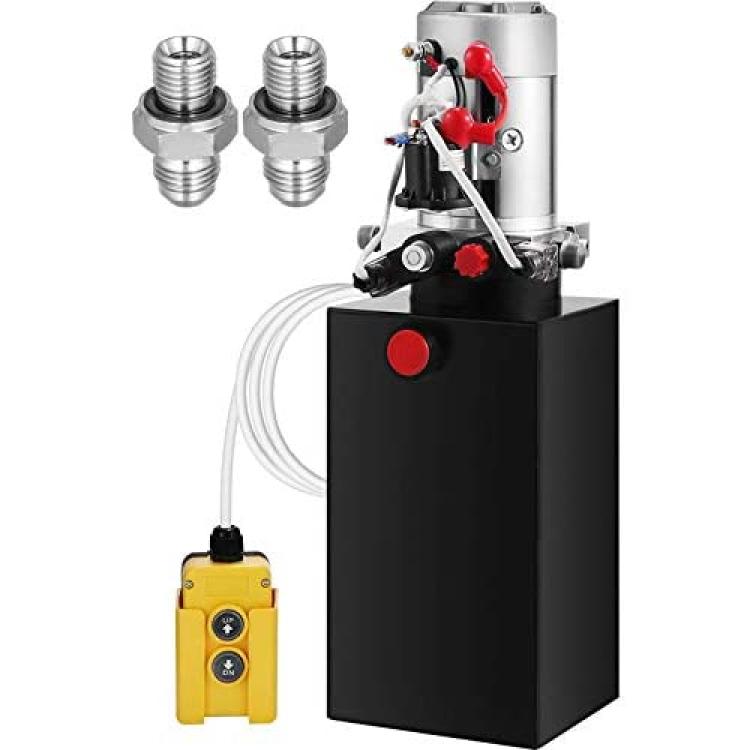

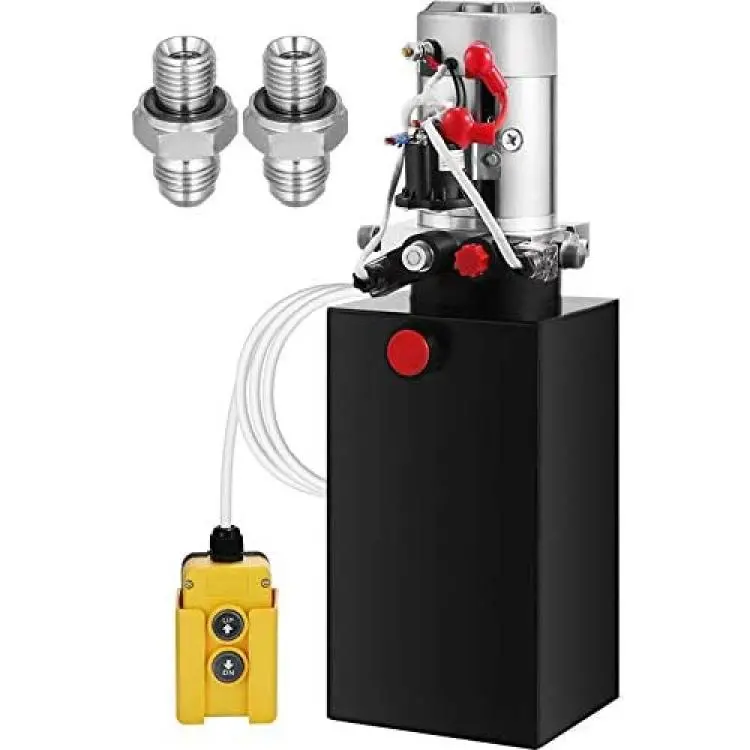

Equipped with a 6qt metal tank, wired remote control for convenient long-distance use, an assembled metric connector (M 18*1.5), and also comes with two additional SAE (9/16") connector for replacement.
Wide Application
Hydraulic dump used in applications where extending a hydraulic cylinder is needed, truck tailgate lift, scissor lift, dump trailer, lift truck, snow plow, aerial platform, road signs, etc.
Specifications
Material of tank: Metal
Displacement of hydraulic pump: 0.825GPM (1.1ML/R, Applicable to all double power unit for 4 Â 6, 8, 10 quarts)
Pressure relief valve: 22MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)
Rated speed: 2850R/MIN
Motor power: 0.8--3KW (Applicable to all double power unit for 4, 6, 8, 10 quarts)
Motor voltage: DC12V
Fuel tank: 6L
Double acting Power-Up/Power Down
1500 PS Max Relief Setting on B port
6 Quart Metal Reservoir
SAE # 1 Port, Horizontal mount
Hand held pendant with about 15 feet (4.5m) removal cord and start solenoid
Package Content
1 × 6 Quart Double Acting Hydraulic Pump
1 × English Manual
Several Related Accessories (Including Connectors)
