Limoss 450917 MD141-30-L1-157-333 Power Recliner Lift Chairs Motor Actuator Replacement
Availability: Pre-Order, Inquiry Price
About this product
*OEM Recliner Motor Actuator Replacement Model Limoss 450917 MD141-30-L1-157-333 made by Limoss
*Limoss 450917 and 601438 applies to replace Limoss 450880 and 450676
*Application in electric sofa, massage chair and etc, Check Label and also troubleshoot the switch/remote or power supply before ordering a motor
*2 Pin Flat Round Power Transformer Connection, 5 Pin Hand Control Plug Connection
*Motor replacement is DC motor, small mounting dimensions, easy to install
Description
Limoss 450917 and 601438 Lift Chair Power Recliner Motor Actuator Model MD141-30-L1-157-333 Replacement, It is important to make sure our motor SKU " MD141-30-L1-157-333 " on label and the cable connectors/motor end shapes are same to yours. Limoss 450917 and 601438 applies to replace Limoss 450676. Should you have any question, feel free to contact us.

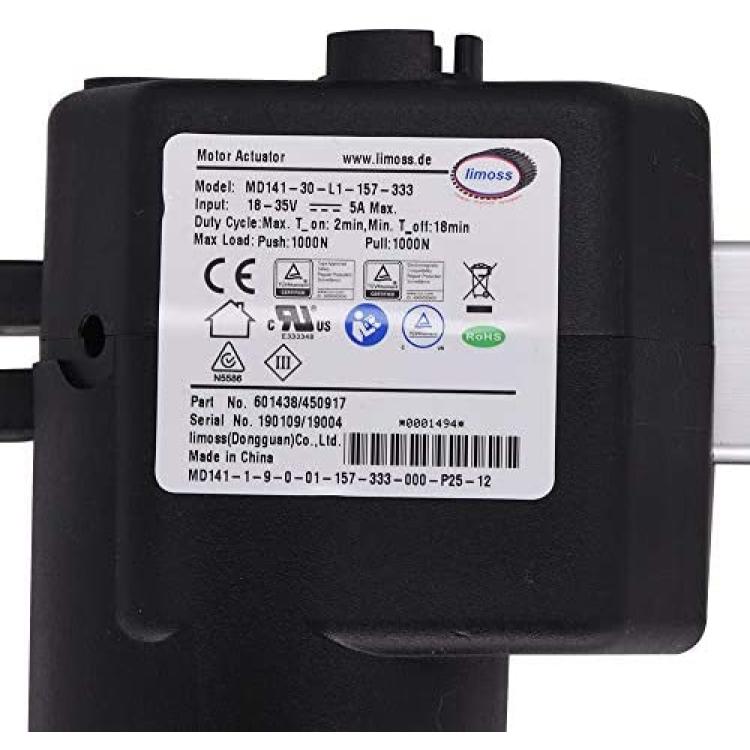

Part Number: 450917/601438
Model: MD141-30-L1-157-333
Input: 18-35V ----- 5A Max
Duty Cycle: Max T_ON: 2min, Min. T_off: 18min
Max Load: Push: 1000NÂ Â Pull: 1000N

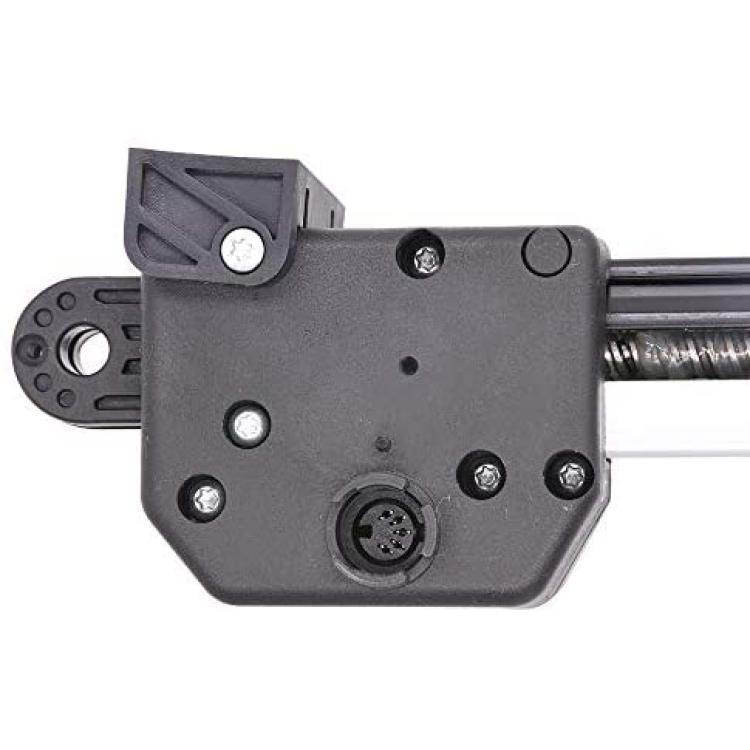

5 pin connection for hand control plugs directly into the black motor casing.

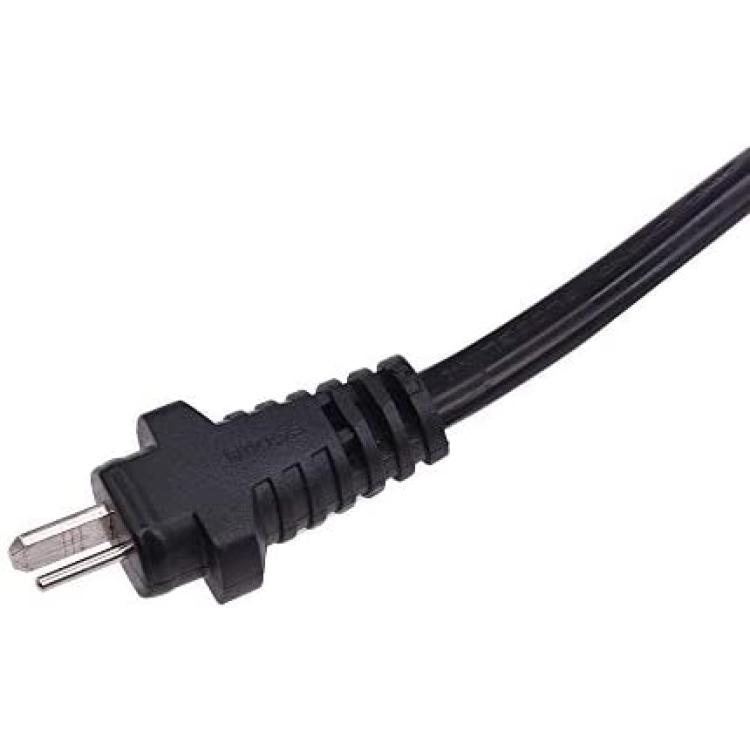

2 pin (one flat, one round) for transformer plugs into the cord coming from the motor.
Used on many different manufacturer's such as Ashley, Palliser, Best Chair, and Med-Lift.
Please match your Part Number to the one above.
