Silverlite 4'' PCB Size,5.39'' Overall Size, 17W,4000K,1200LM,120V,CRI90,Dimmable LED Light Engine,Retrofit Light Kit for Ceiling Flush Light,Ceiling Fan Light,Pendant,Lantern,Garden Light, UL/ES/JA8
*2x40watt incandescent, 2x11watt CFL or 20watt T9 circline equivalent while only 17watt used, at least 70% energy saving, drastically reduce your electricity bill, Energy Star certified

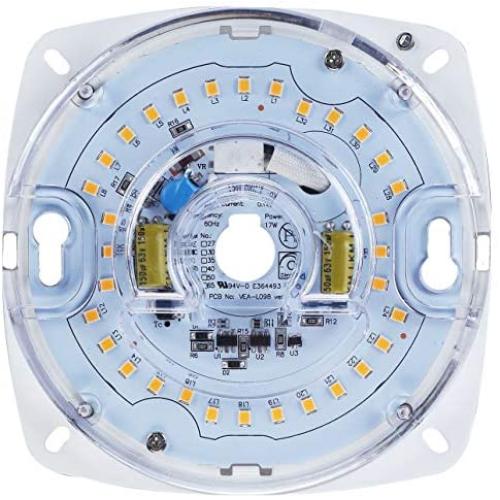

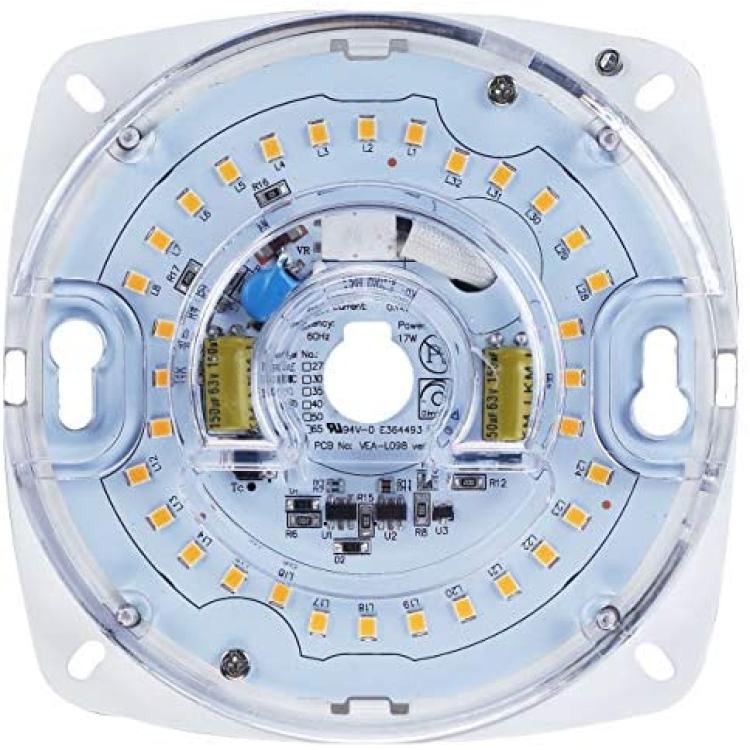

*With the latest integral driver-on-board(DOB) and 120V AC drive technology, no extra external AC-DC driver needed, high-end solution to retrofit your fancy ceiling lights
*Down to 5% triac dimming capacities, totally flicker free, much even lights and no more ugly light spot, 90+ CRI(Color Rendering Index), multiple and easy installation
*40,000 hours lifespan, it is 4x longer than CFLs(10,000hours). 5 years limited warranty, UL approved for use in luminaires and suitable for damp location, lowest maintenance, risk-free purchase

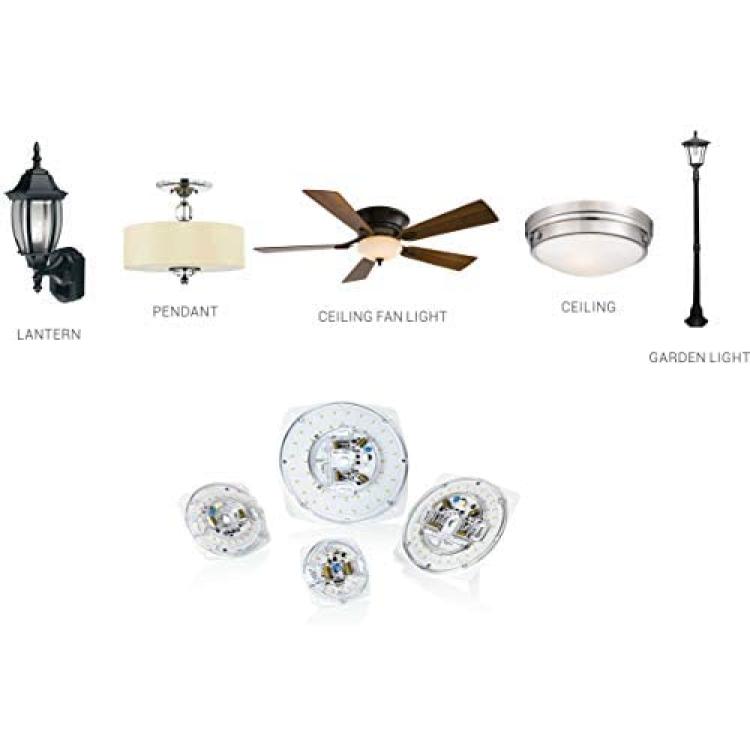

*Application: ceiling fan light, pandent, ceiling light, lantern light, garden light and other fixtures which have a plate to attach this retrofit kit. Check the inner diameter of your fixture before place an order
Notice: The size show on box label/sticker is PCB size, not the overall size.
Recommended Dimmers
-Lutron:DV-600P
-Lutron:DVELV-300
-Lutron:SELV-300
-Leviton:IPL-06
Easy Installation
Step1. Cut off the power supply.
Step2. Remove the lamp socket(s) and BALLAST.

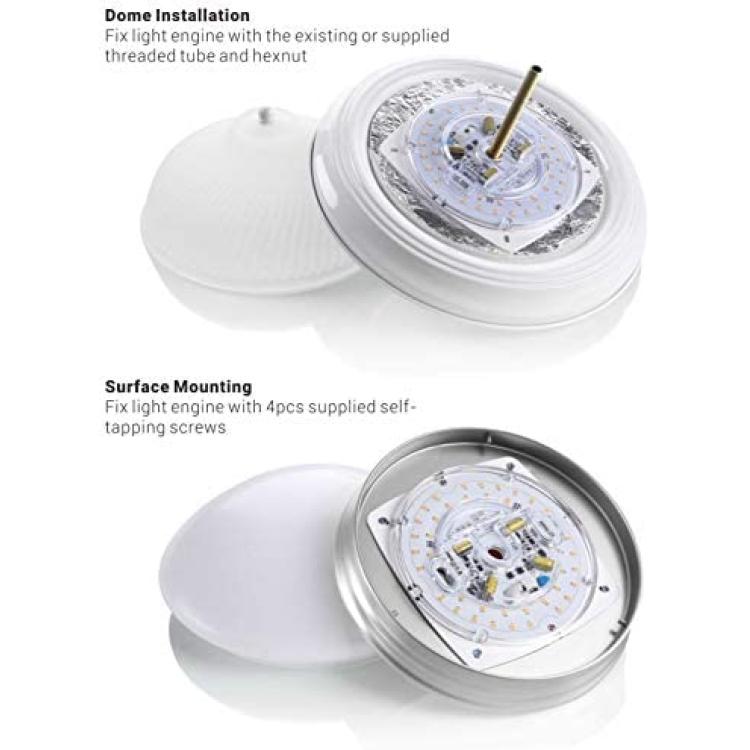

Step3. Choose one installation method suitable for your fixture. Dome(not for 3 inch light engine), junction-box or surface mounting.
Step4. Connect wires, white to white, black to black and ground to ground.
Much more detailed installation information could be found on user manual comes with each item.
Long Lifespan
Silverlite LED light engine is rated at 40,000 hours. It is 4x longer than CFLs(10,000hours) and much longer than incandescents, meaning far fewer service cycles and far fewer replacement bulbs.
Excellent Heat Management
Backed with a tough steel heat sink, Silverlite LED light engine has better performance in heat dissipation, which allows delivers longer life than other LED module. Rugged design bulid to last.
5-year Limited Warranty
Silverlite LED light engine backed up a 5-year limited warranty from the purchase day, guaranteeing the need for minimal servies or replacements.
Totally Flicker Free
Flciker Rate <30% @ dim to 20% lumen output
High CRI
With 90+ CRI, Silverlite LED light engine bring you into a vivid world.

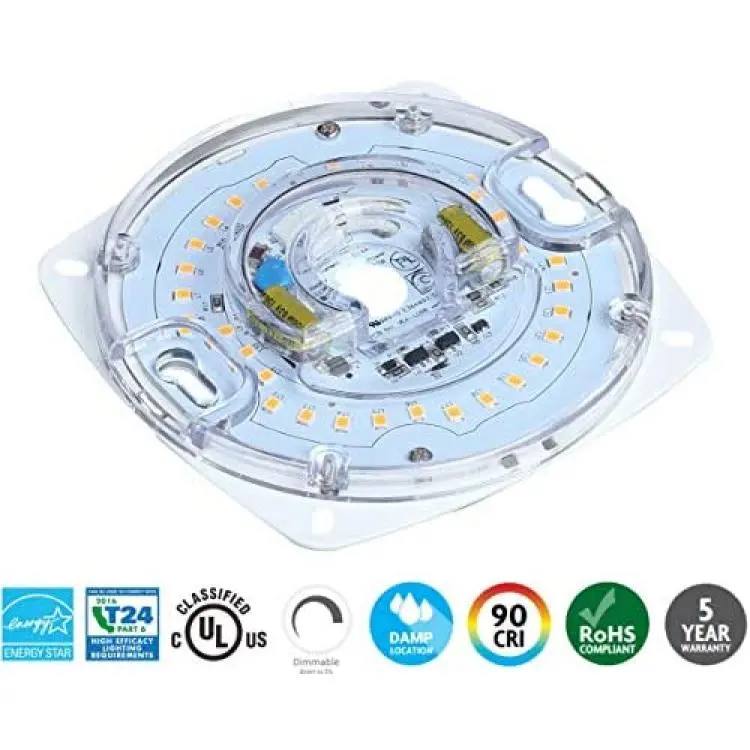

UL Classified
Silverlite LED light engine are UL approved for use in luminaires and suitable for damp location where not in direct contact with weather and water, can be used in bathroom.
Specification:

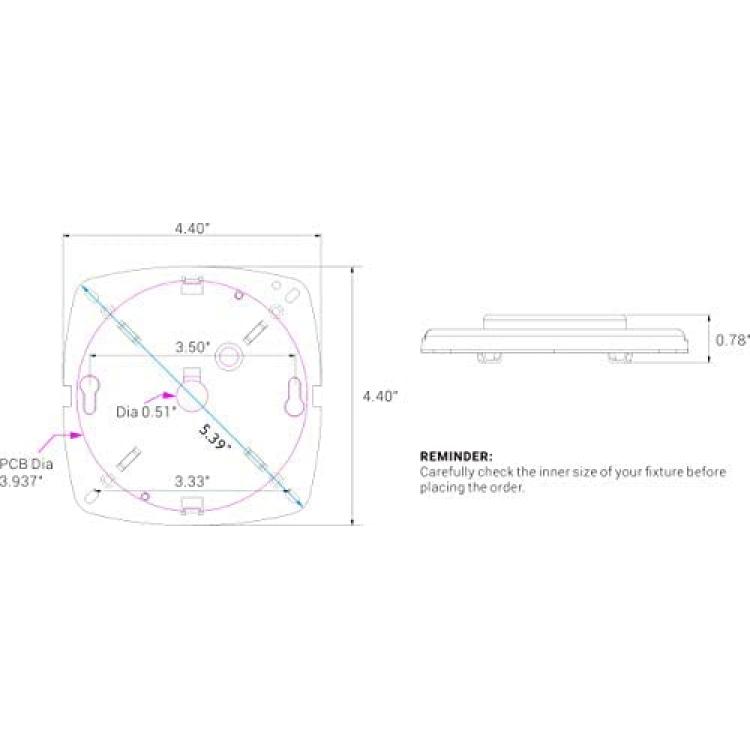

-Size: Overall 5.39", PCB diameter 4"
-Power: 17watt
-Voltage: 120V
-Control: Triac Dimming
-Brightness: 1200lumens
-Color Temperature: Daylight(4000K)
-CRI: 90+
-Operating Temperature: 0°F to 104°F.
