Owoda 4pcs/Set CNC Metal Motor Protect Mount Base Quick Release Reinforcement Plates Anti-Crack Kit for DJI Phantom 2 3 Series Drones (Silver)

Description:
Suitable for DJI Phantom 3
Prevent cracking of lower shell
Helps in repair of lower shell with cracks
Easy to install

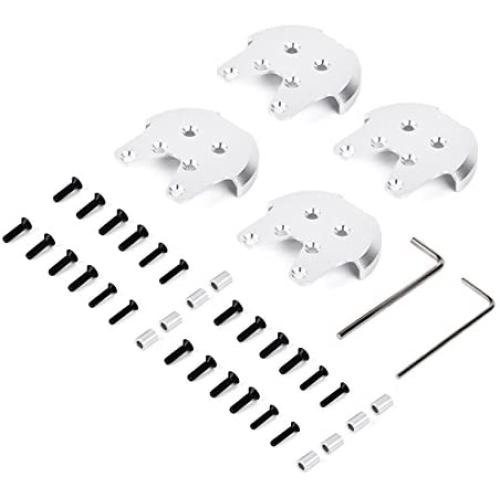

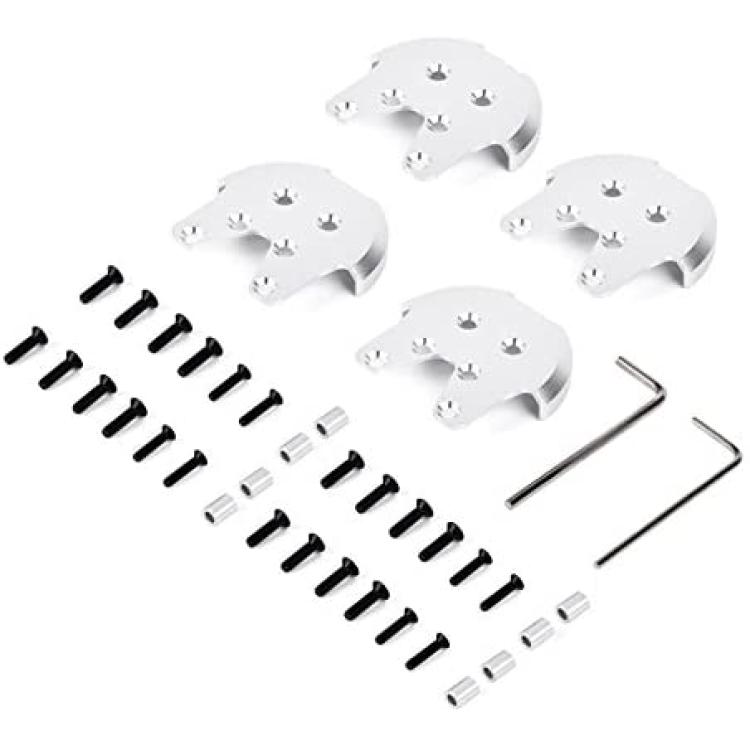

Package includes:
4 x CNC Metal Motor Mount ;
16 x motor mount screws ;
8 x body shell screws ;
1 x screw driver.

Installation instructions:
1. Place the drone upside down on a table.
2. Use a 2mm Hex driver to remove the 4pcs motor mount screws from a motor
The motor will now be loose in its opening, try to keep the motor aligned as it was in the opening, do not flip the drone over or move it until the new part is installed
3. Use a Torx 8 bit to remove the 2pcs shell half screws
4. Place the motor protector in the existing screw holes (it is designed to sort of snap lightly into place to hold it) 5. Drop 4 of the motor mount screws in the motor mount openings and the 2 of the longer thinner screws in the shell openings
6. Begin to lightly each of the screws in a criss-cross pattern, if everything is lined up correctly, you will feel resistance as the screws begin to thread into the motor and shell
7. If a screw is just spinning in place, it means that you have misaligned the motor or let it pull away a bit, if this happens, remove the screws and look down in the holes and push and turn the motor a bit until you see its screw holes line up
