AGFrc 32KG IP67-Waterproof-Servo High-Torque Programmable- Metal Gear Coreless Servo for 1/10 RC Model, Control Angle 180° (A73CHLW&AGF-SPV2)
Product Code: MPM20687
Availability: Pre-Order, Inquiry Price
About this product
*【UPGRADE&PROGAMMABLE】This upgrade high torque servo is PROGRAMMABLE by the AGF-SPV2 servo programmer to change the torque, speed, angle, etc. The AGF-SPv2 only can be used for AGFRC servo which can be PRPGRAMMABLE. Please read the instructions carefully before use.

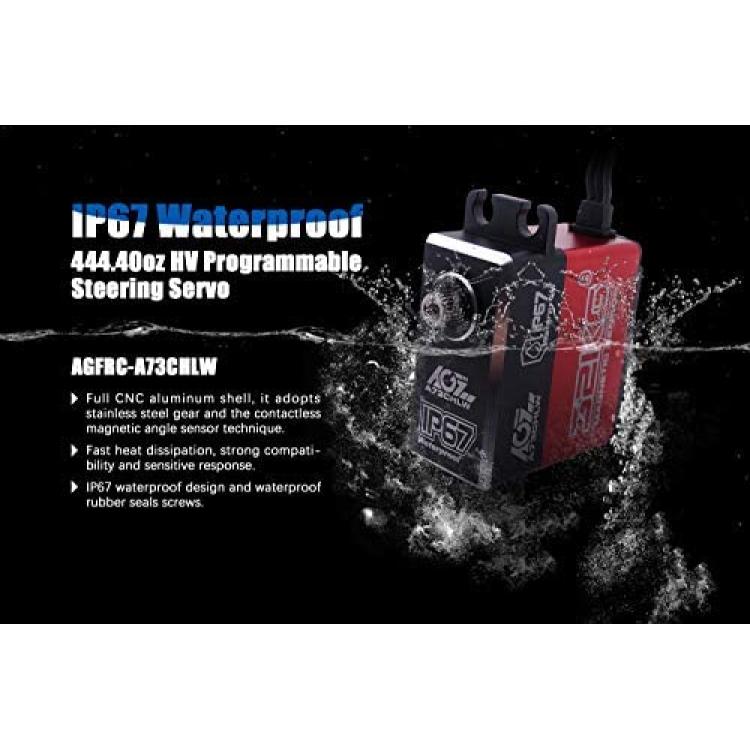

*【WATERPROOF DESIGN】AGFRC RC steering digital servo uses high-precision production technology to reduce production deviation and improve product tightness. Used IP67 Waterproof design, good choice for 1/10 Buggy /Monster Trucks/RC car/boat/plane/helicopter/robot. Size: 40*20*37.5mm (1.57*0.79*1.48in)
*【HIGH PRECISION&TORQUE】Advanced linearity and accuracy, stable, low noise, waterproof, dust-proof. The maximum torque of this steering servo is up to 32 kg/cm (444.40 oz/in) @8.4V and speed up to 0.135sec/60°@8.4V.
*【HIGH QUALITY&PERFORMANCE】Standard 32KG Waterproof high torque servo equipped with full Aluminium housing, dual ball bearing, and patent reinforced steel gear with PINS for anti-slip and reinforcement; and using magnetic angular position sensor which is low power consumption and can instantaneous angle sensing.
*【SATISFIED CUSTOMER SERVICE】Please read the detail description of this coreless programmable servo first, if any ideas about our high torque digital servo, contact us first & We will provide you a better solution, and make you satisfied.
Description

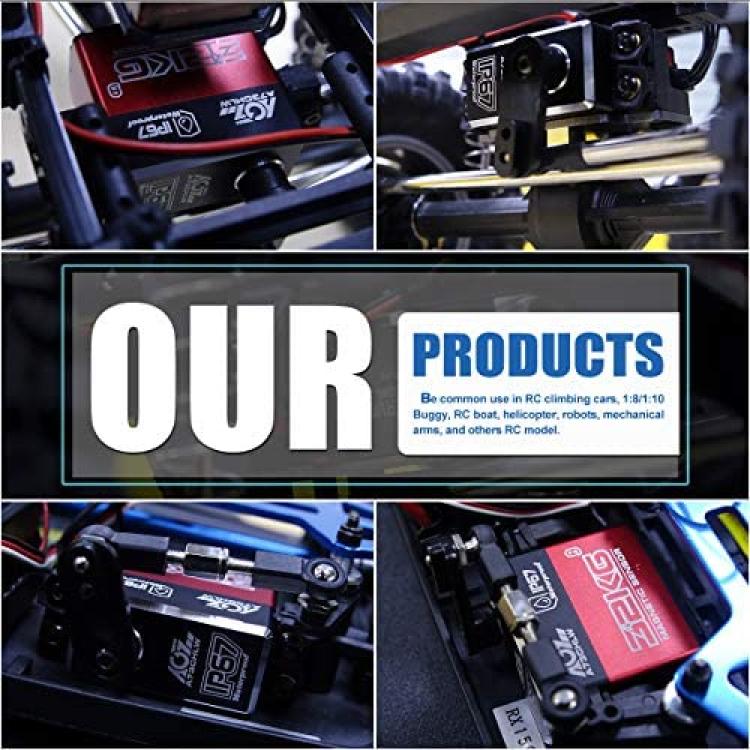

AGFRC A73CHLW high torque servo can be common use in RC climbing cars, 1:10 Buggy, RC boat, helicopter, robots, mechanical arms, and others RC model.
Good choice for the RC model enthusiasts who love DIY, and university professor or student who are interested in developing software for robot parts.
Features
1. Programmable by the AGF-SPv2 servo programmer to change the torque, speed, angle, etc.Â
2. The whole case is made of Aluminium, and it adopts AGFRC patented strengthen stainless steel gear.
3. 32kg high torque, strong compatibility and sensitive response, etc.
4. Contactless magnet angle sensor for a longer using life.
5. IP67 waterproof design and waterproof rubber seals screws.
Stall Torque
22 kg-cm (305.8oz-in)Â @ 4.8V
26 kg-cm (361.07oz-in)Â @ 6.0V
29 kg-cm (402.73 oz-in)Â @ 7.4V
32 kg-cm (444.40 oz-in)Â @ 8.4V
Operating Speed
0.180sec/ 60° @ 4.8V
0.160sec/60° @ 6.0V
0.145sec/60° @ 7.4V
0.135sec/60° @ 8.4V

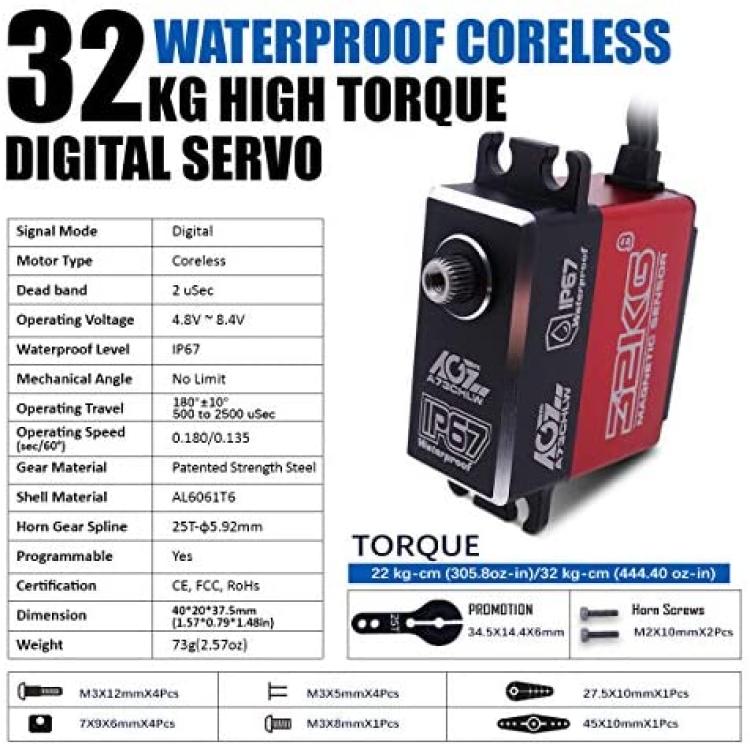

Specification
Brand: AGFRC
Control System: PWM, 1520uS/333hz
Waterproof Level: IP67
Dead band: 2 uSec
Mechanical Angle: No limit
Operating Travel: 180°±10 °, 500 to 2500 uSec
Horn Gear Spline: 25T-?5.92mm
Bearing: Dual Ball Bearing
Case Material: Aluminium 6061T6

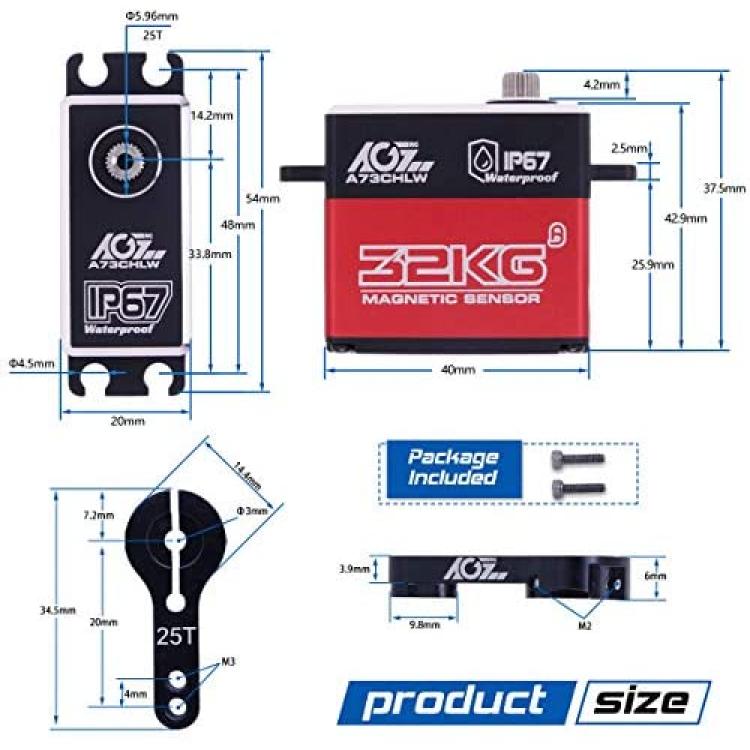

Size: 40*20*37.5mm (1.57*0.79*1.48in)
CE Certification: Yes
Weight: 73g

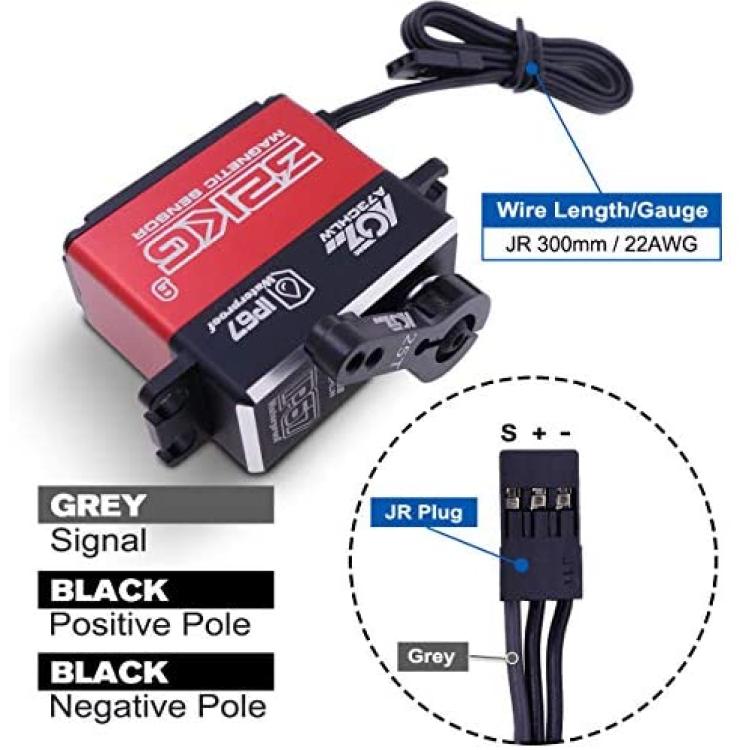

Wire: JR 300mm/22AWG

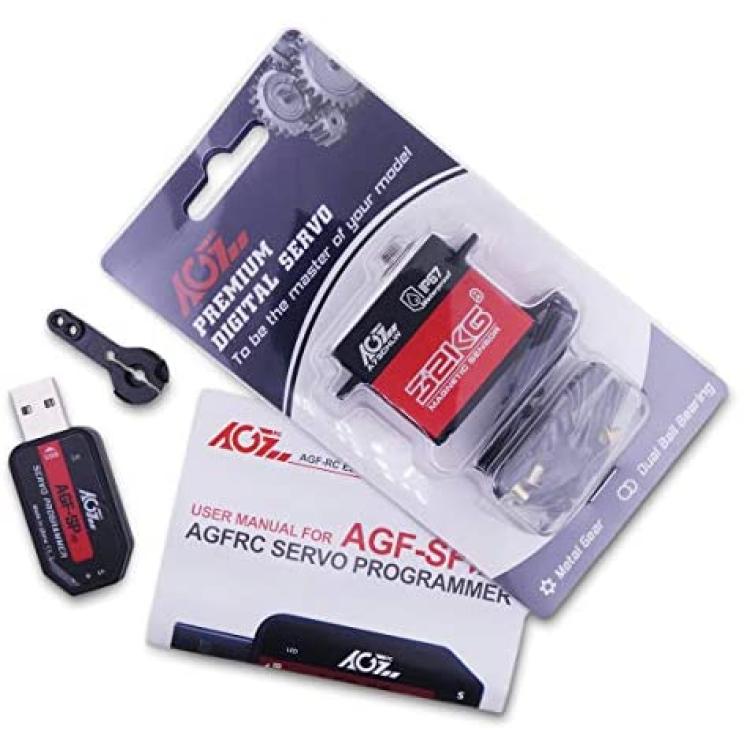

Package included

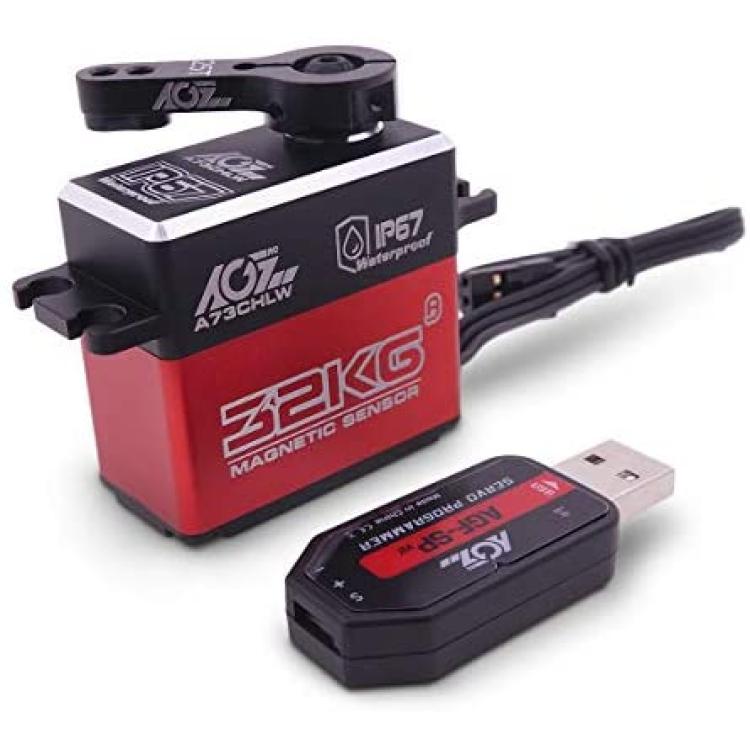

1 x AGFRC A73CHLW Programmable Servo

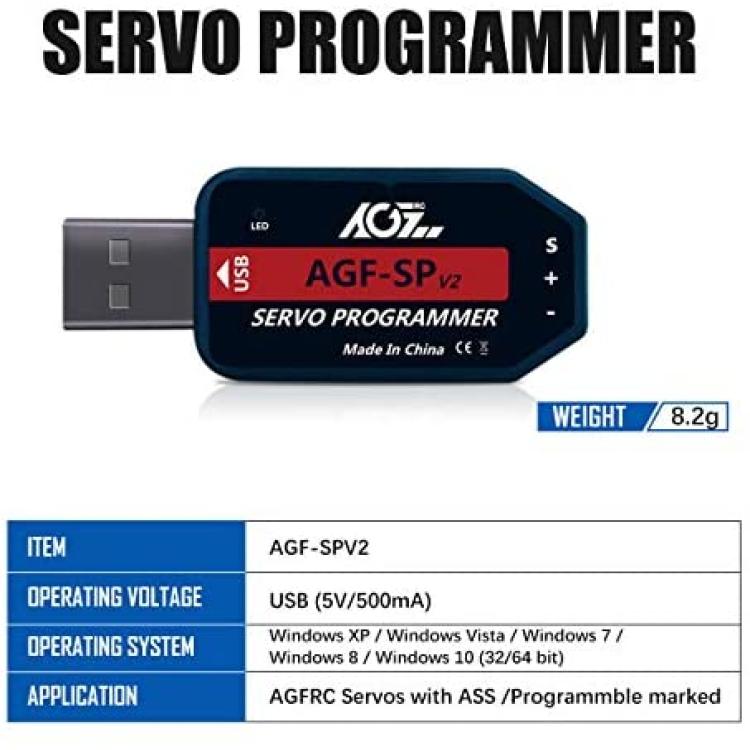

1 x USB AGF-SPv2 Servo Programmer
1Â x 25T Black Metal Servo Horn
2 x 25T Plastic Servo Horn
