Nimbus 24V/36V Single/Dual Drive ESC for Hub Motor & Upgrade 2.4G Remote Control with Aluminum Heat Sink and Metal Push Button Switch for DIY Electric Skateboard Longboard

? We Welcome OEM & ODM Orders If You Offer Detailed Drawing or Sample
Name: Nimbus 24V/36V Single/Dual Motor Drive ESC for Hub Motor

Specifications:
Size: 81*60*15mm(Single Motor Drive ESC) / 100*76*18mm(Dual Motor Drive ESC)
Rated Voltage: 24V/36V
Current: 12A
Power: 290W(24V)/430W(36V)
Rotate Speed: 3500rpm--4200rpm
Max Speed: 35km/h
Drive Mode: double system driver
Sensing Mode: Hall
Max Carrying Weight: 120kg
Protection?Overvoltage?Undervoltage?Overtemperature?Stall?CW/CCW?Overcurrent?Speed Control

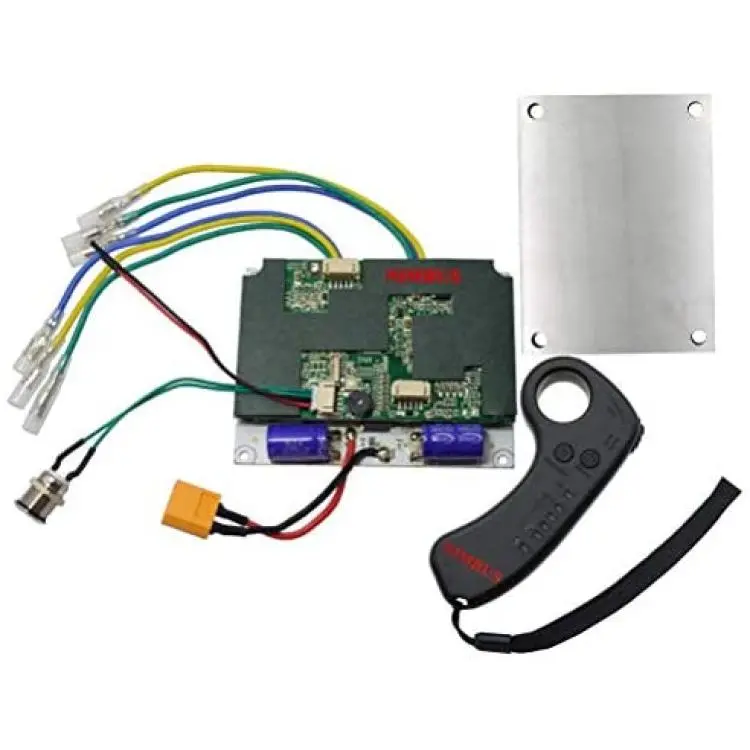

Package Included:
1 x Electric Speed Controller
1 x Upgrade Remote Control
1 x Nimbus Aluminum Heat Sink
1 x Metal Push Button Switch

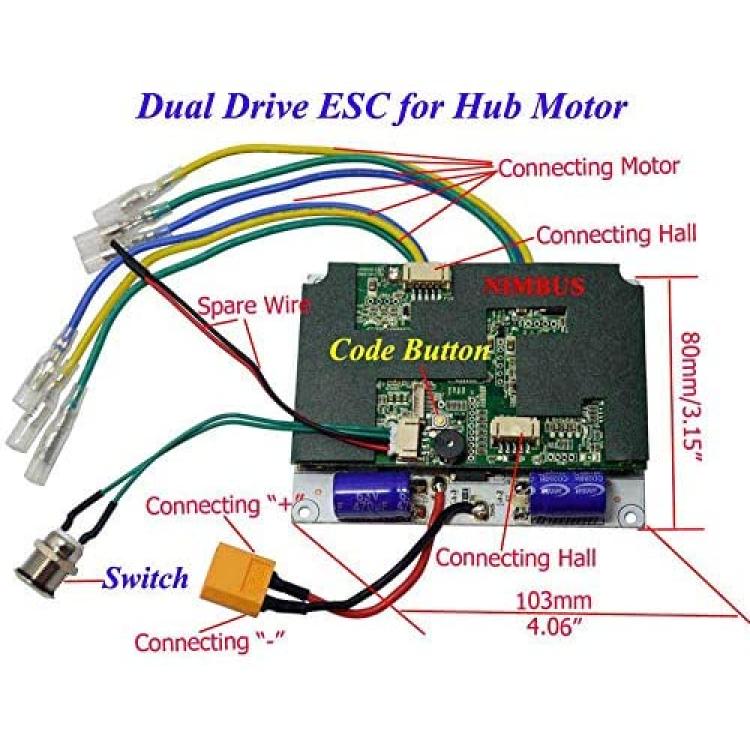

How to connect the remote and the control board:
1.Connect the control board to power source
2.Turn on the control board power

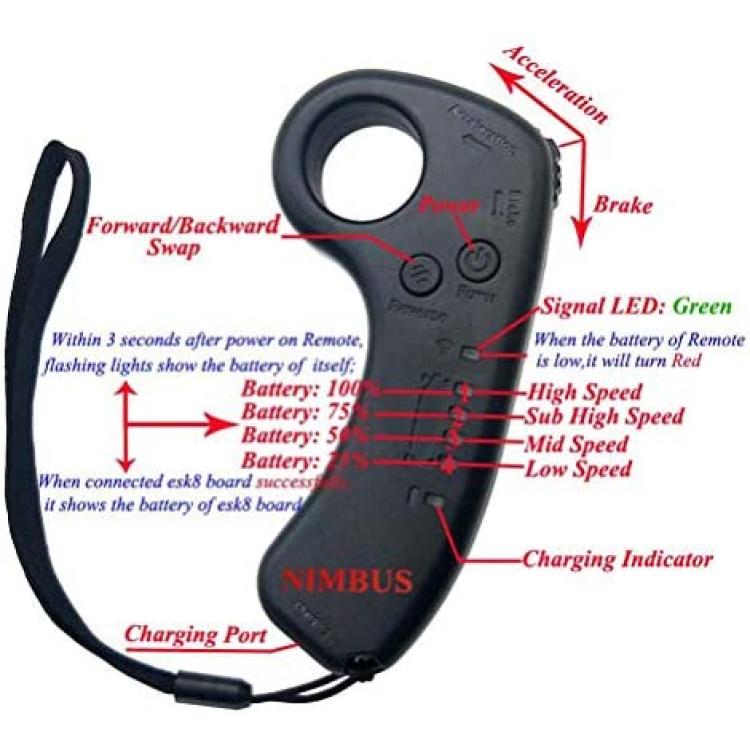

3.Turn on the remote control

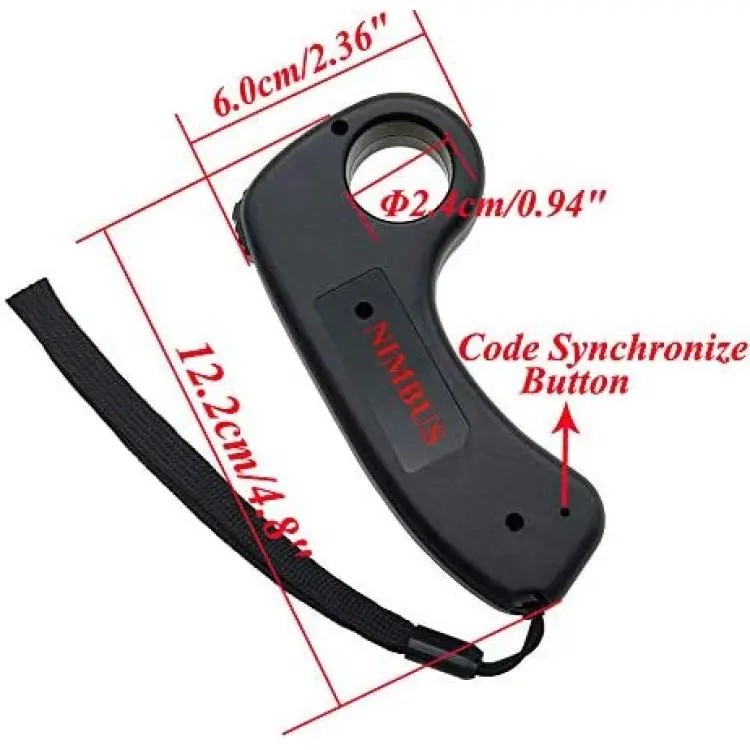

4.Press the code button on the control board,then use a little stick to press the code synchronize switch on the remote receiver
5.Wait two seconds till the remote's signal light and the control board's power indicate light both are flickering.It shows the connecting is successful
6.If the connecting isn't success,pls repeat the step 2-5

TIPS:
? The driver board is a high-precision circuit board. Do not touch the metal object/liquid to the board before and during use to avoid internal short circuit !

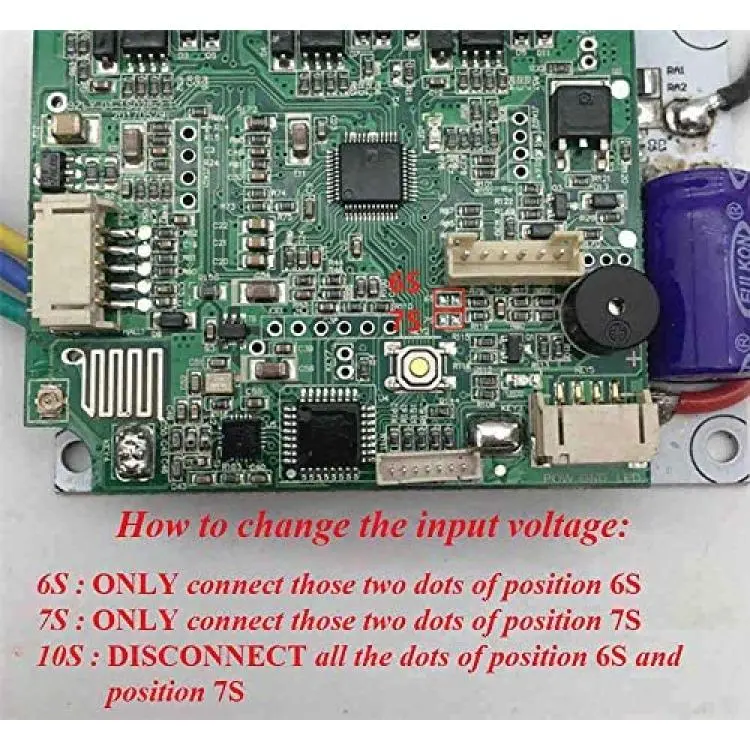

? 24v ESC must use a voltage above 24v, the maximum voltage can be used is 29.4v (the ESC won't work below 24v)
? 36v ESC must use a voltage above 36v, the maximum voltage can be used is 48v (the ESC won't work below 36v)
