Tarot 4006 / 620KV Multiaxial Brushless Motor TL68P02 for RC DIY Quadcopters Multicopters Drone, Tarot FY680 Pro Spare Parts (1 Pcs)
About this product
*4006/620KV Efficient Multi-Axis Brushless Motor Designed For Four-And Six-Axis Multi-Rotor Design , Using High-Precision CNC Machining Full Production, The Table Looks Flat And Smooth Trace, Excellent Balance .
*The New Design Of Efficient Turbofan Cover, Provides Powerful Airflow , High Magnetic Ndfeb Rotor Refined Stator Pressure Reinforced With High-Strength Epoxy Protective Heat , 22P High Flux External Rotor Motor Through A Special Balance Correction , Improved Motor Vibration Problems Common External Rotation Caused By Poor Balance , High-Speed Alloy Steel Motor Shaft .
*Upper And Lower Lid With Large Size Motor Speed Precision Bearings With Low Friction Torque , Low Power Consumption , Impact Resistance, The Instant High-Speed Radial Support And Other Advantages.
*4006/KV620 New Generation Brushless Motor Has Passed Rigorous Dynamic, Static, Magnetic Properties, Magnetic Temperature Demagnetization Loss , Motion Vibration , Noise, Load Performance Engineering Technology Demonstration.
*Continuation Inherited TAROT Brushless Motor : Long Life, High Efficiency, Low Power Consumption , Low Noise, Superior Control And Stability Characteristics .
Description
Product Parameters :
Peripheral Motor Diameter : 46MM
Stator Diameter : 40.6M
Stator Thickness : 6MM
Stator : 24 Slots
Motor Poles : 22P
Diameter : 0.23MM
Gear Shaft Mounting Diameter : 4MM
Motor Height : 22.0MM
Motor Shaft Full Length : 30.50MM
Per Volt Speed: 620 RPM / Volt
Motor Weight : 82G
Motor Resistance : 126 M?
14.8V No Load Current : 0.8A
14.8 Load Current : 14A
4006 Brushless Motor Installation Specifications : 27.7MM Equilateral Triangle
Propeller Installation Specifications : The Main Hole Diameter 4mm, 3mm Diameter Side Hole Center Distance 12mm

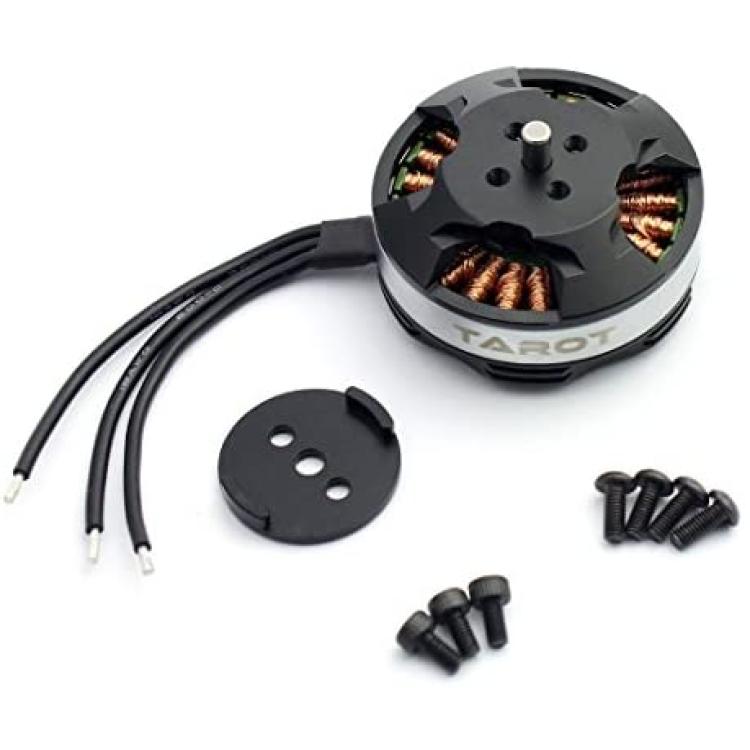

A Pcs include:
4006/620KV Brushless Motor 82G × 1
M3 × 6MM Cup Head Screws × 3
M3 × 8MM Round Head Screws × 2
Metal Rotor Mounting Piece 2.5G × 1
