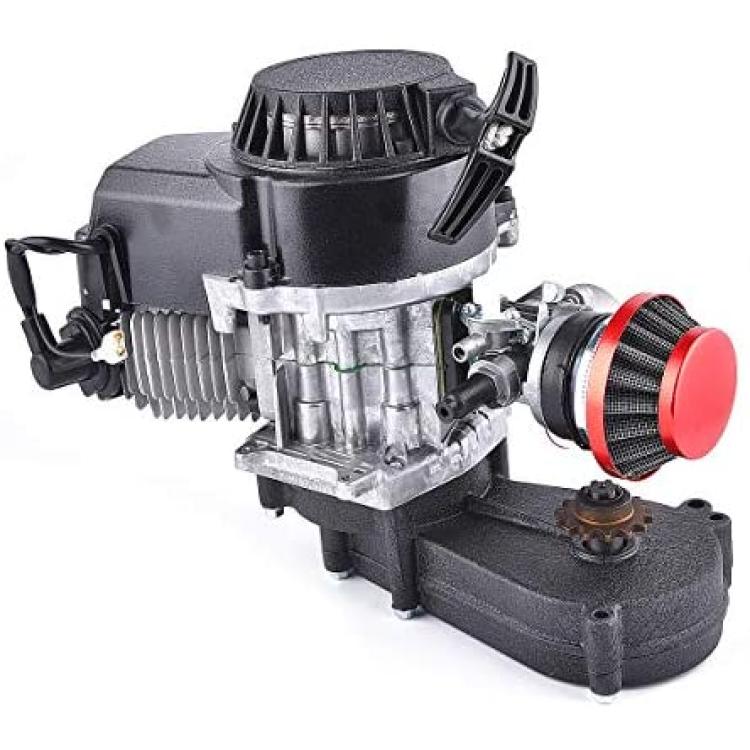

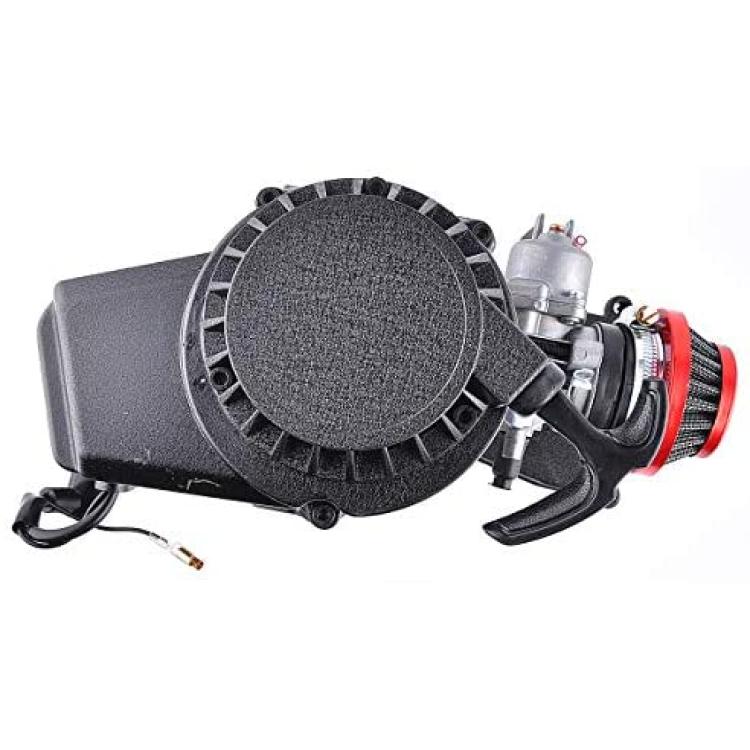

49cc 2 Stroke Engine with Gear Box 14T T8F Sprocket New Metal Recoil Racing Air Filter replacement for Mini Pocket Bike Gas G-Scooter ATV Quad Bicycle
About this product
*The engine is with air-forced cooling system so it’s doesn’t matter which direction the engine end goes to. Air filter in front or rear are both ok. Just please pay attention to the rotation of engine. When you face the clutch pad and sprocket side, the engine rotates by anti-clock rotation.
*Gas mix oil rate is 25:1 Sprocket Size: 14 teeth fit T8F chain
*Quality assurance: RUTU offer 12-month warranty for any quality related issues. Please feel free to contact us if any problems.

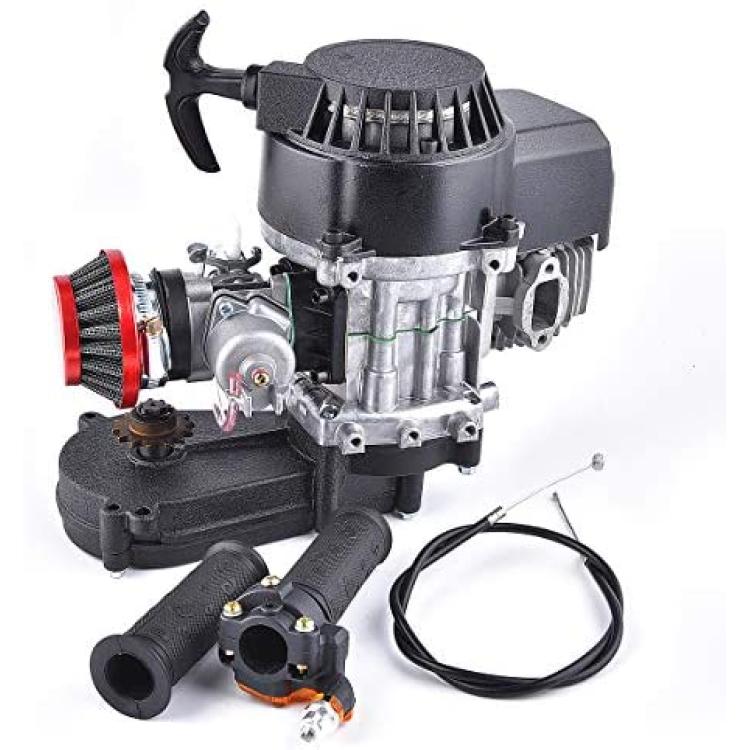

*Package Include:1 X Engine 1 pair of Grips 1 X Throttle Cable 1 X Air Filter
*This engine with gear box and will fit most gas mini dirt bikes, with an easy-pull-start recoil starter. 49cc pull start single cylinder, air-cooled, 2-stroke, use T8F chains.A very good choice for replace the old engine or DIY powersports vehicle.
Description
Fit:
Majority of gas scooter, pocket bike, and mini chopper
Mini Quad Kid ATV
Always wanted to finish that project but couldn't find a small compact, but powerful motor?
Your pocket/dirt bike or ATV 49cc engine has blown/passed on but you don't want to spend hundreds on rebuilding or buying a brand new bike?
Wanting to upgrade that slow and old 43cc engine to a new and larger capacity 49cc engine to blow away the competition?
Want to beat the bidding rush and have this engine in your hands as soon as possible?
Then this item is what you need!
Please make sure it is fit on your bike before purchased.
49cc single cylinder, air-cooled, 2-stroke
Fuel: 25:1 gasoline / engine oil mix
Piston Diameter:44mm
Displacement:49cc
Gear Box Reduction Rate: 3.55 : 1
Start Way: electric start and pull start
Starter Motor Working Voltage: 12v DC
Cooling: Air forced cooling
Sprocket Size: 20 teeth fit T8F chain
Spark Plug Size: L7T L7TC
Top Mounting Brackets: 11cm
Bottom Mounting Brackets: 10.3cm
Top Through Hole Diameter M.B.: 0.161"
Bottom Through Hole Diameter M.B.: 0.245"
Exhaust Diameter: 0.589"
Connector: 2 Pin
Length: 26cm
Width: 23cm
Height: 20cm
Clutch Mounting Hole Distance: 7.3cm
Clutch Mounting Hole Diameter: 0.289"
Clutch Pad: 2 Shoe
Carburetor Hole Diameter: 0.213"
Pull Start Mounting Hole Distance: 7.3cm
