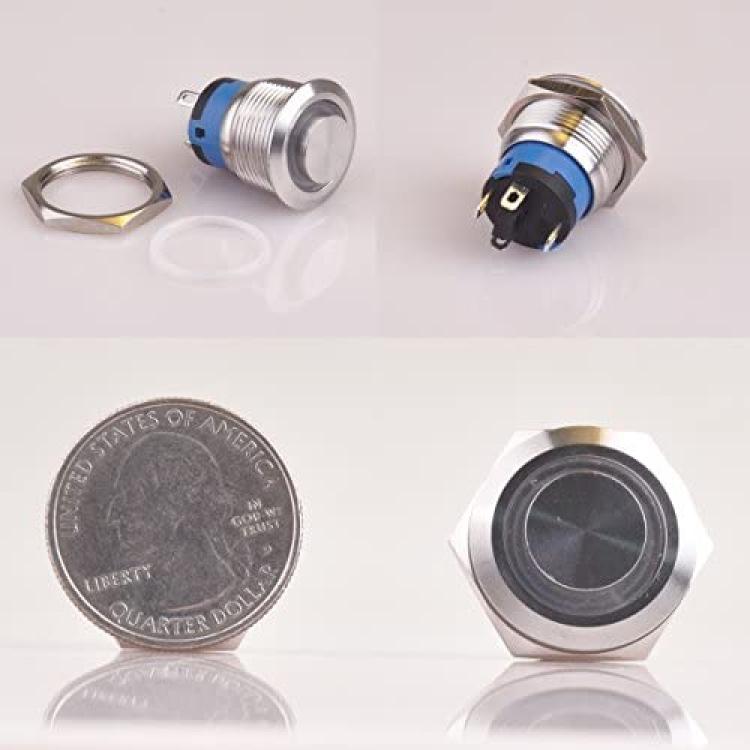

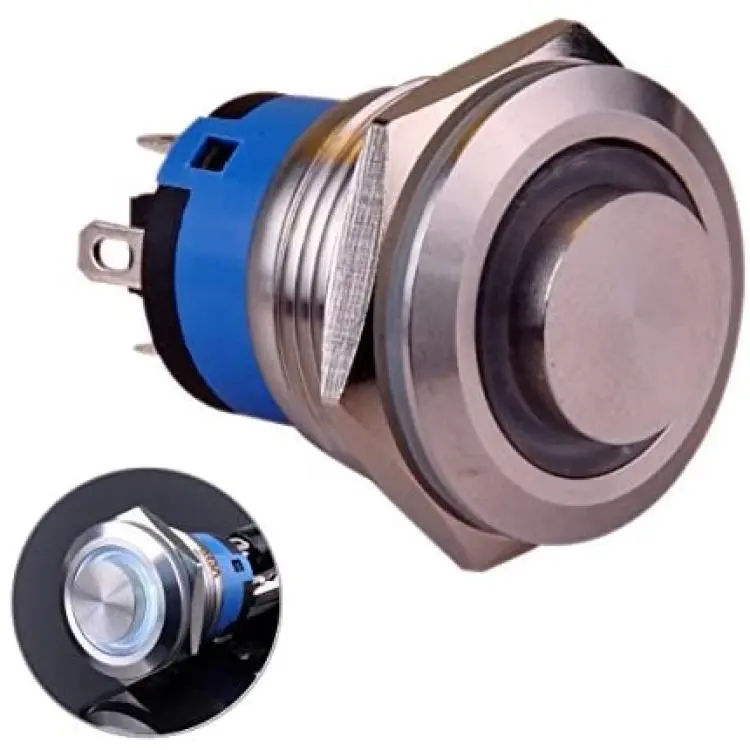

Taien Latching Push Button Switch 19mm 3/4'' 1NO 1NC Silver Stainless Steel Shell with White LED Light
About this product
*Latching Type: Push it, ON; Push it again, OFF
*Easy to install,Screw clamp type terminals, dont need to solder,the installation method is easy to understand
*IP67 Waterproof & IK10 Protection: Rustproof, can be used in wet or dusty environment

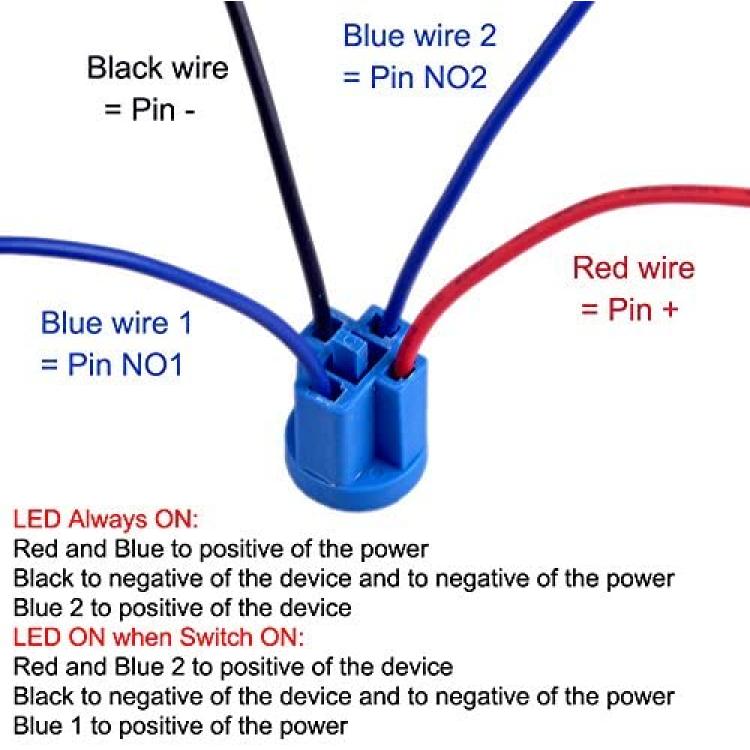

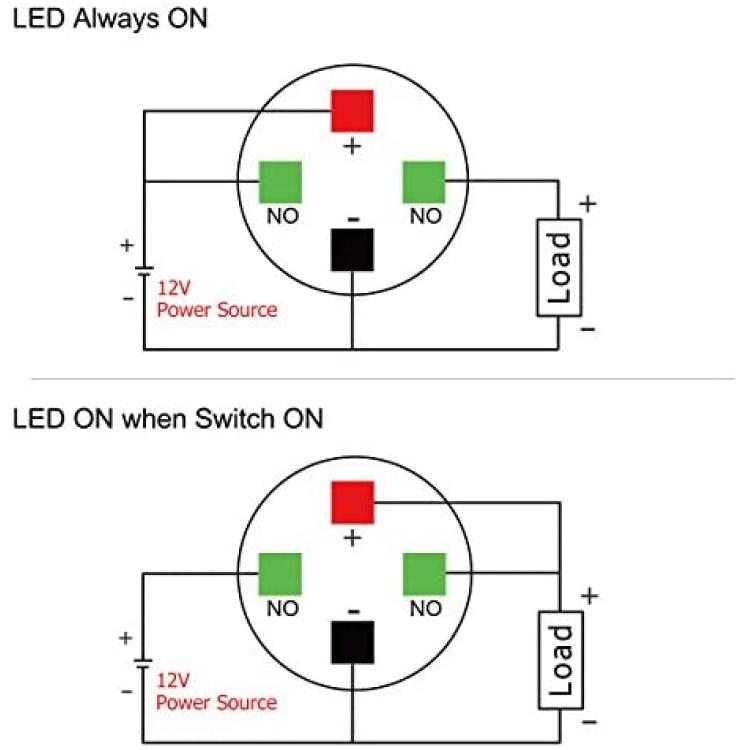

*The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it
*Great for electronmagnetic starter, relay, Horn Button Switch, PC Power Switch or any circuit controls on over 500,000 cycles
Description
Color:White
Latching Switch:
Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and "unlatches".
Note:
These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.
Main application:
Furniture,hotel equipment,cleaning equipment,audio equipment,industrial equipment,lighting engineering,building models,access control system,car,motorcycle,balance electric scooter,computers,coffee machines,juicers etc.
Customer Support:
If you have any questions, please feel free to contact us.We will provide the best customer service and technical support.

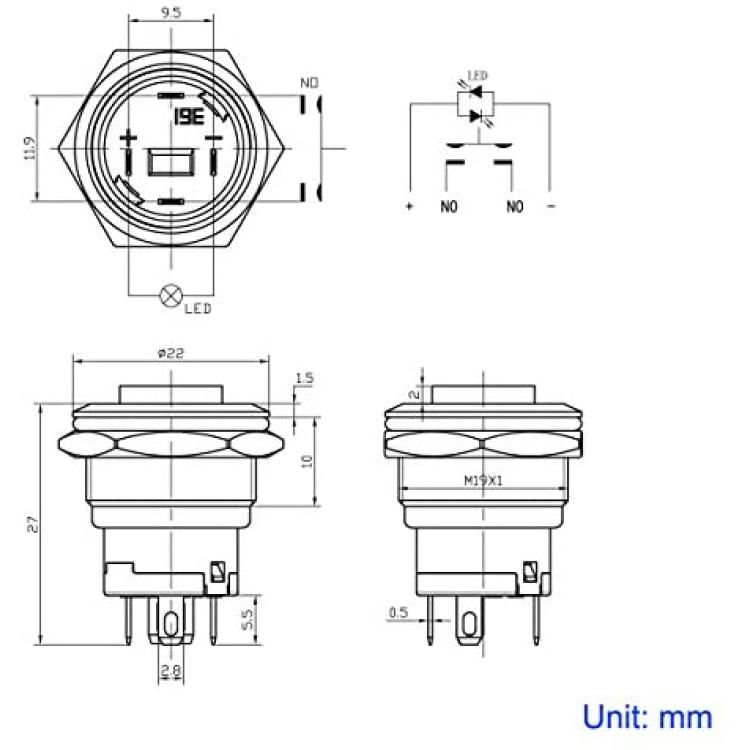

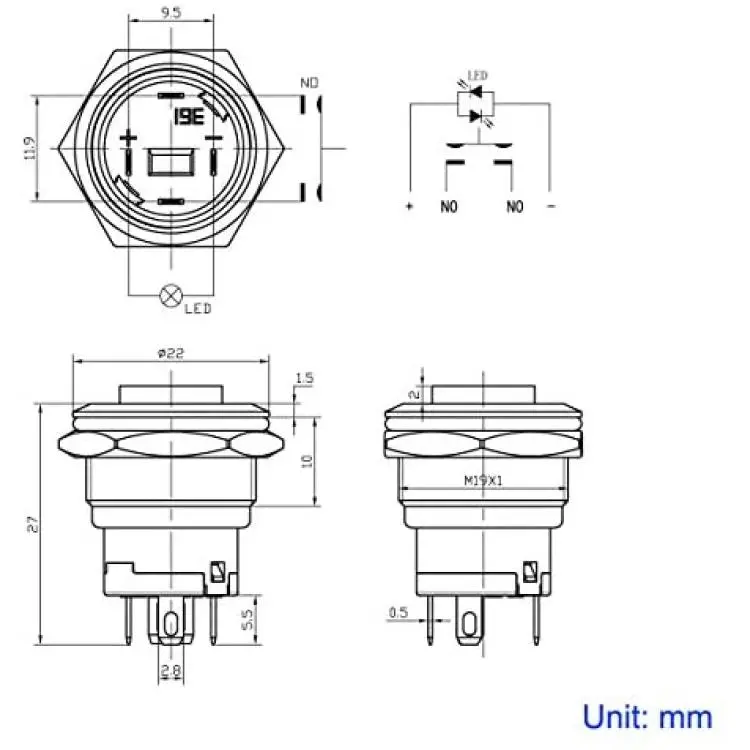

Specifications:
Head diameter: 7/8" ( 22mm )
Button diameter: 0.59" ( 15mm )
Mounting hole size: 3/4" ( 19mm )
Depth inc contacts: 1.12" ( 28.5mm )
Switch combination: 1NO
Operation types: Latching
Switch rating: 2A/220VAC, 2A/36VDC
LED rating: 15mA, AC/DC 12V
LED color : White
Head shape : High flush
Enclosure material : Stainless steel
Protection level: IP67,IK10
Package Include:
1 * pushbutton switch

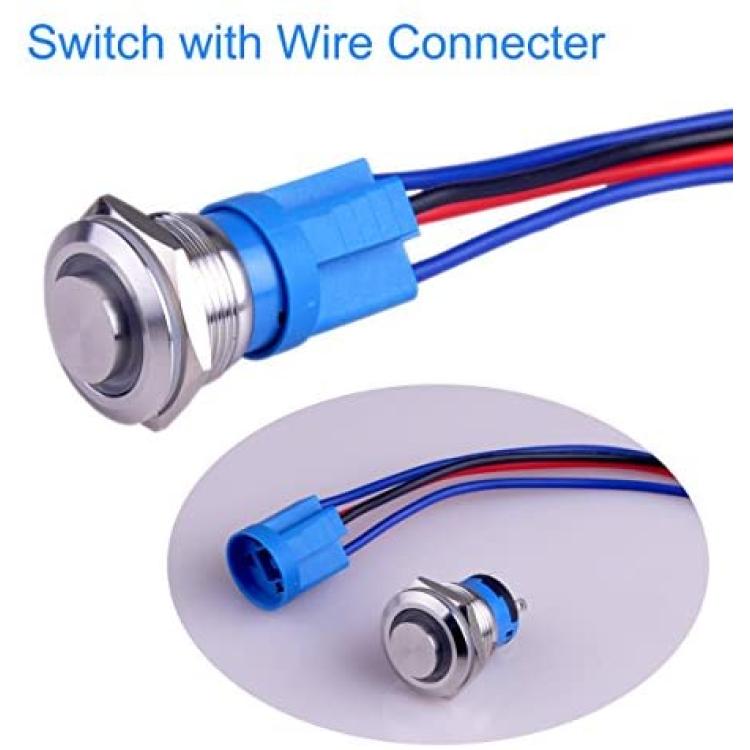

1 * connector
