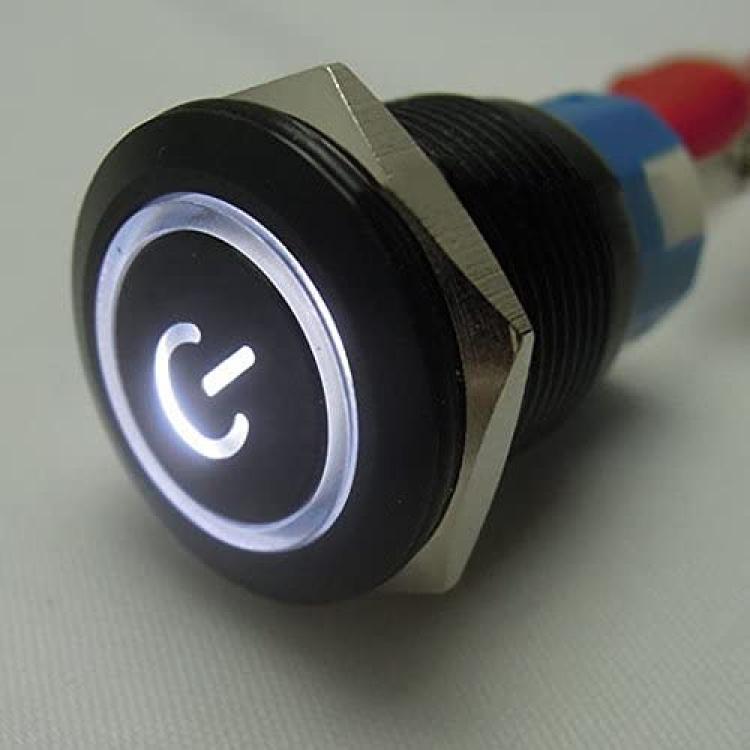

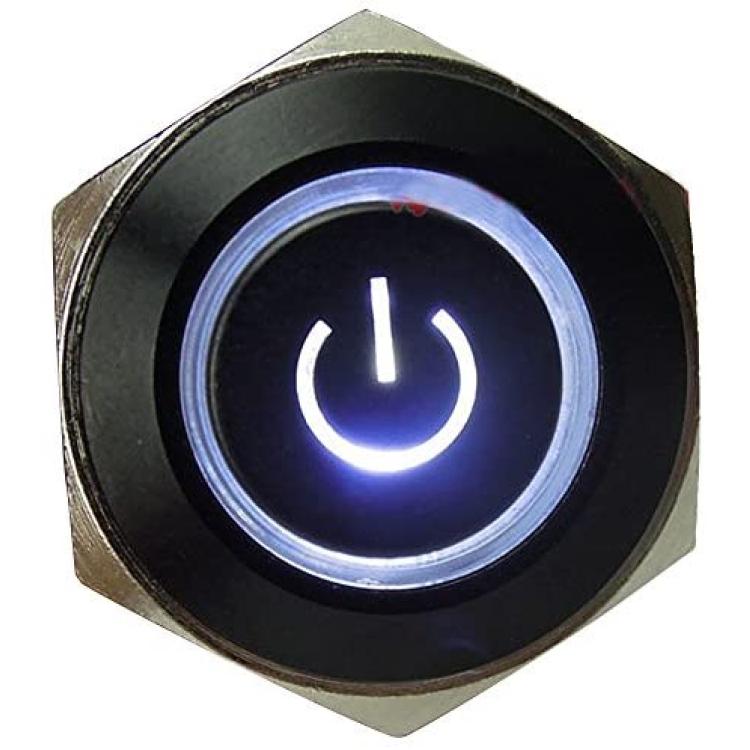

Etopars Black Case 19mm 12V 5A Power Symbol Angel Eye Halo Car White LED Light Metal Push Button Toggle Switch Socket
About this product
*Hole size required: 19mm, DC 12V (White LED Light), LED voltage: 15mA.
*Latching type: push it on, push it again off.
*Waterproof protection can be used in wet or dusty enviroment.
*The switch and LED are separated, LED can be on all the time or only on when switch is on, depending on how you wire it
*High quality: Mechanical life: more than 50.000 cycles, Electrical life: more than 10, 000 cycles
Description
1.Universal fit all 12V Car SUV truck conversion Van RV Boat Yatch.
2.It can be applied as the switches for the additional electronical equipment inside outside the car.
3.Easy setup. All you need is a 19mm hole and the switch will sit in nicely.
Feature:
1.Thread depth: 5/8" (16mm)
2.Head diameter: 7/8" (22mm)
3.Mounting hole size: 3/4" (19mm)
4.Depth inc contacts: 1.5" (38mm)
5.Switch combination: 1NO1NC
6.Operation types: Latching
7.Switch rating: 5A/250VAC, 5A/30VDC
8.LED rating: 15mA, AC/DC 12V
Package Include:

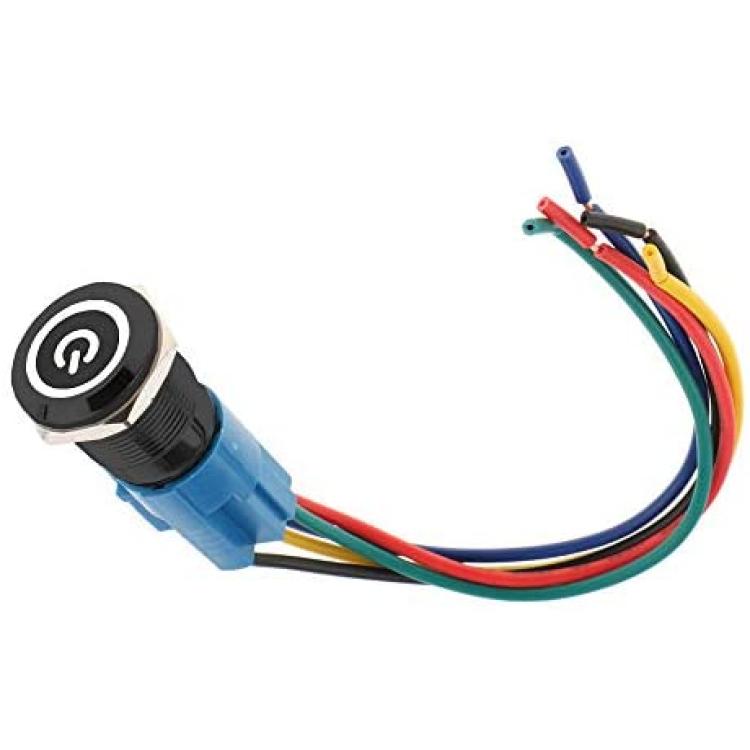

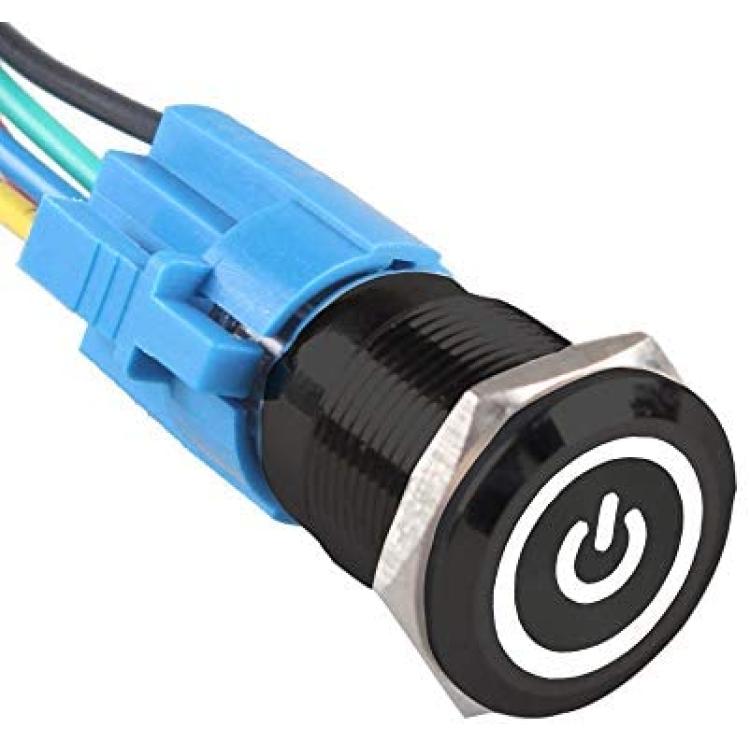

1 X White LED Push Switch
1 X Plug
