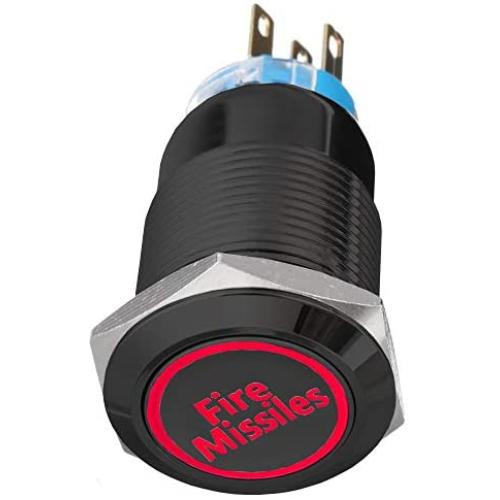

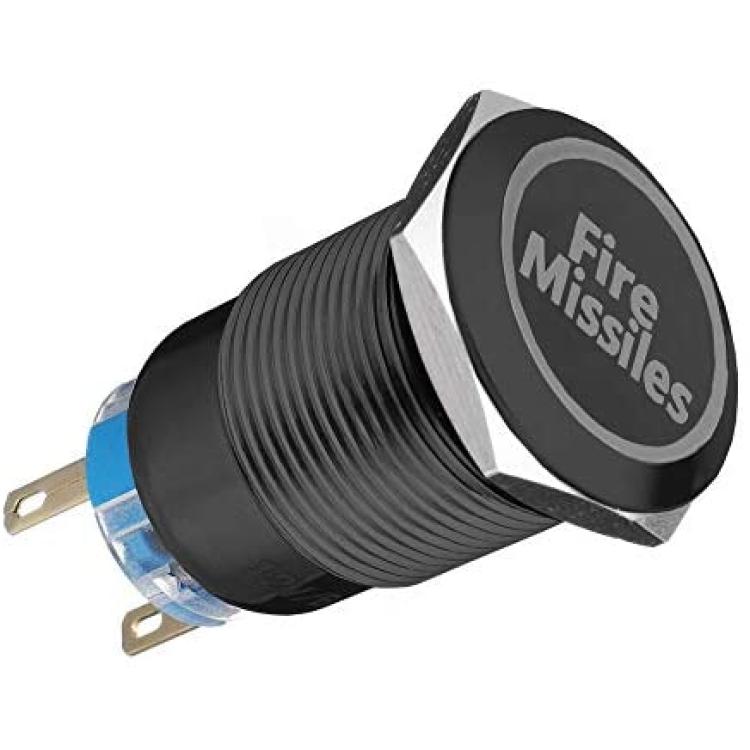

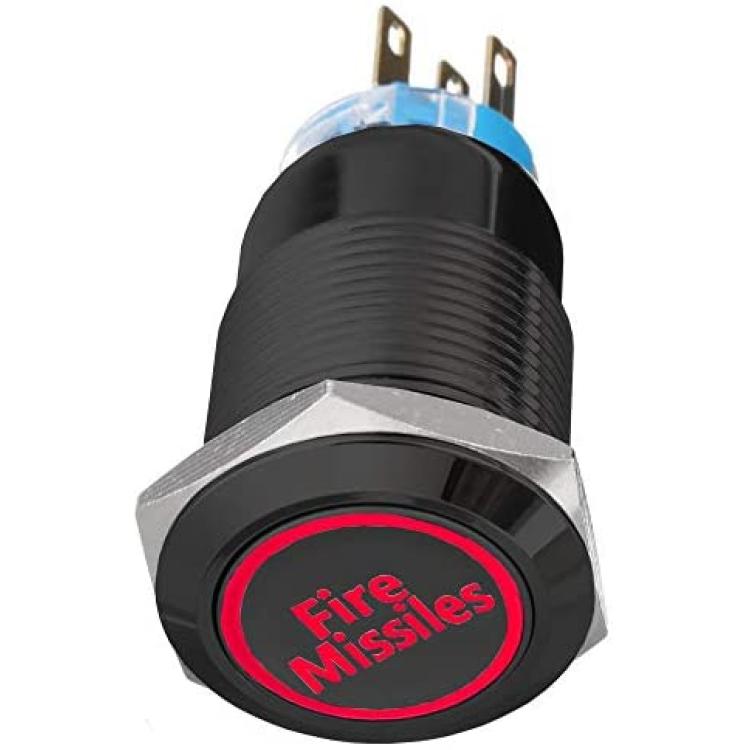

ESUPPORT Black Shell 12V Momentary Car Vehicle Red LED Light Headlight Push Button Stainless Steel Metal Switch 19mm Fire Missiles
About this product
*High Quality: Made of High quality metal material, strong and durable, High grade appearance and nice touch feeling.
*Waterproof design: Adopt rubber ring and hexagonal nut fixed, waterproof and dustproof can be used in wet or dusty enviroment.
*LED voltage: 12V, Light Color: Red, Hole size required 19mm, Switch Rating:5A/250VAC, Silver contacts and Gold plated terminal for good conductive properties.
*Momentary type: push it -- ON, Release it -- OFF, Contact Configuration: 1NO 1NC, Terminal number: 5.
*Widely Application: can be applied to car motorcycle modificine, electric equipment ,appliance, machine ,home Lamps and so on
Description
Momentary Type: Push it -- ON, Release it -- OFF
Feature:
1. This has a wide range of functions. For example, it can be applied as the switches for the additional equipment inside and outside the vehicle.
2. For load under 5 Amp, you do not need a relay with this switch. For load above 5 Amps, we advise you to use of Automotive Relay
3. Easy setup. All you need is a 19mm hole and the switch will sit in nicely.
4. With waterproof rubber ring, have good performance at waterproof and dust-proof.
5. Universal fit all 12V Car SUV truck conversion Van RV Boat Yatch.
Specification:
1. Thread depth: 5/8" (16mm)
2. Head diameter: 7/8" (22mm)
3. Mounting hole size: 3/4" (19mm)
4. Depth inc contacts: 1.5" (38mm)
5. Switch combination: 1NO1NC
6. Operation types: Momentary
7. Switch rating: 5A/250VAC, 5A/30VDC
8. LED rating: 15mA, AC/DC 12V
Package Include:
1 X Red LED Push Switch
