BestEquip Metal Lathe 7'' x 14'',Mini Metal Lathe 0-2250 RPM Variable Speed,Mini Lathe with 4'' 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning
Share Facebook Twitter Pinterest Email

BestEquip Metal Lathe 7'' x 14'',Mini Metal Lathe 0-2250 RPM Variable Speed,Mini Lathe with 4'' 3-jaw Chuck,Bench Top Metal Lathe, Benchtop Lathe, for Various Types of Metal Turning

Brand: BestEquip
Product Code: MPM2841
Availability: Pre-Order, Inquiry Price
US$309.49
- +

About this product

*【STURDY ALUMINIUM CONSTRUCTION】- The mini metal lathe bed is made of high grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, durable, more accurate rotation and professional. Mini metal lathe power of motor: 550W. The full-length splashguard provides maximum protection.

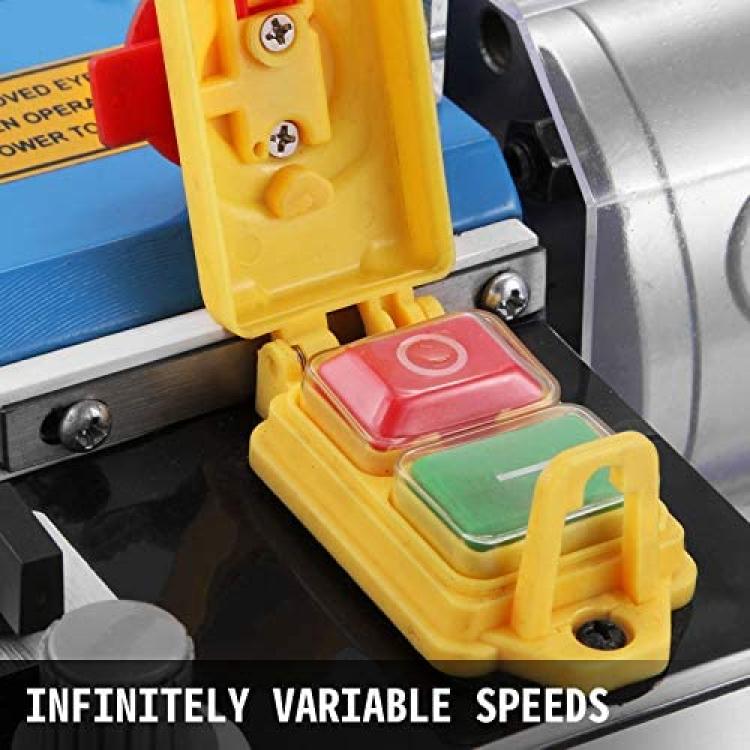

*【INFINITELY VARIABLE SPEEDS】- Variable speed from 50-2500 Rpm. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The handness and accuracy of the v-slideways are obtained by raw material, heat hardening and grinding. Emergency stop buttom included.

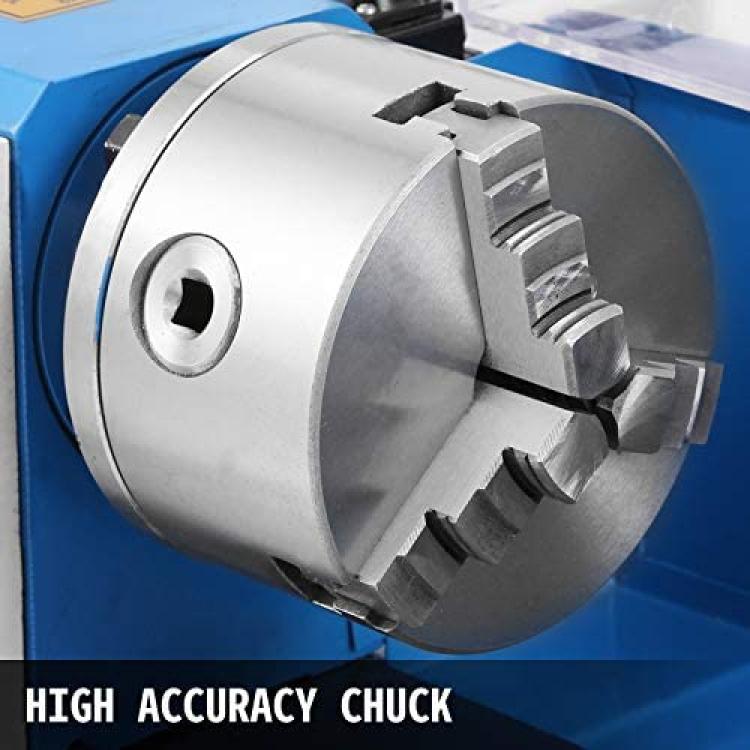

*【ACCURATE 3-JAW CHUCK】- Mini metal lathe chuck, 3-jaw self-centering chuck, for setting cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.0004"(0.01mm).

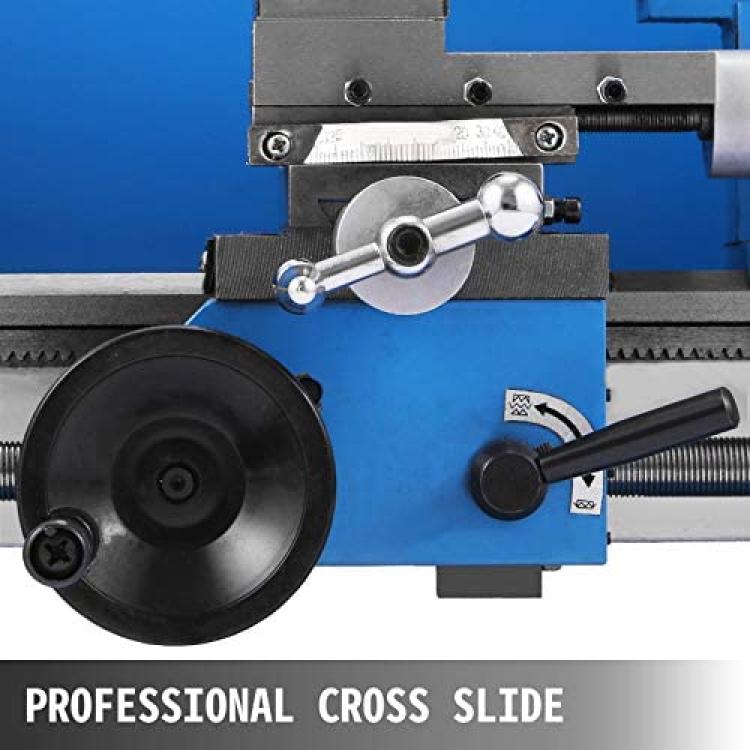

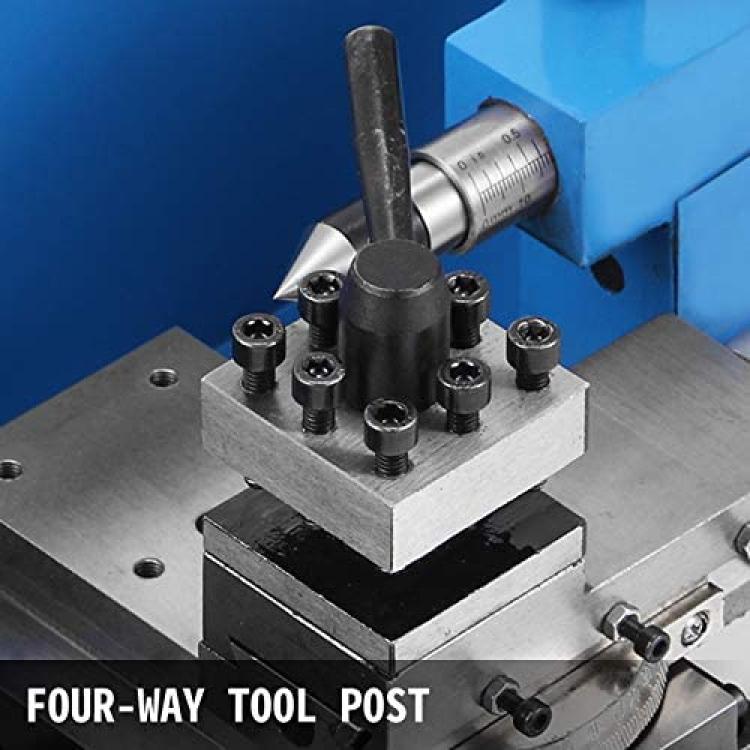

*【PROFESSIONAL COMPOUND REST】- The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest. Professional cross slide is designed with abrasive resistance, moving blades freely with feed rod.

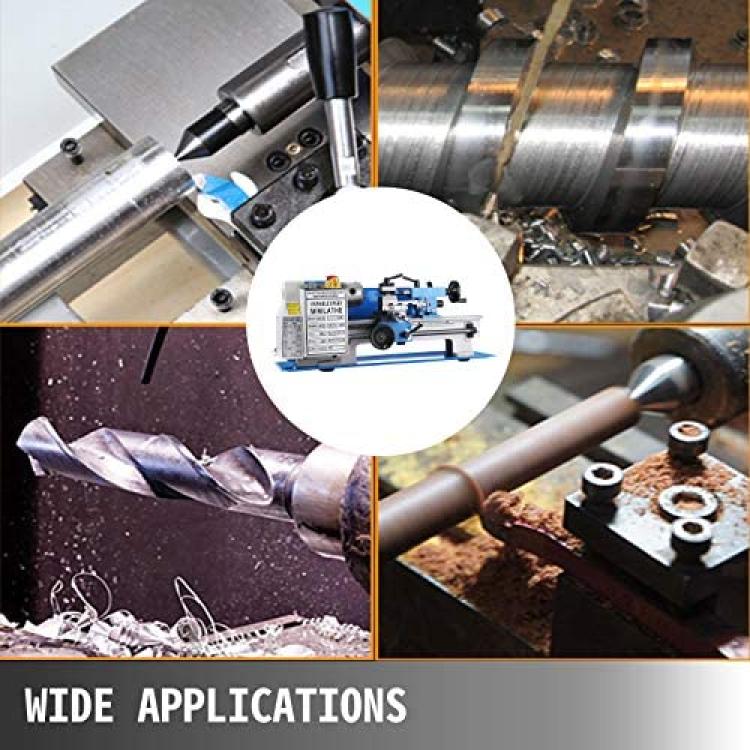

*【WIDE APPLICATION】- Driven by DC motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing and modeling works.

Description

7 x 14 Inch Mini Metal Lathe 0.75HP 550W 2500 RPM Infinitely Variable Spindle Speed Precision Mini Lathe for Various Types of Metal Turning

This precision mini lathe is designed to perform various types of metal turning. This machine can be used in areas such as mini precision parts processing, sample processing and modeling works. The precision mini lathe is perfect for the hobbyist or modeler who is looking to add finite detail to their construction project. Whether you’re turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge! With 18 threads, automatic feed and a chuck guard with micro switch, this mini lathe is ideal for use in labs, workshops, engineering and educational settings.

Item Specifications

Power Of Motor: 0.75HP/550W/110V

Spindle Speed: 0-2250 RPM Infinitely Variable

Variable Speed Gear: Plastic Nylon

Spindle Taper: MT3

Tail Stock Taper: MT2

Distance Between Centers: 14"

Swing Over Bed: 7"

Chuck Diameter: 3.93"

Spindle Bore: 0.8"

Cross Slide Travel: 2.56"

Top Slide Travel: 1.38"

Range of Metric Threads: 0.5-2.5" (12-52 T.P.I Range of Imperial Threads)

Spindle Accuracy: 0.0004"

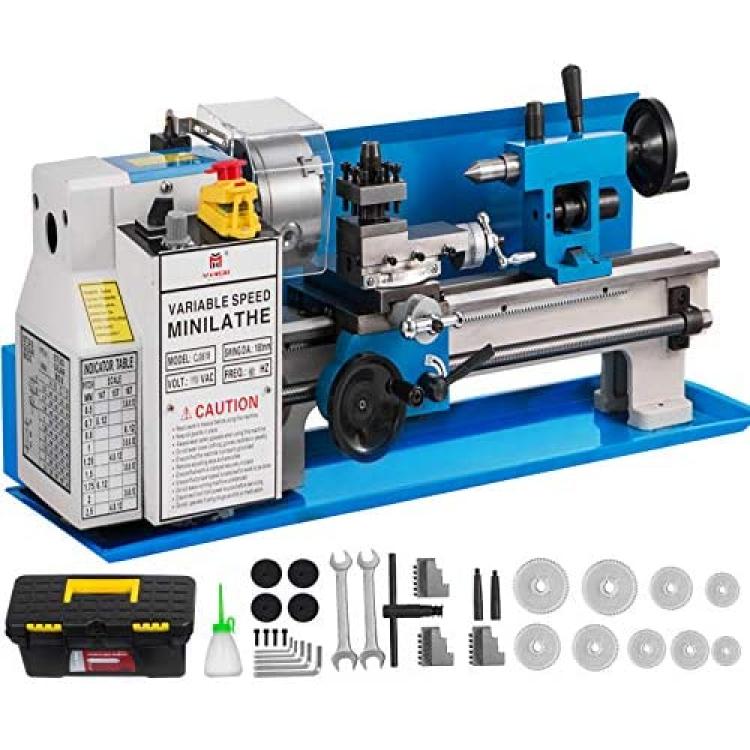

Package Content

MS2 # Fix The Top

Nylon Gears

Oil Can

Chuck Claw

Double-Headed Wrench

Hexagon Bar Wrench

Chuck Wrench

Protecting Mask

Shockproof Foot Cushion x 4

Power of Motor: 550W DC Single PhaseSpindle Speed: 0-2250 RPMSwing Over Bed: 180mm(7.09")Swing Over Cross Slide: 110mmChuck Diameter: 100mm(3.94")Centers Distance: 350mm(13.78")Spindle Bore: 21mm(0.82")Spindle Taper: Mt3Tailstock Taper: Mt2Cross Slide Travel: 65mm(2.53")<
