Aviation Connectors 5A, Lsgoodcare GX12-5 Pin Metal Aviation Plug Kit, Including 12MM 5 Pin Plug Thread Male Female Panel Wire Socket and Aviation Plugs Cap (GX12-5)

Lsgoodcare 5PCS 5A 12MM 5 Pin Female Aviation Connector Plug + 5PCS 5A 12MM 5 Pin Male Aviation Connector Plug

Description:

Widely Used in Data Acquisition Systems, Inclinometer, Computer Automation Measurement and Control Systems, Mechnical Equipment, Audio/Video, Communications, Automotive and Other Industries.
Mainly Used for The Electronical Connection Between the Cables.
Waterproof, Airproof and Really A Great Apparatus Electronic Connector.

Rated Current Voltage: 300V
Rated Current Amp: 5A
Pin Number:5 PINs

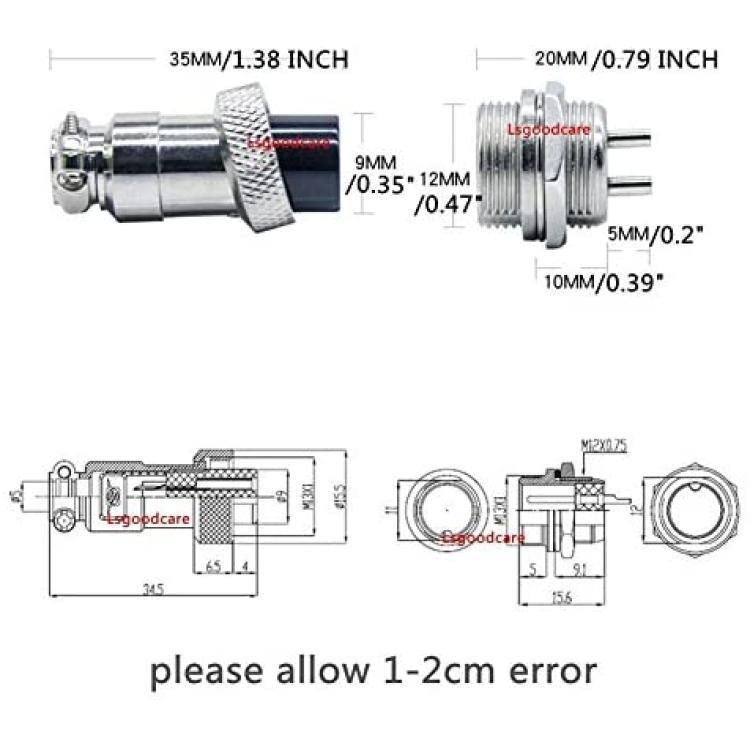

Plug Hole Diameter:12mm
Relative humidity: Up to 98% at +40deg C
Atmospheric Pressure: Up to 4.4 kPa (Kilopascal)
Vibration Frequency:10 ~100Hz, acceleration 100m/s Square
Centrifugal: acceleration: 250m/s Square
Ambient Temperature: -50deg C ~ +70deg C
Material: Metal and Hard Plastic(Shell Material: Zinc Alloy; Connector Pins Material: Fine Copper Silver Plating)
Main color: Silver, Black
Connection Cable : Soldering

Connect Insert Way: Threaded Connection

Rated voltage: 300V

Rated Current Amp:5A

Contact resistance < 5?;

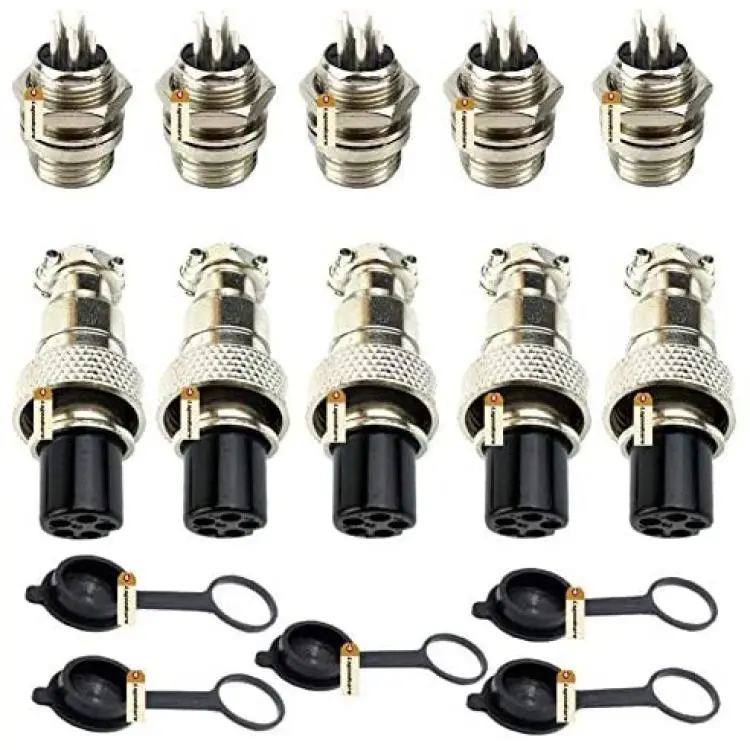

Package : 5 Pairs Female Male Aviation Connector Plug GX12-5 Pin

5 Pack Aviation Connector Plug Caps
