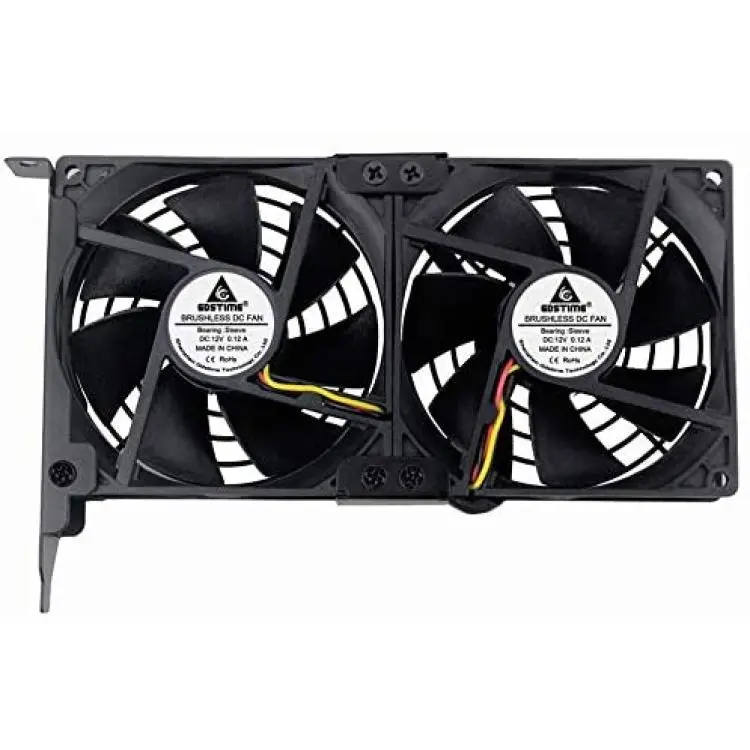

GDSTIME Graphic Card Fans, Graphics Card Cooler, Video Card Cooler, PCI Slot Dual 90mm 92mm Fans, VGA Cooler
About this product

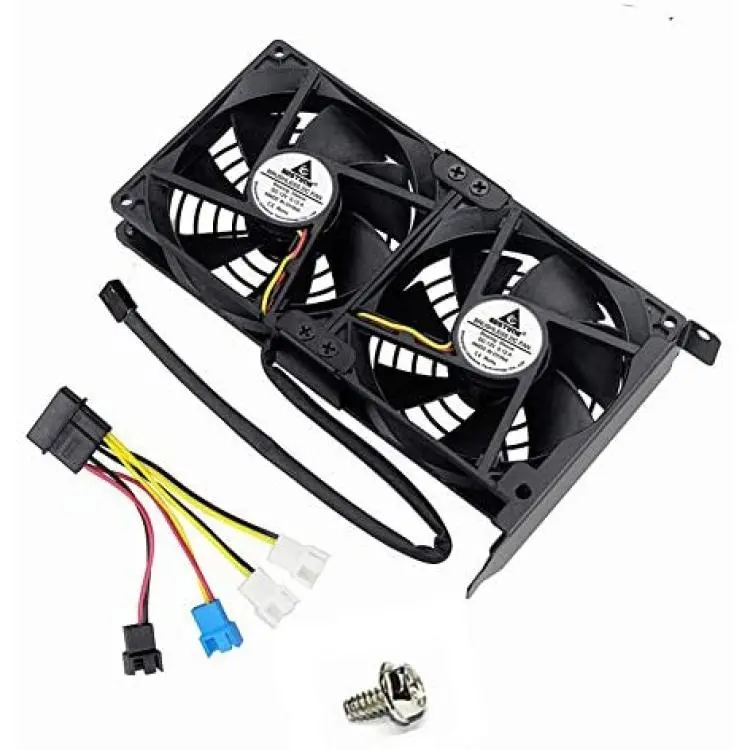

*Package include: 1 Piece Graphic Card Fans with 1*Power D-type Interface cable

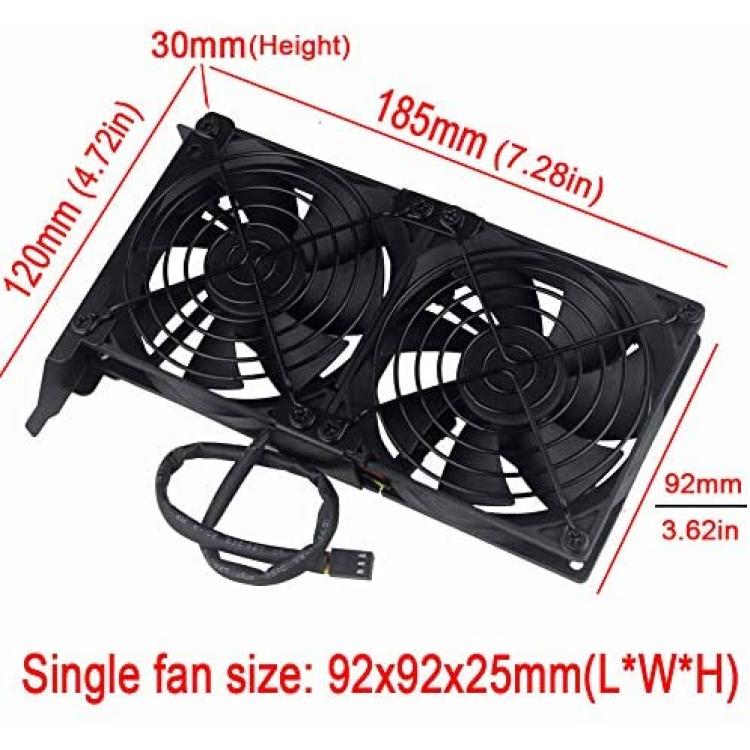

*Dimension: 92mm(L) x 92mm(W) x 25mm(H) / 3.62in(L) x 3.62in(W) x 1in(H) in per fan. Totally Size: 185mm(L) x 120mm(W) x 30mm(H) / 7.28in(L) x 4.72in(W) x 1.18in(H)
*Rated Voltage: DC 12V; Rated Current: 0.2Amp; Rated Speed: 2000 RPM; Air flow: 86CFM; Noise: 27dBA
*D-type interface cable included four interfaces, three voltages: 5V 7V and 12V; Different voltages with different airflow, speed, and noise. you can select the appropriate voltage interface to start the fan.
*2 fans combined into one interface, Can be connected to the motherboards 3-pin or 4-pin interface and you only need to access one interface to run all the fans.
Description
PCI Fixed Bracket
Graphics partner is fixed by PCI bracket.
Installed in chassis PCI location.
Keep the fan away from the slots and components of the motherboard
2 fans combined into one interface, So, you only need to access one interface to run all the fans.
Can be connected to the motherboard's 3-pin or 4-pin interface, working at full speed.
But it is recommended to use one point four voltage line we sent together.
Choose the voltage that suits your needs.
Because different voltages with different airflow, speed, and noise.

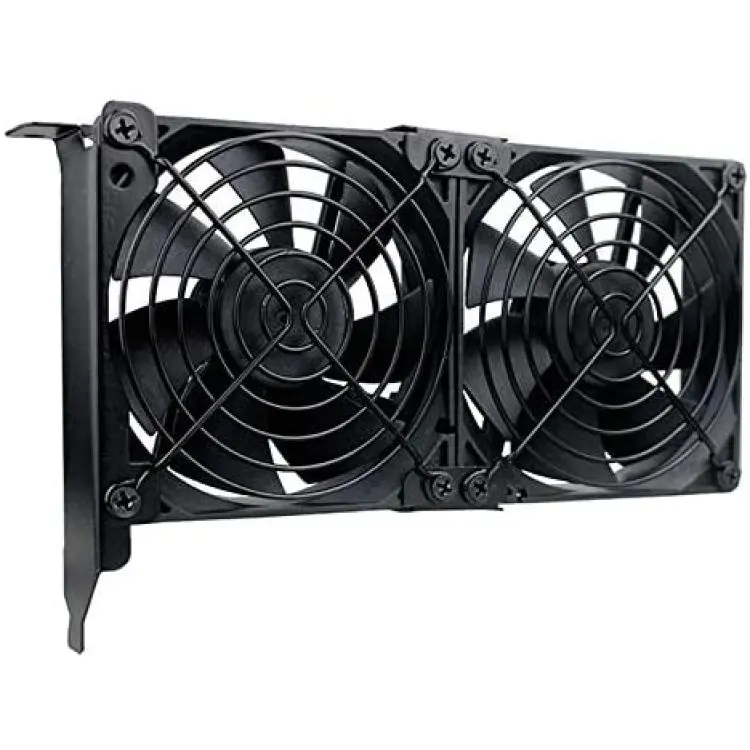

Metal Fan Grill
Protect Fan Blades.
Prevent wires or foreign objects touching the blades,
Causing interruption or obstruction.
Step One
Step Two
Step Three
Step Four

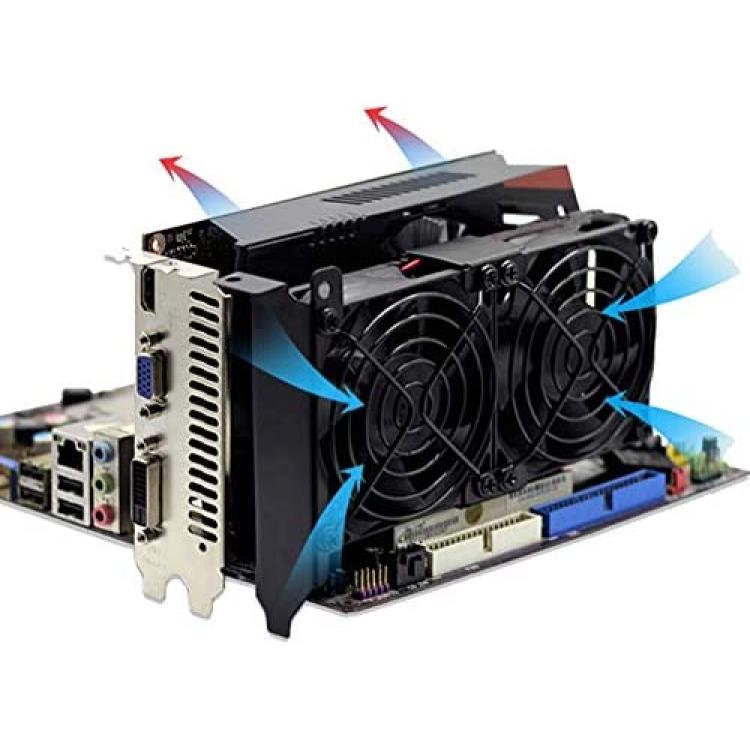

General graphics card radiator.Easy installation, Fixed by one screw.You can choose different airflow according to your preferences.Opening heat dissipation, sweltering graphics card.Large area direct blowing, the whole graphics card cooling.Four interfaces, three voltages.Different voltages with different airflow, speed, and noise.you can select the appropriate voltage interface to start the fan.5V interface: The fan will work at about 40% speed?small airflow, very quiet.7V interface: The fan will work at about 60% speed?moderate airflow, relatively quiet.12V interface: The fan will work at about 100% speed, Big airflow.
