About this product
*Concentrated Compression Blade (CCB) for high-static pressure of demanding applications such as radiators, the CCB is engineered to focus the inner weaker circle of air outwards, allowing the outer section to pressurize and compress the air
*Wind Blocker Frame: To achieve maximum static pressure in all applications, the frame is designed to work with the CCB to reduces the blades noise and vibration, creating a perfect balance between power and sound
*Hydraulic Bearing/Low-Noise Design: The hydraulic bearing self-lubricates with a high quality, friction-reducing substance which lowers operating noise and improves efficiency. The Low-Noise Cable can reduce the noise level by 24% from 24.6dBA to 18.7dBA
*Anti-vibration Mounting System: In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners
*Inlet and outlet temp. are 49℃ and 44.5℃ in respective, △T= 4.5℃.
Description

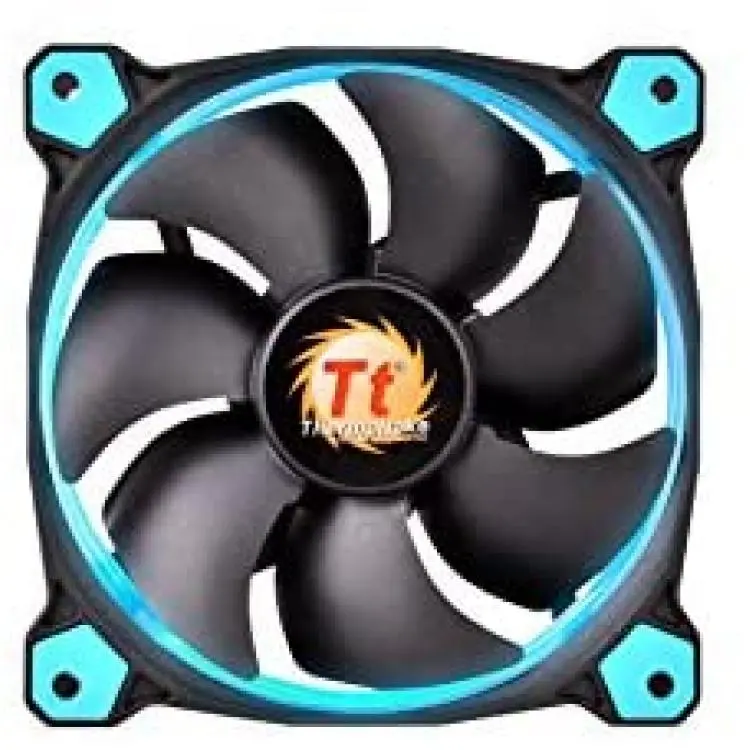

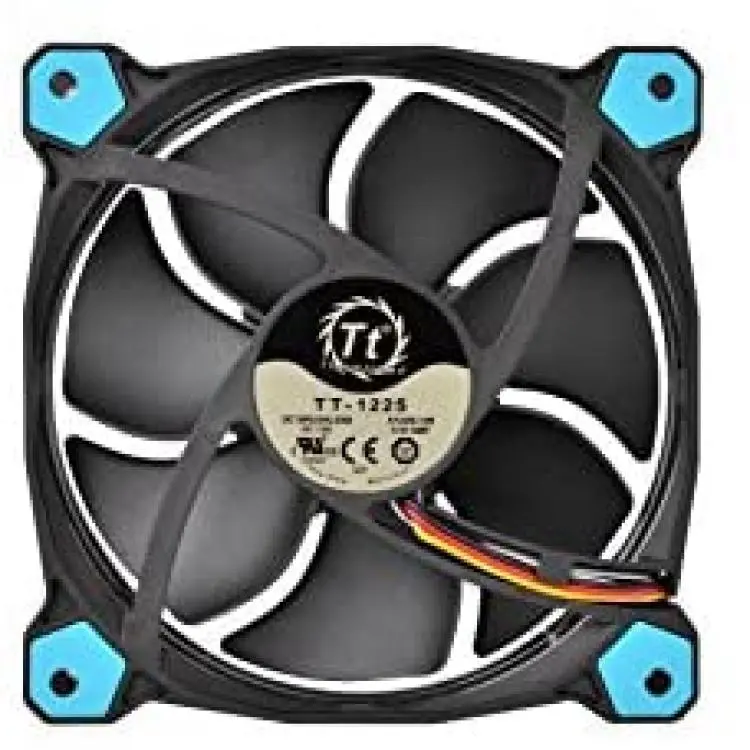

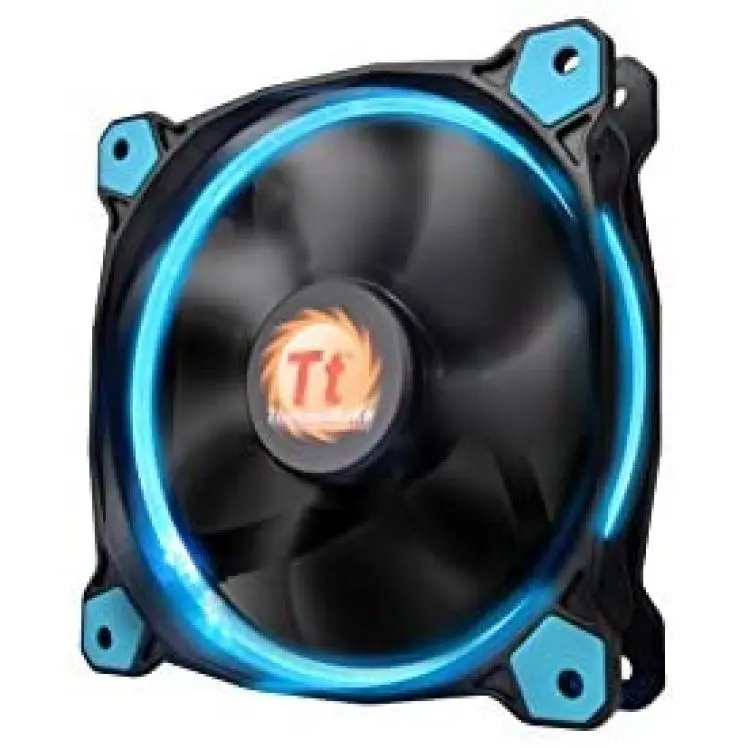

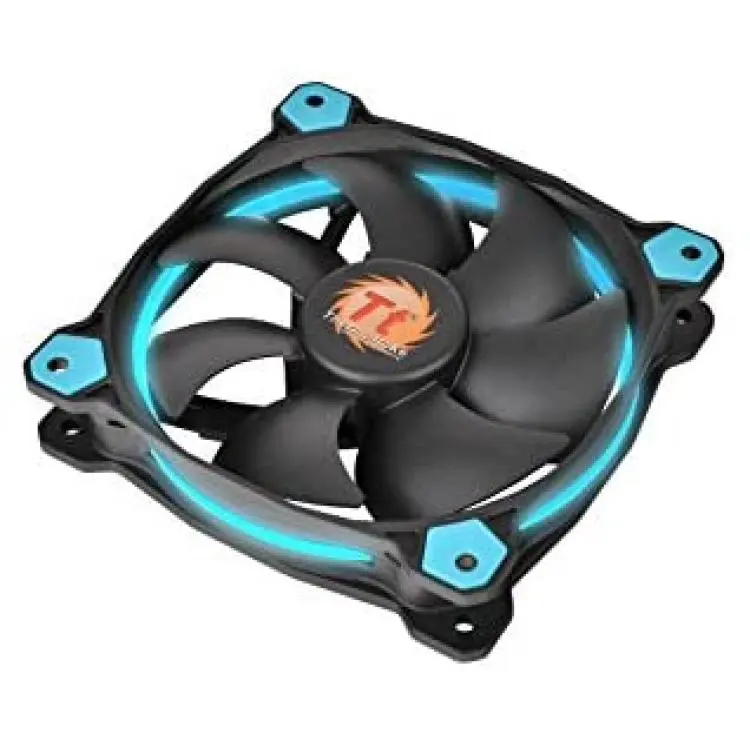

Thermaltake Riing 12 Series High Static Pressure 120mm Circular LED Ring Case/Radiator Fan with Anti-Vibration Mounting System Cooling CL-F038-PL12BU-A Blue
Â
Thermaltake has released the new Riing 12 LED Series, a 120mm fan fitted to enhance static pressure that produces impressive cooling performance with an optimized fan blade. Hydraulic bearings for silent operation guarantee ultra-low noise. In addition, an anti-vibration mounting system strengthens the stability during operation.

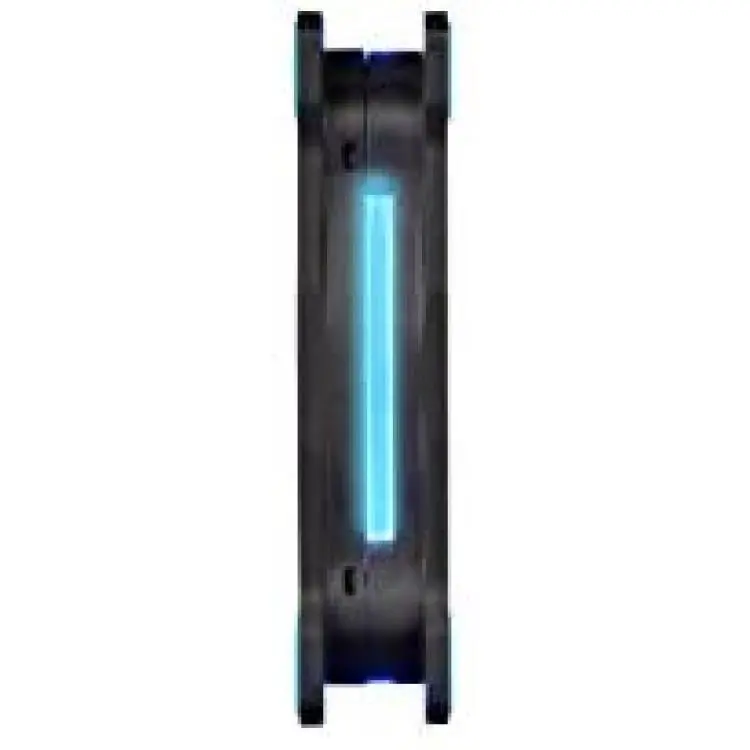

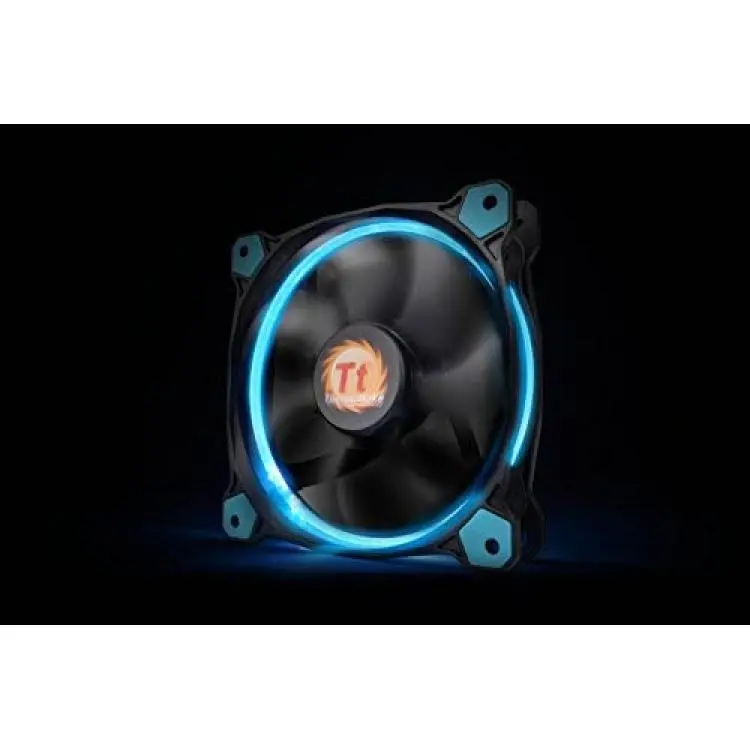

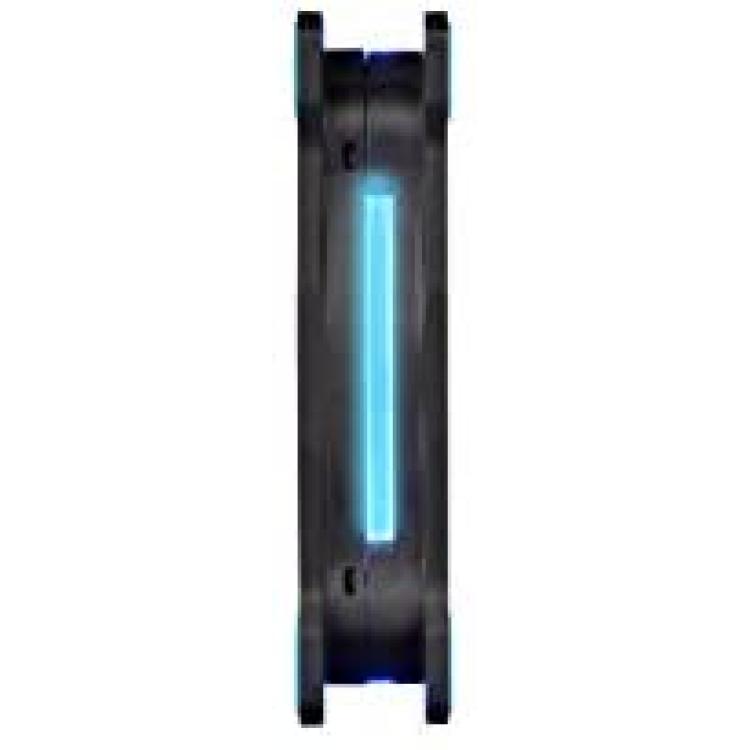

The patented LED Ring maintains color and brightness uniformity; the lighting effect is visible from all sides and angles. The four-colored LED ring (in blue, red, white, and green) adds style to the chassis.
Taiwan Patent : M498806
China Patent : CN204498539U
US Application Patent : US9,506,663
Â
P/N: CL-F038-PL12BU-A
Fan Dimension: 120 x 120 x 25 mm
Started Voltage: 9.0 V
Rated Voltage: 12.0 V
Rated Current: 0.2 A
Power Input: 2.4 W
Fan Speed: 1500 R.P.M, 1000 R.P.M (with LNC)
Max. Air Pressure: 2.01 mm-H2O
Max. Air Flow : 40.6 CFM
Noise:Â 24.6 dB-A, 18.7 dB-A (with LNC)
Bearing Type: Hydraulic Bearing
Life Expectation: 40,000 hrs,25?
Connector: 3 PIN + LNC (Low-Noise Cable)
Weight : 158.8 g.
