Easycargo 8pcs 40mm Heatsink Kit 40x40x20mm + 3M8810 Thermal Conductive Adhesive Tape, Cooler Aluminium Heat Sink for Cooling 3D Printer Stepper Motor TEC1-12706 Thermoelectric Peltier 40mmx40mmx20mm

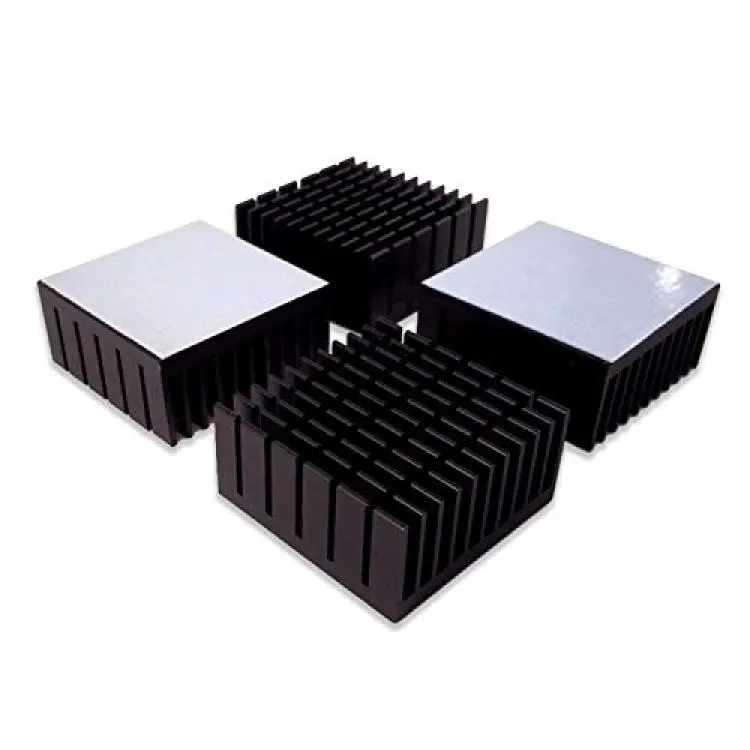

This 40mm (L) x 40mm (W) x 20mm (H) extruded aluminum heatsink kit is specially designed for Cooling 3D Printer, NEMA 17, TEC1-12706 Thermoelectric Peltier Modules. This set of heatsink height is 20mm. This kit is made from 6063-T5 aluminum alloy with high thermal conductivity 201 W/m.K, structure stability and light weight. The heatsink extrusion is in vertical and horizontal grooves; that is greatly increases the heat dissipation function. The surface of extruded aluminum is anodized in black. This kit of heatsink comes with 40x40mm pre-applied thermal conductive double sided adhesive tape, for easy installation and optimum heat conductivity.

40mm aluminum heatsink kit

Material: Extruded Aluminum 6063-T5

Color: Black

Coating: Anodized

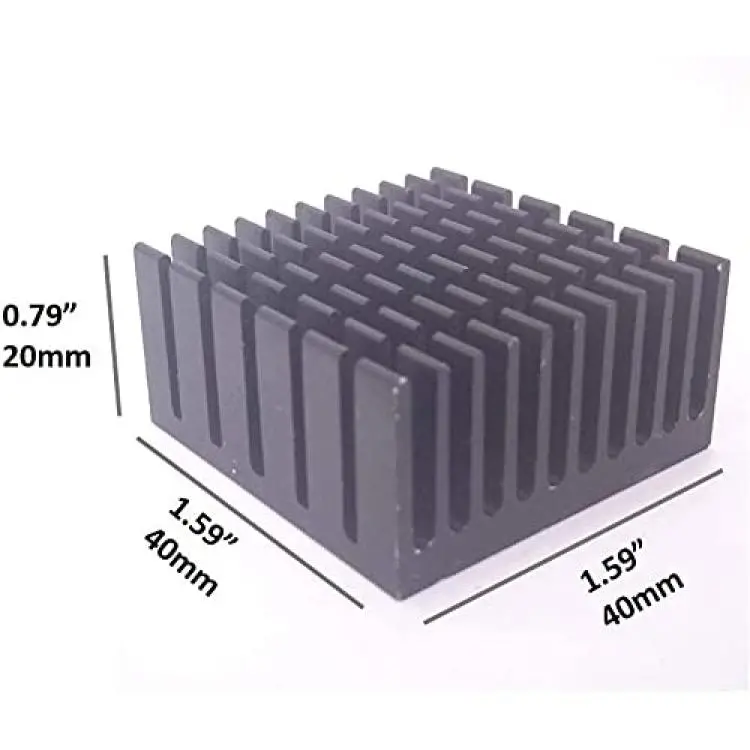

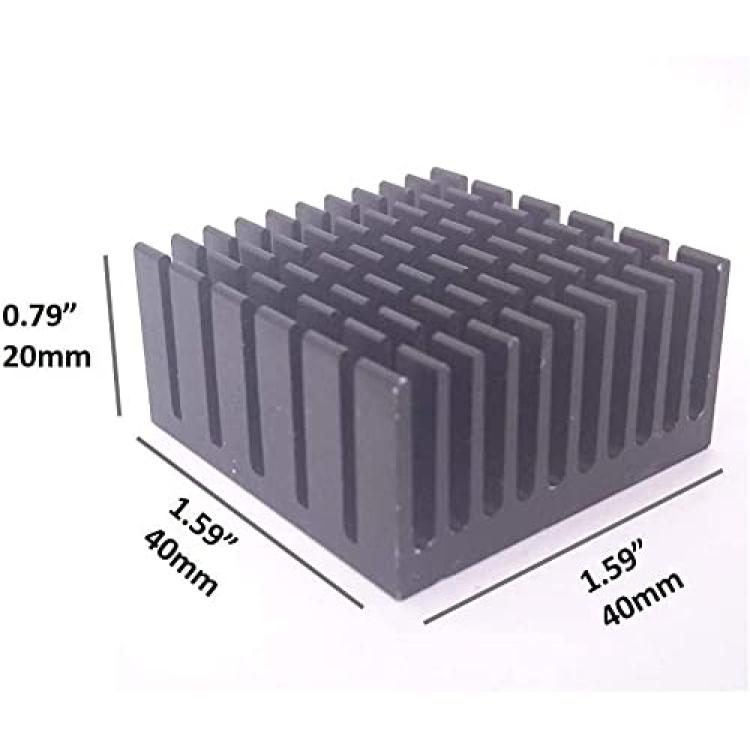

Dimension: 40mm x 40mm x 20mm (L*W*H)

Weight: 0.9 oz /25 gr per piece

Mounting Style: SMD/SMT

Fin Style: Vertical

Number of fins: 11x6

Pre applied 3M 8810 thermal conductive adhesive tape

Tape Thermal Conductivity: 0.60 W/m-K

Standard: RoHS compliance

Model No: 404020B08-3M-8810

Package Includes: 8 pieces 40mm heatsink
