Smalloo Thermal AdhesiveTape 25M x 30mm x 0.25mm, Double Side Adhesive Thermal Conductive Cooling Tape for Heatsinks, LED Lights, IC Chip, Computer CPU, GPU, Raspberry pi, Modules
About this product

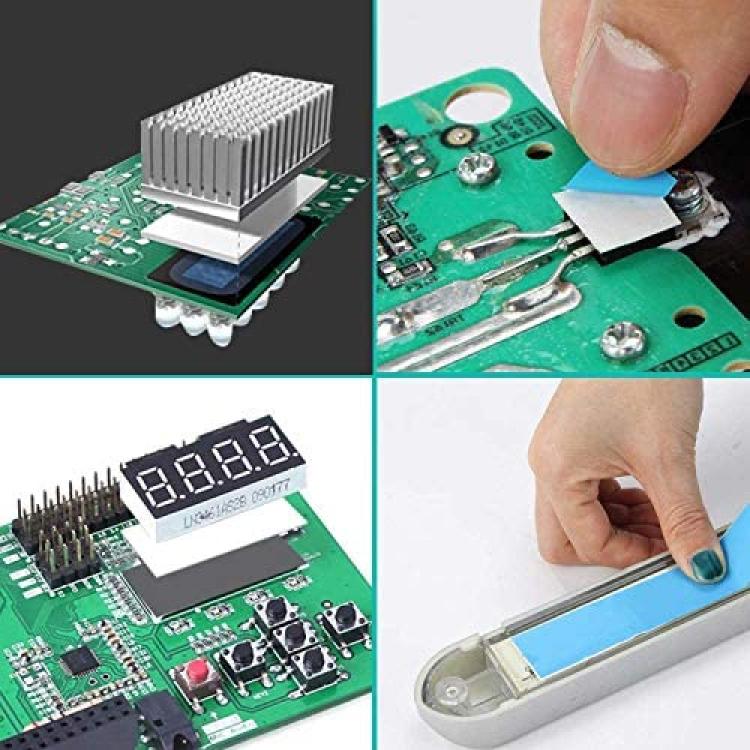

*Double Side Adhesive Thermal Conductive Tape for Heatsink, like heatsink for LED, IGBT, IC Chip, Computer CPU, GPU, Modules, Raspberry pi, Electrically Insulated.
*Thermal Conductivity:1.5 W/m-k. Long term heat resistant 120°C, short term heat resistant 180°C
*With the features of high thermal conductivity, insulation, strong stickiness, softness, compression.
*The Thermal AdhesiveTape is simple and practical , Combined with thermal paste, the effect will be better and very easy to use.

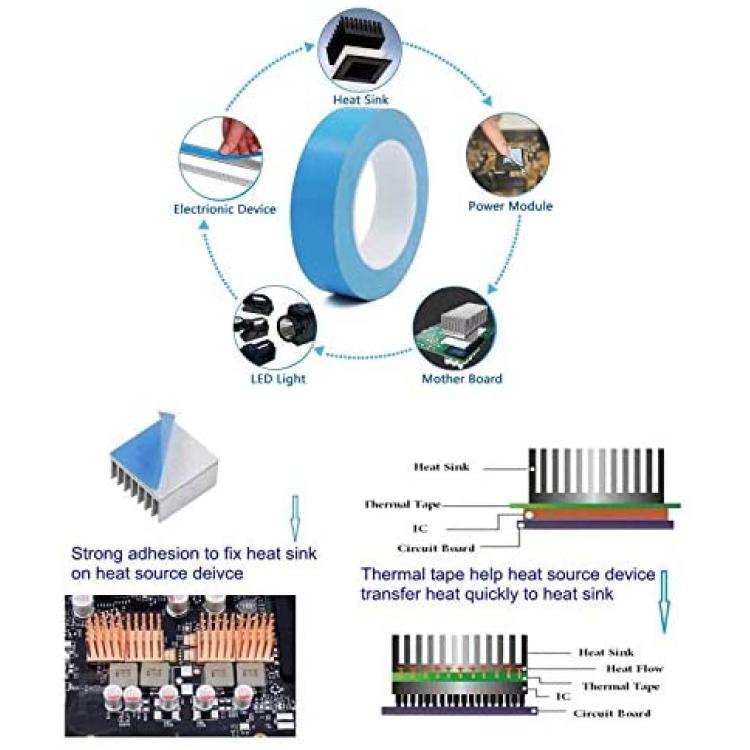

*Double-sided thermal adhesive tape at low cost solve the problem of heat dissipation, it is great helper to solve heat dissipation for many electronics products.
Description
SPECIFICAION

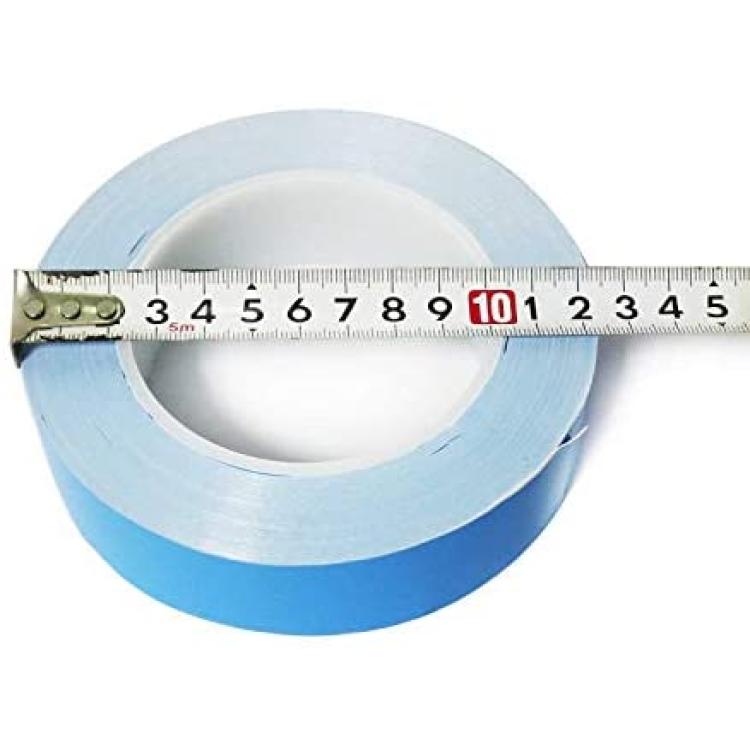

Dimension: 30mm x25m (Width x Length)
Glass fiber thickness: 0.2mm
Thermal Conductivity:1.5 W/m-k
Breakdown Voltage: 4KVAC
Thermal impedance : 0.3?in2/w
Initial Adhesion: 1.3kg/inch
180°Adhesion power: >16 N/25mm
Heat Resistance: 120°C (long time), 180°C ( short time)
Applicable temperature range:-20~+120 °C
____________________________________________________________________________
Notes For Attention:
1. Please keep the adhesive surface clean and dry.
2. After tearing off the heat-conductive double-sided tape to peel the paper, double-sided thermal tape is evenly pressed with your fingers (just a little strength).
3. The tape will take 72 hours to achieve the maximum adhesive strength.
4. Try to avoid touching the tape with your hands. You can press it firmly to increase the adhesion between the tape and the object.
5.In the lower temperature of the winter, it's little tips that heating to increase the viscosity of the heat-conductive double-sided tape when using the thermal conductive tape.
