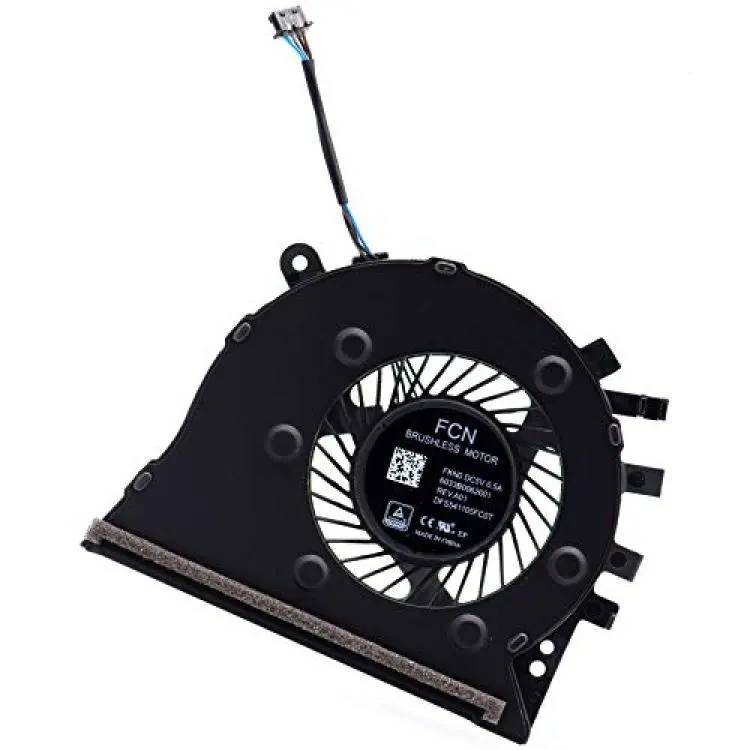

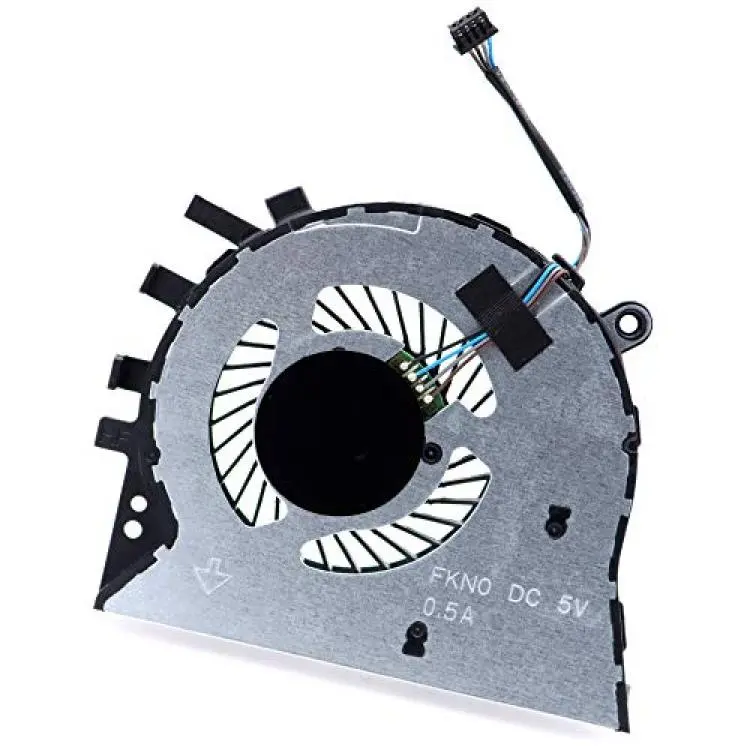

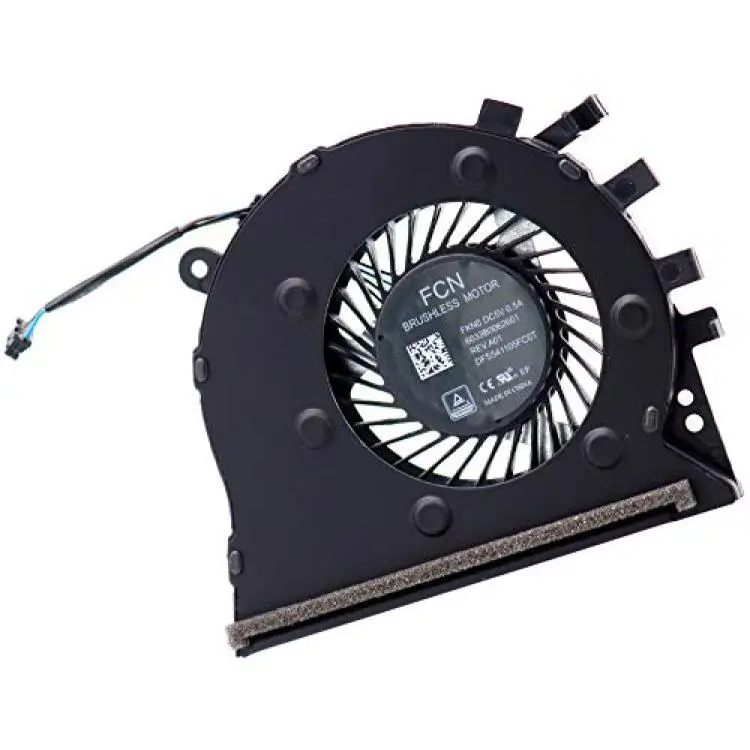

Deal4GO CPU Cooling Fan FKN0 DFS541105FC0T Replacement for HP 17-by 17-CA 17-CA0046CL 17-BY000 17-BY0000TX 17-BY0053CL L22531-001

This is the CPU Cooling Fan for the ENVY 17-BY 17-BY000 and 17-CA series laptops, Attaches to your existing heatsink.

The fan uses an integrated flex cable to connect to the mainboard. The cable connects via 4-pin connector making it a plug and play replacement module, NO soldering is required.

for HP Service P/N: L22531-001, L22529-001, L22530-001
Manufacturer Part Number (s):
FKN0 DFS541105FC0T, 6043B0239511, 6033B0062601

Specifications:
Direct Current: DC 5V/0.5A
Connection: 4-pin 4-wire, plug-in

Reference list of compatible with HP Laptop Models:
- 17-BY 17-BY000 17-BY0000TX 17-BY0000CL 17-BY0000DX series:
- - 17-BY0053CL
- - 17-BY0021DX
- - 17-BY0061CL
- - 17-BY0053OD
- - 17-BY1083CL
- - 17-BY0062ST
- - 17-BY0000TX
- - 17-BY0001TX
- - 17-BY0002TX
- - 17-BY0003TX
- - 17-BY0004TX
- - 17-BY0005TX
- - 17-BY0006TX
- - 17-BY0007TX
- - 17-BY0008TX
- - 17-BY0009TX
- - 17-BY0010TX
- - 17-BY0011TX
- - 17-BY0012TX
- - 17-BY0013TX
- - 17-BY0014TX
- - 17-BY0015TX
- - 17-BY0016TX

- 17-CA 17-CA000 17-CA0000NA 17-CA0000AX series:
- - 17-CA0003NA
- - 17-CA0007NA
- - 17-CA0000AX
- - 17-CA0001AX
- - 17-CA0002AX
- - 17-CA0003AX
- - 17-CA0004AX
- - 17-CA0005AX

What's in the Box
1x CPU Cooling Fan
