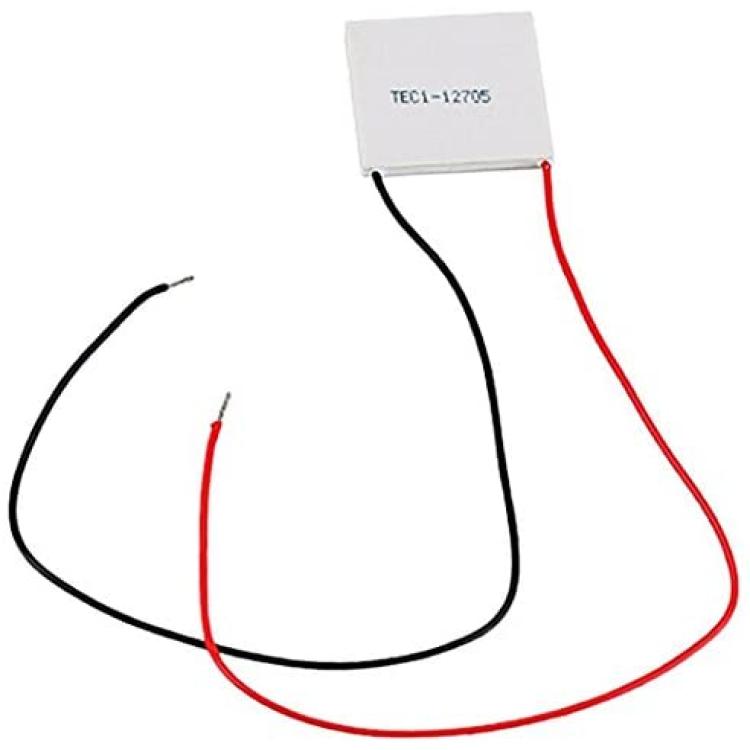

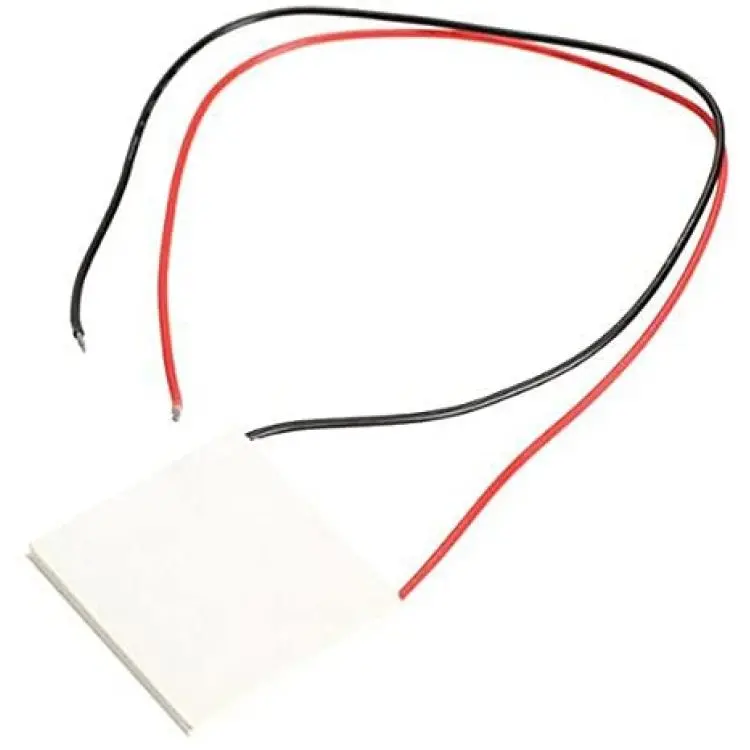

diymore 10pcs TEC1-12705 12V 50W 40MMX40MM Heatsink Thermoelectric Cooler Cooling Peltier Plate Module

Diymore 10pcs TEC1-12705 12V 50W 40MMX40MM Heatsink Thermoelectric Cooler Cooling Peltier Plate Module

Specification:
Chip Model: TEC1-12705.
Dimensions: 40 * 40 * 3.8mm.
Component: Logarithm of 127.
Cooling power: Qcmax 30W.
Assembly Pressure: 85N/cm2.
Storage conditions: -40 ~ 60°C.
Rated voltage: DC12V (Vmax: 15.5V).
Maximum temperature: Tmax (Qc = 0): 60°C.
Encapsulation Process: Standard 704 Silastic Seal.
Operating current: Imax = 12 (rated voltage startup).
Wire Size:Lead Length 100 ± 5mm,RV standard wire,Single head 5mm Tin Plated.
Internal resistance: 2.4 ~ 2.7? (ambient temperature 23 ± 1°C , 1kHZ Ac test).
Working environment: Temperature range -55°C ~ 83°C(high ambient temperature will directly affect the cooling efficiency).

Feature:
Solid state, vibration free, noise-free.
Simple to install and operate.
Should use with a heat sink.

Package Included:

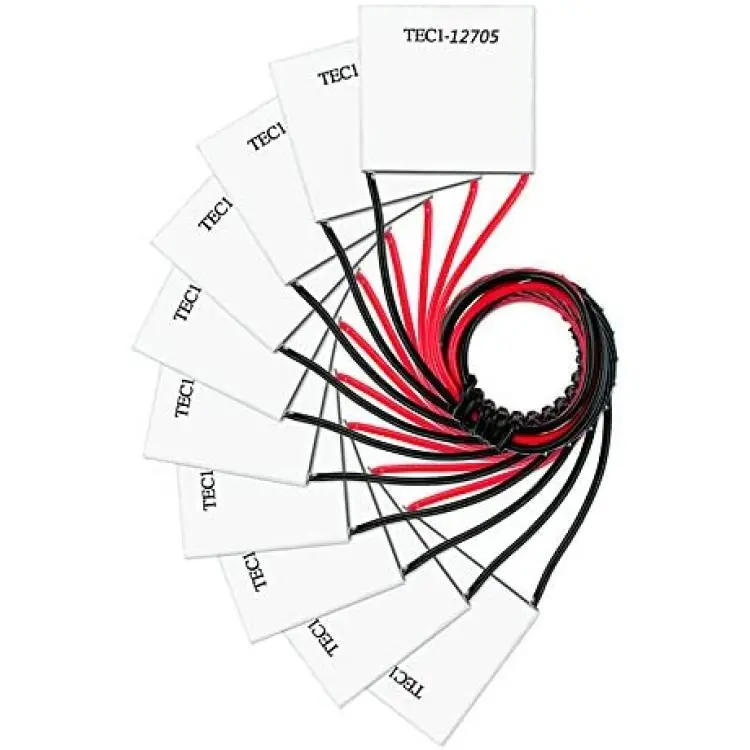

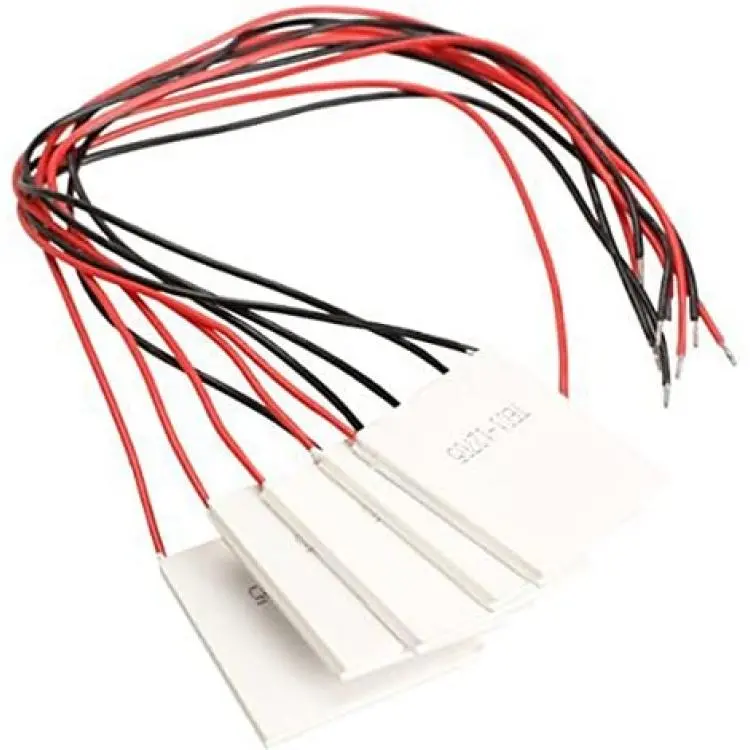

10X TEC1-12705 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module
