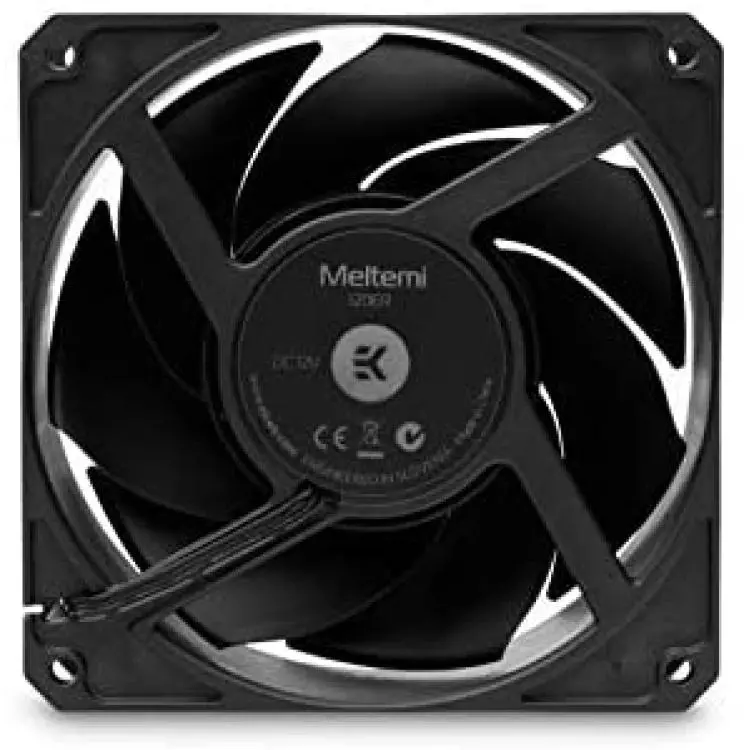

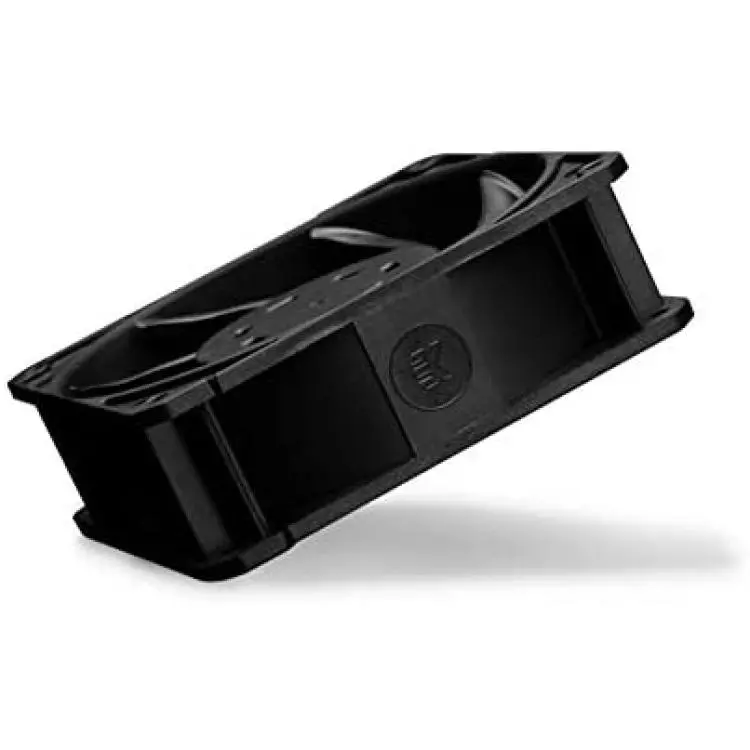

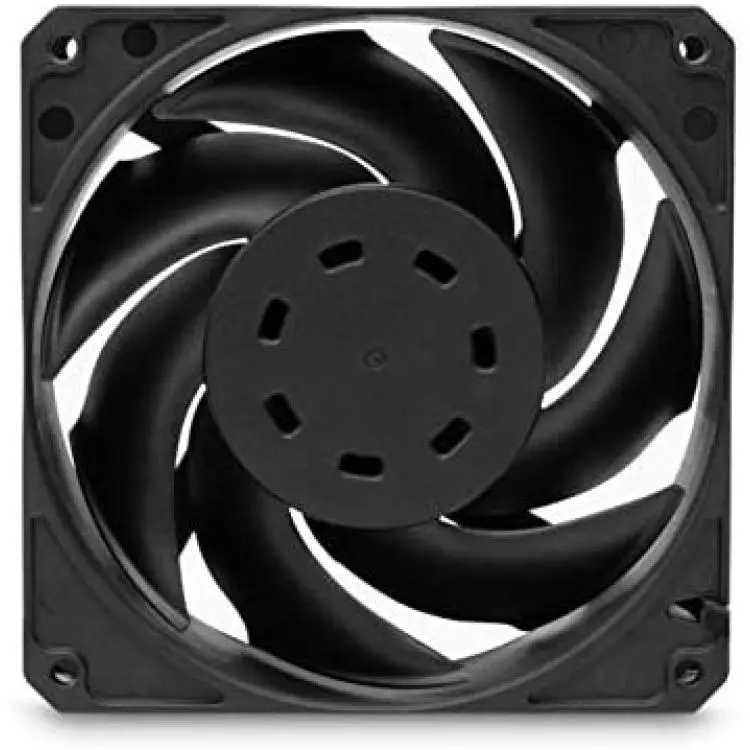

EKWB EK-Meltemi 120ER Fan, 500-1800 RPM, Black

EK-Meltemi 120ER are 38mm thick extreme high-static pressure computer cooling fans, designed purely for highest-performance computer liquid cooling systems. They have a wide PWM range of operation. Due to a 38mm thick frame, there is space for an upgraded motor and far superior performance compared to any standard 25mm thick fan at the same RPM range.

High-static pressure - unlike other general-purpose computer cooling fans, the EK-Meltemi family of fans is built specifically for computer liquid cooling systems, namely radiator cooling. The new 7 fan blade design is optimized for extremely high-pressure built upon a massive motor housed in a 38mm thick frame.

High-quality motor and bearing assembly - New electrical design, and the Dual-Ball bearing with 50.000 hours of lifespan (MTBF) @40C operation ensures uninterrupted operation for years to come.

Sealed-edge fan casing - The classic, yet the effective square shape of the fan casing provides optimal performance in either pull or push regime without hydraulic losses, thus ensuring the optimal cooling capacity of your liquid cooling radiators.

Sleeved cable - It comes with a 500mm long, nylon-sleeved 4-pin PWM cable.

Mechanical and electrical specifications:
- Maximum speed: 1800 RPM (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: 1.6W
- PWM Duty Cycle: 25-100% - ER (Extended Range)
- Connector: 4-pin PWM header
- Shaft bearing: Dual-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 120 x 120 x 38 mm

Performance characteristics:
- Max Air Flow: 62 CFM = 105 m³/h
- Static Pressure: 2.75mm H2O = 27Pa

- Sleeved cable length: 500 mm
- Noise Level: 44dBA

 The scope of delivery:
- EK-Meltemi series fan
- radiator UNC 6-32 screws (4pcs)
- self-tapping screws (4pcs)

Model: 3831109880111
