SainSmart Genmitsu 10Pcs Nano Blue Coat End Mill CNC Router Bits, 0.8-3mm, 1/8'' Shank
About this product
*➤Cutting Edge Diameter: 0.8 - 3.0mm (0.8/1.0/1.2/1.4/1.6/1.8/2.0/2.2/2.4/3.0mm), 10Pcs.
*➤Hard Steel: With sufficient flexural strength and wear resistance, which ensure high work efficiency.
*➤Material: Using ultra-fine grained carbide material, with good milling and cutting performance.
*➤Advantage: Sharp cutting edge, milling, hole and plate edge, clean surface, neat, no glitches.
*➤Application: PCB, SMT, CNC, Mold, plastic fiber, carbon fiber, hard wood, printed circuit board, and other precision parts processing.
Description
SPECIFICATIONS

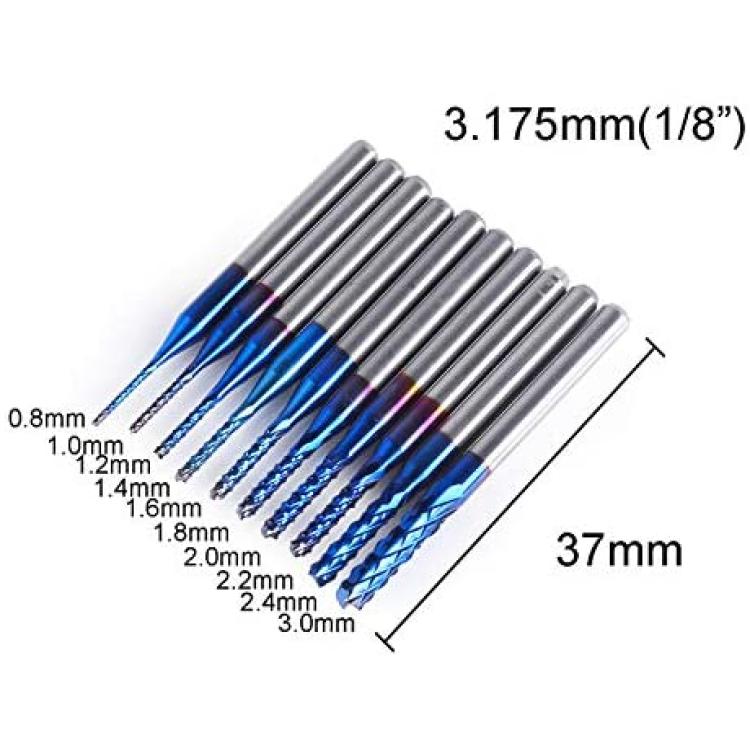

Shank Diameter: 3.175mm
Cutting Edge Length: 12mm
Overall Length: 37mm
Cutting Edge Diameter: 0.8-3.0mm; 10Pcs;
Innovative Nano Blue Coat
Chemical Composition: Ni-La203
Physical Characteristics:
1. Enhance the hardness of the bits.
2. Reduce the frictional resistance coefficient of the bits at high speed to improve the smoothness of the machined surface.
3. Increase the heat dissipation performance of the bits to avoid the influence of the crystal structure change due to excessive
temperature.
4. Reduce the phenomenon of chipping of the cutting edge. Enhance the elasticity of the bits. The impurities of the workpiece
can be elastically skipped to avoid damage to the cutting edge.
5. Extend service life.
6. Since the carbide bit has high hardness and is relatively brittle, the machine speed range should be controlled during use.
WHAT'S INCLUDED?

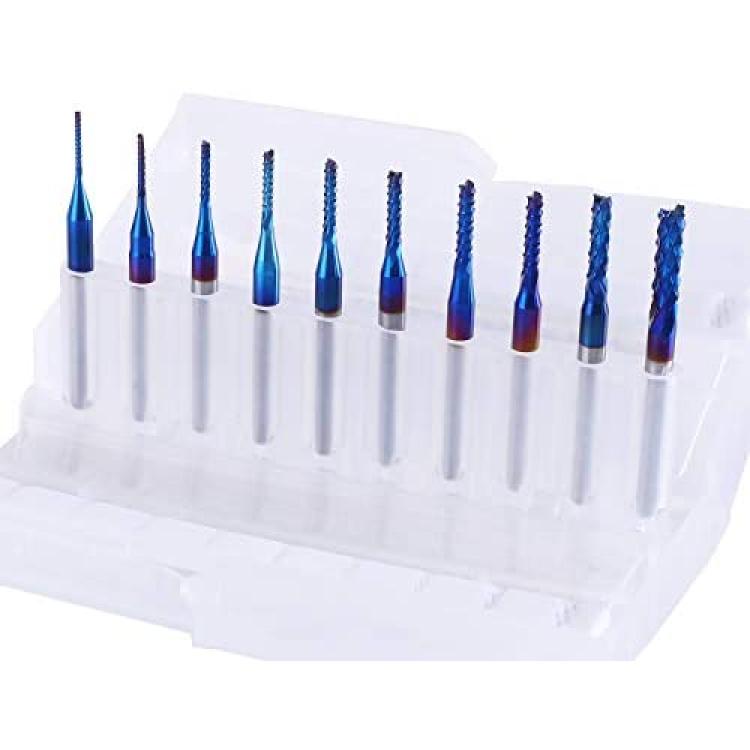

1 x Set (10Pcs Nano Blue Coat End Mill CNC Router Bits)
