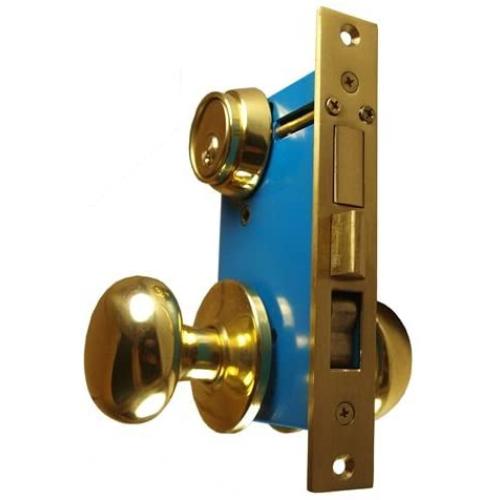

Maxtech Heavy Duty Ornamental Iron Gate Double Cylinder Mortise Lockset 2-1/2'' Backset 1''X 7-1/8'' Faceplate Polish Brass (Right Hand)
Share Facebook Twitter Pinterest Email

Maxtech Heavy Duty Ornamental Iron Gate Double Cylinder Mortise Lockset 2-1/2'' Backset 1''X 7-1/8'' Faceplate Polish Brass (Right Hand)

Brand: Maxtech America
Product Code: MPM561
Availability: Pre-Order, Inquiry Price
US$0.00
-+

*Double solid brass cylinders Schalge Keyway keyed alike with 2 keys.

*2-1/2" Backset, Lock Face front: 1" W X 7-1/8"H.

*Spring loaded spindles with Strike and mounting screws included.

*Works and fits same as Marks 22AC.

*Through-bolted knob plate assemblies

Maxtech America mortise lock is equivalent to the door preparation of a Marks 22AC mortise lockset with its special 1" X 7-1/8" edge faceplate and the 2-1-2" backset.

This mortise Entry lockset gets installed on exterior Iron gate doors, and includes true-bolted knobs with 2 cylinders keyed alike that can be position with a toggle on the edge to keep in a always open Positions, or to be locked only from the outside, or to be locked from both sides with the 1" steel bolt by the cylinder either side.

This Heavy duty mortise security lock enhance the security of the gate And offers added security and peace of mind.

This lock come in 4 different options Left hand -Right Hand-Left Hand Reverse-Right Hand Reverse

To Determine Door Hand When The Cylinders Are On The Top And The Knobs Are In The Bottom

Right Hand- Facing door from outside,Push Door to open.Hinges on the right hand side.Knob and Cylinder on the left hand side.

Left Hand-Facing door from outside, Push Door to open.Hinges on the left hand side. Knob and Cylinder on the right hand side.

Right Hand Reverse- Facing door from outside,Pull Door to open. Hinges on the right hand side. Knob and Cylinder on the left hand side.

Left hand Reverse-Facing door from outside, Pull Door to open. Hinges on the left hand side. Knob and Cylinder on the right hand side.

To Determine Door Hand When The Knobs Are On The Top And The Cylinders Are In The Bottom

Right Hand- Facing door from outside,Push Door to open.Hinges on the Left hand side.Knob and Cylinder on the Right Hand side.

Left Hand-Facing door from outside, Push Door to open.Hinges on the Right hand side. Knob and Cylinder on the Left Hand side.

Right Hand Reverse- Facing door from outside,Pull Door to open. Hinges on the Left hand side. Knob and Cylinder on the Right Hand side.

Left hand Reverse-Facing door from outside, Pull Door to open. Hinges on the Right Hand side. Knob and Cylinder on the Left.
