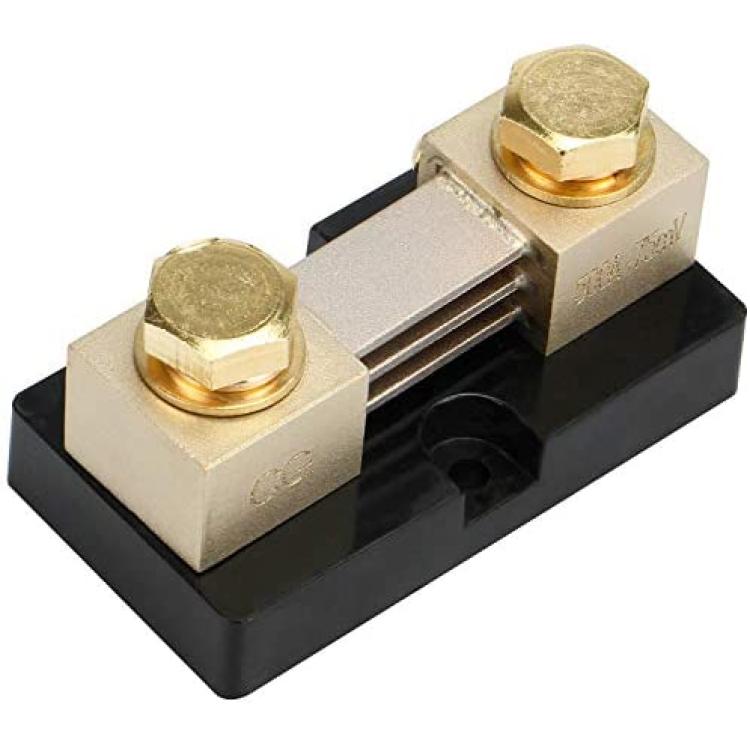

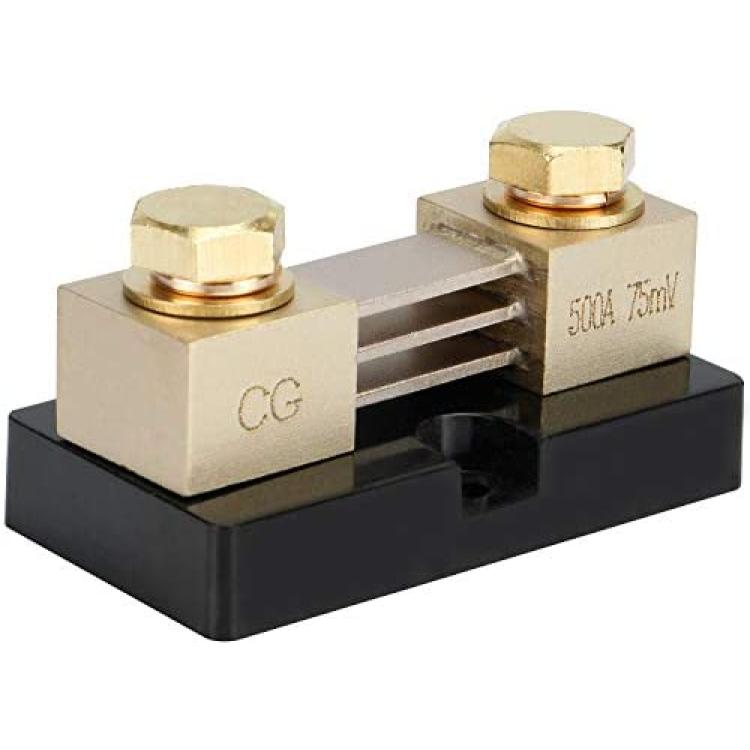

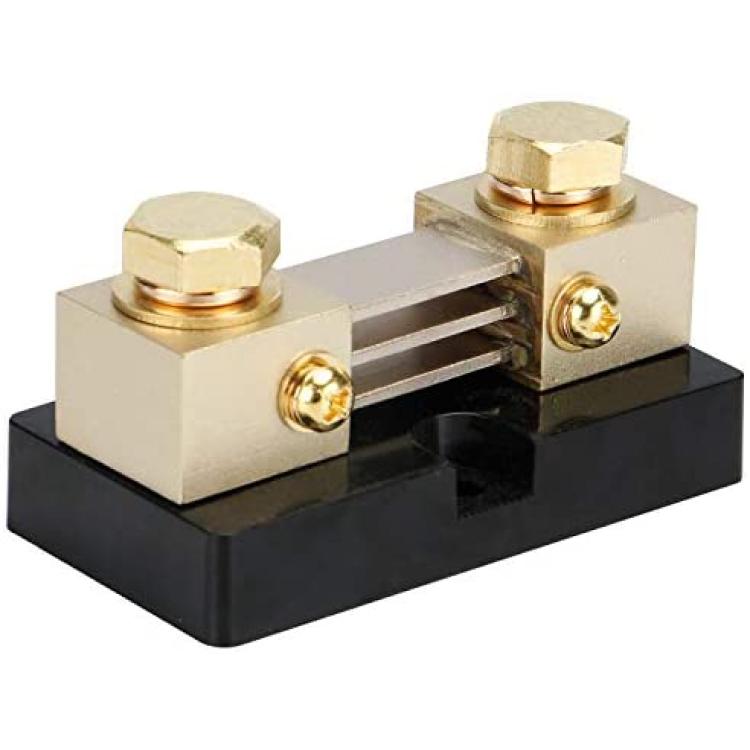

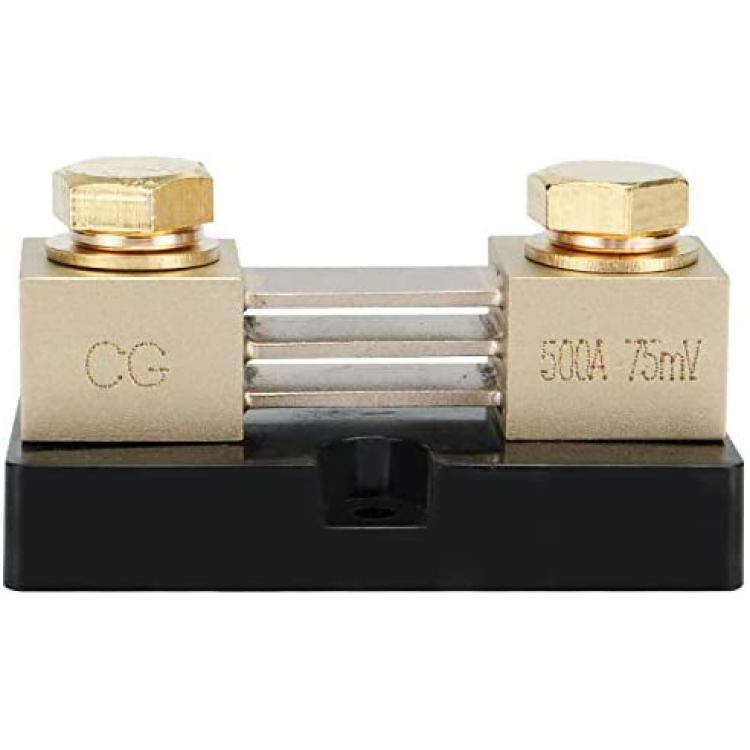

CG 500A 75mV Electrical Ammeter DC Current Shunt Resistor Kit,Metal Ampere Current Shunt,Copper DC Shunt Resistance Resistor Kit

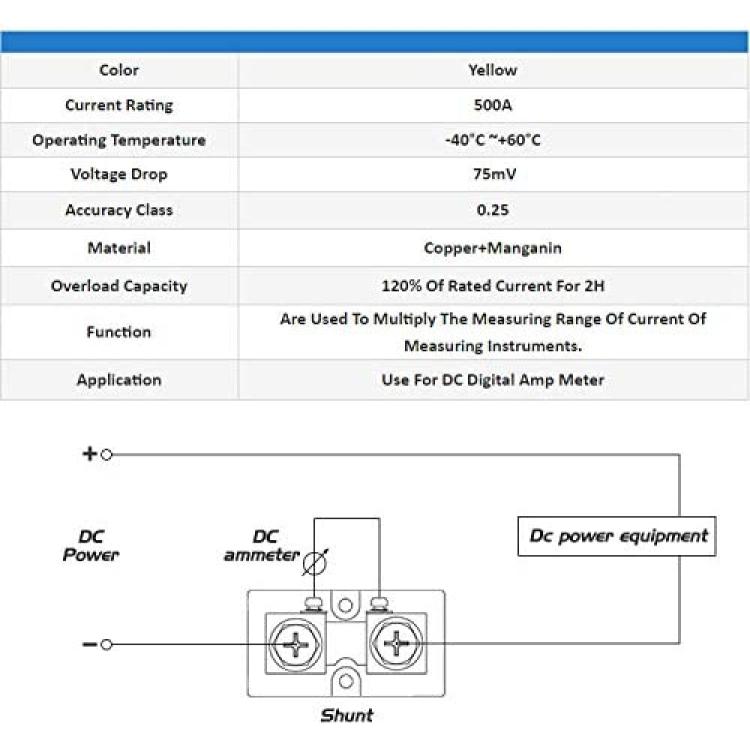

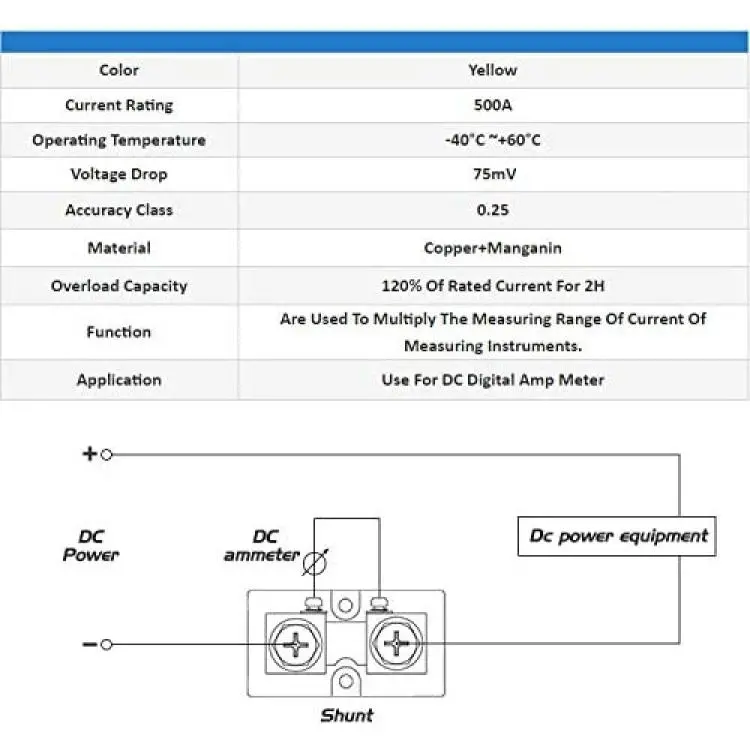

Product Parameters:
Product name:500A 75mV dc shunt
Voltage drop:75mV
Accuracy:+/- 0.25%
Operating Temperature:-40? to +60?
Material:Copper+Manganin
Relative humidity:less than or equal to 95% (35?)
Over-load ability:rated current 120%, 2 hours
Temperature rise with load:When the change of temperature tends to be stable
if rated current is below 50%, the temperature will be not higher than 80?;
if rated current is above 50%, the temperature will be not higher than 120?

Note:
It is not allowed to connect an artificial contact resistance between the primary circuit (or copper) and the connection of the shunt.
The secondary sampling point cannot be sampled form the non-sampling point.
It is not recommended that the practical used current over the 80% of rated current (for a long time).

Package Includes:
1*500A/75mV dc shunt
