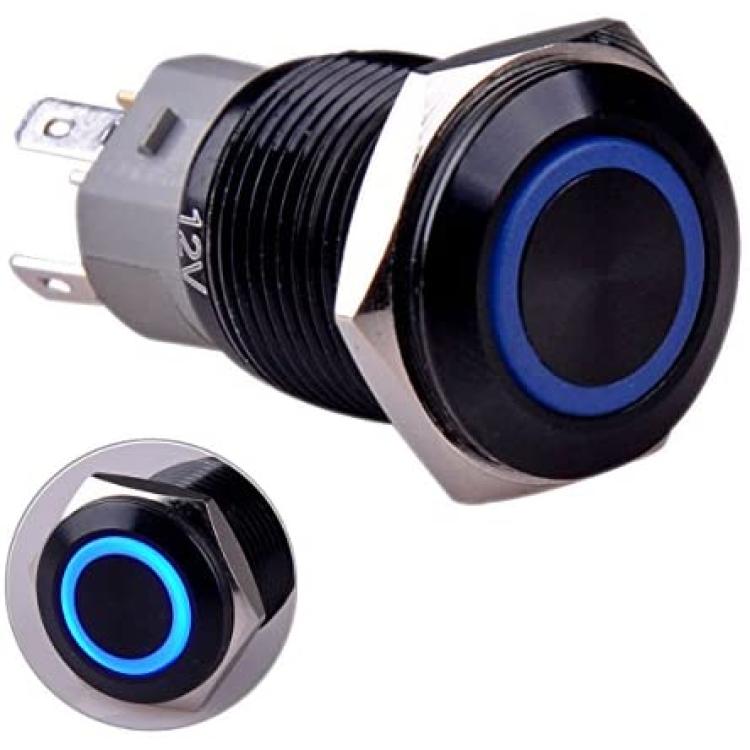

Taien Latching Pushbutton Switch for 16mm 5/8'' Mounting Hole ON/OFF Black Metal Shell with Blue LED Light
About this product
*Latching Type: Push it, ON; Push it again, OFF
*Easy to install,Screw clamp type terminals, dont need to solder,the installation method is easy to understand
*IP67 Waterproof & IK10 Protection: Rustproof, can be used in wet or dusty environment

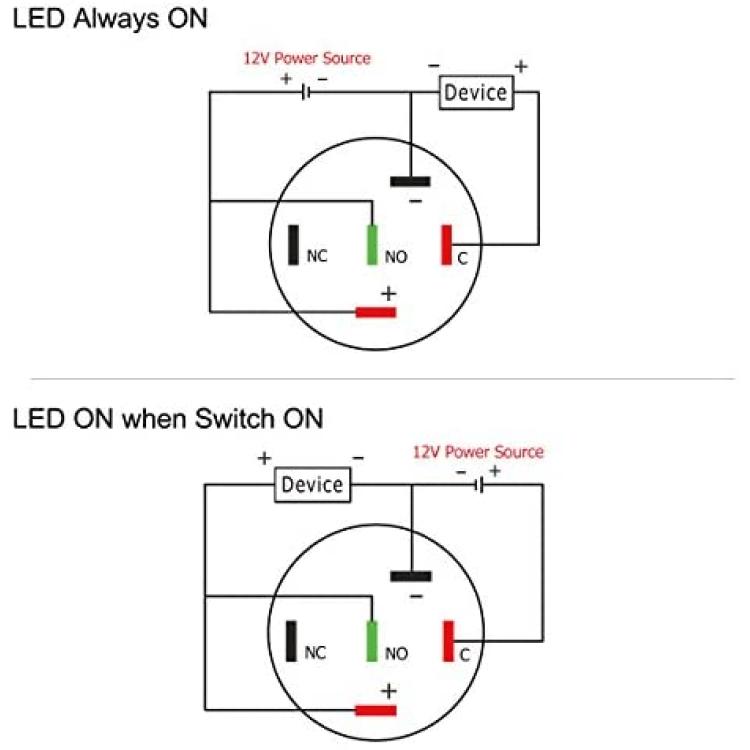

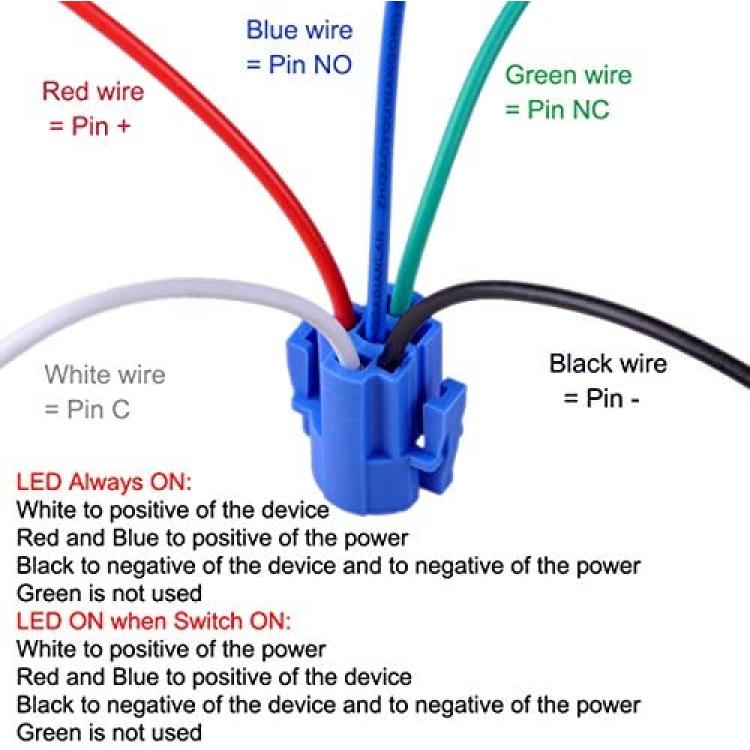

*The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it
*Great for electronmagnetic starter, relay, Horn Button Switch, PC Power Switch or any circuit controls on over 500,000 cycles
Description
Latching Switch:
Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and "unlatches".
Note:

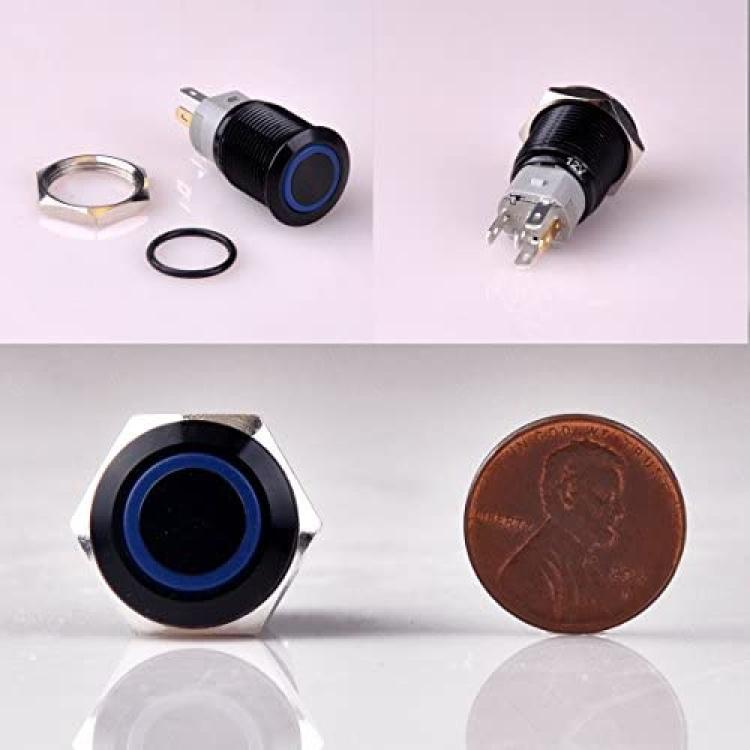

 These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.Â
 Main application:
 Furniture,hotel equipment,cleaning equipment,audio equipment,industrial equipment,lighting engineering,building models,access control system,car,motorcycle,balance electric scooter,computers,coffee machines,juicers etc.
 Customer Support:
 If you have any questions, please feel free to contact us.We will provide the best customer service and technical support.

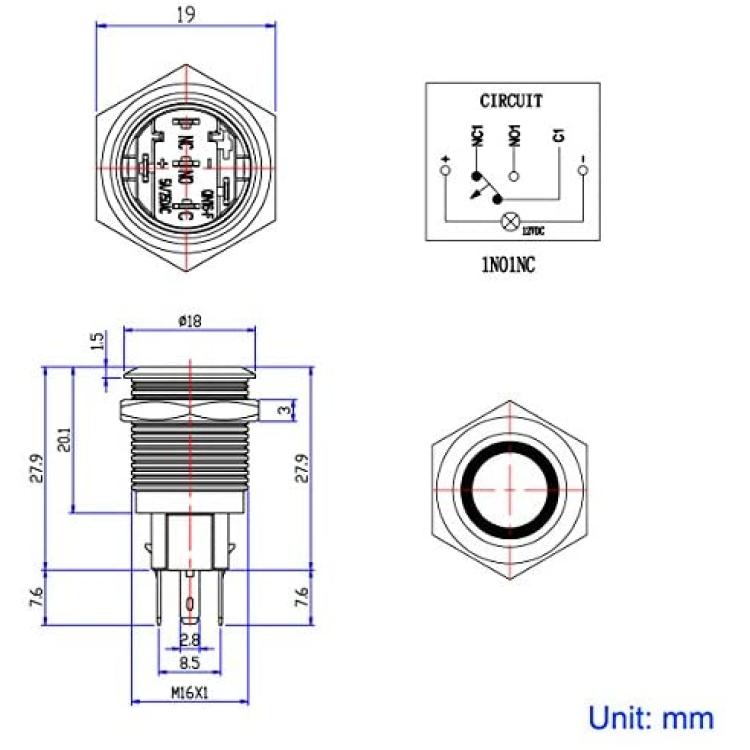

 Specifications:
 Head diameter: 3/4" ( 18mm )
 Button diameter: 0.36" ( 9mm )
 Mounting hole size: 5/8" ( 16mm )
 Depth inc contacts: 1.3" ( 34mm )
 Switch combination: 1NO1NC
 Operation types: Latching
 Switch rating: 5A/250VAC, 5A/30VDC
 LED rating: 15mA, AC/DC 12V
 LED color: Blue
 Head shape: Flat
 Enclosure material: Aluminium alloy
 Protection level: IP67, IK10
Package Include:Â
 1 * pushbutton switch

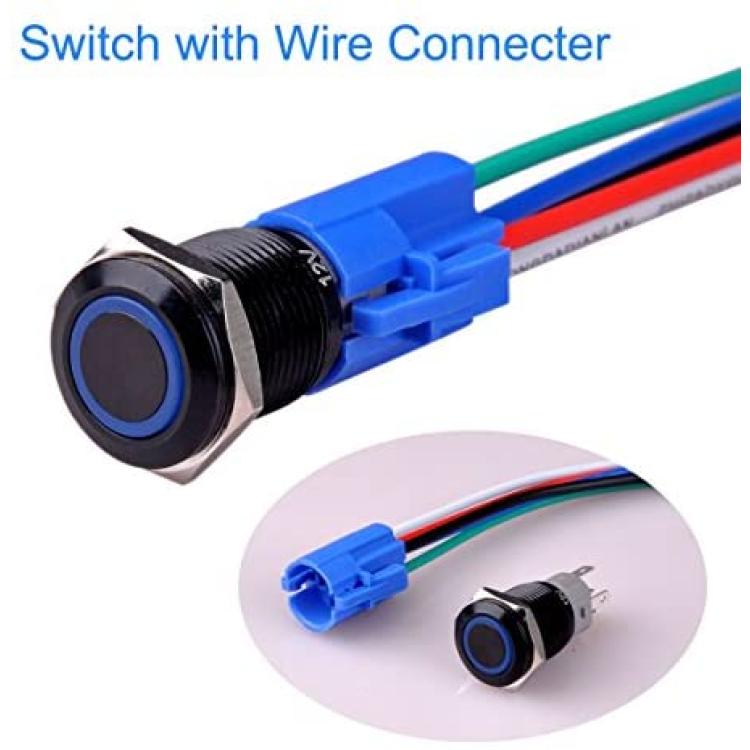

 1 * connector
