DaierTek 12mm ON/Off Latching Push Button Switch 12V Blue LED Light Metal SPST NO Maintained Type Waterproof for Car RV Boat Marine

About this product

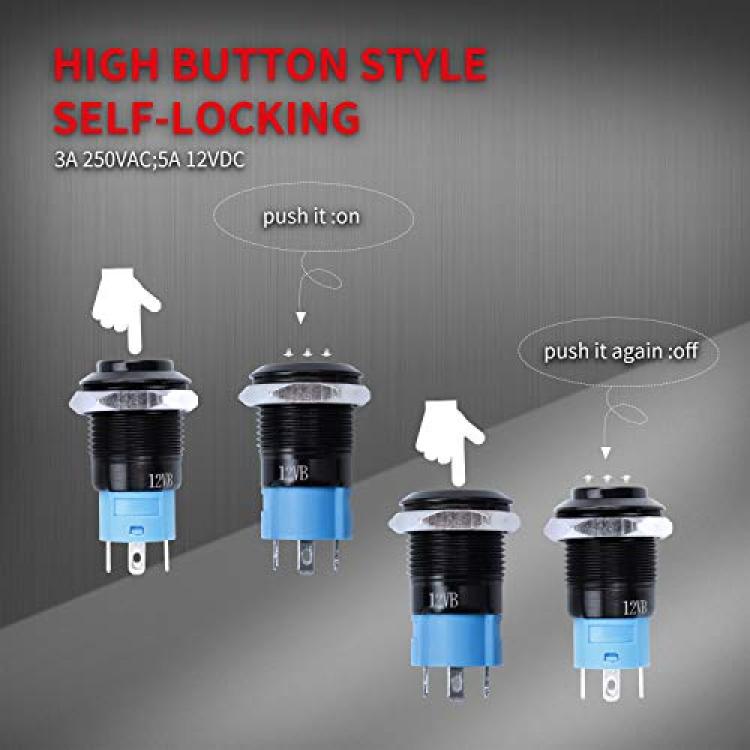

*Latching Push Button Switch: Press the button - POWER ON, Release your finger - Maintain POWER ON, Press the button again - POWER OFF. Its SPST Normal Open Self-Locking Pushbutton not Momentary.

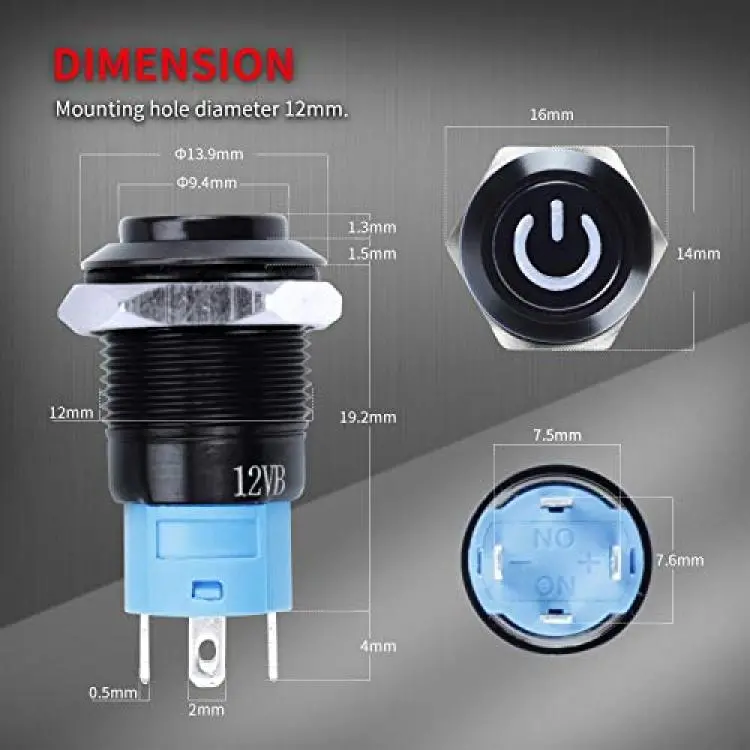

*12mm Panel Mounting Hole Size, Φ9.5mm dia. High Round shape Button with Power Symbol, and Φ13.8mm dia. Bezel. Aluminum anodized Black Metal Push Button switch.

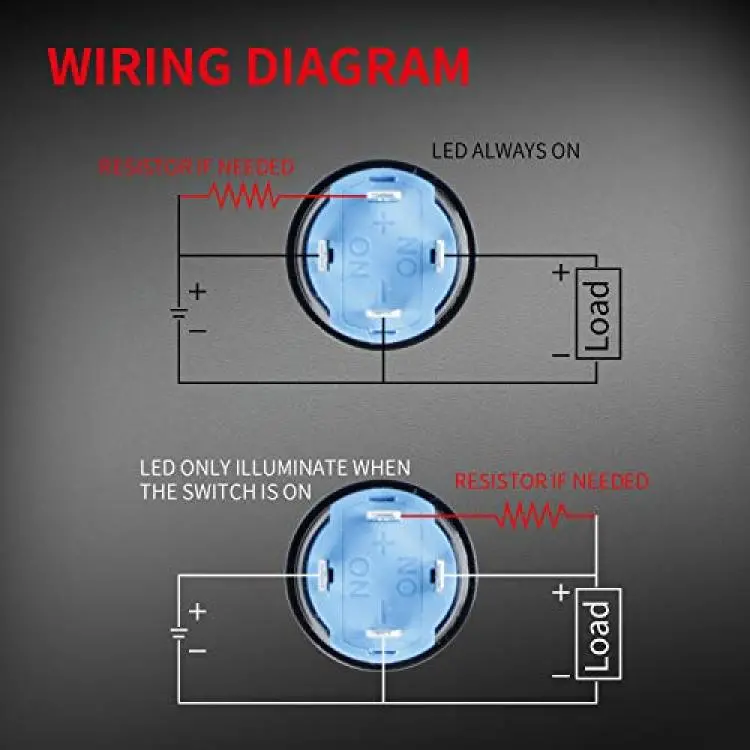

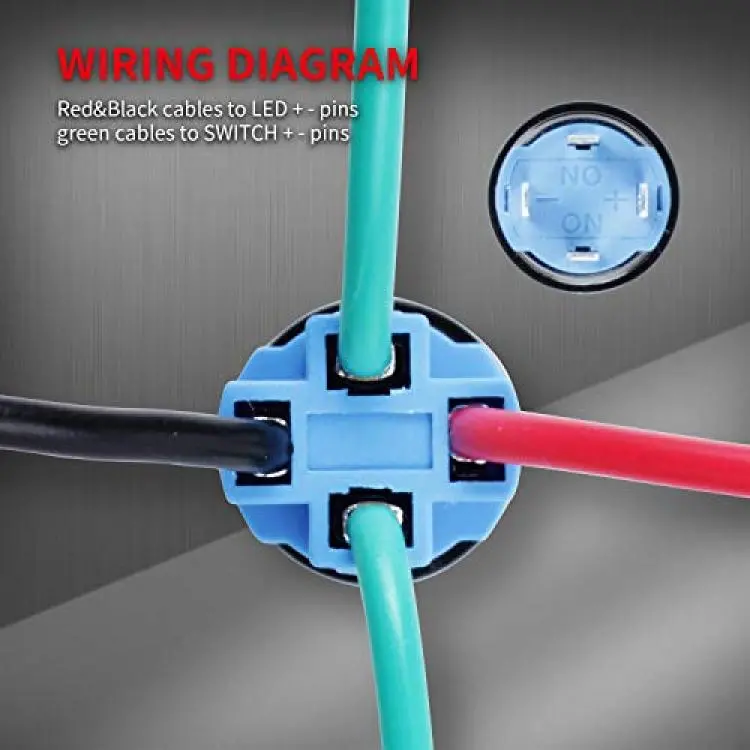

*The switch with Wire Harness for easier connection of circuit. Green wires for SWITCH+ and SWITCH-,RED and Black wires for LED (LED doesnt distinguish between positive and negative).

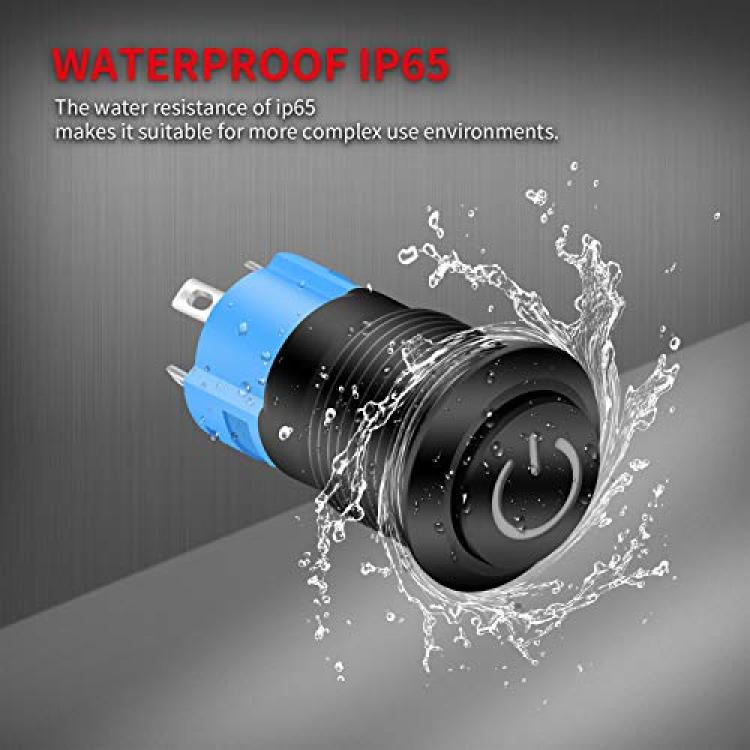

*IP65 waterproof sealed push button switch with 12 Volt BLUE LED Lighted (Also Can be used on 120V, just need to add a 120KΩ Resistor on one of LED pins), can be used in ourdoor, wet or dusty environment.

*Widely used to Control LEDs and Circuit,can be used on Car,RV,Boat,Marine,Vehicle,Auto,Truck,Househood,Coffee Machine,industrial equipment,Medical Equipment,...
