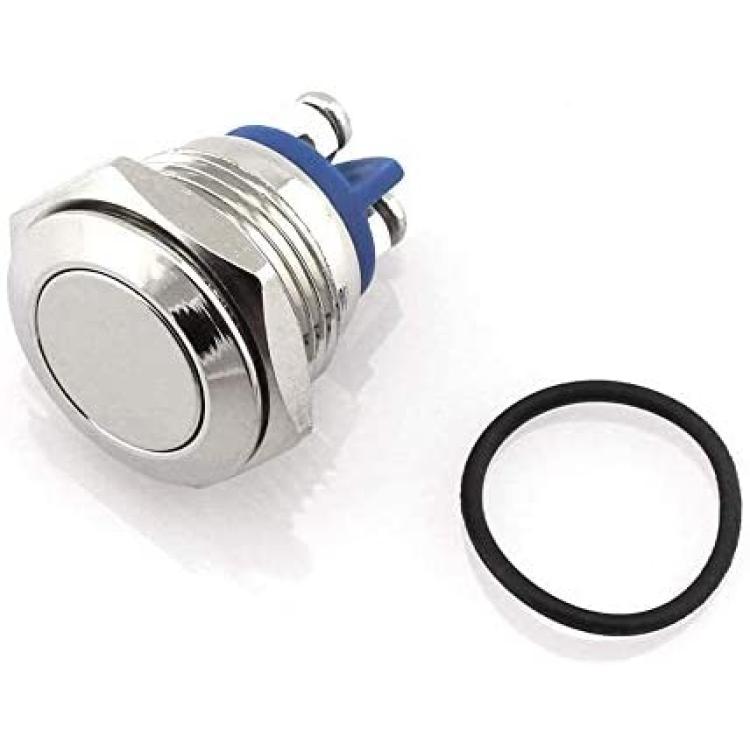

FICBOX 8pcs 16mm/0.63inch Metal Momentary Stainless Push Button Switch for Car RV Truck Boat
About this product

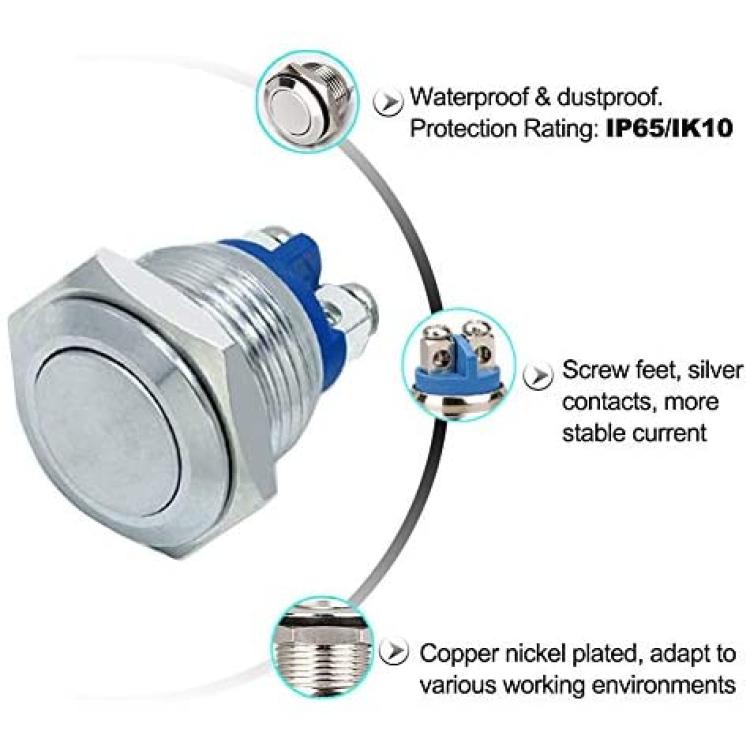

*Momentary Push Button Switch- Push & Hold ON, Release OFF. Easy to operate and use.
*Mounting Hole Size- 16mm/0.63inch,Max Switch Rating: 3A/250VAC;Terminal Type: Screw.
*Aluminium Alloy Shell- Durable for longer life time can up to 500,000 cycles.
*Easy to install - Round momentary switch with screw clamp type terminals to make fitting very easy.
*Wide Application- This 12V push button switch is suitable for almost any motorized vehicle of motor starting, power starting devices and can also be an access control button.
Description

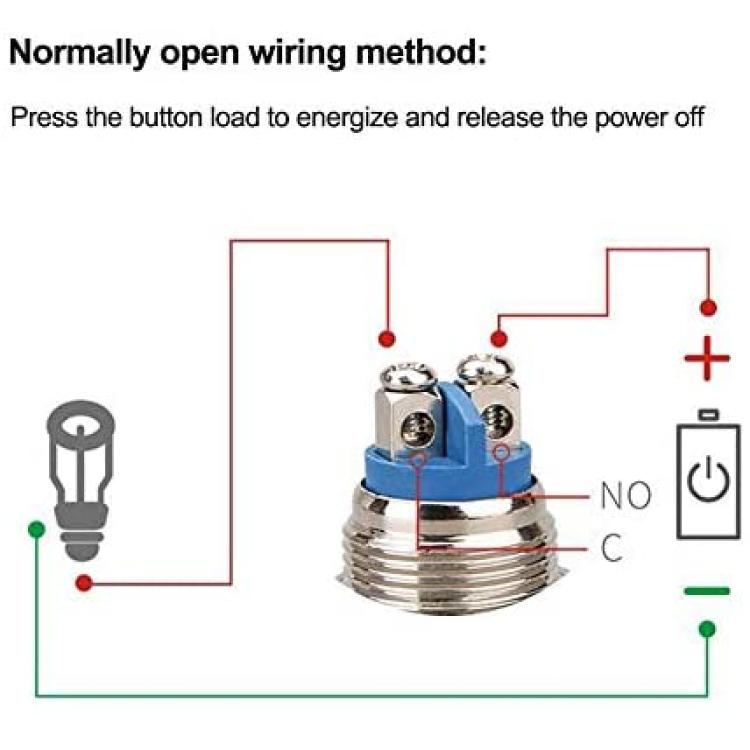

Note: this is Momentary switch, push it-- on, Release -- off
Specifications:
1.Button Material: Stainless Steel
2.Contact Material: Silver Plated Gold
3.Protection Rating: IP65/IK10
4.Operation Temperature: -20?~+70?
5.Panel Thickness: 1 - 6mm
6.Mechanical Life: 500,000 Cycles
7.Contact Resistance: ?50m?
8.Insulation Resistance: ?1000m?
9.Switch Combination: 1NO
10.Operation Type: Momentary
11.Mounting Hole Size: 16mm
Package Include:

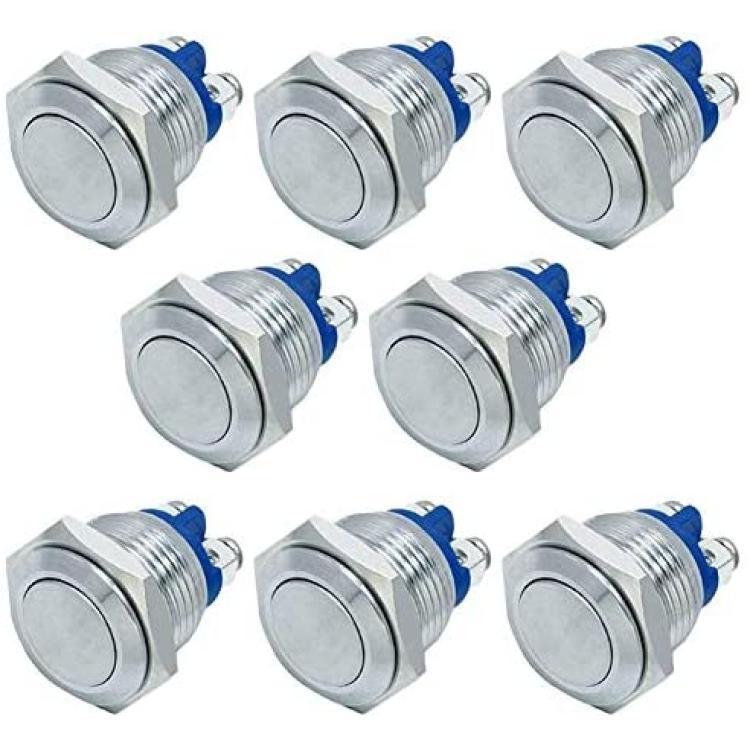

8x Metal 16mm Push Button Switch
