Moebius Metal Mecanum Omni Wheel Robot Car Kit with 4pcs DC 12V Speed Encoder Motor, 4WD Robot Platform Chassis Maximum Load 15KG for Arduino/ Raspberry Pi DIY STEM Educational Competition
Availability: Pre-Order, Inquiry Price
About this product

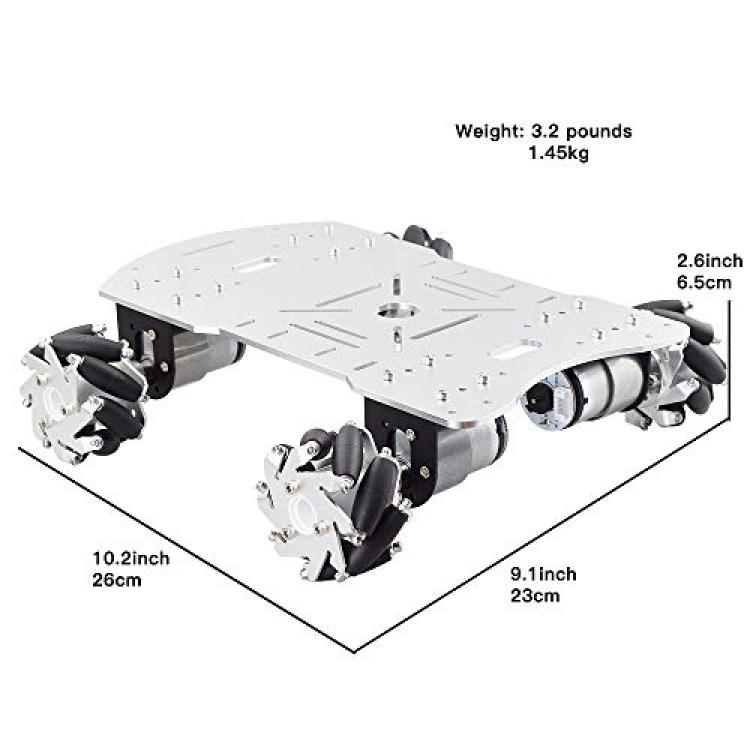

*The mecanum wheel car platform size: 10.24*9.06*2.56inch, aluminum alloy materials, which can load weight 6-15kg.

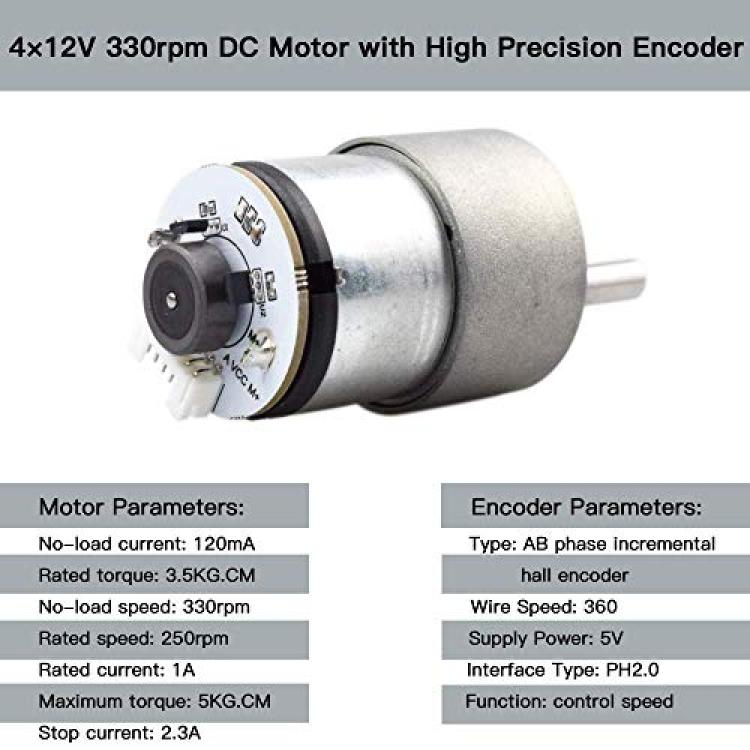

*4pcs DC 12V 330rpm motor are equipped with a speed feedback circuit and hall encoder. 4pcs motor offers higher power and speed.
*This mecanum wheel mobile robotics car can be made to move in any direction and turn by varying the direction of each wheel.
*We offer the source codes for mecanum wheel robot. Easy to assembled by yourself and easy to learn Arduino DIY STEM project.
*After adding our controller, You can learn more about how Mecanum Wheels work and how they can improve your robots maneuverability.
Description

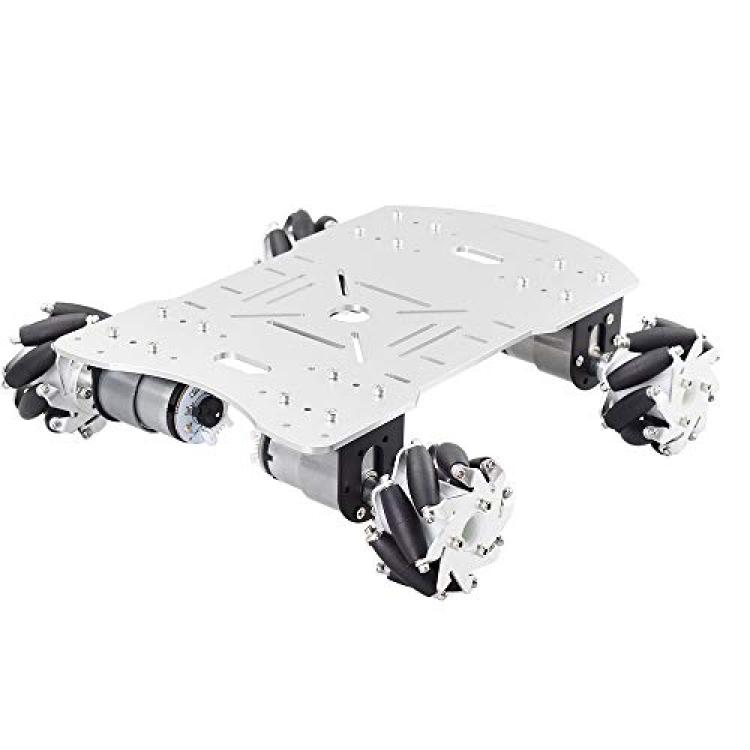

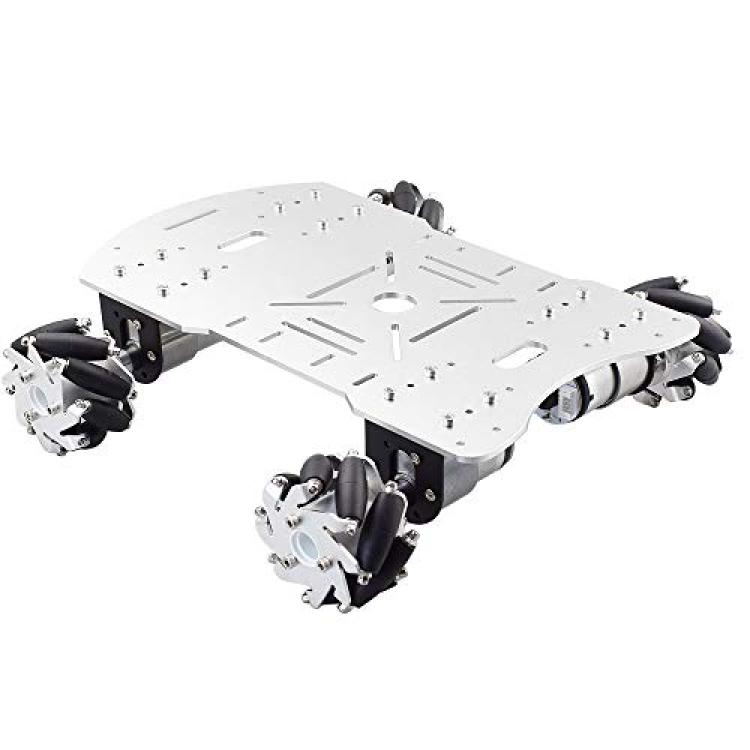

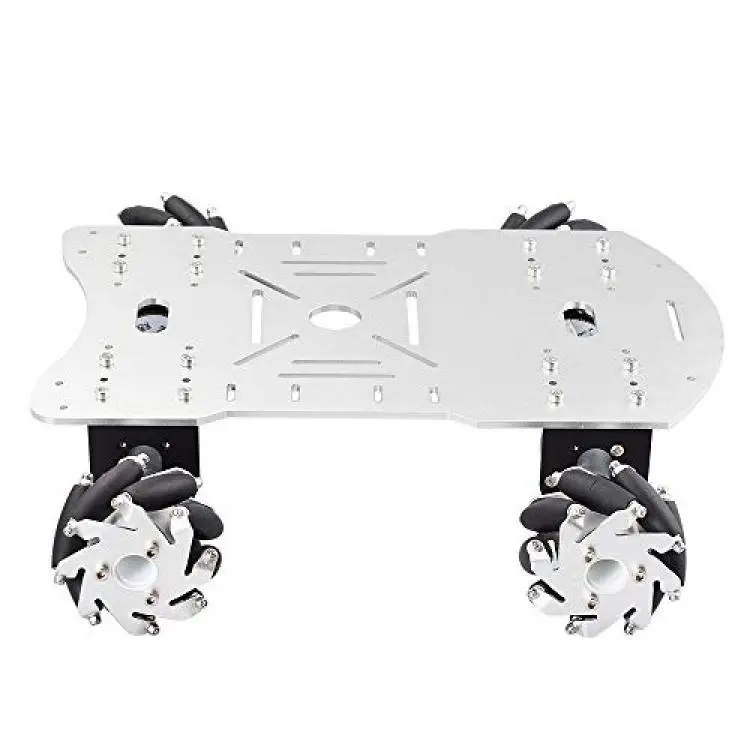

4WD 60mm Mecanum Wheel Car Learning Kit
This is a four wheel drive mobile learning kit designed for hobbyists, engineers, startups and students. It includes four 12V DC motors with speed encoder. It is programmable with the open source Arduino language. Its chassis is made of Aluminum-alloy and it has pre-drilled holes for microcontroller.
This Mecanum wheel mobile robotics car can be made to move in any direction and turn by varying the direction and speed of each wheel. Moving all four wheels in the same direction causes forward/backward movement, running left/right sides in opposite directions causes rotation, and running front and rear in opposite directions causes sideways movement.
Features
4 wheel drive
Mecanum Wheels
Aluminum alloy body
Easy to assemble
DC motors with speed encoder
Capable of moving forward, backward, sideway , rotation
Free source code
The mecanum wheel robot parameters
Load capacity: 15kg
Speed: 1.2m / s (meters per second)
Turning radius: 0m
Mecanum wheel material: aluminum alloy
Base material: 3mm aluminum alloy
Motor power: 7W
Motor rated voltage: 12V
Reduction ratio: 1:30
Mecanum wheel robot kit weight: ?3.2pounds

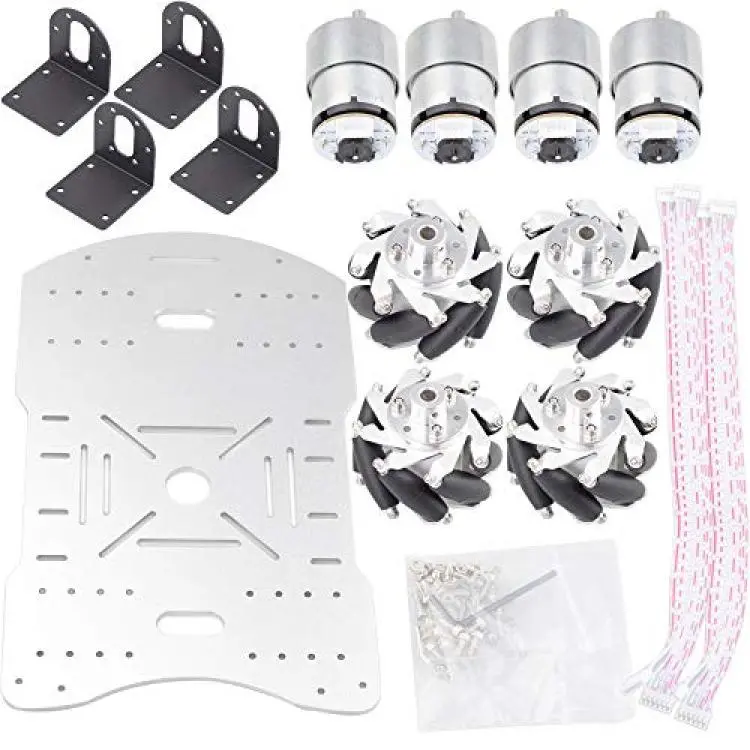

What’s in the Box
1x Aluminum Alloy Frame
4 x 60mm Aluminum Mecanum wheels
4 x 12V DC motors with encoder
4pcs motor brackets
screws
Note
Not included any controller and battery.
