AGFRC 55KG Digital Steering Servo High Torque Programmable Full Metal Gear Brushless Servo for 1/8 1/10 RC Models, Control Angle 180° (A86BHM(Red)&AGF-SPV2)
Product Code: MPM17334
Availability: Pre-Order, Inquiry Price
About this product
*【UPGRADE&PROGAMMABLE】This upgrade high torque servo is programmable by the AGF-SPV2 servo programmer to change the torque, speed, angle, etc. The AGF-SPv2 only can be used for AGFRC servo with ASS or PROGAMMABLE mark. Please read the instructions carefully before use.
*【HIGH PRECISION&MONSTER TORQUE】Stable, low noise, waterproof splash design, dust-proof, advanced linearity and accuracy. The maximum torque of this steering servo is up to 55kg/cm (764oz-in) @8.4V and speed up to 0.110sec/60°@8.4V. Size: 40*20*41.5mm(1.57*0.79*1.63in)
*【APPLICATION&180 DEGREE ROTATION】AGFRC RC steering digital servo motor uses high-precision production technology to reduce production deviation and improve product tightness, ideal for 1/8 1/10 Buggy /Monster Trucks/RC car/boat/plane/helicopter/robot. The default angle is 180 degrees. after programming, it can be reduced or increased. Also can be set to winch servo, full rotation servo, high torque servo, and high speed servo, etc.
*【HIGH QUALITY&PERFORMANCE】Standard 55KG high torque servo equipped with patent reinforced steel gear with PINS, three ball bearing, full Aluminium housing with groove surface for fast heat dissipation, accuracy with precision potentiometer.
*【SATISFIED CUSTOMER SERVICE】Please read the detail description of this RC car brushless 12V servo motor first, if any ideas about our high torque digital servo, contact us first & We will provide you a better solution, and make you satisfied.
Description

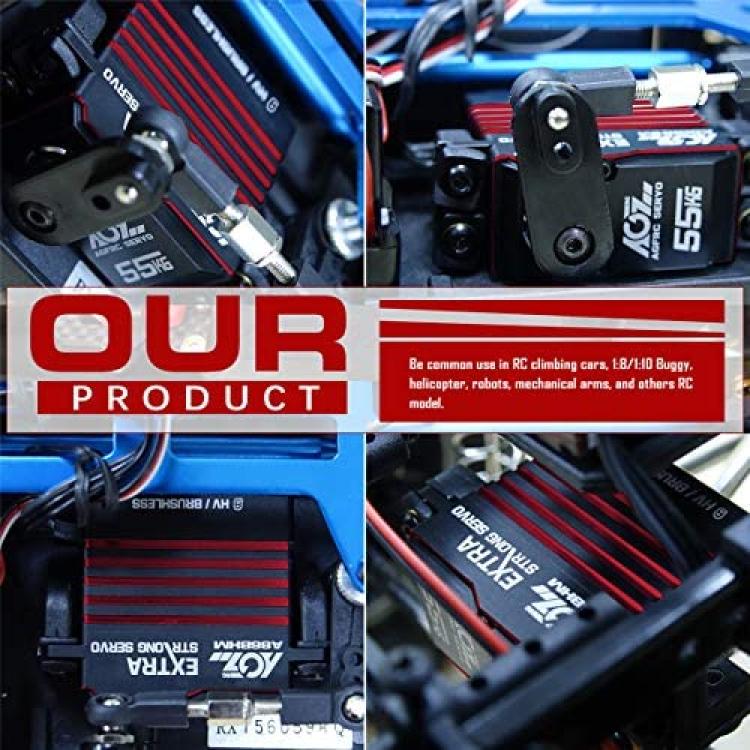

AGFRC monster torque servo can be common use in RC climbing cars, 1:8/1:10 Buggy, RC boat, helicopter, robots, mechanical arms, and others RC model.
Good choice for the RC model enthusiasts who love DIY, and university professor or student who are interested in developing software for robot parts.
Features
1.Programmable by the AGF-SPv2 servo programmer to change the torque, speed, angle, etc.Â
2.The whole case is made of Aluminium, and it adopts AGFRC patented strengthen stainless steel gear.
3.Unique groove surface design for fast heat dissipation of waterproof servo, 55kg high torque, strong compatibility and sensitive response, etc..
4.IP67 waterproof design and waterproof rubber seals screws.
Stall Torque
35Â kg-cm (486 oz-in) @ 4.8V
40Â kg-cm (556 oz-in) @ 6.0V
49Â kg-cm (681 oz-in) @ 7.4V
55Â kg-cm (764 oz-in) @ 8.4V
Operating Speed
0.175sec/60° @ 4.8V
0.142sec/60° @ 6.0V
0.125sec/60° @ 7.4V
0.110sec/60° @ 8.4V

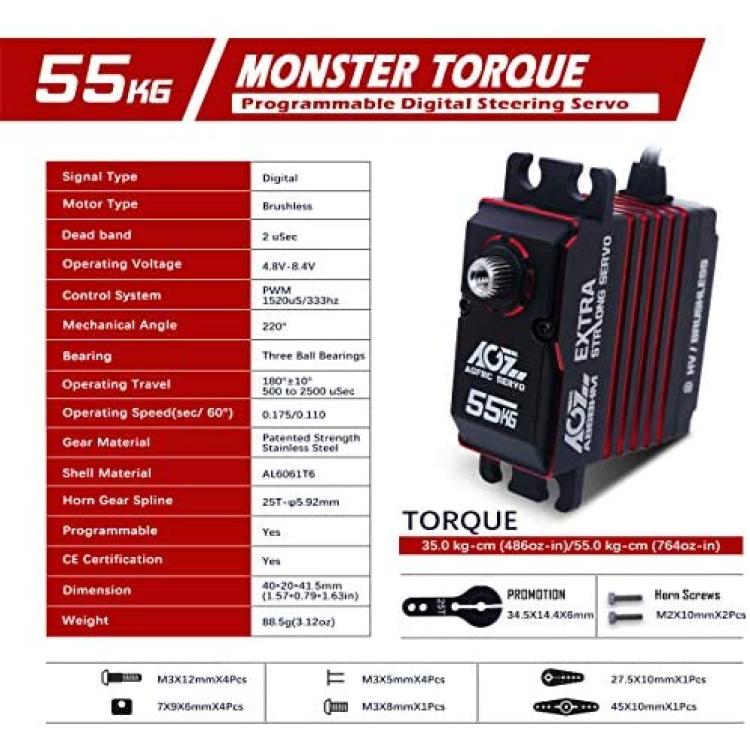

Specification
Brand: AGFRC
Control System: PWM, 1520uS/333hz
Operating Voltage: 4.8V ~ 8.4V
Dead band: 2 uSec
Mechanical Angle: 220°
Operating Travel: 180°±10°, 500 to 2500 uSec
Horn Gear Spline: 25T-?5.92mm
Bearing: 3BB
Case Material: Aluminium6061T6

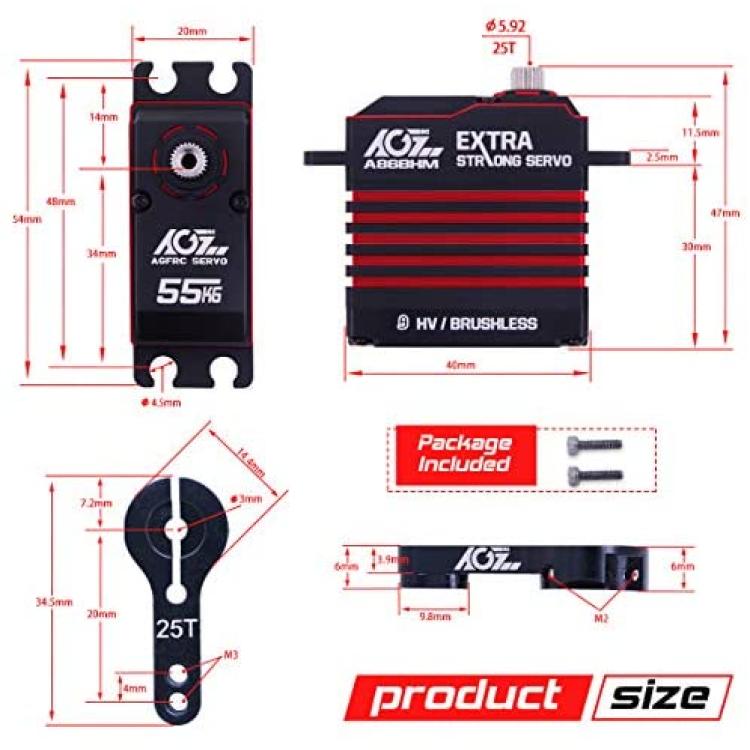

Size: 40*20*41.5mm(1.57*0.79*1.63in)
CE Certification: Yes
Weight: 88.5g

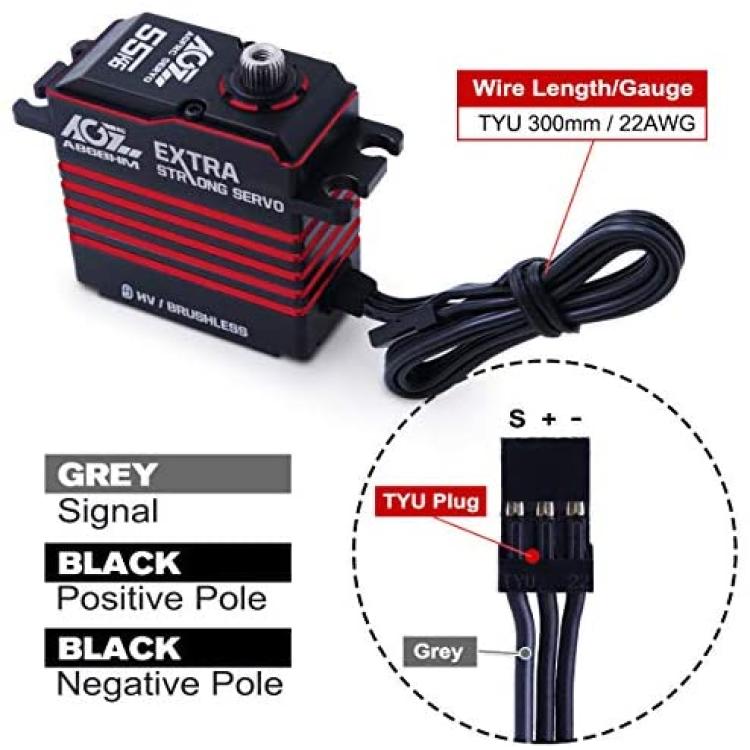

Wire: TYU 300mm/22AWG
Package Included

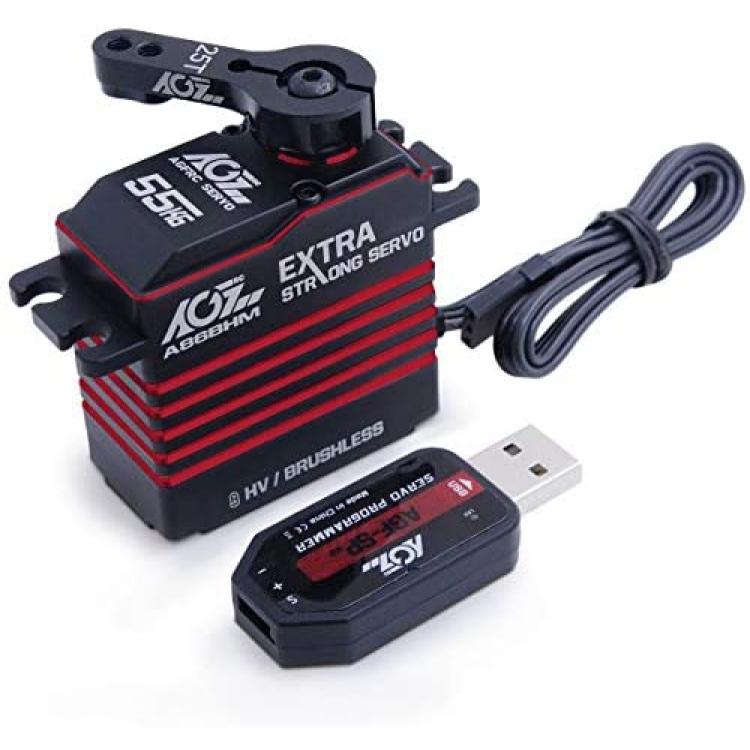

1 x AGFRC A86BHM Programmable Servo
1 x USB AGF-SPv2 Servo Programmer
1 x 25T Black Metal Servo Horn
2 x 25T Plastic Servo Horn
