AGFrc 36KG IP67 Waterproof Steering Servo High Torque Programmable Full Metal Gear Digital Brushless Servo for 1/10 RC Models, Control Angle 180° (A80BHSW&AGF-SPV2)
Product Code: MPM18914
Availability: Pre-Order, Inquiry Price
About this product
*【UPGRADE&PROGAMMABLE】this upgrade high torque servo is programmable by the AGF-SPV2 servo programmer to change the torque, speed, angle, etc. The AGF-SPv2 only can be used for AGFrc servo with ASS mark. Please read the instructions carefully before use. Software (download required), and download link is on the cover.
*【WATERPROOF DESIGN】AGFrc RC steering digital servo motor uses high-precision production technology to reduce production deviation and improve product tightness, used IP67 super Waterproof design, Ideal for 1/10 Buggy /Monster Trucks/RC car/ boat/plane/helicopter/robot.
*【HIGH QUALITY&PERFORMANCE】Standard 36KG Waterproof high torque servo equipped with patent reinforced steel gear with PINS, full Aluminium housing, three ball bearing, using magnetic angular position Sensor, which is low power consumption and can instantaneous angle sensing.
*【HIGH PRECISION&TORQUE】Advanced linearity and accuracy, stable, low noise, waterproof, dust-proof. The maximum torque of this steering servo for RC car is up to 36 kg/cm (500 oz/in) and speed up to 0.071sec/60°@8.4V.
*【SATISFIED CUSTOMER SERVICE】Please read the detail description of this RC car brushless high speed HV servo motor first, if any ideas about our high torque digital servo, contact us first & We will provide you a better solution, and make you satisfied.
Description
AGFrc high quality digital standard servo can be common use in remote control climbing cars, 1:10 Buggy, RC boat, helicopter, robots, mechanical arms, and others remote control toys.
The main features of high speed servo are fast heat dissipation, large torque, strong compatibility and sensitive response, etc.
Good idear for the remote control toy enthusiasts who want to DIY their RC toy, and also good choice for university professors and students who are interested in developing software for robot parts. It’s also a good choice for some of the industrial device applications.
Features:
1.Upgraded Version, this servo is programmable by the AGF-SPv2 servo programmer to change the torque, speed, angle, etc.Â

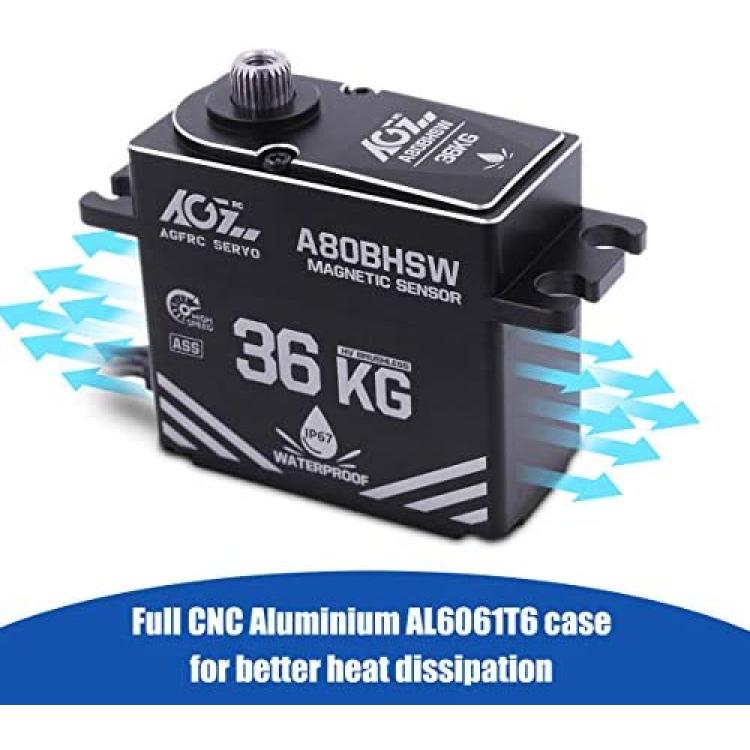

2.The whole case is made of full CNC aluminium, and it adopts AGFrc patented strengthen stainless steel gear.
3.Contactless magnet angle sensor for a longer using life.
4.IP67 waterproof design and waterproof rubber seals screws.
Stall Torque:
23 kg/cm (320 oz-in)@5.0V
28 kg/cm (389 oz-in)@6.0V
33 kg/cm (459 oz-in)@7.4V
36 kg/cm (500 oz-in)@8.4V
Operating Speed:
0.120sec/60°@5.0V
0.100sec/60°@6.0V
0.083sec/60°@7.4V
0.071sec/60°@8.4V

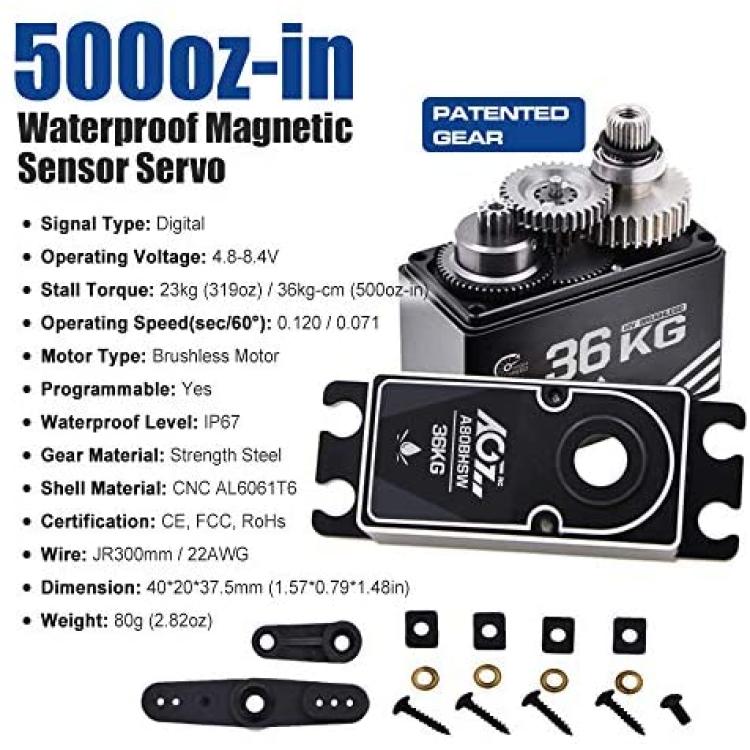

Specification:
Brand: AGFrc
Control System: PWM, 1520uS/333hz
Waterproof Level: IP67
Dead band: 2 uSec
Limit Angle: No limit

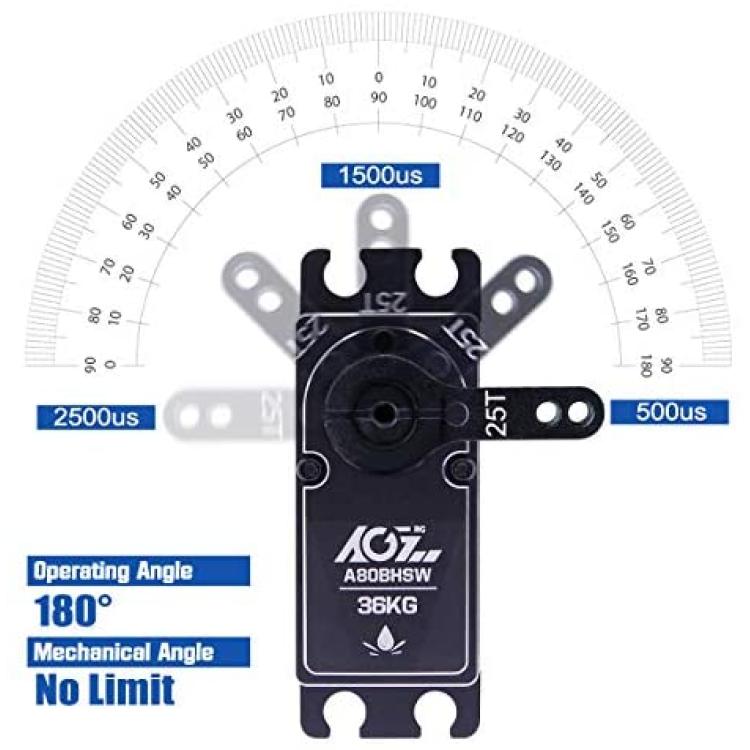

Operating Travel: 180°±10 °, 500 to 2500 uSec
Horn Gear Spline: 25T-?5.92mm
Bearing: Three Ball Bearing
Case Material: Aluminium

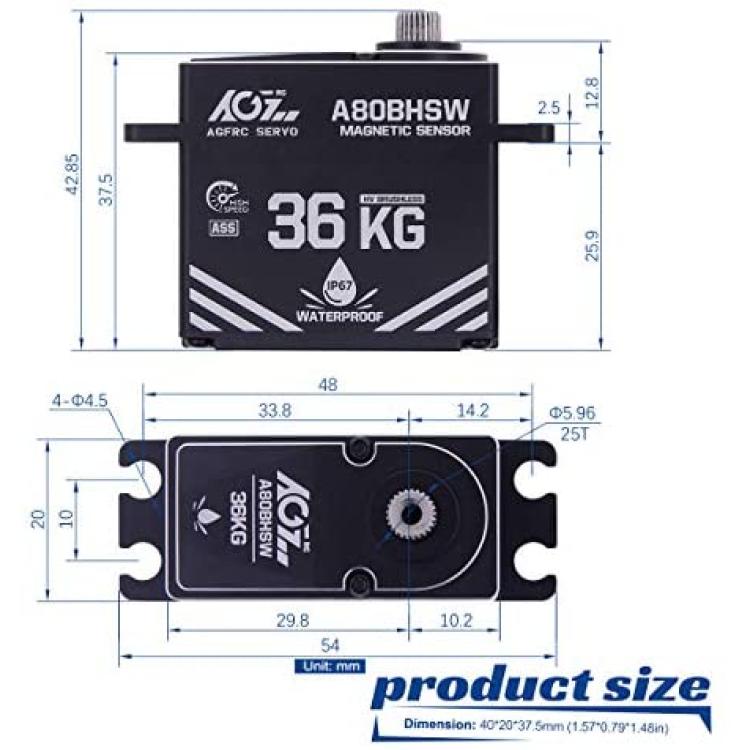

Size: 40*20*37.5mm
CE Certification: Yes
Weight: 79g
Wire: JR 300mm /22AWG
Package included:

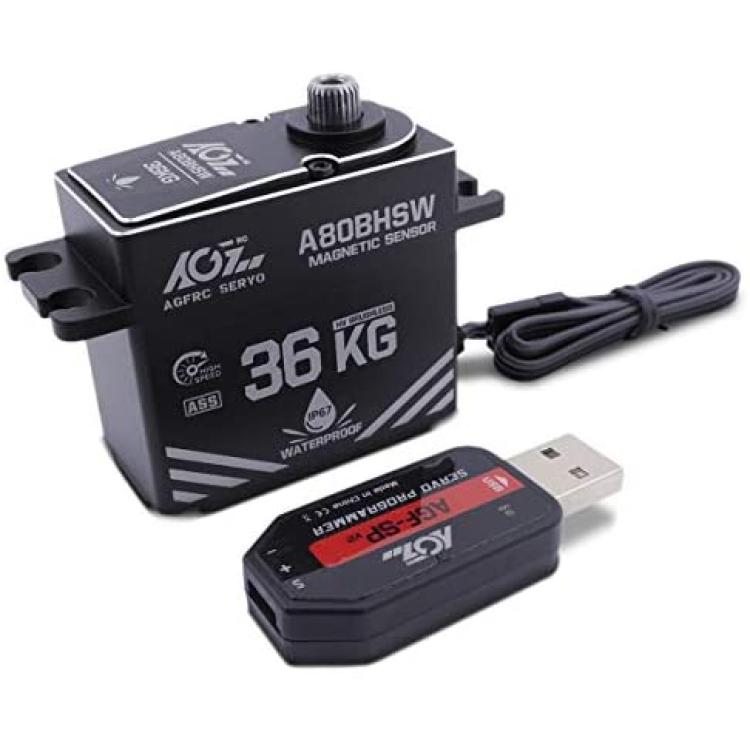

1 x AGFrc A80BHSW digital programmable servo

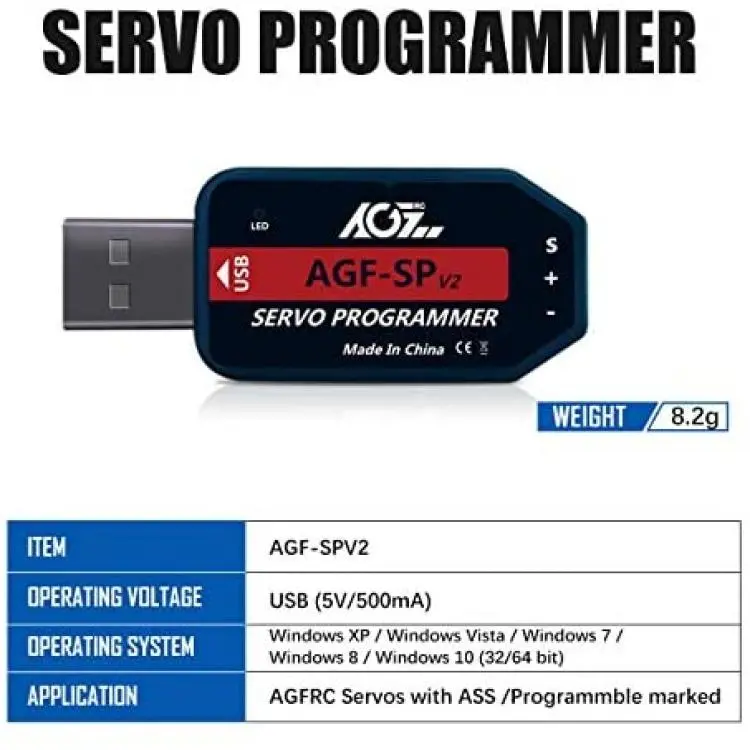

1 x USB AGF-SPv2 servo programmer
2 x Adjustable plastic servo arm
